Introduction to ISC TEM
This guide contains a detailed description of the Cisco IP Solution Center Traffic Engineering Management (ISC TEM) product, including the various features, the GUI, and the step-by-step processes needed to perform various traffic engineering management tasks.
This chapter contains the following sections:
•
Prerequisites and Limitations
–
–
ISC TEM Overview
ISC TEM is the Traffic Engineering Management module of IP Solution Center. It is a tool for managing Multiprotocol Label Switching Traffic Engineering (MPLS TE) primary tunnels and backup tunnels for the purpose of offering traffic Service Level Agreement (SLA) guarantees. It provides bandwidth protection management, network discovery, and support for configuring MPLS TE. It includes a number of powerful planning tools, including a sophisticated primary path calculation tool and backup tunnel calculation for element protection.
MPLS TE mechanisms are provided to support requirements for predictability, traffic flow matched to QoS requirements, and Fast Restoration with Guaranteed Bandwidth, ensuring that strict SLA performance criteria (availability, delay, jitter) are met.
Features in ISC TEM
ISC TEM adds a range of MPLS TE primary tunnel management features:
•
•
•
•
In addition, ISC TEM offers interaction and integration with ISC features:
•
•
•
•
•
•
•
•
Prerequisites and Limitations
See Cisco IP Solution Center Installation Guide for general system recommendations.
A number of requirements are associated with the TE Discovery task. These are described in TE Discovery Prerequisites.
Some features might only be available with a particular license. For more information, see Licensing Schemes.
The number of nodes provided by the license limits the size of the network.
In the Planning portion of the current implementation of ISC TEM, concurrent use is not recommended as users working simultaneously risk being unable to commit their changes.
ISC TEM Topology and Java Webstart requires JRE version 1.4.2_04.
Supported Platforms
For supported IOS platforms, see Cisco IP Solution Center Installation Guide.
Supported hardware platforms:
•
•
•
Licensing Schemes
The ISC TEM installation comes with three types of licenses, TE, TE/RG, and TE/BRG, that gives access to all ISC TEM features, including Planning Tools for protection planning (backup tunnels).
The licensing for the TE license is based specifically on the scale of the MPLS-TE network, that is the number of nodes.
Ranges are as follows:
•
•
•
•
For a larger number of nodes, please contact your Cisco sales representative.
ISC TEM Basics
To understand how ISC TEM works, certain key concepts must be explained.
Managed/Unmanaged Primary Tunnels
In ISC TEM, the concept of managed tunnels is at the center of TE planning activities.
It is important to understand the differences:
•
–
–
–
–
•
In the ISC TEM Graphical User Interface (GUI), there is a separate entry point for dealing with managed and unmanaged tunnels. The GUIs are very similar and the differences are described in Create Unmanaged TE Tunnel.
Conformant/Non-Conformant Tunnels
In the ISC TEM design, a sharp distinction has been made between conformant and non-conformant tunnels:
•
•
Conformant tunnels are preferred. They allow the system to offer bandwidth guarantees for managed tunnels. Unmanaged non-conformant tunnels might or might not provide the needed bandwidth and no bandwidth guarantees are given.
Non-conformant tunnels introduce factors that might not be accounted for during planning, which makes it difficult to offer bandwidth guarantees for managed tunnels. They represent an obstacle to meeting strict SLA guarantees due to their potential for impacting critical traffic on managed tunnels.
ISC TEM only allows the creation of conformant tunnels. Non-conformant tunnels can be introduced through the TE Discovery process (see "TE Network Discovery"). However, when a non-conformant tunnel is discovered a warning is logged. ISC TEM tracks non-conformant tunnels so that they can be decommissioned.
Bandwidth Pools
The bandwidth of each TE enabled interface is assigned a number of nested bandwidth pools. Currently, IOS supports two, namely Global Pool and Sub Pool.
For a better understanding of bandwidth pools, see Figure 1-1.

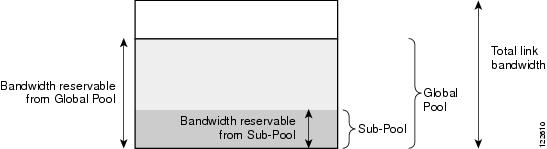

Figure 1-1 Bandwidth Pools
As Figure 1-1 illustrates, Sub Pool is nested inside Global Pool. Thus, if a primary tunnel reserves bandwidth from the Sub Pool, it will also reserve the same bandwidth from the Global Pool.
Bandwidth reservations (primary tunnels) from the Sub Pool must not exceed, in total, the Sub Pool size. Likewise, bandwidth reservations from the Global Pool must not exceed, in total, the Global Pool size.
Planning Tools
They are intended for evaluating planned improvements to a traffic-engineered network based on What-If scenarios .
The planning tools include the following features:
•
–
–
–
–
•
–
–
–
The planning tools are fully integrated within ISC TEM and are available from various locations within the GUI:
•
•
•
•
Process Flows

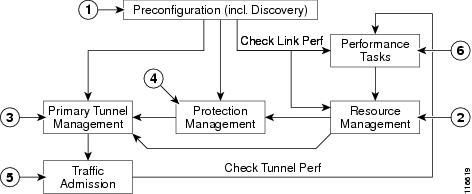

The following illustration shows the main components and flows in ISC TEM.
Figure 1-2 Main Process Flows in TEM
The illustration includes the following components:
•
•
•
•
•
•
