Call Restriction Regulations

First Published: October 7, 2009

This module describes the logical partitioning class of restriction (LPCOR) feature in Cisco Unified Communications Manager Express (Cisco Unified CME).

Finding Feature Information

Your software release may not support all the features documented in this module. For the latest feature information and caveats, see the release notes for your platform and software release. To find information about the features documented in this module, and to see a list of the releases in which each feature is supported, see the "Feature Information for LPCOR" section.

Use Cisco Feature Navigator to find information about platform support and Cisco IOS and Catalyst OS software image support. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Contents

•Prerequisites for LPCOR

•Information About LPCOR

•How to Configure LPCOR

•Configuration Examples for LPCOR

•Additional References

•Feature Information for LPCOR

Prerequisites for LPCOR

•Cisco IOS Release 15.0(1)XA or a later release.

•Cisco Unified CME 8.0 or a later version.

Information About LPCOR

To configure the LPCOR feature, you should understand the following concepts:

•LPCOR Overview

•LPCOR Policy and Resource Groups

•How LPCOR Policies are Associated with Resource Groups

•LPCOR Support for Supplementary Services

•Phone Display and Warning Tone for LPCOR

•LPCOR VSAs

LPCOR Overview

The Telecom Regulatory Authority of India (TRAI) has regulations that restrict the mixing of voice traffic between the PSTN and VoIP networks. Previously, this required a user to have two phones to handle both PSTN and VoIP calls; an IP phone connected to the Electronic Private Automatic Branch Exchange (EPABX) for intra-office and inter-office VoIP calls and a separate phone connected to a PABX for PSTN calls, as shown in Figure 8.

New regulations allow for a single network infrastructure and single EPABX to connect to both the PSTN and VoIP networks by using a logical partitioning between the PSTN and IP leased lines.

The logical partitioning class of restriction (LPCOR) feature enables a single directory number on an IP phone or analog phone registered to Cisco Unified CME to connect to both PSTN and VoIP calls according to the connection restrictions specified by TRAI regulations. Cisco Unified CME can support both VoIP and PSTN calls while restricting the mixing of voice traffic between the PSTN and VoIP networks and preventing PSTN calls from connecting to remote locations over an IP trunk, as shown in Figure 9.

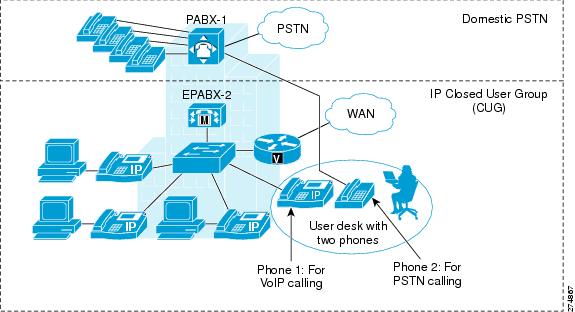

Figure 8 Separate PBX and EPABX Systems

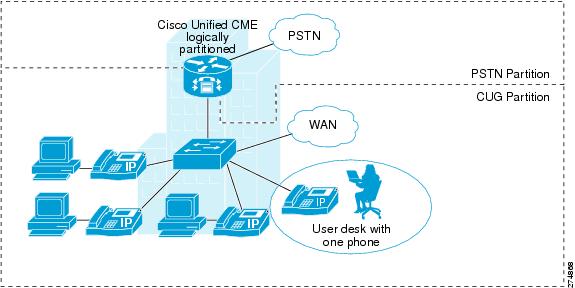

Figure 9 Single EPAPX System with PSTN and VoIP Calls Partitioning

LPCOR Policy and Resource Groups

Cisco Unified CME supports a high-level class of restriction by allowing you to logically partition its resources (PSTN trunks, IP trunks, IP phones, and analog phones) into different groups. The resources of each group are scalable based on the voice interface, trunk group, or IP address subnet. In general, you should not have to modify your existing dial plan to support LPCOR functionality. The dial peer class of restriction (COR) feature remains unchanged when the LPCOR feature is added to Cisco Unified CME.

LPCOR control is based on the location of resources, where calls are originating and terminating. You must partition the resources of the Cisco Unified CME router into different resource groups and then create a LPCOR policy for each group to which you want to apply call restrictions.

You create a LPCOR policy matrix for individual resource groups by defining its LPCOR policy to either accept or reject calls that originate from any of the other resource groups. You can define one LPCOR policy for each resource group.

The same LPCOR policy is applied to multiple directory numbers from the same resource. For example, if multiple directory numbers are defined for a SCCP phone, the same LPCOR policy is enforced for all calls to the different directory numbers on the SCCP phone.

In the following example, PSTN trunks, IP trunks (H.323 and SIP), analog FXS phones, and IP phones for a Cisco Unified CME router are partitioned into five different resource groups (RG1 to RG5).

Table 13 LPCOR Policy Matrix Example

Resource Groups

RG1

RG2

RG3

RG4

RG5

RG1

Yes

No

Yes

No

Yes

RG2

Yes

Yes

No

Yes

No

RG3

Yes

Yes

Yes

Yes

No

RG4

No

No

No

Yes

Yes

RG5

No

Yes

Yes

Yes

No

LPCOR validation is done at the target destination based on the configured LPCOR policy matrix. For example:

•Call from RG1 to target RG1 is allowed

•Call from RG2 to target RG3 is not allowed

•Call from RG3 to target RG2 is allowed

•Call from RG5 to target RG5 is not allowed

Default LPCOR Policy

The default LPCOR policy means that there are no restrictions between the call source and its target destination. When a call is presented to a target destination, Cisco Unified CME bypasses LPCOR validation if either the incoming call is not associated with a LPCOR policy or the LPCOR policy is not defined for the target destination.

TRAI regulations allow the same directory number on a local IP phone or SCCP analog Foreign Exchange Station (FXS) phone in Cisco Unified CME to handle both PSTN and VoIP calls. Locally connected phones do not have to be associated with any resource group.

How LPCOR Policies are Associated with Resource Groups

Call restrictions are applied to LPCOR resource groups based on the location of the resources. You create LPCOR policies that define the call restrictions to apply to calls that originate or terminate at the following types of resources.

•Analog Phones

•IP Phones

•PSTN Trunks

•VoIP Trunks

Analog Phones

TRAI regulations allow an analog FXS phone to accept both PSTN and VoIP calls if the phone is locally registered to Cisco Unified CME. Locally connected phones do not have to be associated with any resource group; the default LPCOR policy is applied to this phone type.

A specific LPCOR policy can be defined through the voice port or trunk group. For configuration information, see the "Associating a LPCOR Policy with Analog Phone or PSTN Trunk Calls" section.

IP Phones

LPCOR supports both SCCP and SIP IP phones. TRAI regulations allow an IP phone to accept both PSTN and VoIP calls if the IP phone is registered locally to Cisco Unified CME through the LAN. If the IP phone is registered to Cisco Unified CME through the WAN, PSTN calls must be blocked from the remote IP phones.

If an IP phone always registers to Cisco Unified CME from the same local or remote region, the phone is provisioned with a static LPCOR policy. For configuration information, see the "Associating a LPCOR Policy with IP Phone or SCCP FXS Phone Calls" section.

If the phone is a mobile-type IP phone and moves between the local and remote regions, such as an Extension Mobility phone, Cisco IP Communicator softphone, or a remote teleworker phone, the LPCOR policy is provisioned dynamically based on the IP phone's currently registered IP address. For configuration information, see the "Associating LPCOR with Mobile Phone Calls" section.

PSTN Trunks

An incoming LPCOR resource group is associated with a PSTN trunk (digital or analog) through the voice port or trunk group.

When a call is routed to the PSTN network, the LPCOR policy of the target PSTN trunk can block calls from any resource group it is not explicitly configured to accept. Outgoing calls from a PSTN trunk are associated with a LPCOR policy based on either the voice port or trunk group, whichever is configured in the outbound POTS dial-peer.

For configuration information, see the "Associating a LPCOR Policy with Analog Phone or PSTN Trunk Calls" section.

VoIP Trunks

An incoming VoIP trunk call (H.323 or SIP) is associated with a LPCOR policy based on the remote IP address as follows:

Incoming H.323 trunk call

•IP address of the previous hub or originating gateway

Incoming SIP trunk call

•IP address of the originating gateway

•Hostname from the earliest Via header of an incoming INVITE message. If the hostname is in domain name format, a DNS query is performed to resolve the name into an IP address.

Cisco Unified CME uses the resolved hostname or resolved IP address to determine the LPCOR policy based on the entries in the IP-trunk subnet table. If the LPCOR policy cannot be found through the IP address or hostname, the incoming H.323 or SIP trunk call is associated with the incoming LPCOR policy configured in voice service configuration mode.

The LPCOR policy of the VoIP target is determined through the configuration of the outbound VoIP dial-peer. The default LPCOR policy is applied to the VoIP target if an outgoing LPCOR policy is not defined in the target VoIP dial-peer.

For configuration information, see the "Associating a LPCOR Policy with VoIP Trunk Calls" section.

LPCOR Support for Supplementary Services

Table 14 describes LPCOR support for calls using supplementary services.

Table 14 Supplementary Services Support with LPCOR

Feature

Description

SCCP Phone

SIP Phone

Basic Call

Cisco Unified CME invokes the LPCOR policy validation if both the incoming call and target destination are associated with a LPCOR policy.

If the LPCOR policy validation fails, cause-code 63 (no service available) or the user-defined cause-code is returned to the remote switch. The call can hunt to the next destination.

Yes

Yes

Call Forward

When a call is forwarded to a new destination, Cisco Unified CME invokes the LPCOR policy validation between the source and the forwarding target. The call is not forwarded to the target if the LPCOR policy is restricted.

Yes

Yes

Call Transfer

Blind and Consultative Call Transfer is restricted if the LPCOR policy validation fails between the transferee and transfer-to parties.

For consultative call transfers, the reorder tone plays and an error message displays on the transferor phone. The call is not disconnected between the transferee and transferor.

Yes

Yes

Ad Hoc Conference (software-based, 3-party)

Cisco Unified CME invokes the LPCOR policy validation for each call joined to a conference. A call is blocked from joining the conference if the LPCOR policy validation fails.

The reorder tone plays and the conference cannot complete message displays on the IP phone that initiated the conference. The call is resumed by the transferor who initiated the conference.

Note If the LPCOR policy validation fails during a blind transfer setup to a conference bridge, the call is released.

Note LPCOR validation is not supported for additional call transfer or conference operations from a 3-party software conference call.

Yes

No

Ad Hoc Conference (hardware-based)

Yes

Yes

Meet-Me Conference

LPCOR policy of each conference party is validated when a new call is joined to a conference. The call is blocked from joining the conference if the LPCOR policy validation fails.

The reorder tone plays and the conference cannot complete message displays on the IP phone that initiated the Meet-Me conference.

Yes

Yes
(join only)

Call Pickup/Group Pickup (Cisco Unified CME 7.1 and later versions)

Call Pickup and Pickup Groups enable phone users to answer a call that is ringing on a different extension. The pickup is blocked if the LPCOR policy validation between the call and the pickup phone fails.

The reorder tone plays and the unknown number message displays on the IP phone that attempts the call pickup.

Yes

Yes

Call Park (Cisco Unified CME 7.1 and later versions)

Phone users can place a call on hold at a special extension so it can be retrieved by other phones.

A phone is not allowed to retrieve a parked call if the LPCOR policy validation fails. The reorder tone plays and the unknown number message displays on the IP phone that attempts to retrieve the parked call. The call remains parked at the call-park slot.

Yes

Yes

Call Park Retrieval

Yes

Yes

Hunt Group Pilot
(ephone hunt group)

Supported for sequential and longest idle hunt groups. The LPCOR policy validation is performed when a call is directed to a SCCP endpoint through the ephone hunt-group.

Yes

No

Hunt Group Pilot
(voice hunt group)

Supported for parallel hunt groups only. A hunt target can be a SCCP phone, SIP phone, VoIP trunk, or PSTN trunk. The LPCOR policy validation is performed between the call and the pilot hunt target. A call is blocked from a target if the LPCOR policy is restricted.

Yes

Yes

Shared Line

Phones with a shared directory number must have the same LPCOR policy.

Yes

Yes

CBarge

Phone users who share a directory number can join an active call on the shared line. Phones must have the same LPCOR policy.

Yes

Yes

Third-Party Call Control

Cisco Unified CME supports out-of-dialog refer (OOD-R) by a remote call-control system. The LPCOR validation is performed during the second outbound call setup after the first outbound call is established. The OOD-R request fails if the LPCOR policy between the first and second outbound call is restricted.

Yes

Yes

Phone Display and Warning Tone for LPCOR

Cisco Unified CME plays the reorder tone to callers when it blocks calls due to LPCOR policy authentication. Table 15 lists the message that displays on the phone when a call is blocked.

Table 15 Message Display for Blocked LPCOR Calls

Call Block Type

Phone Display Message

SCCP Phone

SIP Phone

Call Transfer

Unable to Transfer

Transfer Failed

Conference

Cannot Complete Conference

Meet-Me Conference

No Screen Display Update

Pickup

Unknown Number

Park

Unknown Number

LPCOR VSAs

New vendor-specific attributes (VSAs) for the LPCOR policy associated with a call are included in the call detail records (CDRs) generated by Cisco Unified CME for Remote Authentication Dial-in User Services (RADIUS) accounting. A null value is used for call legs without an associated LPCOR policy, which is the default LPCOR value. The incoming or outgoing LPCOR policy of a call is added to RADIUS stop records.

Table 16 lists the new VSAs.

Table 16 VSAs Supported by Cisco Voice Calls

Attribute

VSA No. (Decimal)

Format for Value or Text

Sample Value or Text

Description

in-lpcor-group

1

String

pstn_group

Logical partitioning class of restriction (LPCOR) resource-group policy associated with an incoming call.

out-lpcor-group

1

String

voip_group

LPCOR resource-group policy associated with an outgoing call.

How to Configure LPCOR

This section contains the following tasks:

•Defining a LPCOR Policy

•Associating a LPCOR Policy with Analog Phone or PSTN Trunk Calls

•Associating a LPCOR Policy with VoIP Trunk Calls

•Associating a LPCOR Policy with IP Phone or SCCP FXS Phone Calls

•Associating LPCOR with Mobile Phone Calls

•Verifying LPCOR Configuration

Defining a LPCOR Policy

To enable LPCOR functionality and define a policy for each resource group that requires call restrictions, perform the following task. You can define one LPCOR policy for each resource group. Do not create a LPCOR policy for resource groups that do not require call restrictions. A target resource group without a LPCOR policy can accept incoming calls from any other resource group.

SUMMARY STEPS

1. enable

2. configure terminal

3. voice lpcor enable

4. voice lpcor call-block cause cause-code

5. voice lpcor custom

6. group number lpcor-group

7. exit

8. voice lpcor policy lpcor-group

9. accept lpcor-group

10. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

voice lpcor enable
Example:

Router(config)# voice lpcor enable

Enables LPCOR functionality on the Cisco Unified CME router.

Step 4

voice lpcor call-block cause cause-code
Example:

Router(config)# voice lpcor call-block cause 79

(Optional) Defines the cause code to use when a call is blocked because LPCOR validation fails.

•Range: 1 to 180. Default: 63 (serv/opt-unavail-unspecified). Type ? to display a description of the cause codes.

Step 5

voice lpcor custom
Example:

Router(config)# voice lpcor custom

Defines the name and number of LPCOR resource groups on the Cisco Unified CME router.

Step 6

group number lpcor-group
Example:

Router(cfg-lpcor-custom)# group 1 pstn_trunk

Adds a LPCOR resource group to the custom resource list.

•number—Group number of the LPCOR entry. Range: 1 to 64.

•lpcor-group—String that identifies the LPCOR resource group.

Step 7

exit
Example:

Router(cfg-lpcor-custom)# exit

Exits LPCOR custom configuration mode.

Step 8

voice lpcor policy lpcor-group
Example:

Router(config)# voice lpcor policy pstn_trunk

Creates a LPCOR policy for a resource group.

•lpcor-group—Name of the resource group that you defined in Step 6.

Step 9

accept lpcor-group
Example:

Router(cfg-lpcor-policy)# accept analog_phone

Allows a LPCOR policy to accept calls associated with the specified resource group.

•Default: Calls from other groups are rejected; calls from the same resource group are accepted.

•Repeat this command for each resource group whose calls you want this policy to accept.

Step 10

end
Example:

Router(cfg-lpcor-policy)# end

Returns to privileged EXEC mode.

Examples

The following example shows a LPCOR configuration where resources are partitioned into five groups. Three of the resource groups have LPCOR policies that limit the calls they can accept. The other two groups, ipphone_local and analog_phone, can accept calls from any of the other resource groups because they do not have a LPCOR policy defined.

voice lpcor enable
voice lpcor call-block cause invalid-number
voice lpcor custom
group 1 pstn_trunk
group 2 analog_phone
group 3 iptrunk
group 4 ipphone_local
group 5 ipphone_remote
!
voice lpcor policy pstn_trunk
accept analog_phone
accept ipphone_local
!
voice lpcor policy iptrunk
accept analog_phone
accept ipphone_local
accept ipphone_remote
!
voice lpcor policy ipphone_remote
accept iptrunk
accept analog_phone
accept ipphone_local

The following example shows a LPCOR configuration where resources are partitioned into the following four policy groups:

•siptrunk—Accepts all IP trunk calls.

•h323trunk—Accepts all IP trunk calls.

•pstn—Blocks all IP trunk and voice-mail calls.

•voicemail—Accepts both IP trunk and PSTN calls.

voice lpcor enable
voice lpcor custom
group 1 siptrunk
group 2 h323trunk
group 3 pstn
group 4 voicemail
!
voice lpcor policy siptrunk
accept h323trunk
accept voicemail
!
voice lpcor policy h323trunk
accept siptrunk
accept voicemail
!
voice lpcor policy pstn
!
voice lpcor policy voicemail
accept siptrunk
accept h323trunk
accept pstn

The following example shows a LPCOR policy that is configured to reject calls associated with itself. Devices that belong to the local_phone resource group cannot accept calls from each other.

voice lpcor policy local_phone
no accept local_phone
accept analog_phone

Associating a LPCOR Policy with Analog Phone or PSTN Trunk Calls

To associate a LPCOR policy with calls that originate or terminate at an analog phone or PSTN trunk, perform the following task. You can apply a specific LPCOR policy through the voice port or trunk group to remote analog phones or to local analog phones that you do not want to associate with the default LPCOR policy.

Note For an analog FXS phone that is locally registered to Cisco Unified CME through the LAN, see the "Associating a LPCOR Policy with IP Phone or SCCP FXS Phone Calls" section.

Incoming calls from an analog phone or PSTN trunk are associated with a LPCOR resource group based on the following configurations, in the order listed:

1. Voice port

2. Trunk group

Outgoing calls from an analog phone or PSTN trunk are associated with a LPCOR policy based on the voice port or trunk group configuration in the outbound POTS dial-peer:

•If the outbound dial peer is configured with the port command, an outgoing call uses the LPCOR policy specified in the voice port.

•If the outbound dial-peer is configured with the trunkgroup command, the call uses the LPCOR policy specified in the trunk group.

Prerequisites

The LPCOR policy must be defined. See the "Defining a LPCOR Policy" section.

SUMMARY STEPS

1. enable

2. configure terminal

3. trunk group name

4. lpcor incoming lpcor-group

5. lpcor outgoing lpcor-group

6. exit

7. voice-port port

8. lpcor incoming lpcor-group

9. lpcor outgoing lpcor-group

10. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

trunk group name
Example:

Router(config)# trunk group isdn1

Enters trunk-group configuration mode to define a trunk group.

Step 4

lpcor incoming lpcor-group
Example:

Router(config-trunk-group)# lpcor incoming isdn_group1

Associates a LPCOR resource-group policy with an incoming call.

Step 5

lpcor outgoing lpcor-group
Example:

Router(config-trunk-group)# lpcor outgoing isdn_group1

Associates a LPCOR resource-group policy with an outgoing call.

Step 6

exit
Example:

Router(config-trunk-group)# exit

Exits LPCOR custom configuration mode.

Step 7

voice-port port
Example:

Router(config)# voice-port 0/1/0

Enters voice-port configuration mode.

•Port argument is platform-dependent; type ? to display syntax.

Step 8

lpcor incoming lpcor-group
Example:

Router(config-voiceport)# lpcor incoming vp_group3

Associates a LPCOR resource-group policy with an incoming call.

Step 9

lpcor outgoing lpcor-group
Example:

Router(config-voiceport)# lpcor outgoing vp_group3

Associates a LPCOR resource-group policy with an outgoing call.

Step 10

end
Example:

Router(config-voiceport)# end

Returns to privileged EXEC mode.

Examples

PSTN Trunks

The following example shows a configuration for a PSTN trunk. Outbound calls from dial peer 201 use LPCOR policy isdn_group1 because dial peer 201 is configured with trunk group isdn1. Outbound calls from dial peer 202 use LPCOR policy vp_group3 because dial peer 202 is configured with voice port 3/1:15. A dial peer can be configured with either a voice port or trunk group; it cannot use both.

trunk group isdn1
lpcor incoming isdn_group1
lpcor outgoing isdn_group1
!
interface Serial2/0:15
isdn incoming-voice voice
trunk-group isdn1

...

voice-port 3/1:15
lpcor incoming vp_group3
lpcor outgoing vp_group3
!
!
dial-peer voice 201 pots
description TG outbound dial-peer
destination-pattern 201T
trunkgroup isdn1
!
dial-peer voice 202 pots
description VP outbound dial-peer
destination-pattern 202T
port 3/1:15

Analog Phones

The following example shows a LPCOR configuration for analog phones:

trunk group analog1
lpcor incoming analog_group1
lpcor outgoing analog_group1
!
voice-port 1/0/0
!
voice-port 1/0/1
!
voice-port 1/1/0
lpcor incoming vp_group1
lpcor outgoing vp_group1
!
dial-peer voice 100 pots
description VP dial-peer
destination-pattern 100
port 1/0/0
!
dial-peer voice 101 pots
description VP dial-peer
destination-pattern 101
port 1/0/1
!
dial-peer voice 110 pots
description VP dial-peer
destination-pattern 110
port 1/1/0
!
dial-peer voice 300 pots
description TG outbound dial-peer
destination-pattern 300
trunk-group analog1

Associating a LPCOR Policy with VoIP Trunk Calls

To associate a LPCOR policy with calls that originate or terminate at a VoIP trunk (H.323 or SIP), perform the following task.

Incoming VoIP trunk calls are associated with a LPCOR policy based on the following configurations, in the order listed:

1. IP-trunk subnet table

2. Voice service voip configuration

Outgoing VoIP trunk calls are associated with a LPCOR policy based on the following configurations, in the order listed:

1. Outbound VoIP dial peer

2. Default LPCOR policy (no LPCOR policy is applied)

Prerequisites

The LPCOR policy must be defined. See the "Defining a LPCOR Policy" section.

Restrictions

•The LPCOR IP-trunk subnet table is not supported for calls with an IPv6 address. The LPCOR policy specified with the lpcor incoming command in voice service configuration mode is supported for IPv6 trunk calls.

•Only a single LPCOR policy is applied to outgoing IP trunk calls if the outbound VoIP dial-peer is configured with the session target command using the sip-server or ras keyword.

•If a dial peer COR and LPCOR are both defined in a dial peer, the dial peer COR configuration has priority over LPCOR. For example, if the dial peer COR restricts the call and LPCOR allows the call, the call fails because of the dial peer COR before ever considering LPCOR.

SUMMARY STEPS

1. enable

2. configure terminal

3. voice lpcor ip-trunk subnet incoming

4. index index-number lpcor-group {ipv4-address network-mask | hostname hostname}

5. exit

6. voice service voip

7. lpcor incoming lpcor-group

8. exit

9. dial-peer voice tag voip

10. lpcor outgoing lpcor-group

11. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

voice lpcor ip-trunk subnet incoming
Example:

Router(config)# voice lpcor ip-trunk subnet incoming

Creates a LPCOR IP-trunk subnet table for incoming calls from a VoIP trunk.

Step 4

index index-number lpcor-group {ipv4-address network-mask | hostname hostname}
Example:

Router(cfg-lpcor-iptrunk-subnet)# index 1 h323_group1 172.19.33.0 255.255.255.0

Adds a LPCOR resource group to the IP trunk subnet table.

Step 5

exit
Example:

Router(cfg-lpcor-iptrunk-subnet)# exit

Exits LPCOR custom configuration mode.

Step 6

voice service voip
Example:

Router(config)# voice service voip

Enters voice-service configuration mode to specify the VoIP encapsulation type.

Step 7

lpcor incoming lpcor-group
Example:

Router(conf-voi-serv)# lpcor incoming voip_trunk_1

Associates a LPCOR resource-group policy with an incoming call.

Step 8

exit
Example:

Router(conf-voi-serv)# exit

Exits voice-service configuration mode.

Step 9

dial-peer voice tag voip
Example:

Router(config)# dial-peer voice 233 voip

Enters dial-peer configuration mode to define a dial peer for VoIP calls.

Step 10

lpcor outgoing lpcor-group
Example:

Router(config-dial-peer)# lpcor outgoing h323_group1

Associates a LPCOR resource-group policy with an outgoing call.

Step 11

end
Example:

Router(config-dial-peer)# end

Returns to privileged EXEC mode.

Examples

The following example shows a LPCOR configuration for VoIP trunks:

voice lpcor ip-trunk subnet incoming
index 1 h323_group1 172.19.33.0 255.255.255.0
index 2 sip_group1 172.19.22.0 255.255.255.0
index 3 sip_group2 hostname sipexample
!
voice service voip
lpcor incoming voip_trunk_1
!
dial-peer voice 233 voip
description H323 trunk outbound dial-peer
destination-pattern 233T
session target ipv4:172.19.33.233
lpcor outgoing h323_group1
!
dial-peer voice 2255 voip
description SIP trunk outbound dial-peer
destination-pattern 255T
session protocol sipv2
session target ipv4:172.19.33.255
lpcor outgoing sip_group1

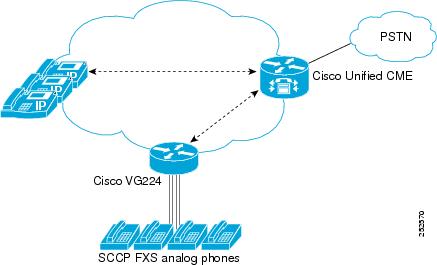

Associating a LPCOR Policy with IP Phone or SCCP FXS Phone Calls

To associate a LPCOR policy with calls that originate or terminate at a local or remote IP phone or local SCCP analog (FXS) phone, perform the following task.

According to TRAI requirements, an IP phone or a SCCP FXS phone can accept both PSTN and VoIP calls if it is locally registered to Cisco Unified CME through the LAN. If a phone is registered to Cisco Unified CME through the WAN, then PSTN calls must be blocked from that remote phone.

Prerequisites

•The LPCOR policy must be defined. See the "Defining a LPCOR Policy" section.

•SCCP FXS phones are configured with the type anl command.

Restrictions

•Phones that share a directory number must be configured with the same LPCOR policy. A warning message displays if you try to configure a different LPCOR policy between IP phones that share the same directory number.

•Local and remote IP phones cannot use the same LPCOR policy.

•Software-based three-party ad hoc conferencing is not supported on SIP phones.

•Hardware-based ad hoc conferening is not supported on SIP phones.

•LPCOR feature is not supported on voice gateways such as the Cisco VG224 or Cisco integrated service router if the voice gateway is registered to Cisco Unified Communications Manager. Cisco Unified Communications Manager does not support LPCOR.

•If a third-party call-control application makes two separate calls to Cisco Unified CME and performs a media bridging between the two calls, LPCOR validation is not supported because Cisco Unified CME is not aware of the bridging.

SUMMARY STEPS

1. enable

2. configure terminal

3. ephone phone-tag
or
voice register pool phone-tag

4. lpcor type {local | remote}

5. lpcor incoming lpcor-group

6. lpcor outgoing lpcor-group

7. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

ephone phone-tag
or

voice register pool phone-tag
Example:

Router(config)# ephone 2
or

Router(config)# voice register pool 4

Enters ephone configuration mode to set phone-specific parameters for an SCCP phone.

or

Enters voice register pool configuration mode to set phone-specific parameters for a SIP phone.

•phone-tag—Unique sequence number that identifies the phone. Range is version and platform-dependent; type ? to display range.

Step 4

lpcor type {local | remote}
Example:

Router(config-ephone)# lpcor type remote
or

Router(config-register-pool)# lpcor type local

Sets the LPCOR type for an IP phone.

•local—IP phone always registers to Cisco Unified CME through the LAN.

•remote—IP phone always registers to Cisco Unified CME through the WAN.

•This command can also be configured in ephone-template or voice register template configuration mode and applied to one or more phones. The phone configuration has precedence over the template configuration.

Step 5

lpcor incoming lpcor-group
Example:

Router(config-ephone)# lpcor incoming ephone_group1
or

Router(config-register-pool)# lpcor incoming remote_group3

Associates a LPCOR resource-group policy with an incoming call.

•If this phone shares a directory number with another phone, you cannot configure a LPCOR policy that is different than the LPCOR policy on the other phone.

•This command can also be configured in ephone-template or voice register template configuration mode and applied to one or more phones. The phone configuration has precedence over the template configuration.

Step 6

lpcor outgoing lpcor-group
Example:

Router(config-ephone)# lpcor outgoing ephone_group2
or

Router(config-register-pool)# lpcor outgoing remote_group3

Associates a LPCOR resource-group policy with an outgoing call.

•If this phone shares a directory number with another phone, you cannot configure a LPCOR policy that is different than the LPCOR policy on the other phone.

•This command can also be configured in ephone-template or voice register template configuration mode and applied to one or more phones. The phone configuration has precedence over the template configuration.

Step 7

end
Example:

Router(config-ephone)# end
or

Router(config-register-pool)# end

Returns to privileged EXEC mode.

Examples

SCCP

The following example shows a LPCOR configuration for two SCCP phones. One configuration is applied directly to the phone and the other is applied through a phone template:

ephone-template 1
lpcor type local
lpcor incoming ephone_group1
lpcor outgoing ephone_group1
!
ephone 1
mac-address 00E1.CB13.0395
ephone-template 1
type 7960
button 1:1
!
ephone 2
lpcor type remote
lpcor incoming ephone_group2
lpcor outgoing ephone_group2
mac-address 001C.821C.ED23
type 7960
button 1:2

SIP

The following example shows a LPCOR configuration for two SIP phones:

voice register template 1
lpcor type local
lpcor incoming test_group
lpcor outgoing test_group
!
voice register pool 3
id mac 001B.D584.E80A
type 7960
number 1 dn 2
template 1
codec g711ulaw
!
voice register pool 4
lpcor type remote
lpcor incoming remote_group3
lpcor outgoing remote_group3
id mac 0030.94C2.9A55
type 7960
number 1 dn 2
dtmf-relay rtp-nt

SCCP FXS Analog

The following example shows a LPCOR configuration for two SCCP FXS phones connected to a Cisco VG224 and controlled by Cisco Unified CME:

dial-peer voice 102 pots
service stcapp
port 1/0/2
!
ephone 5
lpcor type local
lpcor incoming analog_vg224
lpcor outgoing analog_vg224
mac-address F9E5.8B28.2402
ephone-template 1
max-calls-per-button 2
type anl
button 1:5
!
ephone 6
lpcor type local
lpcor incoming analog_vg224
lpcor outgoing analog_vg224
mac-address F9E5.8B28.2403
ephone-template 1
max-calls-per-button 2
type anl
button 1:6
!
Figure 10 shows an example of a network with SCCP FXS phones managed by Cisco Unified CME.

Figure 10 SCCP FXS Phones Managed by Cisco Unified CME

Associating LPCOR with Mobile Phone Calls

To associate a LPCOR policy with calls that originate or terminate at a mobile-type phone, perform the following task.

A mobile-type phone can register to Cisco Unified CME through either the LAN or WAN. For example an Extension Mobility phone, Cisco IP Communicator softphone, or a remote teleworker phone.

Incoming and outgoing calls to and from a mobile-type phone are associated with a LPCOR policy based on the following configurations, in the order listed:

1. IP-phone subnet table

2. Default LPCOR policy for mobile-type phones

Prerequisites

The LPCOR policy must be defined. See the "Defining a LPCOR Policy" section.

Restrictions

The LPCOR IP-phone subnet table is not supported for calls with an IPv6 address.

SUMMARY STEPS

1. enable

2. configure terminal

3. ephone phone-tag
or
voice register pool phone-tag

4. lpcor type mobile

5. exit

6. voice lpcor ip-phone subnet {incoming | outgoing}

7. index index-number lpcor-group {ipv4-address network-mask [vrf vrf-name] | dhcp-pool pool-name}

8. exit

9. voice lpcor ip-phone mobility {incoming | outgoing} lpcor-group

10. exit

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

ephone phone-tag
or

voice register pool phone-tag
Example:

Router(config)# ephone 1
or

Router(config)# voice register pool 1

Enters ephone configuration mode to set phone-specific parameters for an SCCP phone.

or

Enters voice register pool configuration mode to set phone-specific parameters for a SIP phone.

•phone-tag—Unique sequence number that identifies the phone. Range is version and platform-dependent; type ? to display range.

Step 4

lpcor type mobile
Example:

Router(config-ephone)# lpcor type mobile

Sets the LPCOR type for a mobile-type phone.

•This command can also be configured in ephone-template or voice register template configuration mode and applied to one or more phones. The phone configuration has precedence over the template configuration.

Step 5

exit
Example:

Router(config-ephone)# exit

Exits the phone configuration.

Step 6

voice lpcor ip-phone subnet {incoming | outgoing}
Example:

Router(config)# voice lpcor ip-phone subnet incoming

Creates a LPCOR IP-phone subnet table for calls to or from a mobile-type phone.

Step 7

index index-number lpcor-group {ipv4-address network-mask [vrf vrf-name] | dhcp-pool pool-name}
Example:

Router(cfg-lpcor-ipphone-subnet)# index 1 local_group1 dhcp-pool pool1

Adds a LPCOR group to the IP-phone subnet table.

Step 8

exit
Example:

Router(cfg-lpcor-ipphone-subnet)# exit

Exits LPCOR IP-phone configuration mode.

Step 9

voice lpcor ip-phone mobility {incoming | outgoing} lpcor-group
Example:

Router(config)# voice lpcor ip-phone mobility incoming remote_group1

Sets the default LPCOR policy for mobile-type phones.

Step 10

exit
Example:

Router(config)# exit

Exits to privileged EXEC mode.

Examples

The following example shows the configuration for three mobile-type phones:

ephone 270
lpcor type mobile
mac-address 1234.4321.6000
type 7960
button 1:6
mtp
codec g729r8 dspfarm-assist
description teleworker remote phone

ephone 281
lpcor type mobile
mac-address 0003.4713.5554
type CIPC
button 1:5

...

voice register pool 6
lpcor type mobile
id mac 0030.94C2.9A66
type 7960
number 1 dn 3
dtmf-relay rtp-nte

The following example shows a LPCOR IP-phone subnet configuration with a single shared IP address pool. Any mobile-type IP phones with a shared IP address from DHCP pool1 are considered local IP phones and are associated with the local_group1 LPCOR policy. Other mobile-type IP phones without a shared IP address are considered remote IP phones and are associated with remote_group1, the default LPCOR policy for mobile-type phones.

ip dhcp pool pool1
   network 10.0.0.0 255.255.0.0
   option 150 ip 10.0.0.1
   default-router 10.0.0.1
!
!
voice lpcor ip-phone subnet incoming
index 1 local_group1 dhcp-pool pool1
!
voice lpcor ip-phone subnet outgoing
index 1 local_group1 dhcp-pool pool1
!
voice lpcor ip-phone mobility incoming remote_group1
voice lpcor ip-phone mobility outgoing remote_group1

The following example shows a LPCOR IP-phone subnet configuration with a separate IP address DHCP pools. Any mobile-type IP phones with separate DHCP pools are considered local IP phones and are assigned the local_group1 LPCOR policy. Other mobile-type IP phones without a DHCP address are considered remote IP phones and are assigned the remote_group1 LPCOR policy.

ip dhcp pool client1
   network 10.0.0.0 255.255.0.0
   mac-address 0003.4713.5554
   option 150 ip 10.0.0.1
   default-router 10.0.0.1
!
ip dhcp pool client2
   network 10.0.0.0 255.255.0.0
   mac-address 0030.94C2.9A66
   option 150 ip 10.0.0.1
   default-router 10.0.0.1
!
!
voice lpcor ip-phone subnet incoming
index 1 local_group1 dhcp-pool client1
index 2 local_group1 dhcp-pool client2
!
voice lpcor ip-phone subnet outgoing
index 1 local_group1 dhcp-pool client1
index 2 local_group1 dhcp-pool client2
!
voice lpcor ip-phone mobility incoming remote_group1
voice lpcor ip-phone mobility outgoing remote_group1

The following example shows a LPCOR IP phone subnet configuration with both an IP address network mask and a single shared-address DHCP pool. A specific LPCOR policy can be associated with an IP phone by matching the IP address network mask in the IP-phone subnet table. LPCOR policy local_group2 is associated with the local IP phone with IP address 10.0.10.23. LPCOR local_group2 is associated with the other local IP phones through the DHCP-pool match.

ip dhcp pool pool1
   network 10.0.0.0 255.255.0.0
   option 150 ip 10.0.0.1
   default-router 10.0.0.1
!
!
voice lpcor ip-phone subnet incoming
index 1 local_g2 10.0.10.23 255.255.255.0 vrf vrf-group2
index 2 remote_g2 172.19.0.0 255.255.0.0
index 3 local_g1 dhcp-pool pool1
!
voice lpcor ip-phone subnet outgoing
index 1 local_g4 10.1.10.23 255.255.255.0 vrf vrf-group2
index 2 remote_g4 172.19.0.0 255.255.0.0
index 3 local_g5 dhcp-pool pool1
!
voice lpcor ip-phone mobility incoming remote_g1
voice lpcor ip-phone mobility outgoing remote_g1

Verifying LPCOR Configuration

Use the following show commands to display LPCOR configuration information and to verify the LPCOR policy associated with calls.

•show call active voice—Displays the LPCOR information for incoming and outgoing call legs (VoIP, ephone, SIP, PSTN).

•show call history voice—Displays the LPCOR information for incoming and outgoing call legs (VoIP, ephone, SIP, PSTN). Also displays the LPCOR call-block cause code if the call is blocked due to LPCOR policy validation.

•show dial-peer voice—Displays configuration settings for voice dial peers including the LPCOR setting for incoming and outgoing calls.

•show trunk group—Displays configuration settings for trunk groups including the LPCOR setting for incoming and outgoing calls.

•show voice lpcor—Displays information about LPCOR calls including the LPCOR policy associated with each resource group and directory number, and statistics for failed calls.

•show voice port—Displays configuration settings for voice ports including the LPCOR setting for incoming and outgoing calls.

Configuration Examples for LPCOR

This section provides the following configuration examples:

•LPCOR for Cisco Unified CME: Example

•Cisco 3800 Series Integrated Services Router: Example

LPCOR for Cisco Unified CME: Example

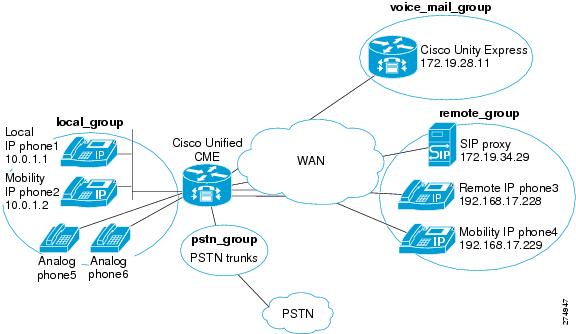

Figure 11 shows an example of a Cisco Unified CME network using LPCOR. This network is organized into the following four LPCOR resource groups:

•local_group—Analog and IP phones, including a mobile-type phone, connected locally to Cisco Unified CME.

•pstn_group—Trunks between the PSTN and Cisco Unified CME.

•remote_group—IP phones, including a mobile-type phone, and a SIP proxy server connected remotely to Cisco Unified CME through the WAN.

•voice_mail_group—Cisco Unity Express voice-mail system connected remotely to Cisco Unified CME through the WAN.

Figure 11 LPCOR Resource Grouping in Cisco Unified CME Network

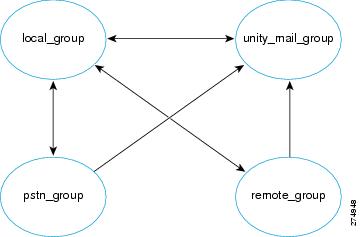

Figure 12 illustrates the access policy between resource groups that provides the following call requirements:

•Blocks calls between remote_group and pstn_group

•Blocks calls from voice_mail_group to pstn_group and remote_group

•Allows calls between local_group and remote_group

•Allows calls between local_group and pstn_group

•Allows all calls to voice_mail_group

Figure 12 LPCOR Policy Logic

The following output shows the LPCOR configuration for this example and describes the steps. Comments describing the configuration are included in the output.

1. Enable LPCOR functionality in Cisco Unified CME and define custom LPCOR group.

voice lpcor enable
!
voice lpcor custom
group 1 pstn_group
group 2 local_group
group 3 remote_group
group 4 voice_mail_group
!
#Allow calls only from local group to PSTN group
voice lpcor policy pstn_group
accept local_group
!
# Allow calls from PSTN, remote, and voice_mail groups to local group
voice lpcor policy local_group
accept pstn_group
accept remote_group
accept voice_mail_group
!
# Allow calls only from local group to remote group
voice lpcor policy remote_group
accept local_group
!
# Allow calls from PSTN, remote, and local groups to voice_mail group
voice lpcor voice_mail_group
accept pstn_group
accept local_group
accept remote_group
!
2. Assign LPCOR to the phone, trunk, and IP resources.

# analog phone5
voice-port 1/0/0
lpcor incoming local_group
lpcor outgoing local_group
!
# analog phone6
voice-port 1/0/1
lpcor incoming local_group
lpcor outgoing local_group
!
# TDM trunks
voice-port 2/1:23
lpcor incoming pstn_group
lpcor outgoing pstn_group
!
!
# Specific LPCOR setting for incoming calls from voice_mail_group
voice lpcor ip-trunk subnet incoming
voice_mail_group 172.19.28.11 255.255.255.255
!
!
# Default LPCOR setting for any incoming VoIP calls
voice service voip
lpcor incoming remote_group
!
# Cisco Unified CME is DHCP server
ip dhcp pool client1
   network 10.0.0.0 255.255.0.0
   mac-address 0003.4713.5554
   option 150 ip 10.0.0.1
   default-router 10.0.0.1
!
# IP phone1 (local)
ephone 1
lpcor type local
lpcor incoming local_group
lpcor outgoing local_group
!
# IP phone2 (mobile)
ephone 2
lpcor type mobile
!
# IP phone3 (remote)
ephone 3
lpcor type remote
lpcor incoming remote_group
lpcor outgoing remote_group
!
# IP phone4 (mobile)
ephone 4
lpcor type mobile
!
# IP-phone subnet tables for mobile IP phones
voice lpcor ip-phone subnet incoming
local_group dhcp-pool pool1
!
voice lpcor ip-phone subnet outgoing
local_group dhcp-pool client1
!
# Default LPCOR policy for mobile IP phones that
# are not provisioned through IP-phone subnet tables
voice lpcor ip-phone mobility incoming remote_group
voice lpcor ip-phone mobility outgoing remote_group
!
3. Define outgoing LPCOR setting for outgoing VoIP calls.

# VoIP outbound dial-peer to Cisco Unity Express mail
dial-peer voice 1234 voip
destination-pattern 56800
session target ipv4:172.19.281.1
pcor outgoing voice_mail_group
!
# VoIP outbound dial-peer to SIP proxy
dial-peer voice 1255 voip
destination-pattern 1255T
session protocol sipv2
session target sip-server
lpcor outgoing remote

Cisco 3800 Series Integrated Services Router: Example

Router# show running-config

Building configuration...

Current configuration : 10543 bytes
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Router
!
boot-start-marker
boot-end-marker
!
card type t1 2 1
logging message-counter syslog
logging buffered 2000000
no logging console
!
no aaa new-model
network-clock-participate slot 2
!
ip source-route
ip cef
!
!
ip dhcp excluded-address 192.168.20.1
ip dhcp excluded-address 192.168.20.1 192.168.20.5
!
ip dhcp pool voice
   network 192.168.20.0 255.255.255.0
   option 150 ip 192.168.20.1
   default-router 192.168.20.1
!
!
no ip domain lookup
no ipv6 cef
multilink bundle-name authenticated
!
!
isdn switch-type primary-5ess
!
voice-card 0
!
voice-card 2
!
!
voice service voip
notify redirect ip2pots
allow-connections sip to sip
sip
  bind control source-interface GigabitEthernet0/1
  bind media source-interface GigabitEthernet0/1
  registrar server expires max 120 min 60
!
!
!
voice class custom-cptone leavetone
dualtone conference
  frequency 400 800
  cadence 400 50 200 50 200 50
!
voice class custom-cptone jointone
dualtone conference
  frequency 600 900
  cadence 300 150 300 100 300 50
!
!
voice iec syslog
voice register global
mode cme
source-address 192.168.20.1 port 5060
max-dn 20
max-pool 20
load 7970 SIP70.8-4-2S
load 7960-7940 P0S3-08-11-00
authenticate realm cisco.com
tftp-path flash:
telnet level 2
create profile sync 0000312474383825
!
voice register dn 1
number 4000
name cme-sip1
label 4000
!
voice register dn 2
number 4001
name cme-sip-2
label 4001
!
voice register dn 3
number 4002
name cme-remote
label 4002
!
voice register template 1
softkeys remote-in-use cBarge Barge Newcall
!
voice register pool 1
lpcor type local
lpcor incoming local_sip
lpcor outgoing local_sip
id mac 001B.D4C6.AE44
type 7960
number 1 dn 1
dtmf-relay rtp-nte
codec g711ulaw
!
voice register pool 2
lpcor type local
lpcor incoming local_sip
lpcor outgoing local_sip
id mac 001E.BE8F.96C1
type 7940
number 1 dn 2
dtmf-relay rtp-nte
codec g711ulaw
!
voice register pool 3
lpcor type remote
lpcor incoming remote_sip
lpcor outgoing remote_sip
id mac 001E.BE8F.96C0
type 7940
number 1 dn 3
dtmf-relay rtp-nte
codec g711ulaw
!
!
voice lpcor enable
voice lpcor call-block cause invalid-number
voice lpcor custom
group 1 voip_siptrunk
group 2 voip_h323trunk
group 3 pstn_trunk
group 4 cue_vmail_local
group 5 cue_vmail_remote
group 6 vmail_unity
group 7 local_sccp
group 8 local_sip
group 9 remote_sccp
group 10 remote_sip
group 11 analog_vg224
group 12 analog_fxs
group 13 mobile_phone
!
voice lpcor policy voip_siptrunk
accept cue_vmail_local
accept local_sccp
accept local_sip
accept analog_vg224
!
voice lpcor policy cue_vmail_local
accept voip_siptrunk
accept voip_h323trunk
accept local_sccp
accept local_sip
!
voice lpcor policy local_sccp
accept local_sip
accept remote_sccp
accept remote_sip
accept analog_vg224
accept analog_fxs
!
voice lpcor policy remote_sccp
accept local_sccp
accept local_sip
accept remote_sip
!
voice lpcor policy analog_vg224
accept local_sccp
accept local_sip
accept remote_sccp
accept remote_sip
!
voice lpcor policy analog_fxs
accept local_sccp
accept local_sip
!
voice lpcor ip-phone subnet incoming
index 1 local_sccp dhcp-pool voice
!
voice lpcor ip-phone subnet outgoing
index 1 local_sccp dhcp-pool voice
!
!
!
archive
log config
  hidekeys
!
!
controller T1 2/0
cablelength short 133
pri-group timeslots 1-24
!
controller T1 2/1
!
!
interface Loopback1
ip address 192.168.21.1 255.255.255.0
ip ospf network point-to-point
!
interface GigabitEthernet0/0
ip address 192.168.160.1 255.255.255.0
duplex auto
speed auto
media-type rj45
!
interface GigabitEthernet0/1
ip address 192.168.20.1 255.255.255.0
duplex auto
speed auto
media-type rj45
!
interface FastEthernet0/2/0
ip address 192.168.98.1 255.255.255.0
duplex auto
speed auto
!
interface FastEthernet0/2/1
no ip address
duplex auto
speed auto
!
interface Service-Engine1/0
ip unnumbered Loopback1
service-module ip address 192.168.21.100 255.255.255.0
service-module ip default-gateway 192.168.21.1
!
interface Serial2/0:23
no ip address
encapsulation hdlc
isdn switch-type primary-5ess
isdn incoming-voice voice
no cdp enable
!
router ospf 1
log-adjacency-changes
network 192.168.160.0 0.0.0.255 area 0
network 192.168.20.0 0.0.0.255 area 0
network 192.168.21.0 0.0.0.255 area 0
!
ip forward-protocol nd
ip route 192.168.21.100 255.255.255.255 Service-Engine1/0
!
!
no ip http server
!
!
tftp-server flash:term41.default.loads
tftp-server flash:term61.default.loads
tftp-server flash:SCCP41.8-3-1S.loads
tftp-server flash:apps41.8-3-0-50.sbn
tftp-server flash:cnu41.8-3-0-50.sbn
tftp-server flash:P003-08-11-00.bin
tftp-server flash:P003-08-11-00.sbn
tftp-server flash:P0S3-08-11-00.sb2
tftp-server flash:P0S3-08-11-00.loads
tftp-server flash:term71.default.loads
tftp-server flash:term70.default.loads
tftp-server flash:jar70sccp.8-2-2TR2.sbn
tftp-server flash:dsp70.8-2-2TR2.sbn
tftp-server flash:cvm70sccp.8-2-2TR2.sbn
tftp-server flash:apps70.8-2-2TR2.sbn
tftp-server flash:SCCP70.8-2-2SR2S.loads
!
control-plane
!
!
voice-port 0/1/0
lpcor incoming analog_fxs
lpcor outgoing analog_fxs
station-id name FXS-Phone
station-id number 3000
caller-id enable
!
voice-port 0/1/1
!
voice-port 2/0:23
!
ccm-manager fax protocol cisco
!
mgcp fax t38 ecm
!
!
!
dial-peer voice 2 voip
destination-pattern 2...
lpcor outgoing voip_siptrunk
session protocol sipv2
session target ipv4:192.168.97.1
codec g711ulaw
ip qos dscp cs5 media
ip qos dscp cs4 signaling
!
dial-peer voice 5050 voip
description *** VMAIL Dial-Peer ***
destination-pattern 5...
lpcor outgoing cue_vmail_local
session protocol sipv2
session target ipv4:192.168.21.100
dtmf-relay sip-notify
codec g711ulaw
no vad
!
dial-peer voice 30 pots
destination-pattern 3000
direct-inward-dial
port 0/1/0
!
!
sip-ua
mwi-server ipv4:192.168.21.100 expires 3600 port 5060 transport udp
registrar ipv4:192.168.21.1 expires 3600
!
!
telephony-service
em logout 0:0 0:0 0:0
max-ephones 15
max-dn 15
ip source-address 192.168.20.1 port 2000
service phone videoCapability 1
load 7941 SCCP41.8-3-1S
date-format dd-mm-yy
voicemail 5050
max-conferences 12 gain -6
transfer-system full-consult
transfer-pattern .T
transfer-pattern ....
fac standard
create cnf-files version-stamp Jan 01 2002 00:00:00
!
!
ephone-template 1
softkeys hold Join Newcall Resume Select
softkeys idle Cfwdall ConfList Dnd Join Newcall Pickup Redial RmLstC
softkeys seized Endcall Redial Cfwdall Pickup
!
!
ephone-template 2
lpcor type remote
lpcor incoming remote_sccp
lpcor outgoing remote_sccp
!
!
ephone-dn 1 dual-line
number 5000
call-forward busy 5050
call-forward noan 5050 timeout 10
mwi sip
!
!
ephone-dn 2 dual-line
number 5001
call-forward busy 5050
call-forward noan 5050 timeout 10
mwi sip
!
!
ephone-dn 3 dual-line
number 5010
description vg224-1/1
name analog-1
!
!
ephone-dn 4 dual-line
number 5011
description vg224-1/2
name analog-2
!
!
ephone-dn 5 dual-line
number 5012
description vg224-1/3
name analog-3
!
!
ephone-dn 6 dual-line
number 5013
description vg224-1/4
name analog-4
!
!
ephone-dn 7 dual-line
number 5020
name SCCP-Remote
mwi sip
!
!
ephone 1
lpcor type local
lpcor incoming local_sccp
lpcor outgoing local_sccp
mac-address 001E.7A26.EB60
ephone-template 1
type 7941
button 1:1
!
!
!
ephone 2
lpcor type local
lpcor incoming local_sccp
lpcor outgoing local_sccp
mac-address 001E.7AC2.CCF9
ephone-template 1
type 7941
button 1:2
!
!
!
ephone 3
lpcor type local
lpcor incoming analog_vg224
lpcor outgoing analog_vg224
mac-address F9E5.8B28.2400
ephone-template 1
max-calls-per-button 2
type anl
button 1:3
!
!
!
ephone 4
lpcor type local
lpcor incoming analog_vg224
lpcor outgoing analog_vg224
mac-address F9E5.8B28.2401
ephone-template 1
max-calls-per-button 2
type anl
button 1:4
!
!
!
ephone 5
lpcor type local
lpcor incoming analog_vg224
lpcor outgoing analog_vg224
mac-address F9E5.8B28.2402
ephone-template 1
max-calls-per-button 2
type anl
button 1:5
!
!
!
ephone 6
lpcor type local
lpcor incoming analog_vg224
lpcor outgoing analog_vg224
mac-address F9E5.8B28.2403
ephone-template 1
max-calls-per-button 2
type anl
button 1:6
!
!
!
ephone 7
mac-address 001B.D52C.DF1F
ephone-template 2
type 7970
button 1:7
!
!
alias exec cue ser ser 1/0 sess
!
line con 0
line aux 0
line 66
no activation-character
no exec
transport preferred none
transport input all
transport output pad telnet rlogin lapb-ta mop udptn v120
line vty 0 4
login
!
exception data-corruption buffer truncate
scheduler allocate 20000 1000
end

Additional References

The following sections provide references related to the LPCOR feature.

Related Documents

Related Topic

Document Title

Cisco Unified CME configuration

•Cisco Unified Communications Manager Express System Administrator Guide

•Cisco Unified Communications Manager Express Command Reference

Cisco IOS voice configuration

•Cisco IOS Voice Configuration Library

•Cisco IOS Voice Command Reference

Phone documentation for Cisco Unified CME

•User Documentation for Cisco Unified IP Phones

Standards

Standard

Title

No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.

—

MIBs

MIB

MIBs Link

No new or modified MIBs are supported by this feature, and support for existing MIBs has not been modified by this feature.

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

RFCs

RFC

Title

No new or modified RFCs are supported by this feature, and support for existing RFCs has not been modified by this feature.

—

Technical Assistance

Description

Link

The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies.

To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds.

Access to most tools on the Cisco Support website requires a Cisco.com user ID and password.

http://www.cisco.com/techsupport

Feature Information for LPCOR

Table 17 lists the release history for this feature.

Not all commands may be available in your Cisco IOS software release. For release information about a specific command, see the command reference documentation.

Use Cisco Feature Navigator to find information about platform support and software image support. Cisco Feature Navigator enables you to determine which Cisco IOS and Catalyst OS software images support a specific software release, feature set, or platform. To access Cisco Feature Navigator, go to http://www.cisco.com/go/cfn. An account on Cisco.com is not required.

Note Table 17 lists only the Cisco IOS software release that introduced support for a given feature in a given Cisco IOS software release train. Unless noted otherwise, subsequent releases of that Cisco IOS software release train also support that feature.

Table 17 Feature Information for LPCOR

Feature Name

Cisco Unified CME Version

Feature Information

Call Restriction Regulations for Cisco Unified CME

8.0

Introduced support for LPCOR feature.

CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0812R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

© 2009 Cisco Systems, Inc. All rights reserved.
