Task 2— Exploring SNMP Capabilities by Using UCD-SNMP

Installing UCD-SNMP and Downloading Cisco MIBs

Task 2— Exploring SNMP Capabilities by Using UCD-SNMP

About Using UCD-SNMP

Researching and identifying which functions are available in SNMP are part of building a dial NMS environment. In this case study, UCD-SNMP, an opensource freeware application that allows access to SNMP functions from a command line interface (CLI), is used to explore the capabilities of SNMP.

There are many benefits to using UCD-SNMP.

You can:

•Gain a fundamental understanding of how SNMP functions and protocols work in a dial access environment. This knowledge provides a solid foundation for using automated and GUI-based SNMP applications.

•Learn how to use a low-level troubleshooting capability in the event that other SNMP applications produce questionable results.

•Poll any OID and verify SNMP agent responses.

•Use stable and reliable CLI commands. UCD-SNMP is unobstructed by GUI functionality.

•Explore and research MIB content.

•Discover what functions are available to manage a Cisco IOS device.

•Create customized scripts and tools.

For this case study, the dial engineers at THEnet created a tool called SNMP Commander. The tool aided the MIB research task by enabling dial engineers to build web-based object identification (OIDs) bookmarks, which they could go to without using a keyboard.

By using UCD-SNMP and SNMP Commander, the dial engineers at THEnet identified which items the commercial NMS applications would monitor within the network operations center (NOC).

Installing UCD-SNMP and Downloading Cisco MIBs

To install UCD-SNMP and download MIBs from the Cisco FTP site, follow these steps.

Note You can also download individual MIBs from http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

Step 1 Go to http://net-snmp.sourceforge.net/

Step 2 Download, compile, and install UCD-SNMP. In this case study, the UCD-SNMP commands are installed in the /usr/local/bin directory.

Step 3 From the Cisco FTP site, download the MIBs into the /usr/local/share/snmp/mibs directory on your Solaris workstation. By using the following Unix commands, you can copy the entire bundled v1 MIB tar file from ftp.cisco.com.

cd /usr/local/share/snmp/mibs

ftp ftp.cisco.com

cd /pub/mibs/v1

bin

get v1.tar.gz

exit

Step 4 Decompress and untar the files in the /usr/local/share/snmp/mibs directory:

gzip -d v1.tar.gz

tar -xvf v1.tar

Note There are many MIBs in the tar file that you may not use. Regardless, Cisco recommends you keep all the MIBs on file to support your evolving network needs.

Exploring SNMP MIBs for Dial Networks

To explore the MIBs for a Cisco IOS device by using SNMP CLI commands, follow the steps in this section. Poll OID variables by using the commands snmpget, snmpwalk, and snmptable.

Note This section assumes you already have a basic understanding of UCD-SNMP and know how to use its CLI commands.

Step 1 To determine the last restart reason for the router, enter the snmpget command and the relevant OID. In the following example, the restart reason is "reload."

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0

Counter32 (is a reserved word): At line 6 in /usr/local/share/snmp/mibs/SNMPv2-S
MI-V1SMI.my

Gauge32 (is a reserved word): At line 7 in /usr/local/share/snmp/mibs/SNMPv2-SMI

-V1SMI.my

Integer32 (is a reserved word): At line 8 in /usr/local/share/snmp/mibs/SNMPv2-S

MI-V1SMI.my

Did not find 'mib-2' in module RFC1213-MIB (/usr/local/share/snmp/mibs/IANAifTyp

e-MIB-V1SMI.my)

enterprises.9.2.1.2.0 = "reload"

If SNMP-parsing errors are generated, suppress them by appending 2>/dev/null to the end of the command. Standard output is tagged as 1. Error output is tagged as 2.

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 2> /dev/null

enterprises.9.2.1.2.0 = "reload"

onionring:~$

Note If no response is returned by the SNMP agent, allow error messages to print to the screen by removing the 2>/dev/null argument.

Step 2 Check the system up time by entering the snmpget command and sysUpTime OID:

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.2.1.system.sysUpTime.0 2>
/dev/null

system.sysUpTime.0 = Timeticks: (45450609) 5 days, 6:15:06.09

onionring:~$

Step 3 To gather basic configuration management information about the Cisco IOS device, enter the snmpwalk command and the system OID.

onionring:~$ snmpwalk travis-nas-01.the.net 5urf5h0p system 2> /dev/null

system.sysDescr.0 = "Cisco Internetwork Operating System Software ..IOS (tm) 5800
Software (C5800-P4-M), Version 12.1(2a)T1,  RELEASE SOFTWARE (fc2)..Copyright

(c) 1986-2000 by cisco Systems, Inc...Compiled Mon 12-Jun-00 23:13 by ccai"

system.sysObjectID.0 = OID: enterprises.9.1.188

system.sysUpTime.0 = Timeticks: (45492606) 5 days, 6:22:06.06

system.sysContact.0 = "net-admin@aurora.the.net"

system.sysName.0 = "travis-nas-01.the.net"

system.sysLocation.0 = "Lake Travis (Austin) Dial POP"

system.sysServices.0 = 78

system.8.0 = Timeticks: (0) 0:00:00.00

onionring:~$

Step 4 Change the OID environmental prefix by entering the commands prefix and export prefix. This step reduces the number of key strokes you must enter at the command line.

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 2> /

dev/null

enterprises.9.2.1.2.0 = "reload"

onionring:~$ PREFIX=.1.3.6.1.4.1.9

onionring:~$ export PREFIX

onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p 2.1.2.0 2> /dev/null

enterprises.9.2.1.2.0 = "reload"

onionring:~$

The UCD-SNMP application attaches a prefix to the requested variable unless it is fully qualified (for example, unless the variable starts with a period "."). By default, the prefix points to the MIB-II node .1.3.6.1.2.1 location. The Cisco enterprises prefix points to .1.3.6.1.4.1.9

Step 5 Inspect the IP address entry table by entering the snmptable command and ipAddrTable OID:

onionring:~$ snmptable travis-nas-01.the.net 5urf5h0p ip.ipAddrTable 2> /dev/null

SNMP table: ip.ipAddrTable.ipAddrEntry

ipAdEntAddr ipAdEntIfIndex  ipAdEntNetMask ipAdEntBcastAddr ipAdEntReasmMaxSize

172.21.10.1            351   255.255.255.255              1              18024

172.21.101.20          289   255.255.255.0                1              18024

onionring:~$

Step 6 Poll the interfaces table and redirect the output to a text file by entering the snmptable command and ifTable OID:

onionring:~$ snmptable travis-nas-01.the.net 5urf5h0p interfaces.ifTable
> /export/home/www/travis-nas-01_ifTable.txt

onionring:~$

Note Do not forget the space between > and /export

Step 7 Inspect the contents of the interfaces table by entering the cat command. In the following Cisco AS5800 example, notice the interface descriptions (ifDescr) and types (ifType). There is one PPP and DS0 entry for each serial interface.

onionring:~$ cat /export/home/www/travis-nas-01_ifTable.txt

SNMP table: interfaces.ifTable.ifEntry

 ifIndex                         ifDescr                 ifType ifMtu    ifSpeed ........

       1                   "Async1/2/00"                  other  1500       9000

       2                   "Async1/2/01"                  other  1500       9000

       3                   "Async1/2/02"                  other  1500       9000

     289             "FastEthernet0/0/0"         ethernetCsmacd  1500  100000000

     290                         "Null0"                  other  1500 4294967295

     291                      "T1 1/0/0"                    ds1     ?          ?

     292                      "T1 1/0/1"                    ds1     ?          ?

     301                     "T1 1/0/10"                    ds1     ?          ?

     302                     "T1 1/0/11"                    ds1     ?          ?

     303                 "Serial1/0/0:0" propPointToPointSerial  1500      64000

     304                 "Serial1/0/0:1" propPointToPointSerial  1500      64000

     326                "Serial1/0/0:23"                   lapd  1500      64000

     327      "Serial1/0/0:23-Signaling"                   isdn  1500      64000

     328  "Serial1/0/0:0-Bearer Channel"                    ds0     ?          ?

     329  "Serial1/0/0:1-Bearer Channel"                    ds0     ?          ?

     350 "Serial1/0/0:22-Bearer Channel"                    ds0     ?          ?

     351                     "Loopback0"       softwareLoopback  15144294967295

About SNMP Commander

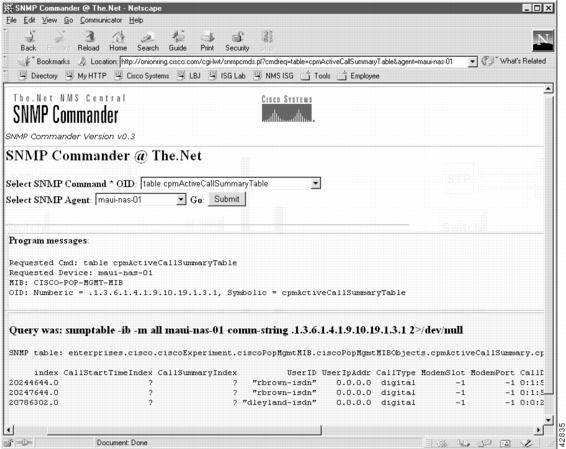

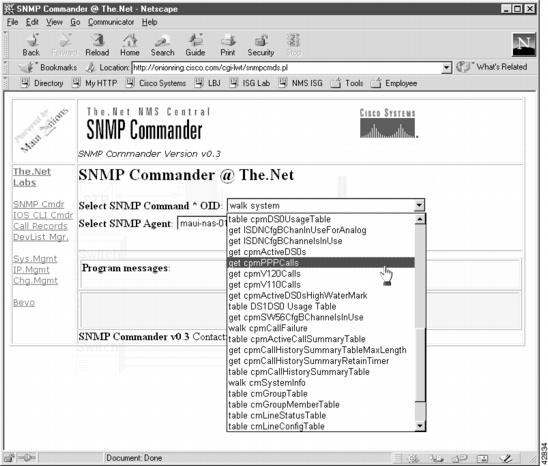

The dial engineers at THEnet created a tool called SNMP Commander that:

•Provides web-based access to UCD-SNMP CLI commands.

•Builds web-based OID bookmarks, which enable you to go to OIDs without using a keyboard.

•Aids the MIB exploration and NMS design tasks.

By using SNMP Commander and a web browser, you can:

•Create URL links for the network staff and help desk.

•Identify target OIDs you want to graph by using MRTG.

•Inspect thresholds and events to monitor by using other NMS systems.

The following two components work together to create SNMP Commander:

•snmpcmds.dat—A comma separated variables file, which includes a list of SNMP CLI commands. This file is read by the snmpcmds.pl script.

The following is the source code for this file:

host:/opt/CSCOlwt/conf$ ls

devlist.txt                naslist2.txt

lwt.conf                   snmpcmds.dat

mrtg_01.cfg                swatch-nas.0.cfg

mrtg_01.ok                 swatch-nas.cfg

mrtg_cron.sh               swatch-pers.cfg

mrtg_maui-nas-01_dial.cfg  thenet-tools_menu.lbi

mrtg_maui-nas-01_dial.ok

host:/opt/CSCOlwt/conf$ cat snmpcmds.dat

walk system,snmpwalk,.1.3.6.1.2.1.1,RFC1213-MIB,system

walk cisco.lsystem, snmpwalk, .1.3.6.1.4.1.9.2.1,OLD-CISCO-SYS-MIB,lsystem

table entPhysicalTable,snmptable -ib,.1.3.6.1.2.1.47.1.1.1
,ENTITY-MIB,entPhysicalTable

table entLogicalTable,snmptable -ib,.1.3.6.1.2.1.47.1.2.1,ENTITY-MIB,entLogicalTable

walk chassis,snmpwalk,.1.3.6.1.4.1.9.3.6,OLD-CISCO-CHASSIS,chassis

table cardTable,snmptable -ib,.1.3.6.1.4.1.9.3.6.11,OLD-CISCO-CHASSIS,cardTable

table cardIfIndexTable,snmptable
-ib,.1.3.6.1.4.1.9.3.6.13,OLD-CISCO-CHASSIS,cardIfIndexTable

table cpmCPUTotalTable, snmptable -ib, .1.3.6.1.4.1.9.9.109.1.2.1,Cisco-PROCESS-MIB,
cpmCPUTotalTable

table cpmProcessTable, snmptable -ib,
.1.3.6.1.4.1.9.9.109.1.2.1,Cisco-PROCESS-MIB,cpmProcessTable

table ProcessExtTable, snmptable -ib,
.1.3.6.1.4.1.9.9.109.1.2.2,Cisco-PROCESS-MIB,ProcessExtTable

table ciscoMemoryPoolTable, snmptable -ib,
.1.3.6.1.4.1.9.9.48.1.1,CISCO-MEMORY-POOL-MIB, ciscoMemoryPoolTable

table ciscoFlashDeviceTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.1.2,CISCO-FLASH-MIB,
ciscoFlashDeviceTable

table ciscoFlashChipTable,snmptable
-ib,.1.3.6.1.4.1.9.9.10.1.1.3.1,CISCO-FLASH-MIB,ciscoFlashChipTable

table ciscoFlashPartitionTable,snmptable
-ib,.1.3.6.1.4.1.9.9.10.1.1.4.1,CISCO-FLASH-MIB,ciscoFlashPartitionTable

table ciscoFlashFileTable,snmptable
-ib,.1.3.6.1.4.1.9.9.10.1.1.4.2.1,CISCO-FLASH-MIB,ciscoFlashFileTable

table ciscoFlashCopyTable,snmptable
-ib,.1.3.6.1.4.1.9.9.10.1.2.1,CISCO-FLASH-MIB,ciscoFlashCopyTable

table ciscoFlashPartitioningTable,snmptable
-ib,.1.3.6.1.4.1.9.9.10.1.2.2,CISCO-FLASH-MIB,ciscoFlashPartitioningTable

table ciscoFlashMiscOpTable,snmptable
-ib,.1.3.6.1.4.1.9.9.10.1.2.3,CISCO-FLASH-MIB,ciscoFlashMiscOpTable

table ciscoImageTable,snmptable
-ib,.1.3.6.1.4.1.9.9.25.1.1,CISCO-IMAGE-MIB,ciscoImageTable

walk lflash,snmpwalk,.1.3.6.1.4.1.9.2.10,OLD-CISCO-FLASH-MIB,lflash

table ciscoEnvMonVoltageStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.2
,CISCO-ENVMON-MIB,ciscoEnvMonVoltageStatusTable

table ciscoEnvMonTemperatureStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.3
,CISCO-ENVMON-MIB,ciscoEnvMonTemperatureStatusTable

table ciscoEnvMonFanStatusTable,snmptable
-ib,.1.3.6.1.4.1.9.9.13.1.4,CISCO-ENVMON-MIB,ciscoEnvMonFanStatusTable

table ciscoEnvMonSupplyStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.5
,CISCO-ENVMON-MIB,ciscoEnvMonSupplyStatusTable

walk
cisco5800HealthMonMIB,snmpwalk,.1.3.6.1.4.1.9.10.28,CISCO-5800-HEALTH-MON-MIB,cisco58
00HealthMonMIB

get ifNumber,snmpget -Os, .1.3.6.1.2.1.2.1.0, IF-MIB, ifNumber

table ifTable, snmptable, .1.3.6.1.2.1.2.2, IF-MIB, ifTable

table lifTable, snmptable -ib,.1.3.6.1.4.1.9.2.2.1,OLD-CISCO-INTERFACES-MIB, lifTable

table dot3StatsTable,snmptable -ib,.1.3.6.1.2.1.10.7.2,RFC1398-MIB,dot3StatsTable

table dsx1ConfigTable,snmptable -ib,.1.3.6.1.2.1.10.18.6,RFC1406-MIB,dsx1ConfigTable

table dsx1CurrentTable,snmptable
-ib,.1.3.6.1.2.1.10.18.7,RFC1406-MIB,dsx1CurrentTable

table dsx1IntervalTable,snmptable
-ib,.1.3.6.1.2.1.10.18.8,RFC1406-MIB,dsx1IntervalTable

table dsx1TotalTable,snmptable -ib,.1.3.6.1.2.1.10.18.9,RFC1406-MIB,dsx1TotalTable

table dsx1FarEndCurrentTable,snmptable
-ib,.1.3.6.1.2.1.10.18.10,RFC1406-MIB,dsx1FarEndCurrentTable

table dsx1FracTable,snmptable -ib,.1.3.6.1.2.1.10.18.13,RFC1406-MIB,dsx1FracTable

walk ip,snmpwalk,.1.3.6.1.2.1.4,IP-MIB,ip

table ipAddrTable,snmptable -ib,.1.3.6.1.2.1.4.20 ,IP-MIB,ipAddrTable

table lipAddrTable,snmptable -ib,.1.3.6.1.4.1.9.2.4.1,OLD-CISCO-IP-MIB,lipAddrTable

table ipRouteTable,snmptable -ib,.1.3.6.1.2.1.4.21,IP-MIB,ipRouteTable

table lipRouteTable,snmptable -ib,.1.3.6.1.4.1.9.2.4.2,OLD-CISCO-IP-MIB,lipRouteTable

get ipRoutingDiscards,snmpget -Os, .1.3.6.1.2.1.4.23.0 ,IP-MIB,ipRoutingDiscards

table ipNetToMediaTable,snmptable -ib,.1.3.6.1.2.1.4.22 ,IP-MIB, ipNetToMediaTable

walk icmp,snmpwalk,.1.3.6.1.2.1.5,RFC1213-MIB,icmp

walk tcp,snmpwalk,.1.3.6.1.2.1.6,TCP-MIB,tcp

table tcpConnTable,snmptable -ib,.1.3.6.1.2.1.6.13,TCP-MIB,tcpConnTable

walk udp,snmpwalk,. 1.3.6.1.2.1.7,UDP-MIB,udp

table udpTable,snmptable -ib,.1.3.6.1.2.1.7.5 ,UDP-MIB,udpTable

table cQIfTable,snmptable -ib,.1.3.6.1.4.1.9.9.37.1.1,CISCO-QUEUE-MIB,cQIfTable

table cQStatsTable,snmptable -ib,.1.3.6.1.4.1.9.9.37.1.2,CISCO-QUEUE-MIB,cQStatsTable

table rs232PortTable,snmptable -ib, .1.3.6.1.2.1.10.33.2,RS-232-MIB,rs232PortTable

table rs232AsyncPortTable,snmptable -ib, .1.3.6.1.2.1.10.33.3
,RS-232-MIB,rs232AsyncPortTable

table rs232SyncPortTable,snmptable -ib,
.1.3.6.1.2.1.10.33.4,RS-232-MIB,rs232SyncPortTable

table rs232InSigTable,snmptable -ib, .1.3.6.1.2.1.10.33.5,RS-232-MIB,rs232InSigTable

table rs232OutSigTable,snmptable -ib,
.1.3.6.1.2.1.10.33.6,RS-232-MIB,rs232OutSigTable

table ltsLineTable, snmptable -ib, .1.3.6.1.4.1.9.2.9.2,
OLD-CISCO-TS-MIB,ltsLineTable

table cdpInterfaceTable, snmptable
-ib,.1.3.6.1.4.1.9.9.23.1.1.1,CISCO-CDP-MIB,cdpInterfaceTable

table cdpCacheTable, snmptable
-ib,.1.3.6.1.4.1.9.9.23.1.2.1,CISCO-CDP-MIB,cdpCacheTable

table isdnBasicRateTable, snmptable -ib,.1.3.6.1.2.1.10.20.1.1.1,
ISDN-MIB,isdnBasicRateTable

table isdnBearerTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.2.1, ISDN-MIB,
isdnBearerTable

table isdnSignalingTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.3.2, ISDN-MIB,
isdnSignalingTable

table isdnSignalingStatsTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.3.3,
ISDN-MIB,isdnSignalingStatsTable

table isdnLapdTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.3.4, ISDN-MIB,isdnLapdTable

table isdnEndpointTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.4.2,
ISDN-MIB,isdnEndpointTable

table isdnDirectoryTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.5.1, ISDN-MIB,
isdnDirectoryTable

table ccasDs1IfCfgTable, snmptable
-ib,.1.3.6.1.4.1.9.9.85.1.1.1,CISCO-CAS-IF-MIB,ccasDs1IfCfgTable

table dialCtlPeer,snmptable -ib,1.3.6.1.2.1.10.21.1.2.1,DIAL-CONTROL-MIB,dialCtlPeer

table demandNbrTable,snmptable
-ib,.1.3.6.1.4.1.9.9.26.1.1.1,CISCO-ISDN-MIB,demandNbrTable

walk
ciscoCallResourcePoolMIB,snmpwalk,.1.3.6.1.4.1.9.9.124,CISCO-CALL-RESOURCE-POOL-MIB,c
iscoCallResourcePoolMIB

table cmmFaxGeneralCfg,snmptable
-ib,.1.3.6.1.4.1.9.9.102.1.4,CISCO-MMAIL-DIAL-CONTROL-MIB,cmmFaxGeneralCfg

table ciscoCallHistoryTable,snmptable
-ib,.1.3.6.1.4.1.9.9.27.1.1.3,CISCO-CALL-HISTORY-MIB,ciscoCallHistoryTable

table cpmDS0UsageTable, snmptable -ib, .1.3.6.1.4.1.9.10.19.1.1.1,CISCO-POP-MGMT-MIB,
cpmDS0UsageTable

get ISDNCfgBChanInUseForAnalog, snmpget,
.1.3.6.1.4.1.9.10.19.1.1.2.0,CISCO-POP-MGMT-MIB, cpmISDNCfgBChanInUseForAnalog

get ISDNCfgBChannelsInUse, snmpget, .1.3.6.1.4.1.9.10.19.1.1.3.0,CISCO-POP-MGMT-MIB,
cpmISDNCfgBChannelsInUse

get cpmActiveDS0s, snmpget, .1.3.6.1.4.1.9.10.19.1.1.4.0,CISCO-POP-MGMT-MIB,
cpmActiveDS0s

get cpmPPPCalls, snmpget, .1.3.6.1.4.1.9.10.19.1.1.5.0,CISCO-POP-MGMT-MIB,
cpmPPPCalls

get cpmV120Calls, snmpget, .1.3.6.1.4.1.9.10.19.1.1.6.0,CISCO-POP-MGMT-MIB,
cpmV120Calls

get cpmV110Calls, snmpget, .1.3.6.1.4.1.9.10.19.1.1.7.0,CISCO-POP-MGMT-MIB,
cpmV110Calls

get cpmActiveDS0sHighWaterMark, snmpget,
.1.3.6.1.4.1.9.10.19.1.1.8.0,CISCO-POP-MGMT-MIB, cpmActiveDS0sHighWaterMark

table DS1DS0 Usage Table, snmptable -ib,
.1.3.6.1.4.1.9.10.19.1.1.9,CISCO-POP-MGMT-MIB, cpmDS1DS0UsageTable

get cpmSW56CfgBChannelsInUse, snmpget,
.1.3.6.1.4.1.9.10.19.1.1.10.0,CISCO-POP-MGMT-MIB, cpmSW56CfgBChannelsInUse

walk cpmCallFailure, snmpwalk, .1.3.6.1.4.1.9.10.19.1.2,CISCO-POP-MGMT-MIB,
cpmCallFailure

table cpmActiveCallSummaryTable, snmptable -ib,
.1.3.6.1.4.1.9.10.19.1.3.1,CISCO-POP-MGMT-MIB, cpmActiveCallSummaryTable

get cpmCallHistorySummaryTableMaxLength, snmpget, .1.3.6.1.4.1.9.10.19.1.4.1.0
,CISCO-POP-MGMT-MIB, cpmCallHistorySummaryTableMaxLength

get cpmCallHistorySummaryRetainTimer, snmpget, .1.3.6.1.4.1.9.10.19.1.4.2.0
,CISCO-POP-MGMT-MIB, cpmCallHistorySummaryRetainTimer

table cpmCallHistorySummaryTable, snmptable -ib,
.1.3.6.1.4.1.9.10.19.1.4.3,CISCO-POP-MGMT-MIB, cpmCallHistorySummaryTable

walk cmSystemInfo, snmpwalk, .1.3.6.1.4.1.9.9.47.1.1,CISCO-MODEM-MGMT-MIB,
cmSystemInfo

table cmGroupTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.2.1,CISCO-MODEM-MGMT-MIB,
cmGroupTable

table cmGroupMemberTable, snmptable -ib,
.1.3.6.1.4.1.9.9.47.1.2.2,CISCO-MODEM-MGMT-MIB, cmGroupMemberTable

table cmLineStatusTable, snmptable -ib,
.1.3.6.1.4.1.9.9.47.1.3.1,CISCO-MODEM-MGMT-MIB, cmLineStatusTable

table cmLineConfigTable, snmptable -ib,
.1.3.6.1.4.1.9.9.47.1.3.2,CISCO-MODEM-MGMT-MIB, cmLineConfigTable

table cmLineStatisticsTable, snmptable -ib,
.1.3.6.1.4.1.9.9.47.1.3.3,CISCO-MODEM-MGMT-MIB, cmLineStatisticsTable

table cmLineSpeedStatisticsTable, snmptable -ib,
.1.3.6.1.4.1.9.9.47.1.3.4,CISCO-MODEM-MGMT-MIB, cmLineSpeedStatisticsTable

walk CISCO-AAA-SERVER-MIB,snmpwalk,.1.3.6.1.4.1.9.10.56,CISCO-AAA-SERVER-MIB,ls
CISCO-AAA-SERVER-MIB

walk
CISCO-AAA-SESSION-MIB,snmpwalk,.1.3.6.1.4.1.9.9.150,CISCO-AAA-SESSION-MIB,CISCO-AAA-S
ESSION-MIB

walk ciscoAAAServerCapability, snmpwalk,
.1.3.6.1.4.1.9.7.129,CISCO-AAA-SERVER-CAPABILITY, ciscoAAAServerCapability

get cvpdnTunnelTotal,snmpget
-Os,.1.3.6.1.4.1.9.10.24.1.1.1.0,CISCO-VPDN-MGMT-MIB,cvpdnTunnelTotal

get cvpdnSessionTotal,snmpget
-Os,.1.3.6.1.4.1.9.10.24.1.1.2.0,CISCO-VPDN-MGMT-MIB,cvpdnSessionTotal

get cvpdnDeniedUsersTotal,snmpget
-Os,.1.3.6.1.4.1.9.10.24.1.1.3.0,CISCO-VPDN-MGMT-MIB,cvpdnDeniedUsersTotal

table cvpdnSystemTable,snmptable
-ib,.1.3.6.1.4.1.9.10.24.1.1.4,CISCO-VPDN-MGMT-MIB,cvpdnSystemTable

table cvpdnTunnelTable,snmptable
-ib,.1.3.6.1.4.1.9.10.24.1.2.1,CISCO-VPDN-MGMT-MIB,cvpdnTunnelTable

table cvpdnTunnelAttrTable,snmptable
-ib,.1.3.6.1.4.1.9.10.24.1.2.2,CISCO-VPDN-MGMT-MIB,cvpdnTunnelAttrTable

table cvpdnTunnelSessionTable,snmptable
-ib,.1.3.6.1.4.1.9.10.24.1.3.1,CISCO-VPDN-MGMT-MIB,cvpdnTunnelSessionTable

table cvpdncvpdnSessionAttrTable,snmptable
-ib,.1.3.6.1.4.1.9.10.24.1.3.2,CISCO-VPDN-MGMT-MIB,cvpdnSessionAttrTable

table cvpdnUserToFailHistInfoTable,snmptable
-ib,.1.3.6.1.4.1.9.10.24.1.4.1,CISCO-VPDN-MGMT-MIB,cvpdnUserToFailHistInfoTable

table rttMonApplSupportedRttTypesTable,snmptable
-ib,.1.3.6.1.4.1.9.9.42.1.1.7,CISCO-RTTMON-MIB,rttMonApplSupportedRttTypesTable

table rttMonApplSupportedProtocolsTable,snmptable
-ib,.1.3.6.1.4.1.9.9.42.1.1.8,CISCO-RTTMON-MIB,rttMonApplSupportedProtocolsTable

walk expressionMIB,snmpwalk,.1.3.6.1.4.1.9.10.22,EXPRESSION-MIB,expressionMIB

walk snmpFrameworkMIB,snmpwalk ,.1.3.6.1.6.3.10 ,SNMP-FRAMEWORK-MIB,snmpFrameworkMIB

walk snmp,snmpwalk,.1.3.6.1.2.1.11,SNMPv2-MIB,snmp

walk rmon,snmpwalk,.1.3.6.1.2.1.16,RMON-MIB,rmon

table ccmHistoryEventTable,snmptable
-ib,.1.3.6.1.4.1.9.9.43.1.1.6,CISCO-CONFIG-MAN,ccmHistoryEventTable

walk clogBasic,snmpwalk,.1.3.6.1.4.1.9.9.41.1.1,CISCO-SYSLOG-MIB,clogBasic

table clogHistoryTable,snmptable
-ib,.1.3.6.1.4.1.9.9.41.1.2.3,CISCO-SYSLOG-MIB,clogHistoryTable

walk ciscoFtpClientMIB,snmpwalk,.1.3.6.1.4.1.9.9.80,CISCO-FTP-CLIENT-MIB,ciscoFtpCli

•snmpcmds.pl—A script that loads and reads a data file. You can use additional data files by creating multiple instances of the original script and altering the data file descriptor.

The following is the source code for this file:

host:/opt/CSCOlwt/bin$ ls

device_lister.pl  init_lwt.pl       mcr_search.pl     mcr_viewer

dnszone.pl        init_lwt.sh       mcr_sum           snmpcmds.pl

dnszone_dump      loglopper         mcr_view-01       userstat

host:/opt/CSCOlwt/bin$ cat snmpcmds.pl

#!/usr/local/bin/perl -w

# ------------------------------------------------------------------------

# SNMP Commander.pl v0.3

# owner:

# Last Updated:

# ------------------------------------------------------------------------

# Main program first....

# Using the lightweight CGI Perl Module by ....

use CGI_Lite;

# =========PER-SITE VARIABLES===========

my $LWTBASE = "/opt/CSCOlwt"; # Base dir for Lightweight Tools.

my $devicelist_fn = "$LWTBASE/conf/devlist.txt";  # Device List File

my $snmpcmds_fn = "$LWTBASE/conf/snmpcmds.dat";   # SNMP Commands File

$topleft_image = '<img src="/graphics/smallonion2.gif" width="90" height="90">';

 # HTML Component

my $leftmenu_fn = "$LWTBASE/conf/thenet-tools_menu.lbi"; # HTML Component

# add read only Community String

# ===== End of Per-Site Variables ======

$vers = "v0.3";

# Local Variables

my $i = 0;                                   # the universal counter

my $messages = "";

# Create an instance of CGI_Lite to bring in the CGI/Form variables.

# Use CGI_lite utilities to  create scalars of each CGI AV Pair.

# $cmdreq = "snmp pseudo-code" requested, $agent = selected node.

my $cgi = new CGI_Lite;

my %form = $cgi->parse_form_data;

$cgi->create_variables (\%form);

#Create debug and messaging string

# add to $messages as needed to debug script and functions.

# ========= Parse Lightweight Tools files into VARIABLES ===========

# Read Files, and set more variables based on them.

#   The  snmpcmds.dat file is inspected for command definitions. Format by examp

le at this time. No whitespace.

#   1) snmpcmds.dat file is inspected for command definitions.

open (SNMPCMDS, $snmpcmds_fn) || ($messages .= "Can't open SNMP_Commander Data:

file: $snmpcmds_fn<br>\n");

   @snmplines  = <SNMPCMDS>;

close(SNMPCMDS);

# prepare SNMP Command Arrays for Commander Interface and Command Execution.

# this routine defines the file input format. 5 fields seperated by "," only.

# i.e. Psuedo-Command,ucd-snmpcmd,numeric_oid,MIB-NAME,symbolic_oid

foreach $snmpline (@snmplines) {

      ($cmd_text[$i], $cmd_verb[$i], $oid[$i], $mib[$i], $oid_symb[$i]) = split

(",", $snmpline);

      $i++;

# remove all leading and trailing whilespace

foreach (@cmd_text, @cmd_verb, @oid, @mib, @oid_symb) {

    s/^\s+//;

    s/\s+$//;

# Next, we open and parse the the device_list.txt file.

# The file format is one Device Name per line, no whitespace.

open (DEVLIST, $devicelist_fn) || ($messages .= "Can't open Device List Data: fi

le: $devicelist_fn\n");

   @devices = <DEVLIST>;

close(DEVLIST);

   chomp @devices;

# ------ Read HTML Template into variables -----

open (LEFTMENU, $leftmenu_fn) || ($messages .= "Can't open Left Menu HTML: file:

 $leftmenu_fn\n");

    foreach $line (<LEFTMENU>) {$leftmenu .= $line}

close (LEFTMENU);

# ========= Generate Dynamic HTML Components ===========

## First prepare parts

# Spin command text into HTML form selection list.

$html_cmdlist = "";                        # text string to hold the <select> fo

rm <option>s.

$selected = "";                            # creates the selected attribute if P

OSTed by last visit

foreach $cmdtext (@cmd_text) {

      if ($cmdtext eq $cmdreq) {$selected = " selected"} else {$selected = ""}

      $html_cmdlist .= "<option$selected>$cmdtext</option>\n";

# Spin device names into HTML form selection list.

$html_devlist = "";                        # text string to hold the <select> fo

rm <option>s.

$selected = "";                            # creates the selected attribute if P

OSTed by last visit

foreach $device (@devices) {

      if ($device eq $agent) {$selected = " selected"} else {$selected = ""}

      $html_devlist .= "<option$selected>$device</option>\n";

# If SNMP output was requested, go get it from &snmp_commander in HTML format.

if ($cmdreq ne "") {

    for ($i=0; $i < @cmd_text; $i++) {

        if ($cmdreq eq $cmd_text[$i]) {

            if ($agent) {

                $snmp_results = &snmp_commander($agent, $cmd_verb[$i], $oid[$i])

            } else {$messages .= "Command $cmd_text[$i] found, but no agent requ

ested!\n"}

            $choice = $i;

            $found = "true";

            last;

    if (!$found) {$messages .= "requested command $cmdreq not found\n"}

} elsif ($agent) {$messages .= "Device $agent requested, but no snmp command sel

ected!\n"}

# ----- Generate Info about last requested Action --------

if ($found) {

    $messages .= "Requested Cmd: $cmdreq\n";

    $messages .= "Requested Device: $agent\n";

    $messages .= "MIB: $mib[$choice]\n";

    $messages .= "OID: Numberic = $oid[$choice], Symbolic = $oid_symb[$choice]\n

";

# Location to add debug output to $messages

# uncomment or add other lines as needed to check script state

# $messages .= "passed command was !$cmdreq!\n";

# $messages .= "agent passed was !$agent!\n";

# $messages .= "choice was was !$choice!\n";

# $messages .= "mib[choice] = !$mib[$choice]!\n";

# $messages .= "leftmenu is:\n$leftmenu\n";

# ====================================================

# Print HTML Output

# generate device list in HTML

print "content-type: text/html\n\n";

print <<HTML_OUTPUT;

<html>

<head>

<title>SNMP Commander @ The.Net</title>

</head>

<body bgcolor="#FFFFFF" background="/graphics/ss7_dial1.gif">

<table width="650" border="1">

  <tr>

       <td width="90" valign="center" align="center">$topleft_image</td>

    <td><img src="/graphics/thenet_snmpcmds_bn.gif"><br>

      <font size="-1" face="Verdana, Arial, Helvetica, sans-serif"><i>SNMP Comma

nder Version $vers</i></font>

    </td>

  </tr>

  <tr>

     <td width="90" valign="top">$leftmenu</td>

     <td valign="top">

<h2>SNMP Commander @ The.Net</h2>

<body bgcolor="#FFFFFF">

<form method="GET" enctype="application/x-www-form-urlencoded">

  <p><b> Select SNMP Command * OID: <select name="cmdreq">$html_cmdlist</select>

<br>

      Select SNMP Agent:    <select name="agent">$html_devlist</select>   Go: <i

nput type="submit" value="Submit">

  </b></p>

</form>

<hr width="650" align="left">

  <table border="1" bgcolor="#FFFF99" width="100%">

      <tr><td width="100%">

      <b>Program messages:</b>

       <pre width="80">$messages</pre>

      </td></tr>

  </table>

  <table border="1" bgcolor="#AAFFFF" width="100%">

      <tr><td width="100%">

       <pre width="80">

       $snmp_results

       </pre>

      </td></tr>

  </table>

<b>SNMP Commander $vers</b> Contact: <a href=mailto:net-admin\@aurora.the.net>ne

t-admin\@aurora.the.net</a>

 </td>

 </tr>

</table>

</body>

</html>

HTML_OUTPUT

exit 0;

# end of main program

# Subroutines

# ============================================================

# SNMP Command Execution Subroutine

sub snmp_commander {

my $lagent = $_[0];

my $lverb = $_[1];

my $loid = $_[2];

my $results = "";

my $comm_string = "underdog";

$results .= "<h3>Query was: $lverb -m all $lagent comm-string $loid 2>/dev/null<

/h3>\n";

$results .= `/usr/local/bin/$lverb -m all $lagent $comm_string $loid 2>/dev/null

\n`;

return $results;

Setting Up SNMP Commander

To set up SNMP Commander, follow these steps:

Step 1 From CCO, download snmpcmds.dat and snmpcmds.pl

Step 2 Customize the files for your environment. When you find useful OIDs, enter them in the snmpcmds.dat file and use the web-based form of the script to research the MIBs. The web tool functions like an SNMP OID bookmarker.

Step 3 Test SNMP Commander by using a web browser:

a. Select an SNMP command and OID.

b. Select an SNMP agent (Cisco IOS device).

c. Click Submit.

d. Inspect the program and query messages.

Figure 8

SNMP Commander Tool

Figure 9

Polling Results from the table cpmActiveCallSummaryTable Command

	Basic Dial NMS Implementation Guide
	Task 2-- Exploring SNMP Capabilities by Using UCD-SNMP
Basic Dial NMS Implementation Guide Preface Overview of Basic SNMP Building Blocks Network Design for a Dial NMS Case Study Task 1--Enabling SNMP in a Cisco IOS Device Task 2-- Exploring SNMP Capabilities by Using UCD-SNMP Task 3--Using MRTG to Monitor and Graph Traffic Loads Task 4--Using Syslog, NTP, and Modem Call Records to Troubleshoot Faults Task 5--Setting Up a Web Portal for the Dial NMS Task 6--Managing IP Addresses by Using DNS Task 7--Using HP OpenView to Create the SNMP Framework Task 8--Using CiscoWorks 2000 Resource Manager Essentials Dial MIBs and OIDs Used in the Case Study Index	Download this chapter Task 2-- Exploring SNMP Capabilities by Using UCD-SNMP Download the complete book PDF of Full Book (PDF - 2 MB) Feedback Table Of Contents Task 2— Exploring SNMP Capabilities by Using UCD-SNMP About Using UCD-SNMP Installing UCD-SNMP and Downloading Cisco MIBs Exploring SNMP MIBs for Dial Networks About SNMP Commander Setting Up SNMP Commander Task 2— Exploring SNMP Capabilities by Using UCD-SNMP About Using UCD-SNMP Researching and identifying which functions are available in SNMP are part of building a dial NMS environment. In this case study, UCD-SNMP, an opensource freeware application that allows access to SNMP functions from a command line interface (CLI), is used to explore the capabilities of SNMP. There are many benefits to using UCD-SNMP. You can: •Gain a fundamental understanding of how SNMP functions and protocols work in a dial access environment. This knowledge provides a solid foundation for using automated and GUI-based SNMP applications. •Learn how to use a low-level troubleshooting capability in the event that other SNMP applications produce questionable results. •Poll any OID and verify SNMP agent responses. •Use stable and reliable CLI commands. UCD-SNMP is unobstructed by GUI functionality. •Explore and research MIB content. •Discover what functions are available to manage a Cisco IOS device. •Create customized scripts and tools. For this case study, the dial engineers at THEnet created a tool called SNMP Commander. The tool aided the MIB research task by enabling dial engineers to build web-based object identification (OIDs) bookmarks, which they could go to without using a keyboard. By using UCD-SNMP and SNMP Commander, the dial engineers at THEnet identified which items the commercial NMS applications would monitor within the network operations center (NOC). Installing UCD-SNMP and Downloading Cisco MIBs To install UCD-SNMP and download MIBs from the Cisco FTP site, follow these steps. Note You can also download individual MIBs from http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml Step 1 Go to http://net-snmp.sourceforge.net/ Step 2 Download, compile, and install UCD-SNMP. In this case study, the UCD-SNMP commands are installed in the /usr/local/bin directory. Step 3 From the Cisco FTP site, download the MIBs into the /usr/local/share/snmp/mibs directory on your Solaris workstation. By using the following Unix commands, you can copy the entire bundled v1 MIB tar file from ftp.cisco.com. cd /usr/local/share/snmp/mibs ftp ftp.cisco.com cd /pub/mibs/v1 bin get v1.tar.gz exit Step 4 Decompress and untar the files in the /usr/local/share/snmp/mibs directory: gzip -d v1.tar.gz tar -xvf v1.tar Note There are many MIBs in the tar file that you may not use. Regardless, Cisco recommends you keep all the MIBs on file to support your evolving network needs. Exploring SNMP MIBs for Dial Networks To explore the MIBs for a Cisco IOS device by using SNMP CLI commands, follow the steps in this section. Poll OID variables by using the commands snmpget, snmpwalk, and snmptable. Note This section assumes you already have a basic understanding of UCD-SNMP and know how to use its CLI commands. Step 1 To determine the last restart reason for the router, enter the snmpget command and the relevant OID. In the following example, the restart reason is "reload." onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 Counter32 (is a reserved word): At line 6 in /usr/local/share/snmp/mibs/SNMPv2-S MI-V1SMI.my Gauge32 (is a reserved word): At line 7 in /usr/local/share/snmp/mibs/SNMPv2-SMI -V1SMI.my Integer32 (is a reserved word): At line 8 in /usr/local/share/snmp/mibs/SNMPv2-S MI-V1SMI.my Did not find 'mib-2' in module RFC1213-MIB (/usr/local/share/snmp/mibs/IANAifTyp e-MIB-V1SMI.my) enterprises.9.2.1.2.0 = "reload" If SNMP-parsing errors are generated, suppress them by appending 2>/dev/null to the end of the command. Standard output is tagged as 1. Error output is tagged as 2. onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 2> /dev/null enterprises.9.2.1.2.0 = "reload" onionring:~$ Note If no response is returned by the SNMP agent, allow error messages to print to the screen by removing the 2>/dev/null argument. Step 2 Check the system up time by entering the snmpget command and sysUpTime OID: onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.2.1.system.sysUpTime.0 2> /dev/null system.sysUpTime.0 = Timeticks: (45450609) 5 days, 6:15:06.09 onionring:~$ Step 3 To gather basic configuration management information about the Cisco IOS device, enter the snmpwalk command and the system OID. onionring:~$ snmpwalk travis-nas-01.the.net 5urf5h0p system 2> /dev/null system.sysDescr.0 = "Cisco Internetwork Operating System Software ..IOS (tm) 5800 Software (C5800-P4-M), Version 12.1(2a)T1, RELEASE SOFTWARE (fc2)..Copyright (c) 1986-2000 by cisco Systems, Inc...Compiled Mon 12-Jun-00 23:13 by ccai" system.sysObjectID.0 = OID: enterprises.9.1.188 system.sysUpTime.0 = Timeticks: (45492606) 5 days, 6:22:06.06 system.sysContact.0 = "net-admin@aurora.the.net" system.sysName.0 = "travis-nas-01.the.net" system.sysLocation.0 = "Lake Travis (Austin) Dial POP" system.sysServices.0 = 78 system.8.0 = Timeticks: (0) 0:00:00.00 onionring:~$ Step 4 Change the OID environmental prefix by entering the commands prefix and export prefix. This step reduces the number of key strokes you must enter at the command line. onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p .1.3.6.1.4.1.9.2.1.2.0 2> / dev/null enterprises.9.2.1.2.0 = "reload" onionring:~$ PREFIX=.1.3.6.1.4.1.9 onionring:~$ export PREFIX onionring:~$ snmpget travis-nas-01.the.net 5urf5h0p 2.1.2.0 2> /dev/null enterprises.9.2.1.2.0 = "reload" onionring:~$ The UCD-SNMP application attaches a prefix to the requested variable unless it is fully qualified (for example, unless the variable starts with a period "."). By default, the prefix points to the MIB-II node .1.3.6.1.2.1 location. The Cisco enterprises prefix points to .1.3.6.1.4.1.9 Step 5 Inspect the IP address entry table by entering the snmptable command and ipAddrTable OID: onionring:~$ snmptable travis-nas-01.the.net 5urf5h0p ip.ipAddrTable 2> /dev/null SNMP table: ip.ipAddrTable.ipAddrEntry ipAdEntAddr ipAdEntIfIndex ipAdEntNetMask ipAdEntBcastAddr ipAdEntReasmMaxSize 172.21.10.1 351 255.255.255.255 1 18024 172.21.101.20 289 255.255.255.0 1 18024 onionring:~$ Step 6 Poll the interfaces table and redirect the output to a text file by entering the snmptable command and ifTable OID: onionring:~$ snmptable travis-nas-01.the.net 5urf5h0p interfaces.ifTable > /export/home/www/travis-nas-01_ifTable.txt onionring:~$ Note Do not forget the space between > and /export Step 7 Inspect the contents of the interfaces table by entering the cat command. In the following Cisco AS5800 example, notice the interface descriptions (ifDescr) and types (ifType). There is one PPP and DS0 entry for each serial interface. onionring:~$ cat /export/home/www/travis-nas-01_ifTable.txt SNMP table: interfaces.ifTable.ifEntry ifIndex ifDescr ifType ifMtu ifSpeed ........ 1 "Async1/2/00" other 1500 9000 2 "Async1/2/01" other 1500 9000 3 "Async1/2/02" other 1500 9000 . . . . 289 "FastEthernet0/0/0" ethernetCsmacd 1500 100000000 290 "Null0" other 1500 4294967295 291 "T1 1/0/0" ds1 ? ? 292 "T1 1/0/1" ds1 ? ? . . . . 301 "T1 1/0/10" ds1 ? ? 302 "T1 1/0/11" ds1 ? ? 303 "Serial1/0/0:0" propPointToPointSerial 1500 64000 304 "Serial1/0/0:1" propPointToPointSerial 1500 64000 . . . . 326 "Serial1/0/0:23" lapd 1500 64000 327 "Serial1/0/0:23-Signaling" isdn 1500 64000 328 "Serial1/0/0:0-Bearer Channel" ds0 ? ? 329 "Serial1/0/0:1-Bearer Channel" ds0 ? ? . . . . 350 "Serial1/0/0:22-Bearer Channel" ds0 ? ? 351 "Loopback0" softwareLoopback 15144294967295 About SNMP Commander The dial engineers at THEnet created a tool called SNMP Commander that: •Provides web-based access to UCD-SNMP CLI commands. •Builds web-based OID bookmarks, which enable you to go to OIDs without using a keyboard. •Aids the MIB exploration and NMS design tasks. By using SNMP Commander and a web browser, you can: •Create URL links for the network staff and help desk. •Identify target OIDs you want to graph by using MRTG. •Inspect thresholds and events to monitor by using other NMS systems. The following two components work together to create SNMP Commander: •snmpcmds.dat—A comma separated variables file, which includes a list of SNMP CLI commands. This file is read by the snmpcmds.pl script. The following is the source code for this file: host:/opt/CSCOlwt/conf$ ls devlist.txt naslist2.txt lwt.conf snmpcmds.dat mrtg_01.cfg swatch-nas.0.cfg mrtg_01.ok swatch-nas.cfg mrtg_cron.sh swatch-pers.cfg mrtg_maui-nas-01_dial.cfg thenet-tools_menu.lbi mrtg_maui-nas-01_dial.ok host:/opt/CSCOlwt/conf$ cat snmpcmds.dat walk system,snmpwalk,.1.3.6.1.2.1.1,RFC1213-MIB,system walk cisco.lsystem, snmpwalk, .1.3.6.1.4.1.9.2.1,OLD-CISCO-SYS-MIB,lsystem table entPhysicalTable,snmptable -ib,.1.3.6.1.2.1.47.1.1.1 ,ENTITY-MIB,entPhysicalTable table entLogicalTable,snmptable -ib,.1.3.6.1.2.1.47.1.2.1,ENTITY-MIB,entLogicalTable walk chassis,snmpwalk,.1.3.6.1.4.1.9.3.6,OLD-CISCO-CHASSIS,chassis table cardTable,snmptable -ib,.1.3.6.1.4.1.9.3.6.11,OLD-CISCO-CHASSIS,cardTable table cardIfIndexTable,snmptable -ib,.1.3.6.1.4.1.9.3.6.13,OLD-CISCO-CHASSIS,cardIfIndexTable table cpmCPUTotalTable, snmptable -ib, .1.3.6.1.4.1.9.9.109.1.2.1,Cisco-PROCESS-MIB, cpmCPUTotalTable table cpmProcessTable, snmptable -ib, .1.3.6.1.4.1.9.9.109.1.2.1,Cisco-PROCESS-MIB,cpmProcessTable table ProcessExtTable, snmptable -ib, .1.3.6.1.4.1.9.9.109.1.2.2,Cisco-PROCESS-MIB,ProcessExtTable table ciscoMemoryPoolTable, snmptable -ib, .1.3.6.1.4.1.9.9.48.1.1,CISCO-MEMORY-POOL-MIB, ciscoMemoryPoolTable table ciscoFlashDeviceTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.1.2,CISCO-FLASH-MIB, ciscoFlashDeviceTable table ciscoFlashChipTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.1.3.1,CISCO-FLASH-MIB,ciscoFlashChipTable table ciscoFlashPartitionTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.1.4.1,CISCO-FLASH-MIB,ciscoFlashPartitionTable table ciscoFlashFileTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.1.4.2.1,CISCO-FLASH-MIB,ciscoFlashFileTable table ciscoFlashCopyTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.2.1,CISCO-FLASH-MIB,ciscoFlashCopyTable table ciscoFlashPartitioningTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.2.2,CISCO-FLASH-MIB,ciscoFlashPartitioningTable table ciscoFlashMiscOpTable,snmptable -ib,.1.3.6.1.4.1.9.9.10.1.2.3,CISCO-FLASH-MIB,ciscoFlashMiscOpTable table ciscoImageTable,snmptable -ib,.1.3.6.1.4.1.9.9.25.1.1,CISCO-IMAGE-MIB,ciscoImageTable walk lflash,snmpwalk,.1.3.6.1.4.1.9.2.10,OLD-CISCO-FLASH-MIB,lflash table ciscoEnvMonVoltageStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.2 ,CISCO-ENVMON-MIB,ciscoEnvMonVoltageStatusTable table ciscoEnvMonTemperatureStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.3 ,CISCO-ENVMON-MIB,ciscoEnvMonTemperatureStatusTable table ciscoEnvMonFanStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.4,CISCO-ENVMON-MIB,ciscoEnvMonFanStatusTable table ciscoEnvMonSupplyStatusTable,snmptable -ib,.1.3.6.1.4.1.9.9.13.1.5 ,CISCO-ENVMON-MIB,ciscoEnvMonSupplyStatusTable walk cisco5800HealthMonMIB,snmpwalk,.1.3.6.1.4.1.9.10.28,CISCO-5800-HEALTH-MON-MIB,cisco58 00HealthMonMIB get ifNumber,snmpget -Os, .1.3.6.1.2.1.2.1.0, IF-MIB, ifNumber table ifTable, snmptable, .1.3.6.1.2.1.2.2, IF-MIB, ifTable table lifTable, snmptable -ib,.1.3.6.1.4.1.9.2.2.1,OLD-CISCO-INTERFACES-MIB, lifTable table dot3StatsTable,snmptable -ib,.1.3.6.1.2.1.10.7.2,RFC1398-MIB,dot3StatsTable table dsx1ConfigTable,snmptable -ib,.1.3.6.1.2.1.10.18.6,RFC1406-MIB,dsx1ConfigTable table dsx1CurrentTable,snmptable -ib,.1.3.6.1.2.1.10.18.7,RFC1406-MIB,dsx1CurrentTable table dsx1IntervalTable,snmptable -ib,.1.3.6.1.2.1.10.18.8,RFC1406-MIB,dsx1IntervalTable table dsx1TotalTable,snmptable -ib,.1.3.6.1.2.1.10.18.9,RFC1406-MIB,dsx1TotalTable table dsx1FarEndCurrentTable,snmptable -ib,.1.3.6.1.2.1.10.18.10,RFC1406-MIB,dsx1FarEndCurrentTable table dsx1FracTable,snmptable -ib,.1.3.6.1.2.1.10.18.13,RFC1406-MIB,dsx1FracTable walk ip,snmpwalk,.1.3.6.1.2.1.4,IP-MIB,ip table ipAddrTable,snmptable -ib,.1.3.6.1.2.1.4.20 ,IP-MIB,ipAddrTable table lipAddrTable,snmptable -ib,.1.3.6.1.4.1.9.2.4.1,OLD-CISCO-IP-MIB,lipAddrTable table ipRouteTable,snmptable -ib,.1.3.6.1.2.1.4.21,IP-MIB,ipRouteTable table lipRouteTable,snmptable -ib,.1.3.6.1.4.1.9.2.4.2,OLD-CISCO-IP-MIB,lipRouteTable get ipRoutingDiscards,snmpget -Os, .1.3.6.1.2.1.4.23.0 ,IP-MIB,ipRoutingDiscards table ipNetToMediaTable,snmptable -ib,.1.3.6.1.2.1.4.22 ,IP-MIB, ipNetToMediaTable walk icmp,snmpwalk,.1.3.6.1.2.1.5,RFC1213-MIB,icmp walk tcp,snmpwalk,.1.3.6.1.2.1.6,TCP-MIB,tcp table tcpConnTable,snmptable -ib,.1.3.6.1.2.1.6.13,TCP-MIB,tcpConnTable walk udp,snmpwalk,. 1.3.6.1.2.1.7,UDP-MIB,udp table udpTable,snmptable -ib,.1.3.6.1.2.1.7.5 ,UDP-MIB,udpTable table cQIfTable,snmptable -ib,.1.3.6.1.4.1.9.9.37.1.1,CISCO-QUEUE-MIB,cQIfTable table cQStatsTable,snmptable -ib,.1.3.6.1.4.1.9.9.37.1.2,CISCO-QUEUE-MIB,cQStatsTable table rs232PortTable,snmptable -ib, .1.3.6.1.2.1.10.33.2,RS-232-MIB,rs232PortTable table rs232AsyncPortTable,snmptable -ib, .1.3.6.1.2.1.10.33.3 ,RS-232-MIB,rs232AsyncPortTable table rs232SyncPortTable,snmptable -ib, .1.3.6.1.2.1.10.33.4,RS-232-MIB,rs232SyncPortTable table rs232InSigTable,snmptable -ib, .1.3.6.1.2.1.10.33.5,RS-232-MIB,rs232InSigTable table rs232OutSigTable,snmptable -ib, .1.3.6.1.2.1.10.33.6,RS-232-MIB,rs232OutSigTable table ltsLineTable, snmptable -ib, .1.3.6.1.4.1.9.2.9.2, OLD-CISCO-TS-MIB,ltsLineTable table cdpInterfaceTable, snmptable -ib,.1.3.6.1.4.1.9.9.23.1.1.1,CISCO-CDP-MIB,cdpInterfaceTable table cdpCacheTable, snmptable -ib,.1.3.6.1.4.1.9.9.23.1.2.1,CISCO-CDP-MIB,cdpCacheTable table isdnBasicRateTable, snmptable -ib,.1.3.6.1.2.1.10.20.1.1.1, ISDN-MIB,isdnBasicRateTable table isdnBearerTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.2.1, ISDN-MIB, isdnBearerTable table isdnSignalingTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.3.2, ISDN-MIB, isdnSignalingTable table isdnSignalingStatsTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.3.3, ISDN-MIB,isdnSignalingStatsTable table isdnLapdTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.3.4, ISDN-MIB,isdnLapdTable table isdnEndpointTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.4.2, ISDN-MIB,isdnEndpointTable table isdnDirectoryTable, snmptable -ib, .1.3.6.1.2.1.10.20.1.5.1, ISDN-MIB, isdnDirectoryTable table ccasDs1IfCfgTable, snmptable -ib,.1.3.6.1.4.1.9.9.85.1.1.1,CISCO-CAS-IF-MIB,ccasDs1IfCfgTable table dialCtlPeer,snmptable -ib,1.3.6.1.2.1.10.21.1.2.1,DIAL-CONTROL-MIB,dialCtlPeer table demandNbrTable,snmptable -ib,.1.3.6.1.4.1.9.9.26.1.1.1,CISCO-ISDN-MIB,demandNbrTable walk ciscoCallResourcePoolMIB,snmpwalk,.1.3.6.1.4.1.9.9.124,CISCO-CALL-RESOURCE-POOL-MIB,c iscoCallResourcePoolMIB table cmmFaxGeneralCfg,snmptable -ib,.1.3.6.1.4.1.9.9.102.1.4,CISCO-MMAIL-DIAL-CONTROL-MIB,cmmFaxGeneralCfg table ciscoCallHistoryTable,snmptable -ib,.1.3.6.1.4.1.9.9.27.1.1.3,CISCO-CALL-HISTORY-MIB,ciscoCallHistoryTable table cpmDS0UsageTable, snmptable -ib, .1.3.6.1.4.1.9.10.19.1.1.1,CISCO-POP-MGMT-MIB, cpmDS0UsageTable get ISDNCfgBChanInUseForAnalog, snmpget, .1.3.6.1.4.1.9.10.19.1.1.2.0,CISCO-POP-MGMT-MIB, cpmISDNCfgBChanInUseForAnalog get ISDNCfgBChannelsInUse, snmpget, .1.3.6.1.4.1.9.10.19.1.1.3.0,CISCO-POP-MGMT-MIB, cpmISDNCfgBChannelsInUse get cpmActiveDS0s, snmpget, .1.3.6.1.4.1.9.10.19.1.1.4.0,CISCO-POP-MGMT-MIB, cpmActiveDS0s get cpmPPPCalls, snmpget, .1.3.6.1.4.1.9.10.19.1.1.5.0,CISCO-POP-MGMT-MIB, cpmPPPCalls get cpmV120Calls, snmpget, .1.3.6.1.4.1.9.10.19.1.1.6.0,CISCO-POP-MGMT-MIB, cpmV120Calls get cpmV110Calls, snmpget, .1.3.6.1.4.1.9.10.19.1.1.7.0,CISCO-POP-MGMT-MIB, cpmV110Calls get cpmActiveDS0sHighWaterMark, snmpget, .1.3.6.1.4.1.9.10.19.1.1.8.0,CISCO-POP-MGMT-MIB, cpmActiveDS0sHighWaterMark table DS1DS0 Usage Table, snmptable -ib, .1.3.6.1.4.1.9.10.19.1.1.9,CISCO-POP-MGMT-MIB, cpmDS1DS0UsageTable get cpmSW56CfgBChannelsInUse, snmpget, .1.3.6.1.4.1.9.10.19.1.1.10.0,CISCO-POP-MGMT-MIB, cpmSW56CfgBChannelsInUse walk cpmCallFailure, snmpwalk, .1.3.6.1.4.1.9.10.19.1.2,CISCO-POP-MGMT-MIB, cpmCallFailure table cpmActiveCallSummaryTable, snmptable -ib, .1.3.6.1.4.1.9.10.19.1.3.1,CISCO-POP-MGMT-MIB, cpmActiveCallSummaryTable get cpmCallHistorySummaryTableMaxLength, snmpget, .1.3.6.1.4.1.9.10.19.1.4.1.0 ,CISCO-POP-MGMT-MIB, cpmCallHistorySummaryTableMaxLength get cpmCallHistorySummaryRetainTimer, snmpget, .1.3.6.1.4.1.9.10.19.1.4.2.0 ,CISCO-POP-MGMT-MIB, cpmCallHistorySummaryRetainTimer table cpmCallHistorySummaryTable, snmptable -ib, .1.3.6.1.4.1.9.10.19.1.4.3,CISCO-POP-MGMT-MIB, cpmCallHistorySummaryTable walk cmSystemInfo, snmpwalk, .1.3.6.1.4.1.9.9.47.1.1,CISCO-MODEM-MGMT-MIB, cmSystemInfo table cmGroupTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.2.1,CISCO-MODEM-MGMT-MIB, cmGroupTable table cmGroupMemberTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.2.2,CISCO-MODEM-MGMT-MIB, cmGroupMemberTable table cmLineStatusTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.3.1,CISCO-MODEM-MGMT-MIB, cmLineStatusTable table cmLineConfigTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.3.2,CISCO-MODEM-MGMT-MIB, cmLineConfigTable table cmLineStatisticsTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.3.3,CISCO-MODEM-MGMT-MIB, cmLineStatisticsTable table cmLineSpeedStatisticsTable, snmptable -ib, .1.3.6.1.4.1.9.9.47.1.3.4,CISCO-MODEM-MGMT-MIB, cmLineSpeedStatisticsTable walk CISCO-AAA-SERVER-MIB,snmpwalk,.1.3.6.1.4.1.9.10.56,CISCO-AAA-SERVER-MIB,ls CISCO-AAA-SERVER-MIB walk CISCO-AAA-SESSION-MIB,snmpwalk,.1.3.6.1.4.1.9.9.150,CISCO-AAA-SESSION-MIB,CISCO-AAA-S ESSION-MIB walk ciscoAAAServerCapability, snmpwalk, .1.3.6.1.4.1.9.7.129,CISCO-AAA-SERVER-CAPABILITY, ciscoAAAServerCapability get cvpdnTunnelTotal,snmpget -Os,.1.3.6.1.4.1.9.10.24.1.1.1.0,CISCO-VPDN-MGMT-MIB,cvpdnTunnelTotal get cvpdnSessionTotal,snmpget -Os,.1.3.6.1.4.1.9.10.24.1.1.2.0,CISCO-VPDN-MGMT-MIB,cvpdnSessionTotal get cvpdnDeniedUsersTotal,snmpget -Os,.1.3.6.1.4.1.9.10.24.1.1.3.0,CISCO-VPDN-MGMT-MIB,cvpdnDeniedUsersTotal table cvpdnSystemTable,snmptable -ib,.1.3.6.1.4.1.9.10.24.1.1.4,CISCO-VPDN-MGMT-MIB,cvpdnSystemTable table cvpdnTunnelTable,snmptable -ib,.1.3.6.1.4.1.9.10.24.1.2.1,CISCO-VPDN-MGMT-MIB,cvpdnTunnelTable table cvpdnTunnelAttrTable,snmptable -ib,.1.3.6.1.4.1.9.10.24.1.2.2,CISCO-VPDN-MGMT-MIB,cvpdnTunnelAttrTable table cvpdnTunnelSessionTable,snmptable -ib,.1.3.6.1.4.1.9.10.24.1.3.1,CISCO-VPDN-MGMT-MIB,cvpdnTunnelSessionTable table cvpdncvpdnSessionAttrTable,snmptable -ib,.1.3.6.1.4.1.9.10.24.1.3.2,CISCO-VPDN-MGMT-MIB,cvpdnSessionAttrTable table cvpdnUserToFailHistInfoTable,snmptable -ib,.1.3.6.1.4.1.9.10.24.1.4.1,CISCO-VPDN-MGMT-MIB,cvpdnUserToFailHistInfoTable table rttMonApplSupportedRttTypesTable,snmptable -ib,.1.3.6.1.4.1.9.9.42.1.1.7,CISCO-RTTMON-MIB,rttMonApplSupportedRttTypesTable table rttMonApplSupportedProtocolsTable,snmptable -ib,.1.3.6.1.4.1.9.9.42.1.1.8,CISCO-RTTMON-MIB,rttMonApplSupportedProtocolsTable walk expressionMIB,snmpwalk,.1.3.6.1.4.1.9.10.22,EXPRESSION-MIB,expressionMIB walk snmpFrameworkMIB,snmpwalk ,.1.3.6.1.6.3.10 ,SNMP-FRAMEWORK-MIB,snmpFrameworkMIB walk snmp,snmpwalk,.1.3.6.1.2.1.11,SNMPv2-MIB,snmp walk rmon,snmpwalk,.1.3.6.1.2.1.16,RMON-MIB,rmon table ccmHistoryEventTable,snmptable -ib,.1.3.6.1.4.1.9.9.43.1.1.6,CISCO-CONFIG-MAN,ccmHistoryEventTable walk clogBasic,snmpwalk,.1.3.6.1.4.1.9.9.41.1.1,CISCO-SYSLOG-MIB,clogBasic table clogHistoryTable,snmptable -ib,.1.3.6.1.4.1.9.9.41.1.2.3,CISCO-SYSLOG-MIB,clogHistoryTable walk ciscoFtpClientMIB,snmpwalk,.1.3.6.1.4.1.9.9.80,CISCO-FTP-CLIENT-MIB,ciscoFtpCli •snmpcmds.pl—A script that loads and reads a data file. You can use additional data files by creating multiple instances of the original script and altering the data file descriptor. The following is the source code for this file: host:/opt/CSCOlwt/bin$ ls device_lister.pl init_lwt.pl mcr_search.pl mcr_viewer dnszone.pl init_lwt.sh mcr_sum snmpcmds.pl dnszone_dump loglopper mcr_view-01 userstat host:/opt/CSCOlwt/bin$ cat snmpcmds.pl #!/usr/local/bin/perl -w # ------------------------------------------------------------------------ # SNMP Commander.pl v0.3 # # owner: # Last Updated: # ------------------------------------------------------------------------ # Main program first.... # Using the lightweight CGI Perl Module by .... use CGI_Lite; # # =========PER-SITE VARIABLES=========== # my $LWTBASE = "/opt/CSCOlwt"; # Base dir for Lightweight Tools. my $devicelist_fn = "$LWTBASE/conf/devlist.txt"; # Device List File my $snmpcmds_fn = "$LWTBASE/conf/snmpcmds.dat"; # SNMP Commands File $topleft_image = '<img src="/graphics/smallonion2.gif" width="90" height="90">'; # HTML Component my $leftmenu_fn = "$LWTBASE/conf/thenet-tools_menu.lbi"; # HTML Component # add read only Community String # ===== End of Per-Site Variables ====== $vers = "v0.3"; # Local Variables my $i = 0; # the universal counter my $messages = ""; # Create an instance of CGI_Lite to bring in the CGI/Form variables. # # Use CGI_lite utilities to create scalars of each CGI AV Pair. # $cmdreq = "snmp pseudo-code" requested, $agent = selected node. my $cgi = new CGI_Lite; my %form = $cgi->parse_form_data; $cgi->create_variables (\%form); #Create debug and messaging string # add to $messages as needed to debug script and functions. # # ========= Parse Lightweight Tools files into VARIABLES =========== # Read Files, and set more variables based on them. # The snmpcmds.dat file is inspected for command definitions. Format by examp le at this time. No whitespace. # 1) snmpcmds.dat file is inspected for command definitions. open (SNMPCMDS, $snmpcmds_fn) \|\| ($messages .= "Can't open SNMP_Commander Data: file: $snmpcmds_fn<br>\n"); @snmplines = <SNMPCMDS>; close(SNMPCMDS); # prepare SNMP Command Arrays for Commander Interface and Command Execution. # this routine defines the file input format. 5 fields seperated by "," only. # i.e. Psuedo-Command,ucd-snmpcmd,numeric_oid,MIB-NAME,symbolic_oid foreach $snmpline (@snmplines) { ($cmd_text[$i], $cmd_verb[$i], $oid[$i], $mib[$i], $oid_symb[$i]) = split (",", $snmpline); $i++; } # remove all leading and trailing whilespace foreach (@cmd_text, @cmd_verb, @oid, @mib, @oid_symb) { s/^\s+//; s/\s+$//; } # Next, we open and parse the the device_list.txt file. # The file format is one Device Name per line, no whitespace. open (DEVLIST, $devicelist_fn) \|\| ($messages .= "Can't open Device List Data: fi le: $devicelist_fn\n"); @devices = <DEVLIST>; close(DEVLIST); chomp @devices; # ------ Read HTML Template into variables ----- open (LEFTMENU, $leftmenu_fn) \|\| ($messages .= "Can't open Left Menu HTML: file: $leftmenu_fn\n"); foreach $line (<LEFTMENU>) {$leftmenu .= $line} close (LEFTMENU); # ========= Generate Dynamic HTML Components =========== ## First prepare parts # Spin command text into HTML form selection list. $html_cmdlist = ""; # text string to hold the <select> fo rm <option>s. $selected = ""; # creates the selected attribute if P OSTed by last visit foreach $cmdtext (@cmd_text) { if ($cmdtext eq $cmdreq) {$selected = " selected"} else {$selected = ""} $html_cmdlist .= "<option$selected>$cmdtext</option>\n"; } # Spin device names into HTML form selection list. $html_devlist = ""; # text string to hold the <select> fo rm <option>s. $selected = ""; # creates the selected attribute if P OSTed by last visit foreach $device (@devices) { if ($device eq $agent) {$selected = " selected"} else {$selected = ""} $html_devlist .= "<option$selected>$device</option>\n"; } # If SNMP output was requested, go get it from &snmp_commander in HTML format. if ($cmdreq ne "") { for ($i=0; $i < @cmd_text; $i++) { if ($cmdreq eq $cmd_text[$i]) { if ($agent) { $snmp_results = &snmp_commander($agent, $cmd_verb[$i], $oid[$i]) ; } else {$messages .= "Command $cmd_text[$i] found, but no agent requ ested!\n"} $choice = $i; $found = "true"; last; } } if (!$found) {$messages .= "requested command $cmdreq not found\n"} } elsif ($agent) {$messages .= "Device $agent requested, but no snmp command sel ected!\n"} # ----- Generate Info about last requested Action -------- # if ($found) { $messages .= "Requested Cmd: $cmdreq\n"; $messages .= "Requested Device: $agent\n"; $messages .= "MIB: $mib[$choice]\n"; $messages .= "OID: Numberic = $oid[$choice], Symbolic = $oid_symb[$choice]\n "; } # Location to add debug output to $messages # uncomment or add other lines as needed to check script state # $messages .= "passed command was !$cmdreq!\n"; # $messages .= "agent passed was !$agent!\n"; # $messages .= "choice was was !$choice!\n"; # $messages .= "mib[choice] = !$mib[$choice]!\n"; # $messages .= "leftmenu is:\n$leftmenu\n"; # ==================================================== # Print HTML Output # generate device list in HTML print "content-type: text/html\n\n"; print <<HTML_OUTPUT; <html> <head> <title>SNMP Commander @ The.Net</title> </head> <body bgcolor="#FFFFFF" background="/graphics/ss7_dial1.gif"> <table width="650" border="1"> <tr> <td width="90" valign="center" align="center">$topleft_image</td> <td><img src="/graphics/thenet_snmpcmds_bn.gif"><br> <font size="-1" face="Verdana, Arial, Helvetica, sans-serif"><i>SNMP Comma nder Version $vers</i></font> </td> </tr> <tr> <td width="90" valign="top">$leftmenu</td> <td valign="top"> <h2>SNMP Commander @ The.Net</h2> <body bgcolor="#FFFFFF"> <form method="GET" enctype="application/x-www-form-urlencoded"> <p><b> Select SNMP Command * OID: <select name="cmdreq">$html_cmdlist</select> <br> Select SNMP Agent: <select name="agent">$html_devlist</select> Go: <i nput type="submit" value="Submit"> </b></p> </form> <hr width="650" align="left"> <table border="1" bgcolor="#FFFF99" width="100%"> <tr><td width="100%"> <b>Program messages:</b> <pre width="80">$messages</pre> </td></tr> </table> <table border="1" bgcolor="#AAFFFF" width="100%"> <tr><td width="100%"> <pre width="80"> $snmp_results </pre> </td></tr> </table> <b>SNMP Commander $vers</b> Contact: <a href=mailto:net-admin\@aurora.the.net>ne t-admin\@aurora.the.net</a> </td> </tr> </table> </body> </html> HTML_OUTPUT exit 0; # end of main program # # Subroutines # ============================================================ # # SNMP Command Execution Subroutine sub snmp_commander { my $lagent = $_[0]; my $lverb = $_[1]; my $loid = $_[2]; my $results = ""; my $comm_string = "underdog"; $results .= "<h3>Query was: $lverb -m all $lagent comm-string $loid 2>/dev/null< /h3>\n"; $results .= `/usr/local/bin/$lverb -m all $lagent $comm_string $loid 2>/dev/null \n`; return $results; } Setting Up SNMP Commander To set up SNMP Commander, follow these steps: Step 1 From CCO, download snmpcmds.dat and snmpcmds.pl Step 2 Customize the files for your environment. When you find useful OIDs, enter them in the snmpcmds.dat file and use the web-based form of the script to research the MIBs. The web tool functions like an SNMP OID bookmarker. Step 3 Test SNMP Commander by using a web browser: a. Select an SNMP command and OID. b. Select an SNMP agent (Cisco IOS device). c. Click Submit. d. Inspect the program and query messages. Figure 8 SNMP Commander Tool Figure 9 Polling Results from the table cpmActiveCallSummaryTable Command
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks

Table Of Contents

Task 2— Exploring SNMP Capabilities by Using UCD-SNMP

About Using UCD-SNMP

Installing UCD-SNMP and Downloading Cisco MIBs

Exploring SNMP MIBs for Dial Networks

About SNMP Commander

Setting Up SNMP Commander
