Overview of CTRS Tasks and Roles
Administrators use the CTRS Administration software to configure, to manage, to troubleshoot and to monitor activities related to the Cisco TelePresence Recording Server. Administrative tasks include the following:
•Configuring system settings. These tasks include configuring general system, security, interface failover, and LDAP settings, importing or exporting files, defining different levels of administrators, upgrading software and importing and exporting files. System settings tasks are described in "Chapter 4: Configuring CTRS Administration Software."
•Managing Recordings. These tasks include defining recording defaults, managing active recording sessions, and viewing a list of completed recordings. Recording management tasks are described in "Chapter 5: Managing CTRS Recordings."
•Troubleshooting the system. These tasks include monitoring system errors and log files to determine the causes of system errors. Troubleshooting is described in "Chapter 7: Troubleshooting CTRS."
•Monitoring the system. These tasks include restarting the system and monitoring a variety of system processes. System monitoring tasks are described in "Chapter 6: Monitoring CTRS System Processes."
Prior to configuring CTRS Administration software, you must configure Cisco Unified Communications Manager (Cisco Unified CM) to support recording. Cisco Unified CM for CTRS configuration tasks are described in "Chapter 2: Configuring Cisco Unified Communications Manager for CTRS."
Installing CTRS Administration software is described in "Chapter 3: Installing CTRS Administration Software."
Administrative Roles
CTRS administration software recognizes three different administrative roles; access to task folders is dependent on defined administrative roles.
•Administrator: Administrators have the authority to perform all tasks associated with configuring, administering, monitoring and troubleshooting CTRS.
•Content Manager: Content Managers primarily are responsible for managing activities associated with recording. They can only access CTRS Recording Management and System Status windows.
•Diagnostic Technician: Diagnostic Technicians have the authority to perform CTRS monitoring and troubleshooting tasks. They can only access CTRS Troubleshooting and Monitoring windows.You can select both Content Manager and Diagnostic Technician and this will allow a combination of accessibility of both roles for the user.
Administrative role configuration is described in "Chapter 4: Configuring CTRS Administration Software."
Supported Web Browser Types
You can access the CTRS administrative interface using Internet Explorer version 7.x or 8.x, or with Firefox version 3.6.
Logging in to the CTRS Administrative Interface
To log in to the CTRS administrative interface, do the following:
Step 1 Open a supported web browser.
Step 2 In the address bar, enter https://CTRS_URL/admin.
Note You must add /admin to the CTRS URL to get to the administrative interface. If you enter the CTRS URL without appending /admin, you go to the Cisco TelePresence Video Portal.
Step 3 Enter your username and password.
For more information about the initial installation of CTRS, including setting the administrator username and password for the first time, see Chapter 3 "Installing CTRS Administration Software,"
Overview of the Administrative Interface
CTRS Administration software user interface is similar to the interface used in Cisco TelePresence System software suite. The user interface is organized as follows:
•Header
•System Status
•Left Navigation
•Content Area
Figure 1-1 shows an example of the CTRS Administration software user interface.

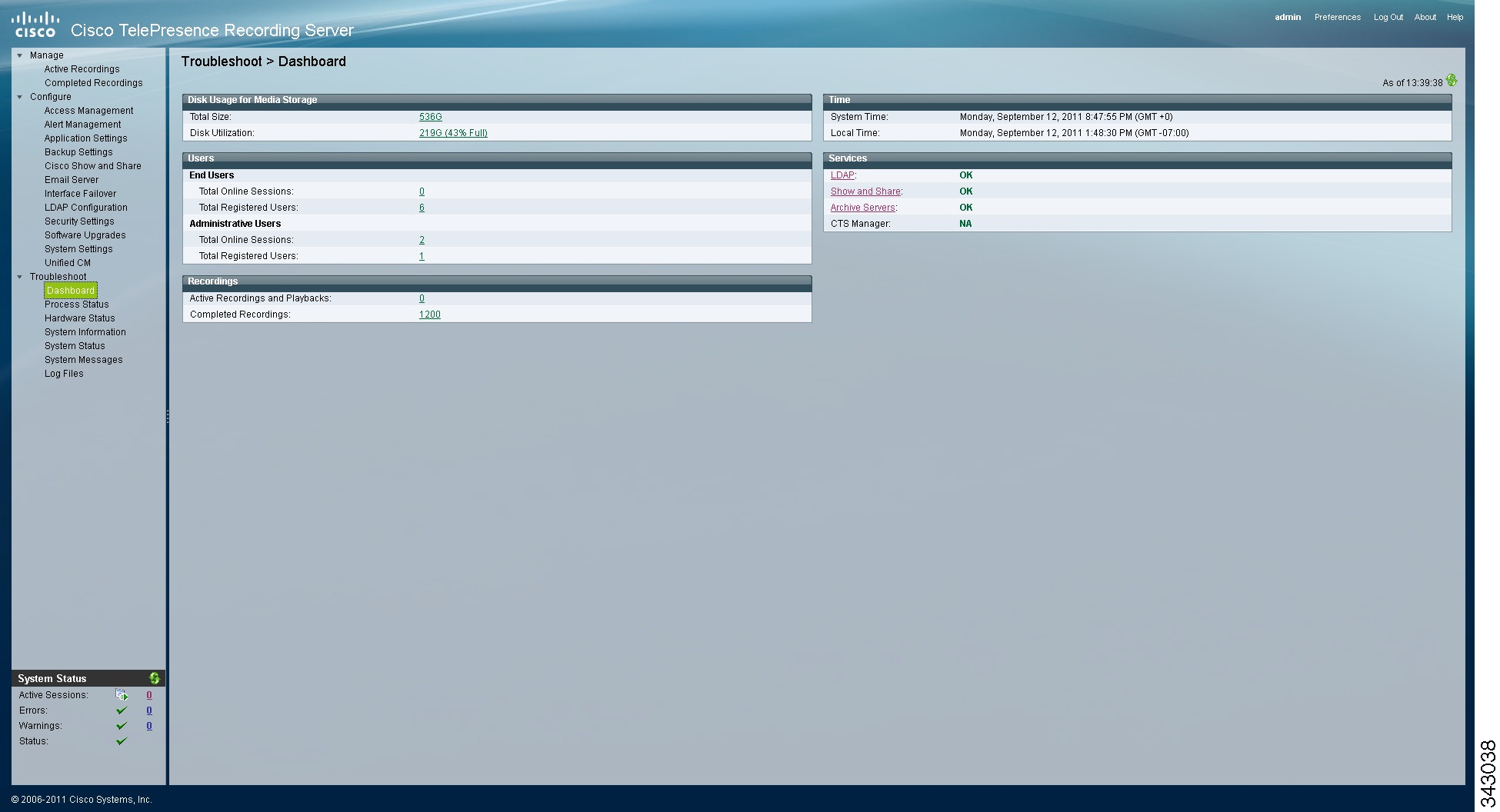

Figure 1-1 CTRS Administration Software User Interface
Header
The header at the top of all CTRS administration pages list the name of the software application, the username of the user who is logged in, and links:
•<username>—In Figure 1-1, the username is admin.
•Preferences—Click to display the Preferences window, where you can change the time zone. The first time you login you need to specify the time zone you are in. This localizes recording times to your location.
•Help—Click to display online help.
•Logout—Click to log out of the system.
•About—Click to display software version and licensing information.
System Status
System status is always in view in the lower left corner of the CTRS Administration window. The system status is updated every 60 seconds. Click the Refresh button in the upper right corner of the box to obtain an immediate update.
The system status box shows the following information:
•Active Sessions: Shows the number of active recording sessions currently in progress.
•Errors: Shows the total number of system errors that are defined as Emergency, Alert, Critical, or Error. If the total number of system errors is 0, a green check is displayed. If the total number of system errors is more than 0, a red cross is displayed. System errors are described in "Chapter 6: Troubleshooting CTRS."
•Warnings: Shows the total number of system errors defined as WARN. If the total number of system errors is 0, a green check is displayed. If the total number of system errors is more than 0, a red cross is displayed. System warnings are described in "Chapter 6: Troubleshooting CTRS."
•Status: Shows the current state of all system processes. If all system processes are in the RUNNING state, a green check is displayed. If one or more processes are in the STOPPED state, a red check is displayed. System processes are described in "Chapter 7: Monitoring CTRS System Processes."
Left Navigation
In the left navigation, CTRS tasks are organized under Manage, Configure, and Troubleshoot. The most frequently performed tasks are at the top of the navigation and the lesser tasks are toward the bottom.
When you click a link in the left navigation, content specific to that task is displayed in the content area of the page.
Content Area
The right side of the page is the content area. When you click a link in the left navigation, the content associated with that item displays in the content area.
System Information
Click System Information under Troubleshooting in the left navigation to view information about the Cisco TelePresence Recording Server. The information displayed under System Information is configured during CTRS software installation.
•SKU
•Hostname: Hostname of the CTRS.
•IP Address and subnet mask: IP address and corresponding subnet mask of the Cisco TelePresence Recording Server.
•MAC Address: MAC address of the Cisco MCS-7845-I3 CCE4 Media Convergence Server on which the CTRS is running
•Hardware Model: Model number of the Cisco MCS-7845-I3 CCE4 Media Convergence Server on which the CTRS is running.
•Software Version: Version of CTRS Administration software currently installed.
•Operating System (OS) Version
•Kernel Version
