Managing Reports
At scheduled intervals, you can configure the Cisco Mobile Wireless Transport Manager (MWTM) to gather critical information from network objects that it detects. The MWTM uses that information to calculate statistics (accounting statistics, inventory statistics, and so on) and generates reports based on those statistics.
This chapter contains:
•
Customizing ITP Report Preferences
Generating Reports
Using CLI commands, there are two types of reports that you can generate:
•
•
Both types of reports contain the same data.
To generate reports:
Step 1
a.
b.
Step 2
Step 3
cd /opt/CSCOsgm/bin
Step 4
./mwtm statreps gtt
To determine which CLI command generates which report, see Viewing Enabled and Disabled Status for Continuous Reports on the Web or Generating Custom Statistics Reports.
Step 5
Viewing Enabled and Disabled Status for Continuous Reports on the Web
The main Reports page on the MWTM web interface shows all continuous reports and whether or not they are being generated. To access the main Reports page:
Step 1
•
•
The Reports page in the content area shows the Report Type and the Data Collection Status (enabled or disabled).

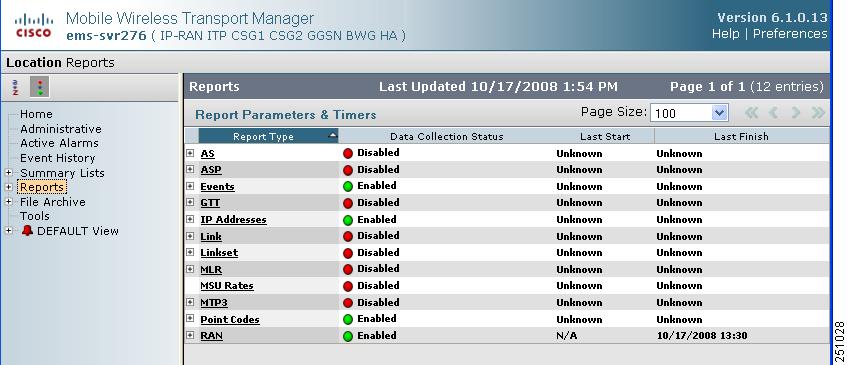

Figure 12-1 Report Parameters and Timers
Step 2
Note
To see which CLI command enables or disables a report, click the Disabled or Enabled link (if available). A popup window appears with the associated command. As the root user, you can log in to the MWTM server and run the specified command to enable the report.
Note
Generating Custom Statistics Reports
In the MWTM, you can use custom CLI commands to create summary reports of custom statistics and open them as an export file. To create a custom report:
Step 1
Step 2
# cd /opt/CSCOsgm/binStep 3
Note
For example, if you entered the command:
# ./mwtm accstats mwtm-2600a.cisco.com test1 -snoThe MWTM generates these reports:
mwtmAccStats.custom.test1.2004-02-13:15.csv.zipmwtmAccStats.custom.test1.2004-02-13:15.csv.zipStep 4
Step 5
•
•
or
If this is your first time using the mwtm linkstats command to enable a report, you must enter the command two more times. The:
•
•
•
Thereafter, you need only enter these commands once to enable the report.
Step 6
00 * * * * /opt/CSCOsgm/bin/mwtm accstats quietor, to run custom link statistics every 30 minutes, enter:
00,30 * * * * /opt/CSCOsgm/bin/mwtm linkstats quietStep 7
Note
The MWTM also stores custom reports in the /custom directory (for details, see Locating Stored ITP Reports.)
Including or Excluding Specified Objects in ITP Reports
You can include or exclude specific nodes, signaling points, or linksets in ITP reports by creating user-defined files. The nodes, signaling points, and/or linksets that you specify in these files will be included or excluded from enabled MWTM statistics reports and in custom reports enabled with the default keyword (or no node-list keyword at all), which include:
mwtm linkstats
nodes.include.linkstats or nodes.include
nodes.exclude.linkstats or nodes.exclude
linksets.include.linkstats or linkstats.include
linksets.exclude.linkstats or linkstats.exclude
mwtm q752stats
nodes.include.q752stats or nodes.include
nodes.exclude.q752stats or nodes.exclude
linksets.include.q752stats or linkstats.include
linksets.exclude.q752stats or linkstats.exclude
mwtm accstats
nodes.include.accstats or nodes.include
nodes.exclude.accstats or nodes.exclude
linksets.include.accstats or linkstats.include
linksets.exclude.accstats or linkstats.exclude
filter.include.accstats or filter.include2
mwtm gttstats
nodes.include.gttstats or nodes.include
nodes.exclude.gttstats or nodes.exclude
linksets.include.gttstats or linkstats.include
linksets.exclude.gttstats or linkstats.exclude
filter.include.gttstats or filter.include3
mwtm mtpevents
nodes.include.mtpevents or nodes.include
nodes.exclude.mtpevents or nodes.exclude
mwtm mlrstats
nodes.include.mlrstats or nodes.include
nodes.exclude.mlrstats or nodes.exclude
mwtm xuastats
nodes.include.xuastats or nodes.include
nodes.exclude.xuastats or nodes.exclude
1 Files on the command line override system files. For example, nodes.include.accstats overrides nodes.include.
2 Format is opc:dpc (originating point code and destination point code).
3 Format is gta:sel (global title address and selector).
Note
When creating user-defined files, remember that if you installed the MWTM in:
•
etc/<user-defined file>.A different directory, or if you moved the report files directory using the mwtm repdir command, then the /reports/etc/<user-defined file> resides in that directory.
•
•
•
When creating a nodes.include or nodes.exclude file:
Each line in the file must contain a single node name, or node name and signaling point name, separated by a colon (:) that matches exactly the real, fully qualified name of the node; for example:
mwtm-75-59a.cisco.commwtm-26-51a.cisco.comTo include a specific signaling point, specify the node name and signaling point:
mwtm-75-59a.cisco.com;net0mwtm-26-51a.cisco.com;net0When creating a linksets.include or linksets.exclude file:
Each line in the file must contain a single linkset name that matches exactly the real, fully qualified linkset name of the linkset, including the node name and signaling point name; for example:
mwtm-75-59a.cisco.com;net0:linkset2mwtm-26-51a.cisco.com;net0:linkset1When creating a filter.include file:
Each line in the file must contain a single originating point code and destination point code (for accounting statistics) that matches the current point code format; or a single phone number and selector name (for GTT statistics); for example:
1.2.3:5.6.78882214040:Selector_1Viewing Reports
Once you generate reports using the CLI commands, you can view them using the MWTM web interface. You can view reports for all objects of a specific type (for example, all link reports for all links) or, you can view reports for a specific object (for example, all link reports for a specific link).
You can access reports in the MWTM web interface through these categories:
Reports > Statistics
AS
ASP
Events
The event metrics reports are applicable for RAN-O and ITP networks. You can find information on event metrics reports in the "Managing Events" chapter (see Viewing the Event Metrics Report on the Web, page 9-31).
Link
Linkset
MLR
MSU Rates
RAN
Reports > Accounting
GTT
MTP3
AS/ASP
File Archive > Events
N/A
Archived event reports are applicable for RAN-O and ITP networks. You can find information on archived event reports in the "Managing Events" chapter (see Viewing Archived Event Files on the Web, page 9-30).
File Archive > Reports
Custom
Daily
Hourly
Rolling
AS
ASP
GTT
Link
Linkset
MLR
Daily MLR Statistics Archived Reports, page 12-57
MSU
MTP3/AS
Point Codes
Q752
Note
To view a Web report:
Step 1
•
For a single object of a specified type do one of the following. From the MWTM:
•
•

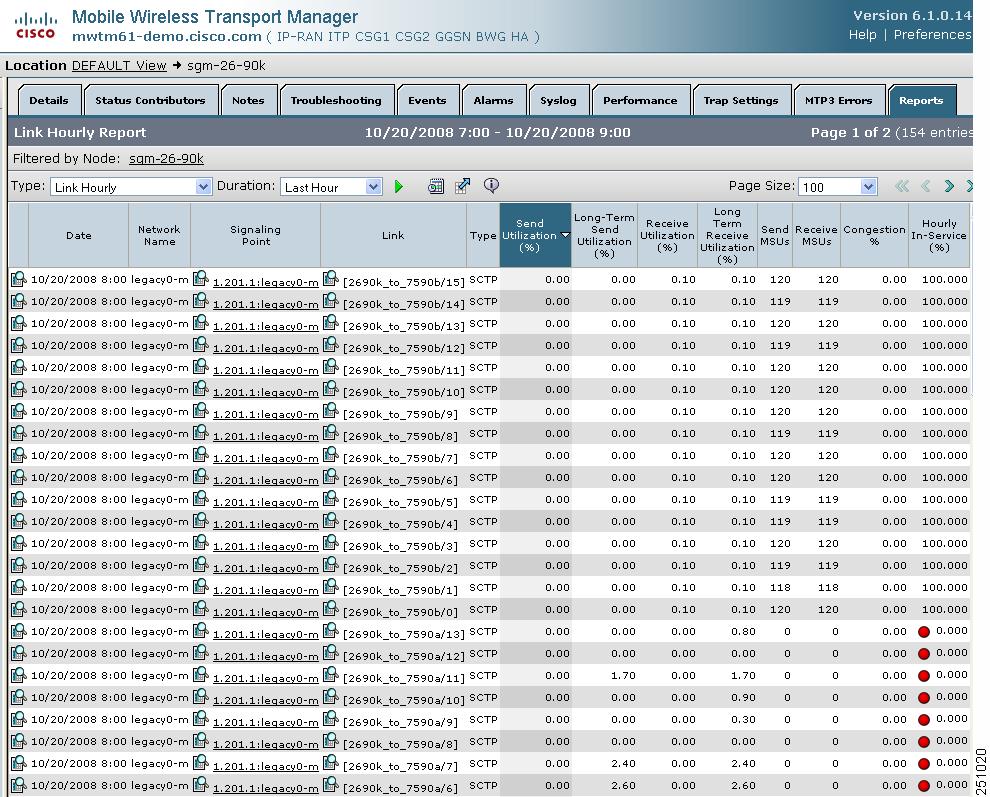

Figure 12-2 MWTM Web Interface—Reports
Note
and the words Data Collection Disabled appear next to the report title. Click the Data Collection Disabled link to see which command enables the report.
Step 2
Step 3
Step 4
Click the green arrow to show the selected report.Step 5
Step 6
icon.For detailed information on content within exported reports, see:
ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt
Note
Once you open a report, you can drill down to:
•
located at the beginning of a row, next to the Date column.
•
Note
Tip
Viewing Statistics Reports
You can view any of the following statistics reports:
•
Application Server Reports
The xUA statistics encompass Message Transfer Part 3 User Adaptation (M3UA) and Signaling Connection Control Part User Adaptation (SUA). xUA connects application servers to SS7 networks.
You can view summary reports of hourly and daily application server statistics. You can also export the reports.
This section covers:
•
•
•
•
•
Hourly Application Server Reports
You can view hourly summaries of application server statistics for all application servers that the MWTM detects for the specified date and hour range. The AS Hourly Report page shows summary reports of hourly application server statistics by date and hour.
The AS Hourly Report table is sorted based on the information in the Packets From MTP3 column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Application Server Reports
You can view a daily summary of statistics for all application servers that the MWTM detects for a specified date range. The AS Daily Report page shows summary reports of daily application server statistics that are archived by date and hour.
The AS Daily Report table is sorted based on the information in the Packets From MTP3 column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Application Server Peaks Reports
You can view an application server statistics Peaks Report to see peak values for each day and the hour in which each peak value occurred. The AS Peaks Daily Report page shows summary reports of daily application server peak statistics by date and hour.
The AS Peaks Daily Report table is sorted based on the information in the Peak From MTP3 column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Application Server Process Reports
You can view summary reports of hourly and daily xUA statistics. You can also export the reports.
The xUA statistics encompass Message Transfer Part 3 User Adaptation (M3UA) and Signalling Connection Control Part User Adaptation (SUA). xUA connects application servers to SS7 networks.
This section covers:
•
•
•
•
Hourly Application Server Process Reports
You can view hourly summaries of statistics for all application server processes that the MWTM detects on the specified date and hour. The ASP Hourly Report page shows summary reports of hourly application server process statistics by date and hour.
The ASP Hourly Report table is sorted based on the information in the Packets From ASP column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Application Server Process Reports
You can view a daily summary of statistics for all application server processes that the MWTM detects on a specified date. The ASP Daily Report page shows summary reports of daily application server process statistics, archived by date and hour.
The ASP Daily Report table is sorted based on the information in the Packets From ASP column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Application Server Process MTP3 Reports
The ASP MTP3 Daily Report page shows a daily summary of MTP3 statistics for all application server processes that the MWTM detects on a specified date. The ASP MTP3 Daily Report page shows a summary report of daily application server process MTP3 statistics by date and hour.
The ASP MTP3 Daily Report table is sorted based on the information in the Packets From MTP3 column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Application Server Process Peaks Reports
You can view a report of the statistics peaks for the application server process. The peaks report shows peak values for each day of the last 30 days, and the hour in which each peak occurred. The ASP Peaks Daily Report page shows a summary report of the daily application server process peak statistics by date and hour.
The ASP Peaks Daily Report table is sorted based on the information in the Peak From ASP column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Application Server Process MTP3 Peaks Reports
You can view a peaks report of the application server process MTP3 statistics. The peaks report shows peak values for each day and the hour in which each peak value occurred. The ASP MTP3 Peaks Daily Report page shows summary reports of the daily application server process MTP3 peak statistics by date and hour.
The ASP MTP3 Peaks Daily Report table is sorted based on the information in the Peak From MTP3 column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Link Reports
You can view summary reports of hourly and daily statistics for links, and export the reports.
This section covers:
•
Hourly Link Reports
You can view hourly summaries of statistics for all links or a specific link that the MWTM detected on the specified date and hour. The Link Hourly Report page shows summary reports of hourly link statistics by date and hour.
The Link Hourly Report table is sorted based on the information in the Send Utilization or Send Erlangs column; however, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Link Reports
You can view daily summaries of statistics for all links or for a specific link that the MWTM detected on the specified date and hour. The Link Daily Report page shows summary reports of daily link statistics by date and hour.
The Link Daily Report table is sorted based on the information in the Avg Send Utilization or Avg Send Erlangs column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Link Peaks Reports
You can view a daily link statistics peaks report using the Link Peaks Daily Report page. The peaks report shows peak values for each day and the hour in which each peak value occurred.
The Link Peaks Daily table is sorted based on the information in the Peak Send Utilization or Peak Send Erlangs column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Link Multi-Day Utilization Report
The Link Multi-Day Report page shows send and receive utilization percentages for all links for the last three or five days.
The Link Multi-Day table is sorted based on the information in the Avg Send Utilization column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Linkset Reports
You can view summary reports of hourly and daily statistics for linksets, and export the reports.
This section covers:
Hourly Linkset Reports
You can view hourly summaries of statistics for all linksets or for a specific linkset that the MWTM detected on the specified date and hour. The Linkset Hourly Report page shows summary reports for all archived MWTM hourly linkset statistics by date and hour.
The Linkset Hourly Report table is sorted based on the information in the Hourly In-Service column, then by the information in the Send Utilization or Send Erlangs column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Linkset Reports
You can view daily summaries of statistics for all linksets or for a specific linkset that the MWTM detected on the specified date and hour. The Linkset Daily Report page shows summary reports of all archived MWTM daily linkset statistics by date and hour.
The Linkset Daily Report table is sorted based on the information in the Daily In-Service column, then by the information in the Avg Send Utilization or Avg Send Erlangs column. You can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily Linkset Peaks Reports
You can view a daily linkset statistics peaks report using the Linkset Peaks Daily Report page. The peaks report shows peak values for each day and the hour in which each peak value occurred.
The Linkset Peaks Daily Report table is sorted based on the information in the Peak Send Utilization or Peak Send Erlangs column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
MLR Reports
Multi-Layer SMS Routing, or MLR, is a routing scheme that enables intelligent routing of Short Message Service (SMS) mobile originated (MO) messages based on the application or service from which they originated or to which they are destined. The MLR feature can make SMS message routing decisions based on information found in the TCAP, MAP, and MAP-user layers; MAP operation codes MAP-MT-FORWARD-SM and SEND-ROUTING-INFO-FOR-SM; and ANSI TCAP and IS-41 MAP operations.You can view a summary report of daily statistics for MLR. You can also export the reports.
Daily MLR Reports
You can view a summary report of MLR processed, aborts, continues, result invokes, rule matches, subtriggers, and triggers statistics for the MWTM on a specified date. The MLR type Daily Report page shows reports of all archived MWTM daily MLR processed, aborts, continues, result invokes, rule matches, subtriggers, and triggers by date.
These archived daily MLR reports are available:
•
•
•
Daily MLR Aborts Reports
The MLR Aborts Daily Report table is sorted based on the information in the Total Aborted column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MLR Continues Reports
The MLR Continues Daily Report table is sorted based on the information in the Total Continued column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MLR Processed Reports
The MLR Processed Daily Report table is sorted based on the information in the Routed column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MLR Result Invokes Reports
The MLR Result Invokes Daily Report table is sorted based on the information in the Invokes column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MLR RuleMatches Reports
The MLR RuleMatches Daily Report table is sorted based on the information in the Matches column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MLR SubTriggers Reports
The MLR SubTriggers Daily Report table is sorted based on the information in the Matches column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MLR Triggers Reports
The MLR Triggers Daily Report table is sorted based on the information in the Matches column. However, you can sort the table based on the information in one of the columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
MSU Rates Reports
You can view 15 minute, hourly and daily MSU rates reports. You can also export the reports in CSV format.
This section covers:
MSU Load Reports
You can view a 15 minute, hourly, or daily report of MSU load rates for all nodes that the MWTM detected in that time. The MSU Load Report provides the distribution of send and receive MSU packets, pertaining to overload thresholds for every CPU.
The MSU Load Report tables are sorted based on the information in the Date column. However, you can sort the tables based on the information in one of the columns (see Navigating Table Columns, page 5-24).
MSU Peaks Reports
You can view a 15 minute, hourly, or daily report of MSU peak rates for all nodes that the MWTM detected in that time. The MSU Peaks Report page provides information that helps you analyze the maximum send and receive rates for each processor in MSU units per second.
The MSU Peaks Report tables are sorted based on the information in the Send column. However, you can sort the tables based on the information in one of the columns (see Navigating Table Columns, page 5-24).
RAN Reports
The MWTM web interface provides network-wide reports that summarize IP-RAN utilization over a specified time period. The information is available in graphical, tabular, and CSV formats. Administrators use these reports for analysis of network-wide performance and errors for RAN backhauls and shorthauls. For example, you can generate a report to show which backhaul links were the most heavily utilized in the last 24 hours. Then you can drill down to a specific node for closer analysis, if necessary.
To generate a network-wide RAN report:
Step 1
Step 2
Step 3
Step 4
Note
Step 5
).
Step 6
Backhaul Performance Daily
Graph
Node
Table column that lists nodes that contain RAN backhauls. To access details for a specific node, click a node in this column.
Backhaul
Table column that lists the visible backhauls. To access details for a specific backhaul, click a backhaul in this column.
Note
Average Utilization
Table column that shows the average utilization of the backhaul. A value greater than 100% indicates that the backhaul is oversubscribed.
Average
Table column that shows average bits per second for the backhaul.
Minimum Utilization
Table column that shows the minimum utilization of the backhaul. A value greater than 100% indicates that the backhaul is oversubscribed.
Minimum
Table column that shows minimum number of bits per second for the backhaul.
Minimum Timestamp
Table column that shows time when the minimum bits-per-second value occurred.
Maximum Utilization
Table column that shows the maximum utilization of the backhaul. A value greater than 100% indicates that the backhaul is oversubscribed.
Maximum
Table column that shows maximum number of bits per second for the backhaul.
Maximum Timestamp
Table column that shows time when the maximum bits-per-second value occurred.
Expand to Full Screen
Click this link to open the graph in a full-screen window for better viewing.
Minimum Bits/Sec
Y-axis labels for graphs that show minimum, average, and maximum bits per second for the visible backhauls.
Note
Average Bits/Sec
Maximum Bits/Sec
Legend
Appearing below each graph, a legend of color-coded labels for each backhaul that appears in the graph.
Table, CSV
Node
Table column that lists all network nodes that contain backhauls. If Output is Table, to access performance details for a specific node, click a node in this column.
Backhaul
Table column that lists all the backhauls in the network. If Output is Table, to access performance details for a specific backhaul, click a backhaul in this column.
Errors
Table column that shows total error counts for each backhaul.
Send
Table columns that show minimum, average, and maximum values and their timestamps for send traffic on the backhaul.
Receive
Table columns that show minimum, average, and maximum values and their timestamps for receive traffic on the backhaul.
Backhaul Errors Daily
Graph
Node
Table column that lists nodes that contain RAN backhauls. To access details for a specific node, click a node in this column.
Backhaul
Table column that lists the visible backhauls. To access details for a specific backhaul, click a backhaul in this column.
Note
Avg. Error Rate (Per Sec)
Table column that lists the average error rate each second for the visible backhauls.
Total Errors
Table column that lists the total number of errors (GSM and UMTS) for each visible backhaul.
Total Errors GSM-Abis
Table column that lists the total number of GSM-Abis errors for each visible backhaul.
Total Errors UMTS-Iub
Table column that lists the total number of UMST-Iub errors for each visible backhaul.
Expand to Full Screen
Click this link to open the graph in a full-screen window for better viewing.
UMTS Errors
Y-axis labels for graphs that show total UMTS errors, total GSM errors, and a combined total of UMTS and GSM errors for the visible backhauls.
Note
GSM Errors
Total Errors
Legend
Positioned below the graph, a legend of color-coded labels for each backhaul that appears in the graph.
Table, CSV
Lists the same information as the graph output type, but in tabular format; also includes one unique field:
Timestamp—identifies the time that each error value occurred for each visible backhaul.
Shorthaul Performance Daily
Graph
Node
Table column that lists nodes that contain RAN shorthauls. To access details for a specific node, click a node in this column.
Backhaul
Table column that lists the visible backhauls. To access details for a specific backhaul, click a backhaul in this column.
Shorthaul
Table column that lists the visible shorthauls. To access details for a specific shorthaul, click a shorthaul in this column.
Note
Average
Table column that shows the average bits per second for the shorthaul.
Minimum
Table column that shows the minimum number of bits per second for the shorthaul.
Minimum Timestamp
Table column that shows time when the minimum bits-per-second value occurred.
Maximum
Table column that shows maximum number of bits per second for the shorthaul.
Maximum Timestamp
Table column that shows time when the maximum bits-per-second value occurred.
Expand to Full Screen
Click this link to open the graph in a full-screen window for better viewing.
Minimum Bits/Sec
Y-axis labels for graphs that show minimum, average, and maximum bits per second for the visible shorthauls.
Note
Average Bits/Sec
Maximum Bits/Sec
Legend
Positioned below each graph, a legend of color-coded labels for each shorthaul that appears in the graph.
Table, CSV
Node
Table column that lists all the nodes that contain RAN backhauls. If Output is Table, to access details for a specific node, click a node in this column.
Backhaul
Table column that lists all the RAN backhauls in the network. If Output is Table, to access details for a specific backhaul, click a backhaul in this column.
Shorthaul
Table column that lists all the RAN shorthauls in the network. If Output is Table, to access details for a specific shorthaul, click a shorthaul in this column.
Protocol
Table column that shows whether the shorthaul protocol is GSM or UMTS.
Send
Table columns that show minimum, average, and maximum values and their timestamps for send traffic on the shorthaul.
Receive
Table columns that show minimum, average, and maximum values and their timestamps for receive traffic on the shorthaul.
GSM Errors Daily
Graph
Node
Table column that lists nodes that contain GSM shorthauls. To access details for a specific node, click a node in this column.
Backhaul
Table column that lists backhauls that contain GSM shorthauls. To access details for a specific backhaul, click a backhaul in this column.
Shorthaul
Table column that lists the visible GSM shorthauls. To access details for a specific shorthaul, click a shorthaul in this column.
Note
Total Counts
Table column that lists the total number of GSM errors for the visible shorthauls during the chosen duration.
Avg. Error Rate (Per Sec)
Table column that lists the average error rate each second for the visible shorthauls.
Expand to Full Screen
Click this link to open the graph in a full-screen window for better viewing.
Error Counts
Y-axis label for graph that shows total GSM errors for the visible GSM shorthauls.
Note
Legend
Positioned below the graph, a legend of color-coded labels for each shorthaul that appears in the graph.
Table, CSV
Node
Table column that lists all the nodes that contain GSM shorthauls. If Output is Table, to access details for a specific node, click a node in this column.
Backhaul
Table column that lists all the backhauls that contain GSM shorthauls. If Output is Table, to access details for a specific backhaul, click a backhaul in this column.
Shorthaul
Table column that lists all the GSM shorthauls in the network. If Output is Table, to access details for a specific shorthaul, click a shorthaul in this column.
Total Errors
Table column that lists the total number of GSM errors for the visible shorthauls during the chosen duration.
Total Missed Packets
Total number of missed packets on the GSM shorthaul.
Total Protocol Errors
Total number of protocol errors on the GSM shorthaul.
Total Miscellaneous Errors
Total number of miscellaneous errors on the GSM shorthaul.
UMTS Errors Daily
Graph
Node
Table column that lists nodes that contain UMTS shorthauls. To access details for a specific node, click a node in this column.
Backhaul
Table column that lists backhauls that contain UMTS shorthauls. To access details for a specific backhaul, click a backhaul in this column.
Shorthaul
Table column that lists the visible UMTS shorthauls. To access details for a specific shorthaul, click a shorthaul in this column.
Note
Total Counts
Table column that lists the total number of UMTS errors that occurred for the visible shorthauls during the chosen duration.
Avg. Error Rate (Per Sec)
Table column that lists the average error rate each second for the visible shorthauls during the chosen duration.
Expand to Full Screen
Click this link to open the graph in a full-screen window for better viewing.
Error Counts
Y-axis label for the graph that shows the total number of UMTS errors for the visible UMTS shorthauls.
Note
Legend
Positioned below the graph, a legend of color-coded labels for each UMTS shorthaul that appears in the graph.
Table, CSV
Node
Table column that lists nodes that contain UMTS shorthauls. If Output is Table, to access details for a specific node, click a node in this column.
Backhaul
Table column that lists all the backhauls that contain UMTS shorthauls. If Output is Table, to access details for a specific backhaul, click a backhaul in this column.
Shorthaul
Table column that lists all the UMTS shorthauls in the network. If Output is Table, to access details for a specific shorthaul, click a shorthaul in this column.
Timestamp
Time that the error values occurred for the visible shorthauls.
Total Errors
Table column that lists the total number of UMTS errors for the visible shorthauls during the chosen duration.
Total Protocol Errors
Table column that lists the total number of protocol errors on the UMTS shorthaul.
Total Miscellaneous Errors
Table column that lists the total number of miscellaneous errors on the UMTS shorthaul.
Viewing Accounting Reports
You can view any of the following statistics reports:
GTT Accounting Reports
You can view summary reports of daily GTT accounting statistics. You can also export the reports.
GTT Accounting Statistics Daily Summary Reports
You can view a daily summary of GTT accounting statistics for all nodes that the MWTM detected on a specified date. The GTT Accounting Daily Report page shows all MWTM daily GTT accounting statistics detail reports by date. Each file contains a daily summary of GTT accounting statistics for all nodes that the MWTM detected on a specified date.
The GTT Accounting Daily Report table is sorted based on the information in the Packets column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
MTP3 Accounting Reports
You can view a daily summary of MTP3 accounting statistics for the MWTM on a specified date. You can also export the reports. MTP3 accounting describes MTP3 layer traffic in support of linksets. To enable MTP3 accounting reports, use the mwtm statreps acct command (see mwtm statreps acct, page B-117).
This section covers:
•
•
Note
MTP3 Accounting Statistics Daily Detail Reports
You can view a daily summary of MTP3 accounting statistics for the MWTM on a specified date. The MTP3 Accounting Daily Report page shows detail reports of all MWTM daily MTP3 accounting statistics by date. Each file contains a daily summary of MTP3 accounting statistics for the MWTM on a specified date.
The MTP3 Accounting Daily Report table is sorted based on the information in the Send MSUs column. However, you can sort the table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Daily MTP3/AS Accounting Statistics Archived Reports
The MTP3/AS Daily Archived Accounting Reports page shows all archived MWTM daily MTP3/AS accounting statistics reports for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by date; for example, the sgmAccStats.DailyDetail.2007-02-13.csv.zip file contains the daily MTP3 accounting statistics report for February 13, 2007.
Note
Each archived .zip file contains a comma-separated value (CSV) text file with a daily MTP3 accounting statistics report for that date. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about accounting statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
AS/ASP Accounting Reports
You can view daily reports for application server (AS) and application server process (ASP) accounting statistics by using the MWTM. You can also export the report. AS/ASP accounting describes MTP3 layer traffic in support of application servers. To enable AS/ASP accounting reports, use the mwtm statreps acct command (see mwtm statreps acct, page B-117).
Viewing File Archive Reports
Reports that have been archived are located within File Archive > Reports in the MWTM web interface. All archived reports are saved as export files in .csv format.
You can view any of the following archived reports:
•
•
•
•
You can also view MWTM statistics reports logs (see Viewing the MWTM Statistics Reports Logs).
Custom Archived Reports
The Custom Archived Report pages show all archived MWTM custom network and accounting statistics reports for the server to which you connect. These reports can be viewed on the Web, or downloaded as .zip files. These .zip files are also stored in the default directory (/opt/CSCOsgm by default) in the /reports/custom directory.
Note
Custom archived reports are those that you enable by using these commands:
Note
The Custom Report tables are sorted based on the information in the Export File column. However, you can sort a table based on the information in one of the other columns (see Navigating Table Columns, page 5-24).
The Custom Report tables contain:
Export File
Name of the custom statistics export .zip file, archived by type, date, and hour; for example, the sgmLinksetStats.custom.20867.2007-02-13-16:15.csv.zip file contains the summary report of custom linkset statistics with the ID tag 20867 for the 15th minute of the 16th hour on February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a daily statistics report for that date. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about custom statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Report Start Date (EST)
Date and time the custom report began.
Report Finish Date (EST)
Date and time the custom report ended.
Last Modified Date (EST)
Date and time the custom report was last modified.
View
Shows the custom detail report for the object. Not available for Q.752 reports.
To show details in HTML for custom archived reports, click on a link in the View column of the Custom Archived Report page:
Aborts and Continues
Application Servers
Application Server Processes
Events
GTT
Links
Linksets
Processed
ResultInvokes
RuleMatches
SubTriggers
Triggers
All custom detail reports contain these headings and general menu options:
Daily Archived Reports
The Daily Archived Reports pages display summary reports for all archived MWTM daily network statistics for all application servers, application server processes, links, linksets, MLR, or point codes that the MWTM detects for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type and hour; for example, the sgmLinksetStats.DailySum.2007-02-13.csv.zip file contains the summary report of daily linkset statistics for the February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of daily network statistics for all application servers, application server processes, links, linksets, MLR, or point codes that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about daily network statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Hourly Archived Reports
The Hourly Archived Reports pages show summary reports for all archived MWTM hourly network statistics for all of the following that the MWTM detects for the server to which you connect:
•
•
•
•
•
The summary reports of archived hourly network statistics are stored as downloadable .zip files. The .zip files are archived by type, date, and hour; for example, the sgmLinksetStats.2007-02-13-08.csv.zip file contains summary reports for the hourly linkset statistics for the eighth hour on February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of hourly network statistics for all application servers, application server processes, links, or linksets that the MWTM detects on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about the format of hourly network statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Rolling Archived Reports
The All Rolling Reports page shows summary reports of concatenated MWTM hourly and daily network statistics for all of the following objects detected by the MWTM for the server you are connected to:
•
•
•
•
These statistics are stored as downloadable .zip files. The .zip files are archived by type and number of days (7 or 30). For example:
•
•
Note
The MWTM creates a new set of files every hour.
You can download the .zip files and extract them. To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about rolling statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Application Server Archived Reports
You can access these reports:
•
•
Note
Daily Application Server Archived Reports
The AS Daily Archived Reports page shows summary reports for all archived MWTM daily network statistics for all application servers that the MWTM detects for the server to which you connect. The information is stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the sgmASEStats.DailySum.2007-02-13.csv.zip file contains the summary report for daily application server statistics for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of daily network statistics for all application servers that the MWTM detects on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about daily application server statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Hourly Application Server Archived Reports
The AS Hourly Archived Reports page shows all summary reports for archived MWTM hourly network statistics for all application servers that the MWTM detects for the server to which you connect. The information is stored as downloadable .zip files.
The .zip files are archived by type, date, and hour; for example, the sgmASEStats.2007-02-13-08.csv.zip file contains the summary report for hourly application server statistics for the 8th hour on February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of hourly network statistics for all application servers that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about hourly application server statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Application Server Process Archived Reports
You can access these reports:
•
•
Note
Daily Application Server Process Archived Reports
The ASP Daily Archived Reports page shows summary reports of all archived MWTM daily network statistics for all application server processes that the MWTM detects for the server to which connect, stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the sgmASPStats.DailySum.2007-02-13.csv.zip file contains the summary report of daily application server process statistics for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of daily network statistics for all application server processes that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, right-click a filename, then save the file to a location of your choice. You can also import the file into Microsoft Excel.
For details about daily application server process statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Hourly Application Server Process Archived Reports
The ASP Hourly Archived Reports page shows the summary reports of all archived MWTM hourly network statistics for all application server processes that the MWTM detects for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type, date, and hour; for example, the sgmASPStats.2007-02-13.csv.zip file contains the summary report of hourly application server process statistics for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with the summary report for hourly network statistics for all application server processes that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about hourly application server process statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
GTT Accounting Archived Reports
You can access the daily GTT accounting statistics archived reports. For details about custom GTT accounting archived reports, seeCustom Archived Reports.
Daily GTT Accounting Statistics Archived Reports
The GTT Daily Archived Accounting Reports page shows all archived MWTM daily GTT accounting statistics reports for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the sgmGTTStats.DailyDetail.2007-02-13.csv.zip file contains the daily GTT accounting statistics report for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a daily GTT accounting statistics report for that date. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about GTT accounting statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Link Archived Reports
You can access these reports:
•
•
Note
Hourly Link Statistics Archived Reports
The Link Hourly Archived Reports page shows summary reports for all archived MWTM hourly network statistics for all links that the MWTM detected for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type, date, and hour; for example, the sgmLinkStats.2007-02-13-09.csv.zip file contains the summary reports for hourly link statistics for February 13, 2007 at 9:00am.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of an hourly network statistics for all links that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about hourly link statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Daily Link Statistics Archived Reports
The Link Daily Archived Reports page shows summary reports for all archived MWTM daily network statistics for all links that the MWTM detected for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the sgmLinkStats.DailySum.2007-02-13.csv.zip file contains the summary report of daily link statistics for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of daily network statistics for all links that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about daily link statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Linkset Archived Reports
You can access these reports:
•
•
Note
Hourly Linkset Statistics Archived Reports
The Linkset Hourly Archived Reports page shows summary reports of all archived MWTM hourly network statistics for all linksets that the MWTM detects for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type, date, and hour; for example, the sgmLinksetStats.2007-02-13.csv.zip file contains the summary report for the hourly linkset statistics for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of hourly network statistics for all linksets that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about hourly linkset statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Daily Linkset Statistics Archived Reports
The Linkset Daily Archived Reports page shows the summary report of all archived MWTM daily network statistics for all linksets that the MWTM detected for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the sgmLinksetStats.DailySum.2007-02-13.csv.zip file contains the summary reports of daily linkset statistics for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of daily network statistics for all linksets that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about daily linkset statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
MLR Archived Reports
Note
The MLR Daily Archived Reports pages show all archived MWTM daily MLR processed, aborts, continues, result invokes, rule matches, subtriggers, and triggers statistics reports for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the:
•
•
•
•
•
•
Each archived .zip file contains a comma-separated value (CSV) text file with a daily MLR statistics report for that date. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about MLR statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
MSU Archived Reports
You can access these reports:
Note
Hourly MSU Archived Reports
The MSU Hourly Archived Reports page shows summary reports of all archived MWTM hourly MSU rates that the MWTM detects for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type, date, and hour; for example, the itpHourlyMsuLoad.2007-02-13.csv.zip file contains the summary report for the hourly MSU rates for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of hourly MSU rates that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about hourly MSU archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Daily MSU Archived Reports
The MSU Daily Archived Reports page shows the summary report of all archived MWTM daily MSU rates that the MWTM detected for the server to which you connect, stored as downloadable .zip files.
The .zip files are archived by type and date; for example, the itpDailyMsuLoad.2007-02-13.csv.zip file contains the summary reports of daily MSU rates for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of daily MSU rates that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about daily MSU archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
MTP3/AS Archived Reports
You can access these reports:
•
•
MTP3 Event Reports
This section contains:
Hourly MTP3/AS Event Reports
To create hourly MTP3/AS event reports for the MWTM:
Step 1
Step 2
# cd /opt/CSCOsgm/bin# ./mwtm evreps enable# ./mwtm evreps mtpFor more details on the mwtm evreps commands, see Appendix B, "Command Reference."
The MTP3/AS Hourly Events Archived Reports page shows all hourly MWTM MTP3/AS event reports for the server to which you connect.
The .zip files are archived by type, date, and hour; for example, the sgmMTP3Events.2006-06-29-08.csv.zip file contains a summary report of the hourly MTP3 event for the eighth hour on June 29, 2006.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of an hourly MTP3 event for all objects that the MWTM detected on that date and hour. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about hourly MTP3 event reports, see ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Custom MTP3/AS Event Reports
To create custom MTP3/AS event reports for the MWTM:
Step 1
Step 2
# cd /opt/CSCOsgm/bin# ./mwtm mtpeventsFor more details on the mwtm mtpevents command, see Appendix B, "Command Reference."
The Custom MTP3/AS Events Archived Reports page shows all custom MWTM MTP3/AS event reports for the server to which you connect.
Export File
Name of the custom network events export .zip file, archived by type, date, and hour; for example, the sgmMTP3Events.custom.20867.2006-02-13-16-15.csv.zip file contains the summary report of custom network events with ID tag 20867 for the 15th minute of the 16th hour on February 13, 2006.
Each archived .zip file contains a comma-separated value (CSV) text file with a daily statistics report for that date. You can download the .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about custom statistics archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Report Start Date (EST)
Date and time the custom report began.
Report Finish Date (EST)
Date and time the custom report ended.
Last Modified Date (EST)
Date and time the custom report was last modified.
View
Shows the custom detail report for the object.
Custom MTP3 Events Detail Reports
The Custom MTP3 Events Detail Reports page shows details for all archived MWTM custom MTP3 event reports for all nodes that the MWTM detected when you enabled the report. You enable Custom event reports by using the mwtm mtpevents command.
Custom MTP3/AS Accounting Detail Reports
The Custom MTP3/AS Accounting Detail Reports page shows a custom summary of MTP3/AS accounting statistics for links and linksets in the MWTM. Custom MTP3/AS accounting reports are enabled using the mwtm accstats command.
Note
If a statistics calculation results in an undefined value, such as a number divided by zero (0), or an undefined number, based on the configuration, then MathError appears in the field.
Point Codes Archived Reports
The Point Codes Daily Archived Reports page shows all archived MWTM daily point code inventory reports for the server to which you connect, stored as downloadable .zip files.
On the Point Codes Daily Archived Reports page, the .zip files are archived by date; for example, the sgmPointCodes.DailyInv.2007-02-13.csv.zip file contains the daily point code inventory report for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a list of all point codes that were being used by all nodes that the MWTM detected on that date. You can download the The .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about point code inventory archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Q.752 Hourly Archived Reports
The Q752 Hourly Archived Reports page shows all archived MWTM hourly Q.752 reports for the server to which you connect, stored as downloadable .zip files.
On the Q752 Hourly Archived Reports page, the .zip files are archived by date; for example, the sgmQ752Stats.2007-02-13.csv.zip file contains the hourly Q.752 report for February 13, 2007.
Each archived .zip file contains a comma-separated value (CSV) text file with a summary report of all Q.752 links that the MWTM detected on that date. You can download the The .zip files and extract them.
To download a .zip file, click a filename, then save the file to a location of your choice. You can also import the file directly into Microsoft Excel.
For details about Q.752 hourly archived reports, see: ftp://ftp-eng.cisco.com/ftp/mwtm/docs/README-ExportReports.txt.
Viewing the MWTM Statistics Reports Logs
You can view a log that contains all messages pertaining to MWTM reports, and a display of the current values of MWTM report parameters and timers.
This section contains this information:
•
Viewing the MWTM Report Log
For details on viewing the MWTM report log, see Viewing the Report Log, page 11-26.
Viewing the MWTM Report Parameters and Timers
The Report Parameters and Timers page shows the current values of report parameters and timers for the server to which you connect, and which is currently running the MWTM server.
To access the Report Parameters and Timers page:
Step 1
Step 2
Report Dir
Path and name of the directory in which the MWTM stores reports. The default reports directory is /opt/CSCOsgm/reports, but you can change the reports directory using the mwtm repdir command (see mwtm repdir, page B-112).
Status
Indicates whether the MWTM should generate network statistics reports. For more information, see the description of the mwtm statreps [disable | enable] command in mwtm statreps servratio, page B-126.
ExportReports
Indicates whether the MWTM should generate network statistics reports in export format. For more information, see the description of the mwtm statreps [export | noexport] command in mwtm statreps export, page B-120.
LinkReports
Indicates whether the MWTM should generate summary reports of link and linkset statistics. For more information, see the description of the mwtm statreps [link | nolink] command in mwtm statreps link, page B-122.
AcctReports
Indicates whether the MWTM should generate MTP3 accounting statistics reports. For more information, see the description of the mwtm statreps [acct | noacct] command in mwtm statreps acct, page B-117.
GTTReports
Indicates whether the MWTM should generate GTT accounting statistics reports. For more information, see the description of the mwtm statreps [gtt | nogtt] command in mwtm statreps gtt, page B-121.
MLRReports
Indicates whether the MWTM should generate MLR statistics reports. For more information, see the description of the mwtm statreps [mlr | nomlr] command in mwtm statreps mlr, page B-123.
XUAReports
Indicates whether the MWTM should generate accounting statistics reports for application servers and application server processes. For more information, see the description of the mwtm statreps [xua | noxua] command in mwtm statreps xua, page B-128.
MSUReports
Indicates whether the MWTM should generate MSU rates reports. For more information, see the description of the mwtm statreps [msu | nomsu] command in mwtm statreps msu, page B-124.
IPLinks
Indicates whether the MWTM should include links that use the Stream Control Transmission Protocol (SCTP) IP transport protocol in network statistics reports. For more information, see the description of the mwtm statreps [iplinks | noiplinks] command in mwtm statreps iplinks, page B-122.
Q752Reports
Indicates whether the MWTM should generate Q.752 reports. For more information, see the description of the mwtm statreps [q752 | noq752] command in mwtm statreps q752, page B-125.
NullCaps
Indicates whether the MWTM should include SCTP links that do not have planned send and receive capacities in network statistics reports. For more information, see the description of the mwtm statreps [nullcaps | nonullcaps] command in mwtm statreps nullcaps, page B-125.
TimeMode
Indicates the time mode for dates in network statistics reports. For more information, see the description of the mwtm statreps timemode [12 | 24] command in mwtm statreps timemode, page B-127.
DiskCheck
Indicates whether the MWTM should verify that a disk has at least 10 MB of space remaining before enabling network statistics reports. For more information, see the description of the mwtm statreps [diskcheck | nodiskcheck] command in mwtm statreps diskcheck, page B-119.
UtilRatio
Utilization values that are outside a normal range are indicated with a red status ball icon in the Send Utilization or Receive Utilization cell. A Utilization value is outside the normal range if the following condition is met:
Current Utilization > factor * Long-Term Utilization
This inequality is used to recognize increases in the Utilization value. Assuming the default factor of 1.5, the Current Utilization value must be less than or equal to 150% of the Long-Term Utilization value to be in the normal range.
The default value for factor is 1.5.
For more information, see the description of the mwtm statreps utilratio command in mwtm statreps utilratio, page B-128.
ServRatio
In-Service values that are outside a normal range are indicated with a red status ball icon in the In-Service cell. An In-Service value is outside the normal range if the following condition is met:
Current In-Service < factor * Long-Term In-Service
This inequality is used to recognize drops in the In-Service value. Assuming the default factor of 0.95, the Current In-Service value must be greater than or equal to 95% of the Long-Term In-Service value to be in the normal range.
For more information, see the description of the mwtm statreps servratio command in mwtm statreps servratio, page B-126.
Hourly Age
Indicates the maximum number of days the MWTM should archive hourly network statistics reports. For more information, see the description of the mwtm statreps hourlyage and mwtm rephourlyage commands in mwtm statreps servratio, page B-126.
Daily Age
Indicates the maximum number of days the MWTM should archive daily network statistics reports. For more information, see the description of the mwtm statreps dailyage and mwtm repdailyage commands in mwtm statreps dailyage, page B-119.
Custom Age
Indicates the maximum number of days the MWTM should archive custom network statistics reports. For more information, see the description of the mwtm statreps custage and mwtm repcustage commands in mwtm statreps custage, page B-118.
Max CSV Rows
Indicates the maximum number of rows the MWTM should include in export CSV files. For more information, see the description of the mwtm statreps maxcsvrows command in mwtm statreps maxcsvrows, page B-123.
Web Names
Indicates whether the MWTM should show real node names or display names in web pages. For more information, see the description of the mwtm webnames [display | real] command in the mwtm webnames, page B-83.
Web Util
Indicates whether the MWTM should display send and receive utilization for linksets and links as percentages or in Erlangs (E), in web pages. For more information, see the description of the mwtm webutil [percent | erlangs] command in mwtm who, page B-84.
Timer files
Indicates timer activities during the last report run by the MWTM. The timer file is useful for identifying how much time the MWTM spends gathering report data and generating reports.
Locating Stored ITP Reports
The MWTM stores all reports in the report files directory on the /reports directory. If you installed the MWTM in:
•
•
Note
The /reports directory contains these subdirectories:
Changing the MWTM Reports Directory
On the server, you can change the directory in which the MWTM stores reports.
To change the MWTM report files directory, log in as the root user, as described in Starting the MWTM Client, page 4-2; or, as a superuser, as described in Specifying a Super User (Server Only), page 2-20, and enter:
# cd /opt/CSCOsgm/bin# ./mwtm repdir directory
where directory is the new directory.
Note
Customizing ITP Report Preferences
This table lists server CLI commands that allow you to customize your report preferences:
