IP Solution Center—MPLS VPN
This chapter describes an overview of the Cisco IP Solution Center (ISC) Multiprotocol Label Switching (MPLS) virtual private network (VPN) system solution. This chapter contains the following major sections:
IP Solution Center Overview
This section contains the following sections:
Business Application
ISC is a carrier-class network and service-management solution, designed especially for Cisco routing, switching, and security products. ISC addresses a growing customer demand for provisioning IP-based services with a single management platform.
ISC provides IP-based services in four primary applications:
•
MPLS VPN management
•
•
•
ISC provides a robust and centralized management platform that can manage the entire life-cycle of IP-based services, integrate with existing network management infrastructures, and easily accommodate the implementation of emerging new technologies.

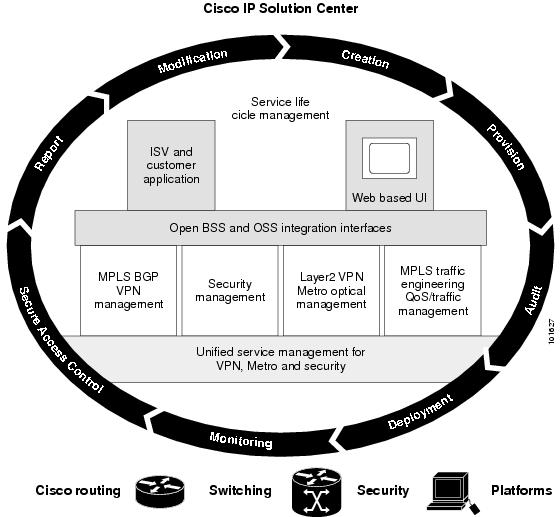

Figure 1-1 shows how ISC integrates into the network life-cycle management process.
Figure 1-1 ISC Network Life-Cycle Management Process
ISC is also a scalable solution for service deployment. Service providers need a deployment tool if they want to deploy more than a relatively small number of VPNs. And a tool that can allocate and track the various number pools (IP addresses, RT, RD, VLAN ID, and VC ID) simplifies the service deployment model.
ISC integrates with other Cisco network management tools. Though not seen as a network monitoring tool in itself, ISC has an audit capability that allows service provider to track the validity of provisioned VPNs and other services. Through the SLA deployment capability, SNMP data can be generated on a per-VPN basis.
System Architecture
ISC features a four-tier, modular architecture with a distributed design and an emphasis on high performance, scalability, and availability.
The four tiers consist of the following components:
•
•
•
•

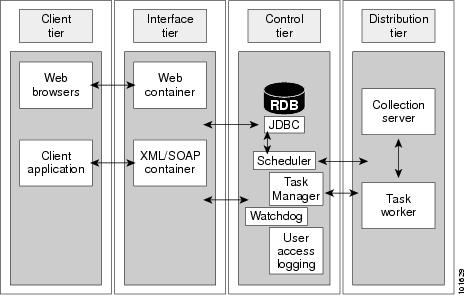

Figure 1-2 shows the four-tiered architecture.
Figure 1-2 Four-Tiered ISC Architecture
Client Tier
The client tier consists of web browsers (GUI) and client applications that access ISC through the application programming interface (API). Customers do not have to access ISC through the GUI. The northbound API can perform all system functions. The API allows you to tightly integrate ISC with your OSS environment. The web browsers communicate with the ISC web server through HTTP. The client applications communicate with the ISC CORBA server (the backward compatible API) or Web Server by way of XML/SOAP (the new API).
Interface Tier
The interface tier contains one or more web servers in a web farm. As more operators need to access the system, the web farm can be scaled up by adding new web servers to the farm. The interface tier provides horizontal scalability for handling a large number of users. It also provides high availability. When one server in the farm goes away, the whole system continues to function and users can continue to interact with the system through other interface tier machines. This system allows the dynamic addition and removal of machines to and from the web farm.
Control Tier
The control tier consists of the ISC Repository (a relational database) and the task scheduling and distribution system. In ISC, there is only one control tier server. It is called the Master server. The Master server is the "nerve center" of the infrastructure; you can consider it identical to the ISC workstation itself. All vital information is stored in the Repository on the Master server. The Master server controls how tasks are distributed to the back-end system.
Distribution Tier
The distribution tier consists of the Processing servers and Collection servers. Each Processing server or Collection server runs on its own physical machine. Processing servers are responsible for executing tasks such as provisioning, auditing, SLA data collection, and so on. There can be one or more Processing server machines.
A collection server is responsible for interacting with the network devices. For example, configuration upload and download to a Cisco router is through its Collection server. In other words, each Collection server owns a set of network devices. Collection servers and their geographically related network devices are organized into collection zones. There can be one or more Collection servers per installation. A Collection server is called into service when data is needed from one of the devices that it owns.
Note
Additional Features
The ISC design has the following additional features:
•
•
•
•
•
The ISC four-tier architecture allows scaling at any level on any or all of the four tiers.
For instance, if deployment operators are in widely scattered locations, multiple interface servers can be deployed to speed the input of these operators. Also, given that the slowest part of the deployment process is connecting to the network devices involved, multiple provisioning servers can be controlled by a single Master server. Complete management of all servers can be conducted from a single point, the Master server.
The built-in Watchdog process on all servers restarts server processes as necessary, and all distributed Watchdog servers report to the Master server Watchdog process.
The Distribution Tier can be scaled horizontally to support a large number of concurrent running tasks. The software architecture consists of two major subsystems, the Processing Server and the Collection Server. Jobs are distributed to the Processing Servers in parallel by the Task Manager and Job Distribution Framework.
Each Processing and Collection Server has a watchdog process that reports statistics and health information to the Master Watchdog. All remote servers are monitored and configured from the Central Location (Master in Control Tier).
The Master server verifies the presence of the collection and processing servers by sending a keep-alive (heartbeat polling).
Load Balancing
The major aspects of distributed load balancing in ISC are as follows:
•
•
•
•
•
If the service provider has implemented one or more Processing servers or Collection servers, all the servers—Master, Processing, and Collection servers—are listed in the Administration Control Center.
The Remote server can also be installed from the Control Center.
All Remote servers are monitored by Watchdogs. Remote Watchdogs report statistics to the Master Watchdog. You can start and stop all the servers from the Administration Control Center. Logs are available for viewing in real time.
Figure 1-3 shows the topology for a simple flat-based load-balancing configuration.
Figure 1-3 Simple Flat-Based Server Load Balancing Configuration

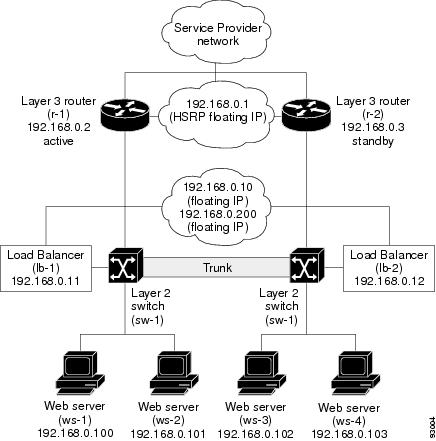

Figure 1-4 shows a flat-based route-path server load balancing configuration with redundancy built into the topology.
Figure 1-4 Redundant Load Balancing Configuration
System Features
Table 1-1 describes the ISC system features.
Template Manager
The Template Manager in ISC is a provisioning system that provides fast, flexible, and extensible Cisco IOS command generation capability. The Template Manager defines standard templates to generate Cisco IOS configurations for common provisioning tasks, such as common IPv4, QoS, and VPN provisioning.
•
•
•
The template data files are tightly linked with its corresponding template. You can use a data file and its associated template to create a template configuration file. The template configuration file is merged with (either appended to or prepended to) the ISC configlet. ISC downloads the combined configlet to the edge device router.
You can apply the same template to multiple edge devices, assigning the appropriate template data file for each device. Each template data file includes the specific data for a particular device (for example, the management IP address or host name of each device).
The template files and data files are in XML format. The template file, its data files, and all template configuration file files are mapped to a single directory.
•
•
Service providers can use the Template Manager to enhance ISC functionality. You can use the Template Manager to provide initial configuration for any service provider core device or edge device.
The Template Manager can be used as a stand-alone tool to generate complete configuration files that you can download to any ISC target.
Some of the additional uses for templates are as follows:
•
•
•
Download a ISC service request and an Cisco IOS configuration file in one download operation through the console. This edge device staging method would create a template and apply the service request in one step.
Role-Based Access Control (RBAC)
The central notion of role-based access control (RBAC) is that permissions are associated with roles, and users are made members of appropriate roles. Access control policy is embodied in various components of RBAC, such as role-permission, user-role, and role-role relationships. These components determine whether a particular user will be allowed to access a particular piece of data in the system.
The Role object specifies a set of occupants and the privileges or permissions granted to those occupants. There are several ways for constructing a role.
A role can represent competency to do specific tasks, such as a technician or a support engineer. A technician can collect edge device and interface information and import them into the ISC Repository. A support engineer (service operator) can create policies, submit service requests and deploy them.
A role can reflect specific duty assignments, for example, an engineer can be assigned to provision customer Acme's VPN. The operator might not be allowed to provision the competitor customer Widget's VPN.
A role can have distinct authority, for example, VPN customer AcmeInc should be allowed only to view or make minor change on Acme's VPN data. The customer should not be allowed to access any other customer's VPN data.
There can be a role hierarchy in which a super user has all the permissions allowed to two different roles.
The service provider can define a role for each VPN customer, for example Acme and Widgets. The acme_customers role and the Widgets_customers role are mutually exclusive roles. The same user can be assigned to no more than one role in a mutually exclusive set. Role constraint supports separation of duties.
ISC supports full Role-Based Access Control to the system resources. Each Role defines limited access to the resources with a set of permissions: view, create, update, delete, and execute. This same access mechanism is also given to a group. When a user is part of a group, he inherits the group's access privileges.
Each user can be assigned one or many roles. Each user will be shown only the resources and services that he or she is allowed to create view, modify, or delete. Using the access privileges that the user has been allocated, the display and action allowed are adjusted accordingly.
North Bound Interface (NBI)
The user's Web browsers communicate with IP Solution Center Web server through HTTP, and the client applications communicate with ISC's CORBA server (backward compatible API) or through the Web server by way of XML/SOAP.
API Functionality Supported
API support is provided for the following services:
•
•
•
•
•
•
•
•
•
•
NBI Benefits
The benefits of the north-bound interface are as follows:
•
•
•
•
•
•
API Approach
The API approach is as follows:
•
•
•
•
•
•
•
Transport protocol agnostic.
Service Provider Network
The ISC provisioning engine accesses the configuration files on both the CE and PE to compute the necessary changes o those files that are required to support the service on the PE-CE link. A customer edge router (CE) is connected to a provider edge router (PE) in such a way that the customer's traffic is encapsulated and transparently sent to other CEs, thus creating a virtual private network. CEs advertise routes to the VPN for all the devices in their site.
Figure 1-5 shows all the major elements and devices that a service provider can employ to fully deploy ISC MPLS VPN management services.
Figure 1-5 ISC MPLS VPN Management in the Service Provider Network
The notable ISC network elements are as follows:
•
The ISC Network Management Subnet is required when the service provider's service offering entails the management of CEs. The management subnet consists of the ISC workstation (where ISC is installed). On the same LAN, the service provider can optionally install one or more Processing servers. The Processing servers are responsible for executing tasks such as provisioning, auditing, SLA data collection, and so on.
•
The Management VPN is a special VPN employed by the ISC Network Management Subnet to manage the CEs in a service provider network. Once a CE is in a VPN, it is no longer accessible by means of conventional IPv4 routing, unless the CEs are part of the Management VPN. To communicate with the PEs, the link between the Management PE (MPE) and the Management-CE (MCE) uses a parallel IPv4 link. The Management VPN connects to the managed CEs.
•
The Multi-VRF CE is a feature that provides for Layer 3 aggregation. Multiple CEs can connect to a single Multi-VRF CE (typically in an enterprise network); then the Multi-VRF CE connects directly to a PE. Figure 1-5 shows CE 1 and CE2 connected to the Multi-VRF CE, and the Multi-VRF CE is connected directly to the PE. For details, see Multi-VRF CE.
•
The service provider can install multiple Layer 2 switches between a PE and CE, as shown in Figure 1-5. This feature provides Layer 2 aggregation. Additional CEs can be connected to the switches as well. Cisco supports two switches for the Layer 2 access to MPLS: either a Cisco Catalyst 2950 Switch or a Cisco Catalyst 3550 Intelligent Ethernet Switch.
•
Cisco ISC is designed to provision a large number of devices through its distributed architecture. If the Master server (equivalent to the ISC workstation) cannot keep up with the number of devices, Collection servers can be added to offload the work of the Master server. Among other tasks, Collection servers are responsible for uploading and downloading configuration files to and from Cisco routers. For more information, see Defining Collection Zones and Assigning Devices to Zones.
An MPLS VPN consists of a set of sites that are interconnected by means of an MPLS provider core network. At each site, there are one or more CEs, which attach to one or more PEs. PEs use the Border Gateway Protocol-Multiprotocol (MP-BGP) to dynamically communicate with each other.
It is not required that the set of IPv4 addresses used in any two VPNs be mutually exclusive because the PEs translate IPv4 addresses into IPv4 VPN entities by using MP-BGP with extended community attributes.
The set of IP addresses used in a VPN, however, must be exclusive of the set of addresses used in the provider network. Every CE must be able to address the PEs to which it is directly attached. Thus, the IP addresses of the PEs must not be duplicated in any VPN.
One of ISC key features is to hide much of the complexity in dealing with the deployment of Metro services.
•
•
•
This gives the service provider the ability to rapidly deploy services and network elements.
•
After a service is configured, ISC makes sure that the service configuration is the intended one by checking the configuration and verifying that VPN routing is operational.
•
ISC keeps track of the VLANs allocated and gives detailed usage information of the VLAN allocated per service, per customer, or per Access Domain.
Access Domain: The Layer 2 Ethernet switching domain attached to a PE defines an access domain. All the switches attached to the PE-POP belong to the access domain (as illustrated in Figure 1-7). This notion enables the network operator to tie multiple VLAN pools to a single Access Domain, and also allows redundancy with dual PEs in a single Access Domain.

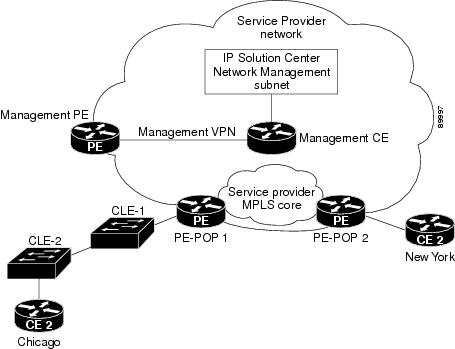

For illustration purpose, let's assume that a Service Provider has a network such as the one illustrated in Figure 1-6. A customer has two sites (Chicago and New York), and would like to get an Ethernet Wire Service between the two sites.
Figure 1-6 Service Provider Network for VLAN ID Management
1.
This automatically gives ISC the range of VLAN IDs that are attached to the access domain.
Figure 1-7 shows the access domain assigned, with PE-POP 1, CLE 1, and CLE 2 defined within the access domain.
Figure 1-7 Access Domain Assigned
2.
3.
4.
5.
6.
Resource Pools
ISC enables multiple pools to be defined and used during deployment operations. The following resource pools are available:
•
•
•
•
•
•
All these resources, that are made available to the service provider, enable the automation of service deployment.
VPN Profile
For all MPLS VPN provisioning, several network elements that participate in the VPN must be defined. These parameters are:
•
•
•
•
•
All the provisioning parameters can be made editable for a service operator who will deploy the service. A service policy is defined by a network operator and used by a service operator.
A service policy defines the parameters that will be used during provisioning.
Each of these parameters can be made editable or not to the inexperienced service operator. The fact that a service can be profiled greatly simplifies the service operator's tasks and has now only limited number of parameters to enter during the provisioning process to deploy and activate a MPLS VPN service.
Customer View
From the customer's point of view, they see their internal routers communicating with their customer edge routers (CEs) from one site to another through a VPN managed by the service provider (see Figure 1-8).
Figure 1-8 The Customer's View of the Network
This simple view of the customer's network is the advantage of employing VPNs: the customer experiences direct communication to their sites as though they had their own private network, even though their traffic is traversing a public network infrastructure and they are sharing that infrastructure with other businesses.
Provider View
The service provider's view of the network is naturally very different, as shown in Figure 1-9. This illustration shows two different customers, with each customer having a single VPN. A customer can, however, have multiple VPNs.
Figure 1-9 Service Provider's View of the Network
Provider Edge Routers
At the edge of the provider network are provider edge routers (PEs). Within the provider network are other provider routers as needed (often designated as P routers) that communicate with each other and the PEs by way of the Border Gateway Protocol-Multiprotocol (MP-BGP). Note that in this model, the service provider need only provision the links between the PEs and CEs.
PEs maintain separate routing tables called VPN routing and forwarding tables (VRFs). The VRFs contain the routes for directly connected VPN sites only. (For more information about VRFs, see VPN Routing and Forwarding Tables). PEs exchange VPN-IPv4 updates through MP-iBGP sessions. These updates contain VPN-IPv4 addresses and labels. The PE originating the route is the next hop of the route. PE addresses are referred to as host routes into the core interior gateway protocol.
Multi-VRF CE
The Multi-VRF CE is a feature that provides for Layer 3 aggregation. Multiple CEs can connect to a single Multi-VRF CE (typically in an enterprise network); then the Multi-VRF CE connects directly to a PE. A Multi-VRF CE can be a Cisco router or a Cisco Catalyst® 3550 Intelligent Ethernet Switch.
The Multi-VRF CE functionality extends some of the functionality formerly reserved to the PE to a CE router in an MPLS VPN—the only PE-like functionality that this feature provides is the ability to have multiple VRFs on the CE router so that different routing decisions can be made. The packets are sent toward the PE as IP packets.
With this feature, a Multi-VRF CE can maintain separate VRF tables to extend the privacy and security of an MPLS VPN down to a branch office, rather than just at the PE router node.
A Multi-VRF CE is unlike a CE in that there is no label exchange, no LDP adjacency, and no labeled packet flow between the PE and the CE. Multi-VRF CE routers use VRF interfaces to form a VLAN-like configuration on the customer side. Each VRF on the Multi-VRF CE router is mapped to a VRF on the PE router.

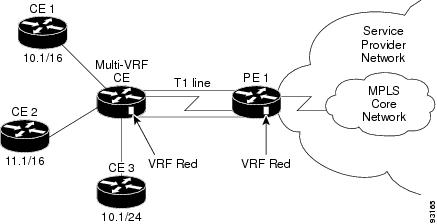

Figure 1-10 illustrates one method in which a Multi-VRF CE can be used. The Multi-VRF CE router associates a specific VRF by the CEs connected to its interfaces and exchanges that information with the PE. Routes are installed in the VRF on the Multi-VRF CE. There also needs to be a routing protocol or a static route that propagates routes from a specific VRF on the Multi-VRF CE to the corresponding VRF on the PE.
Figure 1-10 A Multi-VRF CE Providing Layer 3 Aggregation
The Multi-VRF CE feature can segment its LAN traffic by placing each CE with its own IP address space. To differentiate each CE, each interface contains its own IP address space.
When receiving an outbound customer data packet from a directly attached interface, the Multi-VRF CE router performs a route lookup in the VRF that is associated with that site. The specific VRF is determined by the interface or subinterface over which the data packet is received. Support for multiple forwarding tables makes it easy for the Multi-VRF CE router to provide segregation of routing information on a per-VPN basis before the routing information is sent to the PE. The use of a T1 line with multiple point-to-point subinterfaces allows traffic from the Multi-VRF CE router to the PE router to be segmented into each corresponding VRF.
With a Multi-VRF CE, the data path is as follows from the CEs to PE 1 (as shown in Figure 1-10):
1.
2.
3.
Service Audit
A service request audit verifies that service requests are deployed on the network. You can audit new or existing requests. A service request audit can be scheduled on a regular basis to verify the state of the network provisioning requests. The audit verifies the following:
•
•
ISC audits against the Repository, not the network. The service operator should schedule auditing after the collection of configuration and routing tables has taken place.
Auditing an existing service request involves three tasks:
•
•
•
Auditing Report Services
Audit reports provide these services:
•
The Audit New Services also identifies problems with the download of configuration files to routers
•
•
MPLS VPN
At its simplest, a virtual private network (VPN) is a collection of sites that share the same routing table. A VPN is also a network in which customer connectivity to multiple sites is deployed on a shared infrastructure with the same administrative policies as a private network.The path between two systems in a VPN, and the characteristics of that path, might also be determined (wholly or partially) by policy. Whether a system in a particular VPN is allowed to communicate with systems not in the same VPN is also a matter of policy.
In MPLS VPN, a VPN generally consists of a set of sites that are interconnected by means of an MPLS provider core network, but it is also possible to apply different policies to different systems that are located at the same site. Policies can also be applied to systems that dial in; the chosen policies would be based on the dial-in authentication processes.
A given set of systems can be in one or more VPNs. A VPN can consist of sites (or systems) that are all from the same enterprise (intranet), or from different enterprises (extranet); it might consist of sites (or systems) that all attach to the same service provider backbone, or to different service provider backbones.
Figure 1-11 VPNs Sharing Sites
MPLS-based VPNs are created in Layer 3 and are based on the peer model, which makes them more scalable and easier to build and manage than conventional VPNs. In addition, value-added services, such as application and data hosting, network commerce, and telephony services, can easily be targeted and deployed to a particular MPLS VPN because the service provider backbone recognizes each MPLS VPN as a secure, connectionless IP network.
The MPLS VPN model is a true peer VPN model that enforces traffic separations by assigning unique VPN route forwarding tables (VRFs) to each customer's VPN. Thus, users in a specific VPN cannot see traffic outside their VPN. Traffic separation occurs without tunneling or encryption because it is built directly into the network. (For more information on VRFs, see VPN Routing and Forwarding Tables.)
The service provider's backbone is comprised of the PE and its provider routers. MPLS VPN provides the ability that the routing information about a particular VPN be present only in those PE routers that attach to that VPN.
Characteristics of MPLS VPNs
MPLS VPNs have the following characteristics:
•
NLRI refers to a destination address in MP-BGP, so NLRI is considered "one routing unit." In the context of IPv4 MP-BGP, NLRI refers to a network prefix/prefix length pair that is carried in the BGP4 routing updates.
•
•
When a data packet is forwarded across the provider backbone, two labels are used. The first label directs the packet to the appropriate egress PE; the second label indicates how that egress PE should forward the packet.
•
•
The PE associates each CE with a per-site forwarding table that contains only the set of routes available to that CE.
Principal Technologies
There are four principal technologies that make it possible to build MPLS-based VPNs:
•
•
•
•
Intranets and Extranets
If all the sites in a VPN are owned by the same enterprise, the VPN is a corporate intranet. If the various sites in a VPN are owned by different enterprises, the VPN is an extranet. A site can be in more than one VPN. Both intranets and extranets are regarded as VPNs.
While the basic unit of connection is the site, the MPLS VPN architecture allows a finer degree of granularity in the control of connectivity. For example, at a given site, it might be desirable to allow only certain specified systems to connect to certain other sites. That is, certain systems at a site might be members of an intranet and members of one or more extranets, while other systems at the same site might be restricted to being members of the intranet only.
A CE router can be in multiple VPNs, although it can only be in a single site. When a CE router is in multiple VPNs, one of these VPNs is considered its primary VPN. In general, a CE router's primary VPN is the intranet that includes the CE router's site. A PE router might attach to CE routers in any number of different sites, whether those CE routers are in the same or in different VPNs. A CE router might, for robustness, attach to multiple PE routers. A PE router attaches to a particular VPN if it is a router adjacent to a CE router that is in that VPN.
VPN Routing and Forwarding Tables
The VPN routing and forwarding table (VRF) is a key element in the MPLS VPN technology. VRFs exist on PEs only (except in the case of a Multi-VRF CE). A VRF is a routing table instance, and more than one VRF can exist on a PE. A VPN can contain one or more VRFs on a PE. The VRF contains routes that should be available to a particular set of sites. VRFs use Cisco Express Forwarding (CEF) technology, therefore the VPN must be CEF-enabled.
A VRF is associated with the following elements:
•
•
•
•
Each PE maintains one or more VRFs. ISC software looks up a particular packet's IP destination address in the appropriate VRF only if that packet arrived directly through an interface that is associated with that VRF. The so-called "color" MPLS label tells the destination PE to check the VRF for the appropriate VPN so that it can deliver the packet to the correct CE and finally to the local host machine.
A VRF is named based on the VPN or VPNs it services, and on the role of the CE in the topology. The schemes for the VRF names are as follows:
The VRF name for a hub:
ip vrf Vx:[VPN_name]The x parameter is a number assigned to make the VRF name unique.
For example, if we consider a VPN called Blue, then a VRF for a hub CE would be called:
ip vrf V1:blueA VRF for a spoke CE in the Blue VPN would be called:
ip vrf V1:blue-sA VRF for an extranet VPN topology in the Green VPN would be called:
ip vrf V1:green-etcThus, you can read the VPN name and the topology type directly from the name of the VRF.

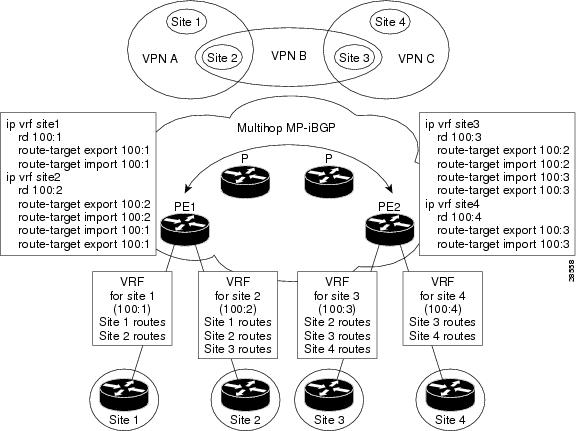

Figure 1-12 shows a network in which two of the four sites are members of two VPNs, and illustrates which routes are included in the VRFs for each site.
Figure 1-12 VRFs for Sites in Multiple VPNs
VRF Implementation
When implementing VPNs and VRFs, Cisco recommends you keep the following considerations in mind:
•
•
ip vrf V1:blue, and other EXEC-level show commands—and utilities such as ping, traceroute, and telnet—all invoke the services of the Cisco IOS routines that deal with the global IP routing table.•
telnet CE_RouterName /vrf vrf_name
Similarly, you can utilize the Traceroute and Ping commands in a VRF context.
•
VRF Instance
The configuration commands to create a VRF instance are as follows:
Route Distinguishers and Route Targets
MPLS-based VPNs employ BGP to communicate between PEs to facilitate customer routes. This is made possible through extensions to BGP that carry addresses other than IPv4 addresses. A notable extension is called the route distinguisher (RD).
The purpose of the route distinguisher (RD) is to make the prefix value unique across the backbone. Prefixes should use the same RD if they are associated with the same set of route targets (RTs) and anything else that is used to select routing policy. The community of interest association is based on the route target (RT) extended community attributes distributed with the Network Layer Reachability Information (NLRI).The RD value must be a globally unique value to avoid conflict with other prefixes.
The MPLS label is part of a BGP routing update. The routing update also carries the addressing and reachability information. When the RD is unique across the MPLS VPN network, proper connectivity is established even if different customers use non-unique IP addresses.
For the RD, every CE that has the same overall role should use a VRF with the same name, same RD, and same RT values. The RDs and RTs are only for route exchange between the PEs running BGP. That is, for the PEs to do MPLS VPN work, they have to exchange routing information with more fields than usual for IPv4 routes; that extra information includes (but is not limited to) the RDs and RTs.
The route distinguisher values are chosen by the ISC software.
•
Router(config)#value.•
Router(config-vrf)#value + 1Each spoke uses its own RD value for proper hub and spoke connectivity between CEs; therefore, the ISC software implements a new RD for each spoke that is provisioned.
ISC chooses route target values by default, but you can override the automatically assigned RT values if necessary when you first define a CERC in the ISC software (see Defining CE Routing Communities).
Route Target Communities
The mechanism by which MPLS VPN controls distribution of VPN routing information is through the VPN route-target extended MP-BGP communities. An extended MP-BGP community is an eight octet structure value. MPLS VPN uses route-target communities as follows:
•
•
For example, if the import list for a particular VRF is {A, B, C}, then any VPN route that carries community value A, B, or C is imported into the VRF.
CE Routing Communities

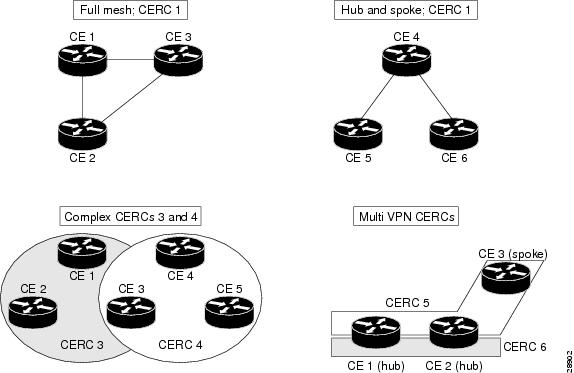

A VPN can be organized into subsets called CE routing communities, or CERCs. A CERC describes how the CEs in a VPN communicate with each other. Thus, CERCs describe the logical topology of the VPN. ISC can be employed to form a variety of VPN topologies between CEs by building hub and spoke or full mesh CE routing communities. CERCs are building blocks that allow you to form complex VPN topologies and CE connectivity.
The most common types of VPNs are hub-and-spoke and full mesh.
•
•
These two basic types of VPNs—full mesh and hub and spoke—can be represented with a single CERC.
Whenever you create a VPN, the ISC software creates one default CERC for you. This means that until you need advanced customer layout methods, you will not need to define new CERCs. Up to that point, you can think of a CERC as standing for the VPN itself—they are one and the same. If, for any reason, you need to override the software's choice of route target values, you can do so only at the time you create a CERC in the ISC software (see Defining CE Routing Communities).
To build very complex topologies, it is necessary to break down the required connectivity between CEs into groups, where each group is either fully meshed, or has a hub and spoke pattern. (Note that a CE can be in more than one group at a time, so long as each group has one of the two basic patterns.) Each subgroup in the VPN needs its own CERC. Any CE that is only in one group just joins the corresponding CERC (as a spoke if necessary). If a CE is in more than one group, then you can use the Advanced Setup choice during provisioning to add the CE to all the relevant groups in one service request. Given this information, the provisioning software does the rest, assigning route target values and VRF tables to arrange exactly the connectivity the customer requires. You can use the Topology tool to double-check the CERC memberships and resultant VPN connectedness.
ISC supports multiple CEs per site and multiple sites connected to the same PE. Each CERC has unique route targets (RT), route distinguisher (RD) and VRF naming. After provisioning a CERC, it is a good idea to run the audit reports to verify the CERC deployment and view the topologies created by the service requests. The product supports linking two or more CE routing communities in the same VPN.
Figure 1-13 shows several examples of the topologies that IP Solution Center CERCs can employ.
Figure 1-13 Examples of CERC Topologies
Hub and Spoke Considerations
In hub-and-spoke MPLS VPN environments, the spoke routers have to have unique Route Distinguishers (RDs). In order to use the hub site as a transit point for connectivity in such an environment, the spoke sites export their routes to the hub. Spokes can talk to hubs, but spokes never have routes to other spokes.
Due to the current MPLS VPN implementation, you must apply a different RD for each spoke VRF. The MP-BGP selection process applies to all the routes that have to be imported into the same VRF plus all routes that have the same RD of such a VRF. Once the selection process is done, only the best routes are imported. In this case this can result in a best route which is not imported. Thus, customers must have different RDs per spoke-VRF.
Full Mesh Considerations
Each CE Routing Community (CERC) has two distinct RTs: a hub RT and a spoke RT. When building a full mesh topology, always use the hub RT. Thus, when a need arises to add a spoke site for the current full mesh topology, you can easily add the spoke site without reconfiguring any of the hub sites. The existing spoke RT can be used for this purpose. This is a strategy to prevent having to do significant reprovisioning of a full mesh topology to a hub-and-spoke topology.
MPLS VPN Security
This section discusses the security requirements for MPLS VPN architectures. This section concentrates on protecting the core network against attacks from the "outside," that is, the Internet and connected VPNs. Protection against attacks from the "inside," that is, when an attacker has logical or physical access to the core network is not discussed here, since any network can be attacked with access from the inside.
Address Space and Routing Separation
Between two non-intersecting VPNs of an MPLS VPN service, it is assumed that the address space between different VPNs is entirely independent. This means, for example, that two non-intersecting VPNs must be able to both use the 10/8 network without any interference. From a routing perspective, this means that each end system in a VPN has a unique address, and all routes to this address point to the same end system. Specifically:
•
•
•
•
Address Space Separation
From a security point of view, the basic requirement is to avoid that packets destined to a host a.b.c.d within a given VPN reach a host with the same address in another VPN or the core.
MPLS allows distinct VPNs to use the same address space, which can also be private address space. This is achieved by adding a 64-bit route distinguisher (RD) to each IPv4 route, making VPN-unique addresses also unique in the MPLS core. This "extended" address is also called a VPN-IPv4 address. Thus customers of an MPLS service do not need to change current addressing in their networks.
In the case of using routing protocols between CE and PE routers (for static routing this is not an issue), there is one exception—the IP addresses of the PE routers the CE routers are peering with. To be able to communicate to the PE router, routing protocols on the CE routers must configure the address of the peer router in the core. This address must be unique from the CE router's perspective. In an environment where the service provider manages also the CE routers as CPE (customer premises equipment), this can be made invisible to the customer.
Routing Separation
Routing separation between the VPNs can also be achieved. Every PE router maintains a separate Virtual Routing and Forwarding instance (VRF) for each connected VPN. Each VRF on the PE router is populated with routes from one VPN, through statically configured routes or through routing protocols that run between the PE and the CE router. Since every VPN results in a separate VRF, there are no interferences between the VPNs on the PE router.
Across the MPLS core to the other PE routers, this routing separation is maintained by adding unique VPN identifiers in multi-protocol BGP, such as the route distinguisher (RD). VPN routes are exclusively exchanged by MP-BGP across the core, and this BGP information is not redistributed to the core network, but only to the other PE routers, where the information is kept again in VPN-specific VRFs. Thus routing across an MPLS network is separate per VPN.
Given addressing and routing separation across an MPLS core network, MPLS offers in this respect the same security as comparable Layer 2 VPNs, such as ATM or Frame Relay. It is not possible to intrude into other VPNs through the MPLS core, unless this has been configured specifically.
Hiding the MPLS Core Structure
The internal structure of the MPLS core network (PE and Provider router devices) should not be visible to outside networks (either the Internet or any connected VPN). While a breach of this requirement does not lead to a security problem itself, it is generally advantageous when the internal addressing and network structure remains hidden to the outside world. The ideal is to not reveal any information of the internal network to the outside. This applies equally to the customer networks as to the MPLS core.
Denial-of-service attacks against a core router, for example, are much easier to carry out if an attacker knows the IP address. Where addresses are not known, they can be guessed, but when the MPLS core structure is hidden, attacks are more difficult to make. Ideally, the MPLS core should be as invisible to the outside world as a comparable Layer 2 infrastructure (for example, Frame Relay or ATM).
In practice, a number of additional security measures have to be taken, most of all extensive packet filtering. MPLS does not reveal unnecessary information to the outside, not even to customer VPNs. The addressing in the core can be done with either private addresses or public addresses. Since the interface to the VPNs, and potentially to the Internet, is BGP, there is no need to reveal any internal information. The only information required in the case of a routing protocol between a PE and CE is the address of the PE router. If this is not desired, you can configure static routing between the PE and CE. With this measure, the MPLS core can be kept completely hidden.
To ensure reachability across the MPLS cloud, customer VPNs will have to advertise their routes as a minimum to the MPLS core. While this could be seen as too open, the information known to the MPLS core is not about specific hosts, but networks (routes); this offers some degree of abstraction. Also, in a VPN-only MPLS network (that is, no shared Internet access), this is equal to existing Layer 2 models, where the customer has to trust the service provider to some degree. Also in a Frame Relay or ATM network, routing information about the VPNs can be seen on the core network.
In a VPN service with shared Internet access, the service provider typically announces the routes of customers that wish to use the Internet to his upstream or peer providers. This can be done by way of a network address translation (NAT) function to further obscure the addressing information of the customers' networks. In this case, the customer does not reveal more information to the general Internet than with a general Internet service. Core information is not revealed at all, except for the peering addresses of the PE router) that hold the peering with the Internet. - NAT is not supported in this release. -
In summary, in a pure MPLS VPN service, where no Internet access is provided, the level of information hiding is as good as on a comparable Frame Relay or ATM network—no addressing information is revealed to third parties or the Internet. If a customer chooses to access the Internet by way of the MPLS core, he will have to reveal the same addressing structure as for a normal Internet service. NAT can be used for further address hiding. - NAT is not supported in this release. -
If an MPLS network has no interconnections to the Internet, this is equal to Frame Relay or ATM networks. With Internet access from the MPLS cloud, the service provider has to reveal at least one IP address (of the peering PE router) to the next provider, and thus the outside world.
Resistance to Attacks
It is not possible to directly intrude into other VPNs. However, it is possible to attack the MPLS core, and try to attack other VPNs from there. There are two basic ways the MPLS core can be attacked:
•
•
There are two basic types of attacks: denial-of-service (DoS) attacks, where resources become unavailable to authorized users, and intrusion attacks, where the goal is to gain unauthorized access to resources.
For intrusion attacks, give unauthorized access to resources, there are two basic ways to protect the network:
•
•
Denial-of service attacks are easier to execute, since in the simplest case, a known IP address might be enough to attack a machine. The only way to be certain that you are not be vulnerable to this kind of attack is to make sure that machines are not reachable, again by packet filtering and pinging IP addresses.
MPLS networks must provide at least the same level of protection against both forms of attack as current Layer 2 networks provide.
To attack an element of an MPLS network it is first necessary to know this element, that is, its IP address. It is possible to hide the addressing structure of the MPLS core to the outside world, as discussed in the previous section. Thus, an attacker does not know the IP address of any router in the core that he wants to attack. The attacker could guess addresses and send packets to these addresses. However, due to the address separation of MPLS, each incoming packet is treated as belonging to the address space of the customer. It is therefore impossible to reach an internal router, even through guessing the IP addresses. There is only one exception to this rule—the peer interface of the PE router.
Securing the Routing Protocol
The routing between the VPN and the MPLS core can be configured two ways:
1.
The static route can point to the IP address of the PE router, or to an interface of the CE router (for example, serial0).
Although in the static case the CE router does not know any IP addresses of the PE router, it is still attached to the PE router by way of some method, and could guess the address of the PE router and try to attack it with this address.
In the case of a static route from the CE router to the PE router, which points to an interface, the CE router does not need to know any IP address of the core network, not even of the PE router. This has the disadvantage of a more extensive (static) configuration, but from a security point of view, it is preferable to the other cases.
2.
In all other cases, each CE router needs to know at least the router ID (RID; peer IP address) of the PE router in the MPLS core, and thus has a potential destination for an attack.
In practice, access to the PE router over the CE-PE interface can be limited to the required routing protocol by using access control lists (ACLs). This limits the point of attack to one routing protocol, for example BGP. A potential attack could send an extensive number of routes, or flood the PE router with routing updates. Both of these attacks could lead to a denial-of-service attack, however, not to an intrusion attack.
To restrict this risk it is necessary to configure the routing protocol on the PE router as securely as possible. This can be done in various ways:
•
•
ACLs must be configured to limit access only to the port(s) of the routing protocol, and only from the CE router.
•
This is available for BGP, OSPF, and RIP2. It avoids the possibility that packets could be spoofed from other parts of the customer network than the CE router. This requires that the service provider and customer agree on a shared secret between all CE and PE routers. The problem here is that it is necessary to do this for all VPN customers; it is not sufficient to do this only for the customer with the highest security requirements.
Note
MD5 authentication in routing protocols should be used on all PE-CE peers. It is easy to track the source of such a potential denial-of-service attack.
•
In BGP, for example, it is possible to configure dampening, which limits the number of routing interactions. Also, a maximum number of routes accepted per VRF should be configured where possible.
In summary, it is not possible to intrude from one VPN into other VPNs or the core. However, it is theoretically possible to exploit the routing protocol to execute a denial-of-service attack against the PE router. This in turn might have negative impact on other VPNs. For this reason, PE routers must be extremely well secured, especially on their interfaces to the CE routers.
Label Spoofing
Assuming the address and routing separation as discussed above, a potential attacker might try to gain access to other VPNs by inserting packets with a label that he does not own. This is called label spoofing. This kind of attack can be done from the outside, that is, another CE router or from the Internet, or from within the MPLS core. The latter case (from within the core) is not discussed since the assumption is that the core network is provided in a secure manner. Should protection against an insecure core be required, it is necessary to run IPsec on top of the MPLS infrastructure. - Ipsec is not supported in this release. -
Within the MPLS network, packets are not forwarded based on the IP destination address, but based on the labels that are prepended by the PE routers. Similar to IP spoofing attacks, where an attacker replaces the source or destination IP address of a packet, it is also possible to spoof the label of an MPLS packet.
The interface between any CE router and its peering PE router is an IP interface, that is, without labels. The CE router is unaware of the MPLS core, and is only aware of the destination router. The intelligence exits in the PE device, where based on the configuration, the PE chooses a label and prepends it to the packet. This is the case for all PE routers, toward CE routers, and to the upstream service provider. All interfaces into the MPLS cloud require IP packets without labels.
For security reasons, a PE router should never accept a packet with a label from a CE router. Cisco routers implementation is such that packets that arrive on a CE interface with a label are dropped. Thus, it is not possible to insert fake labels because no labels are accepted. Additional security can be implemented by using MD5 authentication between peer routers in the core if the service provider is suing LDP to distribute labels.
There remains the possibility to spoof the IP address of a packet that is being sent to the MPLS core. However, since there is strict addressing separation within the PE router, and each VPN has its own VRF, this can only do harm to the VPN the spoofed packet originated from, in other words, a VPN customer can attack himself. MPLS does not add any security risk here.
Securing the MPLS Core
The following is a list of recommendations and considerations on configuring an MPLS network securely.
Note
Trusted Devices
The PE and P devices, and remote access servers and AAA servers must be treated as trusted systems. This requires strong security management, starting with physical building security and including issues such as access control, secure configuration management, and storage. There is ample literature available on how to secure network elements, so these topics are not discussed here in more detail.
CE routers are typically not under full control of the service provider and must be treated as "untrusted."
PE-CE Interface
The interface between PE and CE routers is crucial for a secure MPLS network. The PE router should be configured as close as possible. From a security point of view, the best option is to configure the interface to the CE router unnumbered and route statically.
Packet filters (Access Control Lists) should be configured to permit only one specific routing protocol to the peering interface of the PE router, and only from the CE router. All other traffic to the router and the internal service provider network should be denied. This avoids the possibility that the PE and P routers can be attacked, since all packets to the corresponding address range are dropped by the PE router. The only exception is the peer interface on the PE router for routing purposes. This PE peer interface must be secured separately.
If private address space is used for the PE and P routers, the same rules with regard to packet filtering apply—it is required to filter all packets to this range. However, since addresses of this range should not be routed over the Internet, it limits attacks to adjacent networks.
Routing Authentication
All routing protocols should be configured with the corresponding authentication option toward the CEs and toward any Internet connection. Specifically: BGP, OSPF, and RIP2. All peering relationships in the network need to be secured this way:
•
•
•
This prevents attackers from spoofing a peer router and introducing bogus routing information. Secure management is particularly important regarding configuration files, which often contain shared secrets in clear text (for example for routing protocol authentication).
Separation of CE-PE Links
If several CEs share a common Layer 2 infrastructure to access the same PE router (for example, an ethernet VLAN), a CE router can spoof packets as belonging to another VPN that also has a connection to this PE router. Securing the routing protocol is not sufficient, since this does not affect normal packets.
To avoid this problem, Cisco recommends that you implement separate physical connections between CEs and PEs. The use of a switch between various CE routers and a PE router is also possible, but it is strongly recommended to put each CE-PE pair into a separate VLAN to provide traffic separation. Although switches with VLANs increase security, they are not unbreakable. A switch in this environment must thus be treated as a trusted device and configured with maximum security.
LDP Authentication
The Label Distribution Protocol (LDP) can also be secured with MD-5 authentication across the MPLS cloud. This prevents hackers from introducing bogus routers, which would participate in the LDP.
Connectivity Between VPNs
MPLS provides VPN services with address and routing separation between VPNs. In many environments, however, the devices in the VPN must be able to reach destinations outside the VPN. This could be for Internet access or for merging two VPNs, for example, in the case of two companies merging. MPLS not only provides full VPN separation, but also allows merging VPNs and accessing the Internet.
To achieve this, the PE routers maintain various tables: A routing context table is specific to a CE router, and contains only routes from this particular VPN. From there, routes are propagated into the VRF (virtual routing and forwarding instance) routing table, from which a VRF forwarding table is calculated.
For separated VPNs, the VRF routing table contains only routes from one routing context. To merge VPNs, different routing contexts (from different VPNs) are put into one single VRF routing table. In this way, two or several VPNs can be merged to a single VPN. In this case, it is necessary that all merged VPNs have mutually exclusive addressing spaces; in other words, the overall address space must be unique for all included VPNs.
For a VPN to have Internet connectivity, the same procedure is used: Routes from the Internet VRF routing table (the default routing table) are propagated into the VRF routing table of the VPN that requires Internet access. Alternatively to propagating all Internet routes, a default route can be propagated. In this case, the address space between the VPN and the Internet must be distinct. The VPN must use private address space since all other addresses can occur in the Internet.
From a security point of view, the merged VPNs behave like one logical VPN, and the security mechanisms described above apply now between the merged VPN and other VPNs. The merged VPN must have unique address space internally, but further VPNs can use the same address space without interference. Packets from and to the merged VPNs cannot be routed to other VPNs. All the separation functions of MPLS apply also for merged VPNs with respect to other VPNs.
If two VPNs are merged in this way, hosts from either part can reach the other part as if the two VPNs were a common VPN. With the standard MPLS features, there is no separation or firewalling or packet filtering between the merged VPNs. Also, if a VPN receives Internet routes through MPLS/BGP VPN mechanisms, firewalling or packet filtering has to be engineered in addition to the MPLS features. - Firewall is not supported in this release. -
MP-BGP Security Features
Security in ISC MPLS-based networks is delivered through a combination of MP-BGP and IP address resolution. In addition, service providers can ensure that VPNs are isolated from each other.
Multiprotocol BGP is a routing information distribution protocol that, through employing multiprotocol extensions and community attributes, defines who can talk to whom. VPN membership depends upon logical ports entering the VPN, where MP-BGP assigns a unique Route Distinguisher (RD) value (see Route Distinguishers and Route Targets).
RDs are unknown to end users, making it impossible to enter the network on another access port and spoof a flow. Only preassigned ports are allowed to participate in the VPN. In an MPLS VPN, MP-BGP distributes forwarding information base (FIB) tables about VPNs to members of the same VPN only, providing native security by way of logical VPN traffic separation. Furthermore, IBGP PE routing peers can perform TCP segment protection using the MD5 Signature Option when establishing IBGP peering relationships, further reducing the likelihood of introducing spoofed TCP segments into the IBGP connection stream among PE routers (for information on the MD5 Signature Option, see RFC 2385).
The service provider, not the customer, associates a specific VPN with each interface when provisioning the VPN. Users can only participate in an intranet or extranet if they reside on the correct physical or logical port and have the proper RD. This setup makes a Cisco MPLS VPN virtually impossible to enter.
Within the core, a standard Interior Gateway Protocol (IGP) such as OSPF or IS-IS distributes routing information. Provider edge routers set up paths among one another using LDP to communicate label-binding information. Label binding information for external (customer) routes is distributed among PE routers using MP-BGP multiprotocol extensions instead of LDP, because they easily attach to VPN IP information already being distributed.
The MP-BGP community attribute constrains the scope of reachability information. MP-BGP maps FIB tables to provider edge routers belonging to only a particular VPN, instead of updating all edge routers in the service provider network.
Security Through IP Address Resolution
MPLS VPN networks are easier to integrate with IP-based customer networks. Subscribers can seamlessly interconnect with a provider service without changing their intranet applications because MPLS-based networks have built-in application awareness. Customers can even transparently use their existing IP address space without Network Address Translator (NAT) because each VPN has a unique identifier. - NAT is not supported in this release. -
MPLS VPNs remain unaware of one another. Traffic is separated among VPNs using a logically distinct forwarding table and RD for each VPN. Based on the incoming interface, the PE selects a specific forwarding table, which lists only valid destinations in the VPN. To create extranets, a provider explicitly configures reachability among VPNs.
The forwarding table for a PE contains only address entries for members of the same VPN. The PE rejects requests for addresses not listed in its forwarding table. By implementing a logically separate forwarding table for each VPN, each VPN itself becomes a private, connectionless network built on a shared infrastructure.
IP limits the size of an address to 32 bits in the packet header. The VPN IP address adds 64 bits in front of the header, creating an extended address in routing tables that classical IP cannot forward. The extra 64 bits are defined by the Route Distinguisher and the resultant route becomes a unique 96-bit prefix. MPLS solves this problem by forwarding traffic based on labels, so one can use MPLS to bind VPN IP routes to label-switched paths. PEs are concerned with reading labels, not packet headers. MPLS manages forwarding through the provider's MPLS core. Since labels only exist for valid destinations, this is how MPLS delivers both security and scalability.
When a virtual circuit is provided using the overlay model, the egress interface for any particular data packet is a function solely of the packet's ingress interface; the IP destination address of the packet does not determine its path in the backbone network. Thus, unauthorized communication into or out of a VPN is prevented.
In MPLS VPNs, a packet received by the backbone is first associated with a particular VPN by stipulating that all packets received on a certain interface (or subinterface) belong to a certain VPN. Then its IP address is looked up in the forwarding table associated with that VPN. The routes in that forwarding table are specific to the VPN of the received packet.
In this way, the ingress interface determines a set of possible egress interfaces, and the packet's IP destination address is used to choose from among that set. This prevents unauthorized communication into and out of a VPN.
Ensuring VPN Isolation
To maintain proper isolation of one VPN from another, it is important that the provider routers not accept a labeled packet from any adjacent PE unless the following conditions are met:
•
•
These restrictions are necessary to prevent packets from entering a VPN where they do not belong.
The VRF tables in a PE are used only for packets arriving from a CE that is directly attached to the PE device. They are not used for routing packets arriving from other routers that belong to the service provider backbone. As a result, there might be multiple different routes to the same system, where the route followed by a given packet is determined by the site from which the packet enters the backbone. So one might have one route to a given IP network for packets from the extranet (where the route leads to a firewall), and a different route to the same network for packets from the intranet. - Firewall is not supported in this release. -
