Feature-Rich VoIP Service Through Your High-Speed Internet Connection
Highlights
• Enables high-quality feature-rich voice over IP (VoIP) service through your broadband Internet connection
• Dual standard telephone ports for use with analog phones or fax machines, with independent phone numbers
• High-quality, clear-sounding voice, using advanced voice quality of service (QoS) capability
• Compatible with all common telephone features, such as caller ID, call waiting, and voicemail

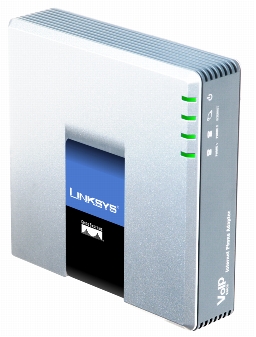

Figure 1. Cisco PAP2T Internet Phone Adapter with 2 VoIP Ports
Product Overview
The Cisco PAP2T Internet Phone Adapter with 2 VoIP Ports (Figure 1) enables high-quality feature-rich VoIP service through your broadband Internet connection. Just plug it into your home router or gateway and use the two standard telephone ports to connect analog phones or fax machines. Each phone port operates independently, with separate phone service and phone numbers, like having two telephone lines. You'll get clear reception and reliable fax connections, even while using the Internet.
With Internet telephony, along with low domestic and international phone rates, impressive arrays of special telephone features are available. Choose your preferred local dialing number, regardless of where you live. Or add a virtual telephone number to have forwarded to your Internet phone. You can even add a toll-free number. The Cisco PAP2T Internet Phone Adapter is compatible with these and all of the other special telephone features that are available from your Internet telephone service provider, such as caller ID, call waiting, voicemail, call forwarding, distinctive ring, and much more.
Features
Telephony
• Two voice ports (RJ-11) for analog phones or fax machines
• Call waiting, cancel call waiting, call waiting caller ID
• Caller ID with name/number (multinational variants)
• Caller ID blocking
• Call forwarding: no answer, busy, all
• Do not disturb
• Call transfer
• Three-way conference calling with local mixing
• Message waiting indication - visual and tone based
• Call return
• Call back on busy
• Call blocking with toll restriction
• Delayed disconnect
• Distinctive ringing - calling and called number
• Off-hook warning tone
• Selective/anonymous call rejection
• Hot line and warm line calling
• Speed dialing of eight numbers/addresses
• Music on hold
Specifications
Table 1 contains the specifications and package contents for the Cisco PAP2T Internet Phone Adapter with 2 VoIP Ports.
Table 1. Specifications for the Cisco PAP2T Internet Phone Adapter with 2 VoIP Ports
Specifications
*Note: Many specifications are programmable within a defined range or list of options. Please see the PAP2T Administration Guide for details. The configuration profile is uploaded to the PAP2T at the time of provisioning.
• Flexible dial plan support with interdigit timers and IP dialing
• Call progress tone generation
• Jitter buffer - adaptive
• Frame loss concealment
• Full duplex audio
• Echo cancellation (G.165/G.168)
• Voice activity detection (VAD) with silence suppression
• Attenuation/gain adjustments
• Flash hook timer
• Message waiting indicator (MWI) tones
• Visual messaging waiting indicator (VMWI) via frequency shift keying (FSK)
• Polarity control
• Hook flash event signaling
• Caller ID generation (name and number) - Bellcore, DTMF, European Telecommunications Standards Institute (ETSI)
• Music on hold client
• Streaming audio server - up to 10 sessions
Security
• Password-protected system reset to factory default
• Password-protected administrator and user access authority
• Provisioning/configuration/authentication:
• HTTPS with factory-installed client certificate
• HTTP digest - encrypted authentication via MD5 (RFC 1321)
• Up to 256-bit Advanced Encryption Standard (AES) encryption
Provisioning, administration, and maintenance
• Web browser administration and configuration via integral web server
• Telephone keypad configuration with interactive voice prompts
• Automated provisioning and upgrade via HTTPS, HTTP, Trivial File Transfer Protocol (TFTP)
• Asynchronous notification of upgrade availability via NOTIFY
• Nonintrusive, in-service upgrades
• Report generation and event logging
• Stats in BYE message
• Syslog and debug server records - per-line configurable web browser
Physical interfaces
• One 10BASE-T RJ-45 Ethernet port (IEEE 802.3)
• 2 RJ-11 FXS phone ports - for analog circuit telephone device (tip/ring)
Subscriber line interface circuit (SLIC)
• Ring voltage: 40-55 volts root mean square (Vrms) configurable *
• Ring frequency: 10-40 Hz *
• Ring waveform: trapezoidal and sinusoidal *
• Maximum ringer load: 3 ringer equivalence numbers (RENs)
• On-hook/off-hook characteristics:
• On-hook voltage (tip/ring): -50V nominal
• Off-hook current: 25 mA min
• Terminating impedance: 8 configurable settings, including North America 600 ohms, European CTR21
Regulatory compliance
FCC (Part 15, Class B), cUL, CE, IC-003, A-Tick
Power supply
• DC input voltage: +5V DC at 2.0A max.
• Power consumption: 5W
• Switching type (100-240V) automatic
• Power adapter: 100-240V - 50-60 Hz (26-34 VA) AC input, 1.8 m cord
Indicator lights/LED
Phone1, Phone2, Internet, Power
Documentation
• Quick-start installation and configuration guide
• User guide
• Administration guide - service providers only
• Provisioning guide - service providers only
Environmental
Dimensions
W x H x D
3.98 x 3.98 x 1.10 in.
(101 x 101 x 28 mm)
Unit weight
5.40 oz (153 g)
Operating temp.
32º to 113ºF (0º to 45ºC)
Storage temp.
-77º to 158ºF (-25º to 70ºC)
Operating humidity
10% to 90% noncondensing
Storage humidity
10% to 90% noncondensing
Package Contents
• Cisco PAP2T Internet Phone Adapter with 2 VoIP Ports
• Power adapter
• RJ-45 Ethernet cable
• Quick installation guide
Product Warranty
1-year limited hardware warranty with return to factory replacement and 90-day limited software warranty
Cisco Limited Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with a 1-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty. In addition, Cisco offers software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to: http://www.cisco.com/go/smallbiz.
