Voicemail System and Multiport PSTN Gateway Solution for the Cisco SPA9000
Highlights
• Integrated voicemail and PSTN gateway for the Cisco SPA9000
• Robust voicemail system with up to 32 voicemail boxes and auto attendant
• Connects up to four standard analog phone (FXO) lines from your local service provider

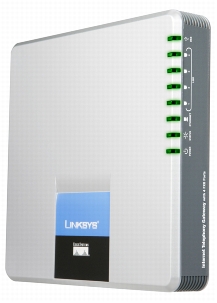

Figure 1. Cisco SPA400 Voicemail System with 4-Port FXO Gateway
Product Overview
The Cisco® SPA400 Voicemail System with 4-Port FXO Gateway (Figure 1) features the ability to connect up to four standard analog telephone lines to a voice over IP (VoIP) network via the Cisco SPA9000 Voice System and includes the additional benefit of an integrated voicemail application. The SPA400 uses multiple analog phone lines and automatically routes calls to and from your existing public switched telephone network (PSTN) service. Designed to be implemented with the Cisco SPA9000, the Cisco SPA400 enables cost-conscious business users to take advantage of the high-value features generally found only on more expensive private branch exchange (PBX) equipment.
The Cisco SPA400 also includes an integrated voicemail application server that supports up to 32 voicemail accounts or boxes with customized greetings, providing users the ability to receive and playback voicemail messages from their Cisco IP phones.
The Cisco SPA400 supports four RJ-11 FXO ports to connect to the PSTN and also includes one 10/100 BASE-T RJ-45 Ethernet interface that is used to connect to the local IP network. Compact in design, the SPA400 is perfectly suited for a small business, providing reliable operation for both VoIP and PSTN voice communication service.
Installed by a service provider, reseller, or end user, the Cisco SPA400 enables transparent PSTN gateway capabilities for a VoIP telephony network and is a key element in building a solid business communications system.
System Features
Feature
Benefit
PSTN Telephony Gateway
The Cisco SPA400 PSTN Gateway provides the SPA9000 Voice System with routing capabilities towards the Public Switched Telephone Network (PSTN), allowing the Small Business to make and receive calls to/from the Analog telephone networks, keeping the Small Business connected. The SPA400 PSTN Gateway includes 4 FXO ports to connect up to 4 independent PSTN analog lines.
Voicemail Server
The Cisco SPA400 PSTN Gateway features an internal Voicemail Server for up to 32 voicemail accounts. It allows the user to leave and retrieve Voicemail messages directed to the Small Business employees.
Specifications
Table 1 contains the specifications and package contents for the Cisco SPA400 Voicemail System with 4-Port FXO Gateway.
Table 1. Telephony Features
Feature
Benefit
PSTN (FXO) Telephony
• 4 FXO ports (RJ-11)
• VoIP to PSTN and PSTN to VoIP Call Origination and Termination
• 4 simultaneous active calls
• Caller ID support - Bellcore, ETSI FSK (DTAS and RP-AS), ETSI DTMF and UK.
• Call Progress Tone Generation
• Universal Tone Configuration for Progress and Disconnect tones
• FXO port impedance configuration - 16 settings
• FXO port Attenuation/Gain Adjustments
• Trunk group configuration of FXO ports with SPA9000
• Call Disconnect detection via Disconnect Tone, CPC, Polarity reversal and idle time.
• Ring Frequency, Impedance, Validation Time, Voltage and Indication Delay Configuration
• Line-in Use Voltage Setting
• Operational Loop Current Minimum Value
• On-hook speed setting
• PSTN Answer Delay
• PSTN Call Limit
• DTMF tone length configuration
• DTMF level setting
• Dial out delay
• Dial out battery threshold
IP Telephony
• SIP Registrar Agent (RFC 3261)
• One SIP trunk towards SPA9000
• Direct Inward/Outward Dialing with SPA9000
• G.711 a/u and G.729a
• DTMF in-band support (RFC 2833)
• Adaptative Jitter Buffer
• Frame Loss Concealment
• Echo Cancellation (G.165/G.168)
• Voice Activity Detection with Silence Suppression
Voicemail Server
• 32 Voice mail Accounts
• USB 1.1 Host Interface for the Voicemail Prompts and Messages
• Up to 3.8 hours of message storage with default configuration (USB Memory)
• International language support (see Localization section)
Security
• Password Protected Admin and User Access Authority
• Password Protected Voicemail access
Provisioning, Administration and Maintenance
• Configurable by the Cisco SPA9000 Configuration Wizard
• Administration and Configuration via Integrated Web Server
Note: EU version for SPA400 includes both EU and UK power clips
Note: The Product Part number is specified as the ProductName-XX. If the product has no suffix, the product is considered to be applicable WW unless otherwise specified. The SKU suffix correspond to the following countries/regions Power Adapters or Wireless Specifications: AU-Australia/New Zealand, AS-APAC and AU, KR-Korea, EU-Europe, NA-North America, UK-United Kingdom, SG-Singapore.
Table 5. Product Specification
Hardware Configuration
Specification
Packaging Type
Desktop
Product Architecture
Onboard Ethernet Ports
One 10/100 Mbps WAN uplink (for switch connectivity)
PSTN FXO ports
4 Built-in FXO ports
Note: In case of requiring voicemail server and more than 2 FXO ports, it is required to deploy independent SPA400s (one for Voicemail server and a second for PSTN gateway functionality).
Voicemail ports
• 1 USB 1.1 Host Port for Voicemail prompts and storage
• 32 voicemail accounts
• Two ports when SPA400 is used also for PSTN gateway
• Ten ports when SPA400 is dedicated to Voicemail Server only
Power Requirements
Power Supply
External, 100-240 VAC, 50 to 60 Hz (26-34 VA)
DC Input Voltage (SPA9000)
+5 VDC
DC Input Current (SPA9000)
2A max
Power consumption
5 Watts
Environmental specifications
Operating Temperature
32 to 113ºF (0 to 45ºC)
Non Operating Temperature
14 to 185ºC (-10 to 70ºC)
Operating Humidity
10 to 85% Non-condensing, non-operating
Dimensions
(W x H x D)
5.51 x 5.51 x 1.06 in.
140 x 140 x 27 mm
Weight
0.22 Kg
0.5 lb
Regulatory Compliance
• FCC (Part 15 Class B and Part 68)
• CE
• UL and CB for Power Supply
• NZ Telepermit
• SG IDA
• CCC
• RoHS
• WEEE
Software Specification
Compliance
Note: Many specifications are programmable within a defined range or list of options. Please see the SPA9000 Administration Guide for details. The configuration profile is uploaded on the SPA400 at the time of provisioning
Data Networking
• MAC Address (IEEE 802.3)
• IPv4 - Internet Protocol v4 (RFC 791)
• ARP - Address Resolution Protocol
• DNS - A Record (RFC 1706), SRV Record (RFC 2782)
• ICMP - Internet Control Message Protocol (RFC792)
• TCP - Transmission Control Protocol (RFC793)
• UDP - User Datagram Protocol (RFC768)
• RTP - Real Time Protocol (RFC 1889) (RFC 1890)
• DiffServ (RFC 2475), Type of Service - TOS (RFC 791/1349)
• SNTP - Simple Network Time Protocol (RFC 2030)
Voice
• SIPv2 - Session Initiation Protocol Version 2 (RFC 3261)
• Voice Algorithms:
• G.711 (A-law and µ-law)
• G.729 A
• DTMF: In-band (RFC 2833)
• Call Progress Tone Generation
• Jitter Buffer - Adaptive
• Frame Loss Concealment
• VAD - Voice Activity Detection w/ Silence Suppression
• Attenuation / Gain Adjustments
• Caller ID Support (Name & Number)
Security
Password Protected Admin and User Access Authority
Provisioning, Administration and Maintenance
• Web Browser Administration & Configuration via Integral Web Server
• Syslog & Debug Server Records
Product Warranty
1-year limited hardware warranty with return to factory replacement and 90-day limited software warranty
Cisco Limited Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with a 1-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty. In addition, Cisco offers software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to: http://www.cisco.com/go/smallbiz.
