With the ever-increasing demand for online video content propelled by changes in consumer behavior, service providers realize that delivery of multiscreen content is strategically important and core to their business. The 2013 Cisco®Visual Networking Index (VNI) forecasts that Internet video will be 69 percent of all consumer Internet traffic in 2017. The sum of all forms of video - linear TV, Video on Demand (VoD), Internet video, and peer-to-peer video - will be in the range of 80 to 90 percent of global consumer traffic by 2017. This demand raises a challenge to service providers that leads them to deploy and own Content Delivery Network (CDN).
Factors that need to be considered when building CDNs include:
• Growth of IP video traffic and the ability of the video distribution architecture to scale accordingly
• Demand for multiscreen video experiences: managed video content to customer's IP-enabled devices such as PCs, tablets, game consoles, and Wi-Fi-connected mobile phones
• Demand from content providers, broadcasters, and movie studios for a secured distribution of video content to protect copyrights
• Need for advanced service routing and delivery service management
• Low OpEx and TCO
Cisco Videoscape™ Distribution Suite for Internet Streaming (VDS-IS) meets all of these requirements, and augments core CDN capabilities with advanced service routing and content streaming intelligence. Cisco can help service providers take full advantage of CDN technology to reduce costs, deliver amazing multiscreen experiences, and capitalize on the cloud revolution.
Product Overview
Cisco Videoscape™ Distribution Suite for Internet Streaming (VDS-IS) is an integrated system with a network-based architecture that transcends existing streaming solutions. It allows service providers to extend their video-managed content to their customers' IP-enabled devices such as PCs, tablets, game consoles, and Wi-Fi-connected mobile phones by using sophisticated service routing and content distribution intelligence.
Cisco VDS-IS software is installed on Cisco Content Delivery Engine (CDE) appliances as well as Cisco high-performance Unified Computing System™ (Cisco UCS®) servers and blades, providing a flexible and cost-effective solution to service providers who plan to build content delivery networks.
The Cisco Videoscape™ Distribution Suite for Internet Streaming (VDS-IS) software applications are optimized to meet the cloud environment needs. The VDS-IS software applications can be fully virtualized and can operate on a cloud platform built of COTS server. Virtualizing the VDS-IS software applications, can provide a scaled solution to meet the increasing demand for online video content. It provides an efficient solution to reduce the operational costs in addition an effective model to increase streaming capacity as demand grows (Flash Crowds for Live and VOD Events).
The Cisco Videoscape™ Distribution Suite for Internet Streaming (VDS-IS) software applications can virtualize on top of VMware hypervisor and soon planned to be supported with KVM and open stack.
Cisco VDS-IS technology incorporates three main functions: content ingest and distribution, content delivery, and service routing. It includes Cisco Content Delivery Applications (CDAs), software that performs ingest, storage, caching, streaming, and other real-time, scalable and resilient capabilities (Table 1). Figure 1 illustrates the Internet streaming solution.
Table 1. Cisco Content Delivery Applications
Content Delivery Application
Description
VDS Content Acquirer
The VDS Content Acquirer provides content ingest and storage functionality. It supports both a pull- and push-based model to ingest content from origin servers and encoders.
VDS Internet Streamer
The VDS Internet Streamer provides edge caching, content streaming, and download to subscriber IP devices such as PCs, tablets, game consoles, and Wi-Fi-connected mobile phones.
VDS Service Router
The VDS Service Router mediates requests from subscriber IP devices. It is responsible for choosing the most appropriate Internet streamer based on location and load conditions of individual Internet streamers.
VDS Manager
The VDS Manager is a graphical, browser-based application designed to manage the elements of a Cisco VDS network. It offers a workflow-based approach, automating and centralizing the major system management functions, including configuration, monitoring, troubleshooting, reporting, and maintenance.

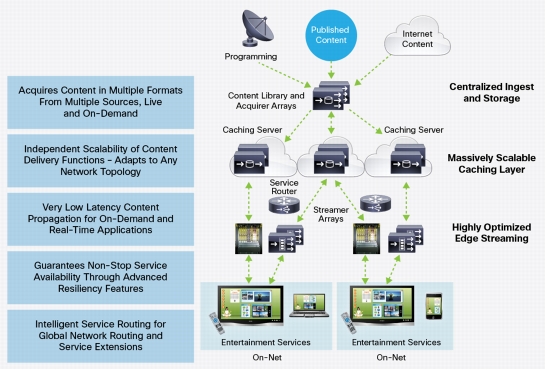

Figure 1. Cisco VDS Internet Streaming Solution
Services
Using Cisco's VDS Internet Streaming solution, service providers can deploy a variety of next-generation, value-added video entertainment services, including the following.
Retail CDN: Live and VoD Streaming Services Across Multiple Screens, Applications, and Networks
With Cisco's VDS Internet Streaming solution, service providers can stream Live and Video-on-Demand (VoD) managed content to any IP-enabled device, allowing end users to enjoy their video services anywhere at any time.
Wholesale Content Delivery Network (CDN)
Cisco's VDS Internet Streaming solution has native support for advanced multitenant Content Delivery Network (CDN) services that give service providers ample flexibility to acquire new business models and revenue streams. Cisco VDS-IS includes advanced tools to manage multiple CDN customers (such as content providers and broadcasters) with "virtual CDN" capabilities. This state-of-the-art architecture allows service providers to create and enforce CDN Service Level Agreements (SLA) that promise high quality of experience (QoE) to the content provider's and broadcaster's end users.
Cisco VDS-IS also provides multitenant reporting, logging, and billing capabilities through the Cisco VDS Manager.
CDN Federation
Using Cisco's VDS Internet Streaming solution, service providers can participate in a multi-operator, multi-footprint CDN by employing the VDS-IS-supported interconnect model to complement IP transit and peering. This model helps service providers to:
• Lower transport costs by pooling CDN federation resources
• Extend their own video service offerings
• Provide to their consumers a better quality of experience
Cisco VDS-IS Advantage
Major benefits of the Cisco VDS Internet Streaming solution include:
• Delivers a variety of next-generation, multiscreen, value-added video entertainment services
• Supports a hierarchical deployment model that allows service providers to scale their offerings to millions of subscribers
• Supports multiple streaming protocols and file transfer protocols, allowing service providers to converge on a single multipurpose infrastructure for distribution and delivery of rich media
• Simplifies operations and reduces OpEx through the use of sophisticated management software
• Provides a flexible platform with application-layer intelligence that can serve as the basis for both existing and future service offerings
• Offers an attractive economic scaling model for capacity that allows service providers to scale their offerings to meet the rapidly growing demand for video content
Features and benefits of the Cisco VDS Internet Streaming solution are summarized in Table 2.
Table 2. Cisco VDS-IS Features and Benefits
Feature
Benefit
Content Ingest
Pre-Defined content ingest
Digital assets such as long- and short-form video can be acquired from a variety of sources using different protocols, and placed in resilient storage. This capability allows operators to honor content agreements and provide a wide variety of content to subscribers
On-demand content ingest
Reduces operational complexity of ingest and delivery. Operators can offer long-tailed content, which is ingested based on content demand without knowing its popularity in advance
Live stream splitting
A single stream entering the Cisco VDS network can be efficiently split to serve multiple subscribers, allowing operators to offer live streaming in a manner that scales
Content Distribution and Delivery
HTTP adaptive bit rate streaming support
Adaptive bit rate streaming support for a variety of formats (Microsoft, Apple, Adobe®, and Widevine)
HTTP download and progressive download
Supports serving of long- and short-form content and offering services such as download-to-own
HTTPS download and progressive download
HTTP/SSL for secure VOD download with certificate management
Supports content streaming to a variety of PCs and mobile devices with Flash, AIR, and Flash Lite clients. RTMPE enables 128-bit encryption without use of certificates to help secure streamed media and communication
Real Time Streaming Protocol (RTSP), Real-time Transport Protocol (RTP), and Multimedia Message Service (MMS) over HTTP
Allows streaming of video to commonly deployed PC clients such as Microsoft Windows Media and Apple QuickTime
Request Routing and Load Balancing
Load balancing
The Cisco VDS Service Router supports several routing methods to best determine which Cisco Internet Streamer should be used to serve content based on dynamic loading conditions
Location independence
Allows serving any content to any place by factoring in the location of the requesting client to determine the choice of Cisco Internet Streamer
System resiliency
Provides system resiliency against network and device failures by dynamically detecting and routing requests to alternative Cisco Internet Streamers
Proximity-based routing
Cisco VDS Service Router introduces a network-proximity-based service routing mechanism to determine the closest streamer that can serve the content most efficiently to the client
Management
Management as a single system
Management is simple, with a single, easy-to-use GUI to configure, monitor, and troubleshoot the Cisco Internet Streamer applications throughout the entire system. Management simplicity contributes to reduction in OpEx
Real-time analytics and reporting
Integrated with Cisco VDS-SM application that provides analytics and reporting (daily, monthly, etc.) by using the VDS-IS transaction log data
Product Specifications
Cisco VDS Internet Streaming product specifications are summarized in Table 3.
Table 3. Cisco VDS-IS Product Specifications
Description
Specification
Content types and formats
• Windows Media WMA, WMV, ASF, VC-1
• QuickTime (MOV), hinted (3GP)
• HTTP image files (for example, HTML and JPEG)
• MPEG1, MPEG2, MPEG4
• Adobe Flash (SWF, FLV, MP3)
• H.264
• SHOUTcast
Delivery protocols
• Web content through HTTP and HTTPS
• Adobe Flash Media Streaming RTMP (T/E)
• Windows Media RTP and RTSP, MMS-over-HTTP
• Streaming MP3, MP4 (H.264), MOV, M4V, and 3GP (3GPP) content through RTP and RTSP
Ingest protocols
• HTTP
• HTTPS
• FTP
• CIFS
• RTSP and RTP
• Acquisition from local disk
HTTP adaptive bit rate streaming support
• Apple HTTP Live Streaming (HLS)
• Microsoft HTTP Smooth Streaming (HSS)
• Adobe HTTP Dynamic Streaming
• Widevine HTTP Adaptive Bit Rate Streaming
• MPEG DASH
MIBs
• SNMP v1, v2, v3 supported
• ENTITY-MIB (RFC 2037)
• MIB-II (RFC 1213)
• HOST-RESOURCES-MIB
• BGP-4-MIB (RFC-4274)
• UCD-SNMP-MIB
• CISCO-ENTITY-ASSET-MIB
• CISCO-CONFIG-MAN-MIB
• CISCO-SERVICE-ENGINE-MIB SR CISCO_CDS_SERVICE_ROUTING
Cisco VDS-IS Manager
• Secure, browser-based GUI over HTTPS
• Configuration of Cisco CDEs
• Provisioning of VoD and Live delivery services
• Traffic statistics and system health monitoring
• Administrative authentication, authorization, and accounting (AAA) and role-based management
• Active-standby management redundancy
• Device group configuration for bulk provisioning changes
• Centralized system upgrade manager for easy upgrading of thousands of CDEs
• Web services API
• XML flexible rules template for cache policies and rules
Service routing
Cisco Service Router supports the following routing methods:
• Multiple client redirection methods based on the protocol and the user-agent of the client:
• HTTP ASX redirection
• HTTP 302 redirection
• RTSP 302 redirection
• RTSP REDIRECT redirection
• RTMP redirection
• Dynamic network proximity routing
• Static network proximity routing with XML configuration file
• Load-based routing
• Delivery-service-aware routing
• Content-aware routing
• Last-resort URL rewrite to secondary CDN (when all eligible streamers are overloaded)
• Streamer health and load: application, storage, CPU, and memory
• Quota management based on concurrent sessions and bandwidth used
Internet video back-office integration interfaces
• Supports Internet back-office integration using XML-based "Manifest" files that describe content ingest tasks
• Supports integration with entitlement services, digital rights management, and Internet publishing tools
• Web service APIs
Security and access management
ACLs for content-engine interfaces: standard and extended IP access lists for inbound and outbound traffic
Table 4 lists the Cisco VDS-IS product part numbers required to place an order, including application and feature licenses and capacity licenses.
Cisco VDS-IS software is integrated with Cisco Content Delivery Engine (CDE) appliances as well with Cisco high-performance UCS servers. In addition it can be integrate on top of virtualize environment.
Tier 1, First 50 Gbps (HTTP, RTSP, RTMP, VOD, Live)
L-VDSMT2
Multi-Protocol 51-250Gbps
Tier 2, Next 200 Gbps (HTTP, RTSP, RTMP, VOD, Live)
L-VDSMT3
Multi-Protocol 251+ CDN
Tier 3, 251+ Gbps (HTTP, RTSP, RTMP, VOD, Live)
L-VDSSR500
Service Router TPS Upgrade
500 TPS Server Router Upgrade
Service and Support
Cisco offers a wide range of service programs to accelerate customer success. These innovative service programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco Services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco Services, refer to Cisco Technical Support Services or Cisco Advanced Services.
