The Cisco Nexus® 3172PQ and 3172TQ Switches are dense, high-performance Layer 2 and 3, 10- and 40-Gbps switches that are members of the Cisco Nexus 3100 switch platform. Both switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. These Cisco Nexus 3172 switches run the industry-leading Cisco® NX-OS Software operating system that helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. Both also support forward and reverse airflow schemes (port-side exhaust and port-side intake) with AC and DC power inputs.
Two Cisco Nexus 3172 switches are available:
• Cisco Nexus 3172PQ (Figure 1) is a 10-Gbps Enhanced Small Form-Factor Pluggable (SFP+)-based ToR switch with 48 SFP+ ports and 6 Quad SFP+ (QSFP+) ports. Each SFP+ port can operate in 100-Mbps, 1-Gbps, or 10-Gbps mode, and each QSFP+ port can operate in native 40-Gbps or 4 x 10-Gbps mode. This switch is a true phy-less switch that is optimized for low latency and low power consumption.
Figure 1. Cisco Nexus 3172PQ Switch
• Cisco Nexus 3172TQ (Figure 2) is a 10GBASE-T switch with 48 10GBASE-T ports and 6 Quad SFP+ (QSFP+) ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers.

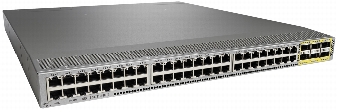

Figure 2. Cisco Nexus 3172TQ Switch
Main Benefits
The Cisco Nexus 3172 switches provide the following main benefits:
• Wire-rate Layer 2 and 3 switching on all 72 10 Gigabit Ethernet ports
– The Cisco Nexus 3172 switches provide Layer 2 and 3 switching of up to 1.4 terabits per second (Tbps) and up to 1 billion packets per second (bpps) in a compact 1RU form factor.
• High availability
– Virtual PortChannel (vPC) technology provides Layer 2 multipathing through the elimination of Spanning Tree Protocol. It also enables fully utilized bisectional bandwidth and simplified Layer 2 logical topologies without the need to change the existing management and deployment models.
– The 64-way equal-cost multipath (ECMP) routing enables the use of Layer 3 fat-tree designs that allows organizations to prevent network bottlenecks, increase resiliency, and add capacity with little network disruption.
– Advanced reboot capabilities included through In Service Software Upgrade (ISSU) and Fast Reboot capabilities.
– Power-supply units (PSUs) and fans are hot swappable.
• High performance
– The Cisco Nexus 3172 switches deliver ultra-low nominal latency, which allows customers to implement high-performance infrastructure for high-frequency trading (HFT) workloads.
• Purpose-built on Cisco NX-OS operating system with comprehensive, proven innovations
– PowerOn Auto Provisioning (POAP) enables touchless bootup and configuration of the switch, drastically reducing provisioning time.
– Cisco Embedded Event Manager (EEM) and Python scripting enable automation and remote operations in the data center.
– Advanced buffer monitoring reports real-time buffer use per port and per queue, which allows organizations to monitor traffic bursts and application traffic patterns.
– Ethanalyzer is a built-in packet analyzer for monitoring and troubleshooting control-plane traffic and is based on the popular Wireshark open source network protocol analyzer.
– Precision Time Protocol (PTP; IEEE 1588) provides accurate clock synchronization and improved data correlation with network captures and system events.
– Complete Layer 3 unicast and multicast routing protocol suites are supported, including Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), Enhanced Interior Gateway Routing Protocol (EIGRP), Routing Information Protocol Version 2 (RIPv2), Protocol Independent Multicast sparse mode (PIM-SM), Source-Specific Multicast (SSM), and Multicast Source Discovery Protocol (MSDP).
Configuration
The Cisco Nexus 3172 switches have the following configurations:
• Cisco Nexus 3172PQ
– 48 fixed 10 Gigabit Ethernet SFP+ ports (can operate at 100-Mbps, 1-Gbps, and 10-Gbps speeds)
– Six fixed QSFP+ ports (each QSFP+ port can support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet)
• Cisco Nexus 3172TQ
– 48 fixed 10GBASE-T ports (can operate at 100-Mbps, 1-Gbps, and 10-Gbps speeds)
– Six fixed QSFP+ ports (each QSFP+ port can support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet)
Support for both forward (port-side exhaust) and reversed (port-side intake) airflow schemes is available.
Transceiver and Cabling Options
The Cisco Nexus 3172 switches support a wide variety of 1, 10, and 40 Gigabit Ethernet connectivity options. 1 and 10 Gigabit Ethernet connectivity is achieved in the first 48 ports, and 40 Gigabit Ethernet connectivity is achieved using QSFP+ transceivers in the last 6 ports.
QSFP+ technology allows a smooth transition from 10 to 40 Gigabit Ethernet infrastructures in the data center. The Cisco Nexus 3172 switches support connectivity over copper and fiber cables, providing excellent physical-layer flexibility. For low-cost cabling, copper-based 40-Gbps Twinax cables can be used, and for longer cable reaches, short-reach optical transceivers are excellent.
Connectivity can be established from the QSFP ports to an upstream 10 Gigabit Ethernet switch using a splitter cable that has a QSFP transceiver on one end and four SFP+ transceivers on the other end. Similar capability can be achieved using optical transceivers by procuring third-party fiber splitters.
Table 1 lists the QSFP transceiver types supported.
Table 1. Cisco Nexus 3172 QSFP Transceiver Support Matrix
Part Number
Description
QSFP-H40G-AOC1M
QSFP 40G Active Optical Cable 1m
QSFP-H40G-AOC2M
QSFP 40G Active Optical Cable 2m
QSFP-H40G-AOC3M
QSFP 40G Active Optical Cable 3m
QSFP-H40G-AOC5M
QSFP 40G Active Optical Cable 5m
QSFP-H40G-AOC7M
QSFP 40G Active Optical Cable 7m
QSFP-H40G-AOC10M
QSFP 40G Active Optical Cable 10m
QSFP-4x10G-AOC1M
QSFP to 4 x SFP 10Gbps Active Optical Cable 1m
QSFP-4x10G-AOC2M
QSFP to 4 x SFP 10Gbps Active Optical Cable 2m
QSFP-4x10G-AOC3M
QSFP to 4 x SFP 10Gbps Active Optical Cable 3m
QSFP-4x10G-AOC5M
QSFP to 4 x SFP 10Gbps Active Optical Cable 5m
QSFP-4x10G-AOC7M
QSFP to 4 x SFP 10Gbps Active Optical Cable 7m
QSFP-4x10G-AOC10M
QSFP to 4 x SFP 10Gbps Active Optical Cable 10m
QSFP-4SFP10G-CU5M
QSFP to 4 x SFP 10-Gbps passive copper splitter cable, 5m
QSFP-4SFP10G-CU3M
QSFP to 4 x SFP 10-Gbps passive copper splitter cable, 3m
QSFP-4SFP10G-CU1M
QSFP to 4 x SFP 10-Gbps passive copper splitter cable, 1m
QSFP-H40G-CU5M
40GBASE-CR4 passive copper cable, 5m
QSFP-H40G-CU3M
40GBASE-CR4 passive copper cable, 3m
QSFP-H40G-CU1M
40GBASE-CR4 passive copper cable, 1m
QSFP-40G-SR4
40GBASE-SR4 QSFP transceiver module with MPO connector
QSFP-40G-CSR4
QSFP 4 x 10GBASE-SR transceiver module, MPO, 300m
QSFP-40GE-LR4
40GBASE-LR4 QSFP+ transceiver module for SMF, 4 CWDM lanes in 1310 nm window Muxed inside module, duplex LC connector, 10 km reach
CVR-QSFP-SFP10G
Cisco QSA Module
For in-rack or adjacent-rack cabling, the Cisco Nexus 3172PQ supports SFP+ direct-attach 10 Gigabit Ethernet copper, an innovative solution that integrates transceivers with Twinax cables into an energy-efficient and low-cost solution. For longer cable runs, multimode and single-mode optical SFP+ transceivers are supported. Table 2 lists the supported 10 Gigabit Ethernet transceiver options.
The Cisco Nexus 3172PQ is compatible with existing Gigabit Ethernet infrastructure. The 10 Gigabit Ethernet interfaces can operate in either Gigabit Ethernet or 100-Mbps mode. Table 3 lists the Gigabit Ethernet SFP transceivers that are supported. 100-Mbps connectivity can be achieved by using copper-based SFP transceivers (SFP-GE-T and GLC-T).
Table 3. Cisco Nexus 3172PQ Gigabit Ethernet Transceiver Support Matrix
Cisco NX-OS is a data center-class operating system built with modularity, resiliency, and serviceability at its foundation. Cisco NX-OS helps ensure continuous availability and sets the standard for mission-critical data center environments. The self-healing and highly modular design of Cisco NX-OS makes zero-impact operations a reality and provides exceptional operation flexibility.
Focused on the requirements of the data center, Cisco NX-OS provides a robust and comprehensive feature set that meets the networking requirements of present and future data centers. With an XML interface and a command-line interface (CLI) like that of Cisco IOS® Software, Cisco NX-OS provides state-of-the-art implementations of relevant networking standards as well as a variety of true data center-class Cisco innovations.
Cisco NX-OS Software Benefits
Table 4 summarizes the benefits that Cisco NX-OS Software offers.
Table 4. Benefits of Cisco NX-OS Software
Feature
Benefit
Common software throughout the data center: Cisco NX-OS runs on all Cisco data center switch platforms (Cisco Nexus 7000, 6000, 5000, 4000, 3000, and 1000V Series Switches and Cisco Nexus 2000 Series Fabric Extenders).
• Simplification of data center operating environment
• End-to-end Cisco Nexus and Cisco NX-OS fabric
• No retraining necessary for data center engineering and operations teams
Software compatibility: Cisco NX-OS interoperates with Cisco products running any variant of Cisco IOS Software and also with any networking OS that conforms to the networking standards listed as supported in this data sheet.
• Transparent operation with existing network infrastructure
• Open standards
• No compatibility concerns
Modular software design: Cisco NX-OS is designed to support distributed multithreaded processing. Cisco NX-OS modular processes are instantiated on demand, each in a separate protected memory space. Thus, processes are started and system resources allocated only when a feature is enabled. The modular processes are governed by a real-time preemptive scheduler that helps ensure timely processing of critical functions.
• Robust software
• Fault tolerance
• Increased scalability
• Increased network availability
Troubleshooting and diagnostics: Cisco NX-OS is built with unique serviceability functions to allow network operators to take early action based on network trends and events, enhancing network planning and improving network operations center (NOC) and vendor response times. Cisco Smart Call Home and Cisco Online Health Management System (OHMS) are some of the features that enhance the serviceability of Cisco NX-OS.
• Quick problem isolation and resolution
• Continuous system monitoring and proactive notifications
• Improved productivity of operations teams
Ease of management: Cisco NX-OS provides a programmatic XML interface based on the NETCONF industry standard. The Cisco NX-OS XML interface provides a consistent API for devices. Cisco NX-OS also provides support for Simple Network Management Protocol (SNMP) Versions 1, 2, and 3 MIBs.
• Rapid development and creation of tools for enhanced management
• Comprehensive SNMP MIB support for efficient remote monitoring
Role-based access control (RBAC): With RBAC, Cisco NX-OS enables administrators to limit access to switch operations by assigning roles to users. Administrators can customize access and restrict it to the users who require it.
• Effective access control mechanism based on user roles
• Improved network device security
• Reduction in network problems arising from human error
Cisco NX-OS Software Packages for Cisco Nexus 3172 Switches
The software packages for the Cisco Nexus 3172 switches offer flexibility and comprehensive features while being consistent with the Cisco Nexus access switches. The default system software has a comprehensive Layer 2 and base Layer 3 feature set with extensive security and management features. To enable advanced Layer 3 IP routing functions, an additional license must be installed, as described in Table 5. See Table 7 later in this document for a complete list of software features.
Table 5. Software Licensing for Cisco Nexus 3172 Switches
Software Package
Features Supported
System default: Base license (N3K-BAS1K9) included; no purchase necessary
• Comprehensive Layer 2 feature set: VLAN, IEEE 802.1Q Trunking, vPC, Link Aggregation Control Protocol (LACP), Unidirectional Link Detection UDLD (standard and aggressive), Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), spanning-tree guards, and Transparent VLAN Trunk Protocol (TVTP)
• Security: Authentication, authorization, and accounting (AAA); access control lists (ACLs), Dynamic Host Configuration Protocol (DHCP) snooping, storm control, private VLAN (PVLAN), and configurable Control-Plane Policing (CoPP)
• Management features: Cisco Data Center Network Manager (DCNM) support, console, Secure Shell Version 2 (SSHv2) access, Cisco Discovery Protocol, SNMP, and syslog
• Layer 3 IP routing: inter-VLAN routing (IVR), static routes, RIPv2, ACLs, OSPFv2, EIGRP stub, Hot Standby Router Protocol (HSRP), Virtual Router Redundancy Protocol (VRRP), and Unicast Reverse-Path Forwarding (uRPF)
• Multicast: PIM SM, SSM, and MSDP
LAN Enterprise license (N3K-LAN1K9)
• Advanced Layer 3 IP routing: BGP, and Virtual Route Forwarding lite (VRF-lite)
Cisco Data Center Network Manager
The Cisco Nexus 3172 switches are supported in Cisco DCNM. Cisco DCNM is designed for the Cisco Nexus hardware platforms, which are enabled for Cisco NX-OS. Cisco DCNM is a Cisco management solution that increases overall data center infrastructure uptime and reliability, improving business continuity. Focused on the management requirements of the data center network, Cisco DCNM provides a robust framework and comprehensive feature set that can meet the routing, switching, and storage administration needs of present and future data centers. Cisco DCNM automates the provisioning process, proactively monitors the LAN by detecting performance degradation, secures the network, and simplifies the diagnosis of dysfunctional network elements.
Product Specifications
Table 6 lists the specifications for the Cisco Nexus 3172 switches, Table 7 lists software features, and Table 8 lists management standards and support.
Table 6. Specifications
Description
Specification
Physical
• 1RU fixed form factor
• Cisco Nexus 3172PQ: 72 x 10 Gigabit Ethernet ports (48 SFP+ and 6 QSFP+)
• 48 SFP ports support 1 and 10 Gigabit Ethernet
• 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each
• Cisco Nexus 3172TQ: 72 x 10 Gigabit Ethernet ports (48 10GBASE-T and 6 QSFP+)
• 48 RJ-45 ports support 100 Mbps, 1 Gbps and 10 Gbps
• 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each
• 2 redundant power supplies
• Redundant fans (3+1)
• Management, console, and USB flash-memory ports
Performance
• 1.4-Tbps switching capacity
• Forwarding rate of up to 1 Bpps
• Line-rate traffic throughput (both Layer 2 and 3) on all ports
• Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability
Number of MAC addresses
288,000
Number of VLANS
4096
Number of spanning-tree instances
• RSTP: 512
• MSTP: 64
Number of ACL entries
• 4000 ingress
• 1000 egress
Routing table
• 16,000 prefixes and 16,000 host entries*
• 8000 multicast routes*
Number of EtherChannels
64 (with vPC)
Number of ports per EtherChannel
32
Buffer size
12 MB shared
Boot flash memory
2 GB
Power
Number of power supplies
2
Power supply types
• AC (forward and reversed airflow)
• DC (forward and reversed airflow)
Typical operating power
Cisco Nexus 3172PQ
• 143 watts (W) (48 SFP+ ports with Twinax, 6 QSFP+ with SR4 at 100% load)
• 206 watts (W) (48 SFP+ ports with SR, 6 QSFP+ with QSFP+ ports with SR4 at 100% load)
Cisco Nexus 3172TQ
• 360 watts (W) (48 10GBase-T ports with 3m cables, 6 QSFP+ with QSFP+ ports with SR4 at 100% load)
Maximum power
Cisco Nexus 3172PQ: 293 watts (W)
Cisco Nexus 3172TQ: 440 watts (W)
AC PSUs
• Input voltage
• Frequency
• Efficiency
• 100 to 240 VAC
• 50 to 60 Hz
• 89 to 91% at 220V
DC PSUs
• Input voltage
• Maximum current
• Efficiency
• -40 to -72 VDC
• 33A
• 85 to 88%
Typical heat dissipation
Cisco Nexus 3172PQ:
• 488 BTU/hr (48 SFP+ ports with Twinax, 6 QSFP+ with SR4 at 100% load)
• 703 BTU/hr (48 SFP+ ports with SR, 6 QSFP+ with SR4 at 100% load)
Cisco Nexus 3172TQ:
• 1195 BTU/hr (48 10GBASE-T ports with 3m cables, 6 QSFP+ with SR4 at 100% load)
Maximum heat dissipation
• Cisco Nexus 3172PQ: 1000 BTU/hr
• Cisco Nexus 3172TQ: 1502 BTU/hr
Cooling
• Forward and reversed airflow schemes:
• Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports)
• Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies)
Cisco Nexus 3100 Series Switches are supported by Cisco NX-OS Software Release 6.0(2)U2(1) and later. Cisco NX-OS interoperates with any networking OS, including Cisco IOS Software, that conforms to the networking standards mentioned in this data sheet.
Regulatory Standards Compliance
Table 9 summarizes regulatory standards compliance for the Cisco Nexus 3000 Series.
Table 9. Regulatory Standards Compliance: Safety and EMC
Specification
Description
Regulatory compliance
• Products should comply with CE Markings per directives 2004/108/EC and 2006/95/EC
Safety
• UL 60950-1 Second Edition
• CAN/CSA-C22.2 No. 60950-1 Second Edition
• EN 60950-1 Second Edition
• IEC 60950-1 Second Edition
• AS/NZS 60950-1
• GB4943
EMC: Emissions
• 47CFR Part 15 (CFR 47) Class A
• AS/NZS CISPR22 Class A
• CISPR22 Class A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• CNS13438 Class A
EMC: Immunity
• EN55024
• CISPR24
• EN300386
• KN24
RoHS
• RoHS 5 compliant except for lead press-fit connectors
Ordering Information
Table 10 provides ordering information for the Cisco Nexus 3172 switches.
Table 10. Ordering Information
Part Number
Description
Chassis
N3K-C3172PQ-10GE
Nexus 3172PQ, 48 SFP+ and 6 QSFP+ ports
N3K-C3172TQ-10GT
Nexus 3172TQ, 48 10GBase-T RJ-45 and 6 QSFP+ ports
NXA-FAN-30CFM-F
Nexus 2K/3K single fan, Forward airflow (port side exhaust)
NXA-FAN-30CFM-B
Nexus 2K/3K single fan, Reversed airflow (port side intake)
N2200-PAC-400W
N2K/3K 400W AC Power Supply, Forward airflow (port side exhaust)
N2200-PAC-400W-B
N2K/3K 400W AC Power Supply, Reversed airflow (port side intake)
NXA-PAC-500W
Nexus 3K 500W AC PSU, Forward airflow (port side exhaust)
NXA-PAC-500W-B
Nexus 3K 500W AC PSU, Reversed airflow (port side intake)
N2200-PDC-400W
N2K/3K 400W DC Power Supply, Forward airflow (port side exhaust)
N3K-PDC-350W-B
N3K Series 350W DC Power Supply, Reversed airflow (port side intake)
Software Licenses
N3K-BAS1K9
Nexus 3000 Layer 3 Base License
N3K-LAN1K9
Nexus 3000 Layer 3 LAN Enterprise License (Requires N3K-BAS1K9 License)
Spares
NXA-FAN-30CFM-F=
Nexus 2K/3K single fan, Forward airflow (port side exhaust), Spare
NXA-FAN-30CFM-B=
Nexus 2K/3K single fan, Reversed airflow (port side intake), Spare
N2000-PAC-400W=
N2K/3K 400W AC Power Supply, Forward airflow (port side exhaust), Spare
N2000-PAC-400W-B=
N2K/3K 400W AC Power Supply, Reversed airflow (port side intake), Spare
N2200-PDC-400W=
N2K/3K 400W DC Power Supply, Forward airflow (port side exhaust), Spare
NXA-PAC-500W=
Nexus 3K 500W AC PSU, Forward airflow (port side exhaust), Spare
NXA-PAC-500W-B=
Nexus 3K 500W AC PSU, Reversed airflow (port side intake), Spare
N3K-PDC-350W-B=
N3K Series 350W DC Power Supply, Reversed airflow (port side intake), Spare
N3K-C3064-ACC-KIT=
Nexus 3064PQ Accessory Kit
Bundles
N3K-C3172PQ-FA-L3
Nexus 3172PQ, Forward Airflow (port side exhaust), AC P/S, Base and LAN Enterprise License Bundle
N3K-C3172PQ-BA-L3
Nexus 3172PQ, Reversed Airflow (port side intake), AC P/S, Base and LAN Enterprise License Bundle
N3K-C3172PQ-FD-L3
Nexus 3172PQ, Forward Airflow (port side exhaust), DC P/S, Base and LAN Enterprise License Bundle
N3K-C3172PQ-BD-L3
Nexus 3172PQ, Reversed Airflow (port side intake), DC P/S, Base and LAN Enterprise License Bundle
N3K-C3172TQ-FA-L3
Nexus 3172TQ, Forward Airflow (port side exhaust), AC P/S, Base and LAN Enterprise License Bundle
N3K-C3172TQ-BA-L3
Nexus 3172TQ, Reversed Airflow (port side intake), AC P/S, Base and LAN Enterprise License Bundle
Cables and Optics
QSFP-40GE-LR4(=)
40GBASE-LR4 QSFP+ transceiver module for SMF, 4 CWDM lanes in 1310 nm window Muxed inside module, duplex LC connector, 10 km reach
QSFP-40G-SR4(=)
40GBASE-SR4 QSFP Transceiver Module with MPO Connector
QSFP-40G-CSR4(=)
QSFP 4x10GBASE-SR Transceiver Module, MPO, 300M
QSFP-H40G-AOC1M
QSFP 40G Active Optical Cable 1m
QSFP-H40G-AOC2M
QSFP 40G Active Optical Cable 2m
QSFP-H40G-AOC3M
QSFP 40G Active Optical Cable 3m
QSFP-H40G-AOC5M
QSFP 40G Active Optical Cable 5m
QSFP-H40G-AOC7M
QSFP 40G Active Optical Cable 7m
QSFP-H40G-AOC10M
QSFP 40G Active Optical Cable 10m
QSFP-4x10G-AOC1M
QSFP to 4 x SFP 10Gbps Active Optical Cable 1m
QSFP-4x10G-AOC2M
QSFP to 4 x SFP 10Gbps Active Optical Cable 2m
QSFP-4x10G-AOC3M
QSFP to 4 x SFP 10Gbps Active Optical Cable 3m
QSFP-4x10G-AOC5M
QSFP to 4 x SFP 10Gbps Active Optical Cable 5m
QSFP-4x10G-AOC7M
QSFP to 4 x SFP 10Gbps Active Optical Cable 7m
QSFP-4x10G-AOC10M
QSFP to 4 x SFP 10Gbps Active Optical Cable 10m
QSFP-H40G-CU1M(=)
40GBASE-CR4 Passive Copper Cable, 1m
QSFP-H40G-CU3M(=)
40GBASE-CR4 Passive Copper Cable, 3m
QSFP-H40G-CU5M(=)
40GBASE-CR4 Passive Copper Cable, 5m
QSFP-4SFP10G-CU1M(=)
QSFP to 4xSFP10G Passive Copper Splitter Cable, 1m
QSFP-4SFP10G-CU3M(=)
QSFP to 4xSFP10G Passive Copper Splitter Cable, 3m
QSFP-4SFP10G-CU5M(=)
QSFP to 4xSFP10G Passive Copper Splitter Cable, 5m
SFP-10G-SR(=)
10GBASE-SR SFP+ Module
SFP-10G-LR(=)
10GBASE-LR SFP+ Module
SFP-10G-ER(=)
Cisco 10GBASE-ER SFP+ Module for SMF
SFP-10G-ZR(=)
Cisco 10GBASE-ZR SFP+ Module for SMF
SFP-H10GB-CU1M(=)
10GBASE-CU SFP+ Cable 1 Meter
SFP-H10GB-CU3M(=)
10GBASE-CU SFP+ Cable 3 Meter
SFP-H10GB-CU5M(=)
10GBASE-CU SFP+ Cable 5 Meter
SFP-H10GB-ACU7M(=)
Active Twinax Cable Assembly, 7m
SFP-H10GB-ACU10M(=)
Active Twinax Cable Assembly, 10m
SFP-GE-T(=)
1000BASE-T NEBS 3 ESD
GLC-T(=)
1000BASE-T SFP
GLC-SX-MM(=)
GE SFP, LC Connector SX Transceiver
GLC-LH-SM(=)
GE SFP, LC Connector LX/LH Transceiver
Warranty
The Cisco Nexus 3100 Series switches have a 1-year limited hardware warranty. The warranty includes hardware replacement with a 10-day turnaround from receipt of a return materials authorization (RMA).
Service and Support
Cisco offers a wide range of services to help accelerate your success in deploying and optimizing the Cisco Nexus 3000 Series Switches in your data center. The innovative Cisco Services offerings are delivered through a unique combination of people, processes, tools, and partners and are focused on helping you increase operation efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and achieve long-term value. Cisco SMARTnet® Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources. With this service, you can take advantage of the Cisco Smart Call Home service capability, which offers proactive diagnostics and real-time alerts on your Cisco Nexus 3000 Series Switches. Spanning the entire network lifecycle, Cisco Services helps increase investment protection, optimize network operations, support migration operations, and strengthen your IT expertise.
