The Cisco® Video Surveillance 2600 IP Camera is a high-resolution, feature-rich digital camera designed to provide superior performance in a wide variety of video surveillance applications. The camera employs H.264 compression and streams 30 frames per second (fps) at D1 NTSC resolution (720 x 480) or 25 fps at D1 PAL resolution (720 x 576), offering efficient network utilization while providing high-quality video. With its open, standards-based design, the camera provides an ideal platform for integration, and operation as an independent device or as part of a Cisco Video Surveillance network.
Figure 1 shows the Cisco Video Surveillance 2600 IP Camera.
Figure 1. Cisco 2600 IP Camera Shown with Optional DC Auto Iris Lens
The Cisco Video Surveillance 2600 IP Camera offers a variety of benefits, including:
• Optimal imaging efficiency. The 2600 IP Camera can stream video using H.264 compression, reducing network traffic and storage requirements while providing superior image quality.
• Wide dynamic range. The camera employs powerful digital imaging technology, allowing it to capture high-quality images in a wide variety of lighting conditions. It uses a progressive scan image sensor with global electronic shuttering to ensure natural color rendition, zero blooming and smear and minimal motion blurring.
• Dual streaming. The camera can deliver two simultaneous video streams over the network. A combination of H.264, MPEG4, and MJPEG can be configured. Each video stream can be configured with individual resolution, quality and frame rate settings.
• Day/night operation. The camera provides true day/night functionality that includes an IR filter that can automatically switch to night mode in low light scenes. This function can be set to manual or automatic control.
• Flexible power options. The 2600 IP Camera supports Power over Ethernet (PoE) 802.3af or DC power through an optional external power supply.
• Embedded security and networking. The camera provides 802.1X authentication and supports IP Multicast for enhanced bandwidth management.
• Event notification. The camera can examine designated areas in the video for motion activity and then notify users or other applications when it detects activity that exceeds a predefined threshold.
• Mounting options. The camera can be installed with a fixed-mount or with an optional external pan/tilt mount and motorized zoom lens.
• Bidirectional audio.* The camera supports full-duplex audio and options for half-duplex operation.
Note:Features with an asterisk are not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Features
Table 1 describes the features of the Cisco Video Surveillance 2600 IP Camera.
Table 1. Cisco Video Surveillance 2600 IP Camera Features
Item
Specification
Imaging Device
1/3-in. progressive-scan CMOSsensor with wide dynamic range
Image Control
Automatic white balance (AWB), automatic gain control (AGC), automatic exposure (AE), auto/manual iris
Dynamic Range
102 dBtypical/120 dB maximum
Minimum Illumination
• Color mode: F1.4 @ 0.65 lux
• Black and white mode: F1.4 @ 0.08 lux
Signal-to-Noise Ratio (SNR)
>48 dB
Lens Selection
Accepts manual or DC auto iris lens
Lens Mount
CS mount
Shutter Speed
Electronic Shutter
Video Compression
H.264, MPEG-4, MJPEG
Audio Compression*
G.711 A-Law, G.711 U-Law, G.726
Resolution and Frame Rate
NTSC/PAL
• 720 x 480/576 @ 30/25 fps (D1)
• 704 x 480/576 @ 30/25 fps (4CIF)
• 352 x 240/288 @ 30/25 fps (CIF)
Video Streaming
Single and dual video streams supported. Refer to Tables 2, 3, and 4 for details.
Protocols
Dynamic Host Control Protocol (DHCP), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP)
Quality of Service (QoS)
Differentiated services code point (DSCP) marking
Power
12 VDC
PoE (802.3af) @ 48V/0.3A
Power Consumption
11W (max)
Note:Features with an asterisk are not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Table 2 lists supported single stream configurations on the Cisco Video Surveillance 2600 IP Camera.
Table 2. Supported Single Stream Configurations
Single Streaming
Maximum Resolution and Frames Per Second (FPS)
Resolutions Supported
(NTSC & PAL)
NTSC
FPS Supported
PAL FPS Supported
H.264
D1 @ 30 fps
D1
4CIF
CIF
30, 25, 20, 15, 10, 8, 6, 5
25, 20, 15, 10, 8, 6, 5
MPEG-4
D1 @ 30 fps
D1
4CIF
CIF
30, 25, 20, 15, 10, 8, 6, 5
25, 20, 15, 10, 8, 6, 5
MJPEG
D1 @ 30 fps
D1
4CIF
CIF
30, 25, 20, 15, 10, 8, 6, 5
25, 20, 15, 10, 8, 6, 5
Table 3 lists the supported primary and secondary video stream combinations on the Cisco Video Surveillance 2600 IP Camera.
Table 3. Supported Primary and Secondary Video Stream Combinations
Primary
Secondary
H.264
H.264
H.264
MJPEG
MPEG4
MPEG4
MPEG4
MJPEG
Table 4 lists the supported primary and secondary video streams on the Cisco Video Surveillance 2600 IP Camera.
Table 4. Cisco Video Surveillance 2600 IP Camera Video Stream Support
NTSC Primary
Channel Resolutions
NTSC Primary Frame Rate
NTSC Secondary
Channel Resolutions
NTSC Secondary Frame Rate*
4 CIF, CIF
30, 25, 20, 15, 10, 8, 6, 5
CIF
15, 10, 8, 6, 5
PAL Primary
Channel Resolutions
PAL Primary Frame Rate
PAL Secondary
Channel Resolutions
PAL Secondary Frame Rate*
4 CIF, CIF
25, 20, 15, 10, 8, 6, 5
CIF
15, 10, 8, 6, 5
Note:Features with an asterisk are not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Connectors
Table 5 describes the connectors on the Cisco Video Surveillance 2600 IP Camera.
Table 5. Cisco Video Surveillance 2600 IP Camera Connectors
Item
Specification
Network connectivity
10/100 BASE-TX Ethernet with RJ-45 connector
Video
1 analog output BNC connector, 75 ohms
Audio*
• 1, 3.5-mm output jack for optional external speaker
• 1, 3.5-mm input jack for optional external microphone
• Built-in microphone
• Two-way (full- and half-duplex), one-way, or audio off
Serial port
RS-485 (2-wire), Pelco D protocol only
Alarm input
2, logic-level programmable
Alarm output*
2, logic-level programmable
Power input
2-pin terminal
Note:Features with an asterisk are not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Software
Table 6 describes the primary features of the Cisco Video Surveillance 2600 IP Camera software.
Table 6. Cisco Video Surveillance 2600 IP Camera Primary Software Features
Item
Specification
Video Format
NTSC and PAL
Day/night Settings
Auto or manual day/night operation with user-definable thresholds
Image Settings
Configurable brightness, sharpness, saturation, and white balance
Overlay Capabilities
Time, date, and text
Selectable Bit Rate
Support for Constant Bit Rate or Variable Bit Rate
IP Filtering
Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
• Multiple user access levels with password protection
Activity Detection
4 user-definable motion detection areas
Event Actions
• Email
• FTP upload of captured video or JPEG snapshot depending on stream configuration
• HTTP alert
• Alarm output
Note:Features with an asterisk are not supported or applicable when the camera is used with Cisco Video Surveillance Manager.
Specifications
Table 7 provides specifications of the Cisco Video Surveillance 2600 IP Camera.
Table 7. Cisco Video Surveillance 2600 IP Camera Specifications
Item
Specification
Housing
Aluminum
LEDs
Power, Ethernet link, and activity
Dimensions
(L x W x H)
• 4.96 x 3.15 x 2 in.
• 126 x 80 x 50 mm
Weight
• 1.15 lb
• 0.52 kg
Certifications
Safety:
IEC 60950-1:2001
EN 60950-2:2001 +A11:2004
EMC-Emissions:
FCC Part 12 Subpart B, Class B
CISPR22 Class B
ICES-003, Class B
ANSI C63.4
EN55022: Class B
EN61000-3-2
EN61000-3-3
EMC-Immunity:
EN55024
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Operating Temperature
• 32 to 122°F
• 0 to 50°C

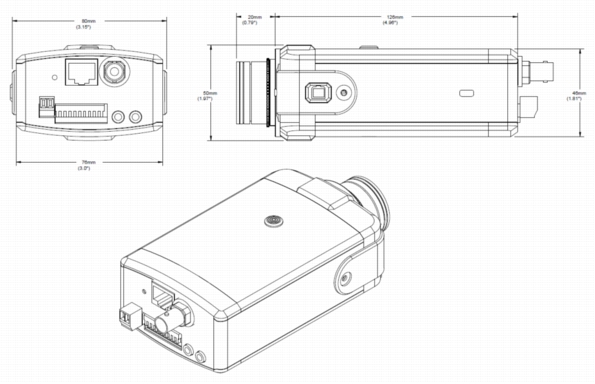

Figure 2 shows the dimensions of the Cisco Video Surveillance 2600 Series IP Camera.
Figure 2. Cisco Video Surveillance 2600 IP Camera Dimensions
Package Contents
Table 8 describes the items that ship with the Cisco Video Surveillance 2600 IP Camera.
Table 8. Package Contents
Item
Cisco Video Surveillance 2600 Series IP Camera
Lens opening dust cap, mounting hole protector, terminal block for power connection, C mount lens adaptor, 0.9-mm Allen wrench, snap-on ferrite core (x2).
Regulatory compliance and safety information
Quick start guide
Availability
The Cisco Video Surveillance 2600 IP Camera is available through Cisco Authorized Technology Provider (ATP) Partners.
Ordering Information
Table 9 lists the part numbers for the Cisco Video Surveillance 2600 IP Camera and for the lenses that the camera supports.
Table 9. Ordering Information
Part Number
Description
CIVS-IPC-2600
Cisco Video Surveillance 2600 IP Camera, Full Resolution, Day/Night
Lenses
CIVS-IPC-VT38
Cisco IP Camera Tamron 3-8 mm Varifocal Lens
CIVS-IPC-VT31
Cisco IP Camera Tamron 3-11 mm Varifocal Lens
CIVS-IPC-VT55
Cisco IP Camera Tamron 5-50 mm Varifocal Lens
CIVS-IPC-VF38
Cisco IP Camera Fujinon 3-8 mm Varifocal Lens
CIVS-IPC-VF31
Cisco IP Camera Fujinon 3-11 mm Varifocal Lens
CIVS-IPC-VF55
Cisco IP Camera Fujinon 5-50 mm Varifocal Lens
Using the Camera with Cisco Video Surveillance Manager
Features that are marked with an asterisk (*) are not supported when using the camera with Cisco Video Surveillance Manager. Please refer to the latest release notes for Cisco Video Surveillance Manager for more information.
