Spare Drive Trays With or Without Hard Disks for Expansion, Redundancy, and Flexibility
Highlights
• Increased capacity for storage, backup, sharing, and archiving of electronic data
• Flexible implementation to meet a wide range of needs
• Ease of installation - the Network Storage System (NSS) automatically recognizes and configures the new/replacement drives
• Compatible with the Cisco Small Business Network Storage Systems

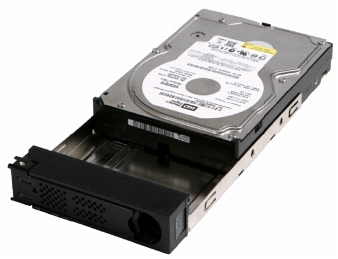

Figure 1. Cisco HDT Network Storage Hard Drive Trays
Product Overview
• The HDT0000 is a single hard drive tray that can accommodate Serial Advanced Technology Attachment (SATA) hard drives from Cisco approved vendors.
• The HDT0004 is a set of four hard drive trays that can accommodate SATA hard drives from Cisco approved vendors.
• The HDT0250 is a single hard drive tray pre-populated with a 250-GB hard drive.
• The HDT0500 is a single hard drive tray pre-populated with a 500-GB hard drive.
Specifications
Table 1. Specifications for the Cisco HDT Network Storage Hard Drive Trays
|
Specifications |
|
|
Models |
• HDT0000: Spare network attached storage (NAS) drive tray (no hard drive) for Cisco Small Business NSS products
• HDT0004: Spare NAS drive trays - 4 pack (no hard drives) - for Cisco Small Business NSS products
• HDT0250: Spare NAS drive tray (with 250-GB 7200-rpm hard disk) for Cisco Small Business NSS products
• HDT0500: Spare NAS drive tray (with 500-GB 7200-rpm hard disk) for Cisco Small Business NSS products
|
|
Compatibility |
Supports all Cisco Small Business Network Storage Systems |
|
Environmental |
|
|
Dimensions W x H x D |
4.10 x 1.00 x 6.80 in. (104.14 x 25.4 x 172.72 mm) |
|
Unit weight |
• HDT0000: 0.375 lb (170 g)
• HDT0004 (per tray): 0.375 lb (170 g)
• HDT0250: 1.68 lb (760 g)
• HDT0500: 1.68 lb (760 g)
|
|
Operating temperature |
32° to 113°F (0° to 45°C) |
|
Storage temperature |
-4° to 158°F (-20° to 70°C) |
|
Operating humidity |
10% to 90%, Relative humidity, noncondensing |
|
Storage humidity |
10% to 95%, Relative humidity, noncondensing |
|
Package Contents |
|
|
• One 3.5-inch SATA drive carrier tray (HDT0000, HDT0500, or HDT0250) or four 3.5-inch SATA drive carrier trays (HDT0004).
• Drive carrier screws
• One 500-GB 7200-rpm hard drive (HDT0500 only)
• One 250-GB 7200-rpm hard drive (HDT0250 only)
|
|
|
Minimum Requirements (HDT0250 or HDT0500) |
|
|
• Cisco Small Business Network Storage System chassis
|
|
|
Minimum Requirements (HDT0000 or HDT0004) |
|
|
• Cisco Small Business Network Storage System chassis
• Compatible 3.5-inch SATA hard drive(s) (see approved vendor list*)
*To view the approved vendor list, visit http://www.cisco.com and view the webpage of your Network Storage System. In the More Information section, click AVL Drive List. |
|
|
Product Warranty |
|
|
3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty |
|
Cisco Limited Warranty for Cisco Small Business Series Products
