The Cisco ONS 15454 10Gbps Optical Encryption Line Card brings security capabilities to Cisco ONS 15454 MSTP and Cisco Network Convergence System 2000 Series products by providing data confidentiality over a fiber-optic communication channel. It achieves this through the combined use of next-generation encryption with trusted systems technology architecture.

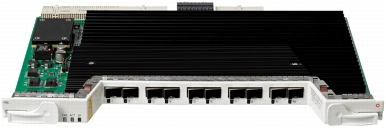

Figure 1. Cisco ONS 15454 10Gbps Optical Encryption Line Card
The encryption line card is a single-slot card that fits into the Cisco ONS 15454 MSTP M6 and M2 chassis, as well as the Cisco NCS 2006 and 2002 chassis.The card (part number: 15454-M-WSE-K9=) has 10 enhanced Small Form-Factor Pluggable (SFP+) ports that support five independent encryption streams, providing superb density for 10 gigabit encryption services.

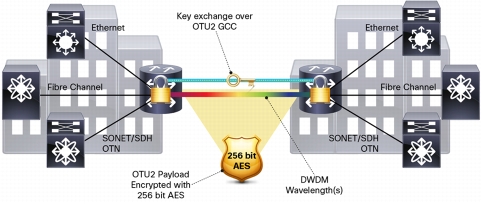

Figure 2. Secure Point-to-Point Communication over DWDM Architecture
Features
• Integrated transponder: The encryption card supports both grey and dense wavelength-division multiplexing (DWDM) SFP+ optics on all ports, with the option to use standard or enhanced Forward Error Correction (FEC) for longer reach.
• Secure key exchange: General communication channel 2 (GCC2), secured using Transport Layer Security (TLS) to mitigate a man-in-the-middle attack, is used to exchange the symmetric key for encryption between two communicating cards.
• Single GUI for management: The Cisco Transport Controller provides complete separation between security and transport operations by supporting role-based access control for different users.
Table 1 summarizes the features and benefits of the Cisco ONS 15454 10G Optical Encryption Line Card.
Table 1. Features and Benefits
Feature
Benefit
Secure boot
Helps ensure that only authentic software is running on the system at boot-up
Image signing
Helps ensure that only authentic software is running on the system at load time
Immutable identity
Helps ensure that hardware received is not counterfeit
Secure unique device identification
Provides cryptographic assertion of device identity, in turn used to authenticate the peer card
True random bit generation
Provides nondeterministic numbers used in key generation
Advanced cryptographic algorithms
Improves efficiency without sacrificing security
Cold zeroization
Erases critical security parameters on card reset or removal or chassis power down
FIPS certification
Helps guarantee protection of critical security information
General Modes of Operation
• Encryption only: The card provides confidentiality for the information sent.
• Transponder: With encryption disabled, the card is a normal transponder, providing grey to DWDM conversion with FEC or E-FEC available for additional reach (Figure 3).
• Regenerator: The card performs standard optical-to-electrical-to-optical (O-E-O) regeneration of a DWDM signal.
Figure 3. Encryption Card Operational Modes
FIPS and Non-FIPS Mode of Operation
The encryption card is currently undergoing FIPS 140-2 level 2 validation. To satisfy the Federal Information Processing Standard (FIPS) requirement, the cryptographic module (in this case the encryption card and controller) must support a FIPS mode of operation in which only FIPS-approved algorithms are run.
When the FIPS mode is turned on, both the controller cards (active and standby transport node controllers or transport shelf controllers), as well as all encryption cards present in the chassis, will reboot. This is a traffic-affecting operation, and a warning is displayed on the craft terminal - Cisco Transport Controller or Cisco Prime Optical - when FIPS mode is turned on. During reboot, the encryption cards and controllers run the FIPS Power On Self Tests (POST). Upon successful completion, the card enters FIPS mode. When setting FIPS mode off, only the controller cards require reboot.
Licensing
A licensed version of the line card providing a single encrypted stream provides a cost-effective solution for low channel counts. A flexible software upgrade license is applied to unlock an additional encryption stream (Table 2).
Table 2. 10Gbps Optical Encryption Line Card Software Licenses
Part Number
Description
15454-M-WSE-L-K9=
Wire Speed Encryption Unit, software license upgradable
Services with speeds lower than 10 Gbps can be encrypted by first multiplexing them into an OTU2 signal using the ONS 15454 Any Rate Muxponder or Any Rate Xponder cards. Two card bundles are available (Table 3). An unlicensed bundle is ideal for an encrypted network with a large number of services with speeds lower than 10 Gbps, and a licensed bundle is available for networks that initially have a smaller number of services with speeds lower than 10 Gbps.
Table 3. Any Rate Muxponder and Any Rate Xponder Bundles
Bundle Part Number
Constituents
15454-ARE-K9-SK
1 x 15454-M-WSE-K9, 1 x AR-XP-LIC, 1 x ONS-SC+-10G-SR and 1x ONS-XC-10G-SR-MM
15454-ARE-L-K9-SK
1 x 15454-M-WSE-L-K9, 1 x AR-MXP-LIC, 1 x ONS-SC+-10G-SR and 1x ONS-XC-10G-SR-MM
The proper feature license needs to be purchased on the Any Rate Xponder or Muxponder cards, depending on the services that need to be aggregated. The same flexible software license needs to be purchased with the second bundle for additional encrypted services.
Protocol Transparency
When used in the Cisco ONS 15454 MSTP or NCS 2000 platforms, the encryption line card can transparently deliver the 10-Gbps services listed in Table 4 for cost-effective, secure, point-to-point transport.
Table 4. Client Protocol Mapping
Client
Mapping
Format
Rate (Gbps)
10 Gigabit Ethernet LAN-PHY
10.3125
CBR-BMP clause 17.2.4 (ex G sup43 7.1) + GMP ODU2e to OPU3e4
OTU2
10.709
ODU transparent + GMP ODU2 to OPU3e4
OTU2e
11.096
ODU transparent + GMP ODU2 to OPU3e4
FEC Capability
The encryption card supports a FEC mechanism on any of the SFP+ interfaces. This can be independently enabled or disabled on all ports. Two software-configurable coding options are available:
• GFEC: Standard G.975 Reed-Solomon algorithm.
• EFEC: Standard G.975.1 (Sub-clause I.7) with 7 percent overhead. This FEC scheme uses two orthogonally concatenated BCH super-FEC codes, and the constructed code is decoded iteratively to rebuild the original frame.
Management
The Cisco NCS 2000 and ONS 15454 MSTP provide comprehensive management capabilities to support Operations, Administration, Maintenance, and Provisioning (OAM&P) capabilities through the integrated Cisco Transport Controller craft interface with support from the Cisco Prime™ Optical element management system. Role-based access control is enforced to help ensure that only authorized users are able to perform the desired operations, thus providing a complete separation between the transport and security domains.
Two new user profiles for performing security operations are available, in addition to the existing transport user profiles. They are a security super user and a security user. The former is available by default, while the latter is created by the security super user and assigned to specific encryption cards in the node.
Table 5. Security Capabilities of CTC User Profiles
Panes
Security Super User
Security User
Transport User
Perfomance - Encryption PM
Refresh
ü
ü
ü
Baseline
ü
ü
û
Clear
ü
ü
û
Provisioning - Security Threshold
ü
ü
û
Encryption - GCC2 Settings
ü
ü
û
Encryption - Security
ü
ü
û
Encryption - Key Management
ü
ü
û
Encryption - Advanced Settings
ü
û
û
Encryption - OTN Overhead for Packet Traffic
ü
û
û
Provisioning - Security - FIPS
ü
û
û
The user-card association is erased on chassis power-down or controller-card reboot. The security super user and security user passwords are hashed and stored using a FIPS-approved algorithm.
Protection Mechanism
By utilizing the ONS 15454 Protection Switch Module (PSM), the encryption card supports Optical Channel-Trail (OCH-Trail) protection, providing protection for the DWDM signal.
Product Specifications
Table 6 lists regulatory compliance information, and Table 7 shows the system requirements for the Cisco ONS 15454 encryption line card. Table 8 provides performance monitoring parameters. Table 9 provides card specifications, and Table 10 lists ordering information for the card.
Regulatory Compliance
Important: Not all compliance documentation may be completed at the time of product release. Please check with your Cisco sales representative for countries other than Canada, the United States, and the European Union.
Table 6. Regulatory Compliance
ANSI System
ETSI System
Countries Supported
• Canada
• United States
• Korea
• Japan
• European Union
• European Union
• Africa
• CSI
• Australia
• New Zealand
• China
• Korea
• India
• Saudi Arabia
• South America
EMC (Class A)
• ICES-003, 2004
• GR-1089-CORE Issue 4, NEBS EMC and Safety, June 2006
• FCC 47CFR15, 2007
• ETSI EN 300 386 V1.4.1 (2008-04) Telecommunication network equipment EMC requirements (Note: EMC-1)
• CISPR22:2008 and EN55022:2006/A1:2007 Information Technology Equipment (Emissions) (EMC-2)
• CISPR24: 1997/A1:2001/A2:2002 and EN55024:1998/A1:2001/A2:2003: Information Technology Equipment - Immunity characteristics - Limits and Methods of Measurement (test levels)
Safety
• CSA C22.2 #60950-1 - Edition 7, March 2007
• UL 60950-1 - Edition 2, March 2007
• GR-1089-CORE Issue 4, NEBS EMC and Safety, June 2006
• UL 60950-1 - Edition 2, March 2007
• IEC 60950-1 Information technology equipment Safety Part 1: General
requirements - Edition 2, 2005 and National Differences as per CB Bulletin 112A
• IEC/EN 60950-1 (2006/10) with Amendment 11:2004 to EN 60950-1:2001, 1st Edition and National Differences as per CB Bulletin 112A.
• EN 60950-1, Edition 2 (2006) Information technology equipment - Safety - Part 1: General requirements
• CE Safety Directive: 2006/95/EC
Laser
• UL 60950-1 - Edition 2, March 2007
• IEC 60825-1: 2001 Ed.1.2 (incl. am1+am2) Safety of laser products Part 1: Equipment classification, requirements and users guide
• IEC60825-2 Ed.3 (2004) Safety of laser products Part 2: Safety of optical fiber communication systems + A1:2006
• IEC 60825-1: 2001 Ed.1.2 (incl. am1+am2) Safety of laser products Part 1: Equipment classification, requirements and users guide
• IEC60825-2 Ed.3 (2004) Safety of laser products Part 2: Safety of optical fibre communication systems + A1:2006
• 21CFR1040 (2008/04) (Accession Letter and CDRH Report) Automatic Laser Shutdown and restart (ALS) according to ITU-T G.664 (03/06). Guidance for Industry and FDA Staff (Laser Notice No. 50), June 2007
• Laser Products - Conformance with IEC 60825-1 and IEC 60601-2-22; Guidance for Industry and FDA Staff (Laser Notice No. 50), June 2007
• GR-499: 2004 Transport Systems Generic Requirements (TSGR): Common Requirements
System Requirements and Other Specifications
Table 7. System Requirements
Component
Cisco ONS 15454 M6
Cisco ONS 15454 M2
Processor
TNC/TSC/TNC-E/TSC-E
TNC/TSC/TNC-E/TSC-E
Shelf assembly
Cisco ONS 15454-M6-SA shelf assembly with FTA2
Cisco NCS2006-SA shelf assembly
Cisco ONS 15454-M2-SA shelf assembly with FTA2
Cisco NCS2002-SA shelf assembly
System software
ONS 15454 MSTP Release 9.8 ANSI/ETSI
NCS 2000 Release 10.0
ONS 15454 MSTP Release 9.8 ANSI/ETSI
NCS 2000 Release 10.0
Slot compatibility
Slots 2 through 7
Slots 2 through 3
Table 8. Performance Monitoring Parameters
Area
Parameter Name
Description
OTN
OTUk SM
ODUk PM
BBE-SM
BBE-PM
Number of background block errors
BBER-SM
BBER-PM
Background block error ratio
ES-SM
ES-PM
Number of errored seconds
ESR-SM
ESR-PM
Errored seconds ratio
SES-SM
SES-PM
Number of severely errored seconds
SESR-SM
SESR-PM
Severely errored seconds ratio
UAS-SM
UAS-PM
Number of unavailable seconds
FC-SM
FC-PM
Number of failure counts
FEC
Bit errors
Number of corrected bit errors
Uncorrectable words
Number of uncorrectable words
Trunk optical performance monitoring
OPT
Transmit optical power
LBC
Transmitter laser bias current
OPR
Receiver optical power
Table 9. Card Specifications
Management
Card LEDs
Failure (FAIL)
Active or standby (ACT/STBY)
Signal fail (SF)
Red
Green/yellow
Yellow
Client port LEDs (per port)
Active input signal
Green
Power (including worst-case pluggable)
Typical
110W (25C and -48VDC)
Maximum
160W (55C and -38VDC)
Physical
Dimensions
Occupies 1 slot
Weight
1.24 kg ( 2.73 lbs)
Reliability and availability
Mean time between failures (MTBF)
111,544 hrs
Latency (end to end) with encryption off
G.709 - FEC disabled
6.8 microseconds
G.709 - Standard FEC
10 microseconds
G.709 - EFEC
144.8 microseconds
Latency (end to end) with encryption on
G.709 - FEC disabled
6 microseconds
G.709 - Standard FEC
10.5 microseconds
G.709 - EFEC
145.4 microseconds
Storage temperature
-40 to 158ºF (-40 to 70ºC)
Operating temperature
• Normal
• Short-term*
32 to 104°F (0 to 40°C)
23 to 131ºF (-5 to 55ºC)
Relative humidity
• Normal
• Short-term*
5% to 85%, noncondensing
5% to 90% but not to exceed 0.024 kg water/kg of dry air
* Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period). The values shown are valid for M6 or M2 chassis.
Warranty Information
Warranty information is available on Cisco.com at the Product Warranties page.
Ordering Information
This section provides information on the components or parts needed to install and use the product. It also provides a direct link to the Cisco Ordering Tool and lists part numbers in Table 10.
