Configuration Supplement—Voice Module, EIGRP Stub, DSCP, HDLC

This appendix contains supplemental configurations used during a V3PN performance and scalability evaluation. Specific configurations address the following devices and supporting networking functions:

•Voice Module Configuration

•Router Configuration—vpn18-2600-2

•Router Configuration—vpn18-2600-3

•Router Configuration—vpn18-2600-4

•Router Configuration—vpn18-2600-8

•Router Configuration—vpn18-2600-9

•Router Configuration—vpn18-2600-10

•Router Configuration—vpn18-2600-6

Voice Module Configuration

The full-scale solution test was designed to validate a site-to-site VoIP over IPSec solution where the voice bearer traffic would be received on the LAN interface rather than generated locally by the router from a voice network module.

The purpose of this appendix is to create a single rack (small scale) configuration to supplement the main design guide to include the follow capabilities:

•IPSec transport mode configuration example

•EIGRP stub configuration

•Redundant configuration for dual WAN aggregation routers in addition to dual IPSec/GRE head-end routers

•Implement DSCP based class-map

HDLC sample configuration for a point-to-point WAN link

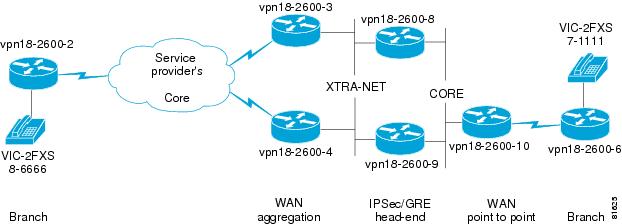

Figure B-1 illustrates an example network configuration.

Figure B-1 Topology Diagram

These configuration examples do not include class-map, policy-map or ISAKMP policy configurations unless they differ from the configurations illustrated previously in this design guide.

To simplify the topology drawing, the interface descriptions in the following router configurations include the keywords XTRA-NET and CORE or in the case of serial links, the router on the opposite end of the link is listed. The addressing scheme is configured such that the 192.168.x.0 subnets would represent routable addresses (Non-RFC 1918) and the 10.0.0.0 address space would be representative of where an enterprise might deploy that address space.

The third octet of the loopback 0 interface on the devices shown is the same as the last digit of the host name. For example, router vpn18-2600-8 has the loopback address of 192.168.8.1.

It should be noted, that while IPSec transport mode decreases the WAN interface bandwidth requirements, it does not decrease the number of packets per second, which in most cases, is the limiting factor of a router's performance. The priority keyword of the voice class in the policy-map was not decreased from the value used in the design guide—bandwidth not used by the priority, or low-latency queue, is not wasted; it is available to the bandwidth classes.

In IPSec transport mode, a G.729 voice call uses 48,000 bps (Layer 3 - 120 bytes * 50 pps * 8 = 48,000) verses 54,400 bps (Layer 3 - 136 bytes * 50 pps * 8 = 54,400). With one voice call active between the two handsets and VAD disabled, the following is an example show interface display output:

vpn18-2600-6#show interface se 0/1 | include rate

  Queueing strategy: weighted fair

  30 second input rate 50000 bits/sec, 50 packets/sec

  30 second output rate 50000 bits/sec, 50 packets/sec

In these configuration examples, the alternate or backup path is not used unless the primary path is unavailable. Both the logical path (the GRE tunnel) and the physical path are similar. Router vpn18-2600-3 and vpn18-2600-8 are the primary logical and physical path and vpn18-2600-4 and vpn18-2600-9 are the backup logical and physical path.

With this addressing scheme, recursive routing is addressed by more specific static routes targeted to the interface, while a supernet, 192.168.0.0/16 is advertised via EIGRP through the tunnel interface. Also note the core routers do not have a route to 192.168.6.1, the IPSec/GRE address for vpn18-2600-6, this is not an oversight, rather an illustration data traffic can be encrypted from network end to end without reachability to IPSec/GRE endpoints.

In the case of routers vpn18-2600-8 and vpn18-2600-9, no QoS is enabled on these IPSec/GRE endpoints, QoS is addressed by the WAN aggregation routers vpn18-2600-3 and vpn18-2600-4, as well as the remote branch router vpn18-2600-2. However, in the case of vpn18-2600-10 and vpn18-2600-6, IPSec/GRE and QoS are configured on the same router. Either configuration is valid, however, from a design standpoint, separating QoS from IPSec/GRE head-end routers should be considered a more scalable and manageable approach.

Router Configuration—vpn18-2600-2

hostname vpn18-2600-2

boot system flash c2600-ik9s-mz.122-8.T

crypto isakmp key bigsecret address 192.168.8.1

crypto isakmp key bigsecret address 192.168.9.1

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

 mode transport

crypto map static-map local-address Loopback0

crypto map static-map 10 ipsec-isakmp

 set peer 192.168.8.1

 set transform-set vpn-test

 match address vpn-static1

crypto map static-map 20 ipsec-isakmp

 set peer 192.168.9.1

 set transform-set vpn-test

 match address vpn-static2

interface Loopback0

 ip address 192.168.2.1 255.255.255.252

interface Loopback1

 description Target address  for dial peer

 ip address 10.0.3.1 255.255.255.0

interface Tunnel0

 ip address 10.0.100.1 255.255.255.0

 ip summary-address eigrp 44 10.0.0.0 255.255.252.0 5

 qos pre-classify

 tunnel source Loopback0

 tunnel destination 192.168.8.1   # Primary IPSec/GRE peer vpn18-2600-8

 crypto map static-map

interface Tunnel1

 ip address 10.0.101.1 255.255.255.0

 ip summary-address eigrp 44 10.0.0.0 255.255.252.0 5

 delay 60000                     # Increasing the delay makes this the

!                                # backup peer

 qos pre-classify

 tunnel source Loopback0

 tunnel destination 192.168.9.1  # Backup IPSec/GRE peer vpn18-2600-9

 crypto map static-map

interface Serial0/0

 bandwidth 512

 no ip address

 encapsulation frame-relay

 frame-relay traffic-shaping

interface Serial0/0.100 point-to-point

 description Link to vpn18-2600-3

 bandwidth 512

 ip address 192.168.100.1 255.255.255.0

 frame-relay interface-dlci 100

  class ts-branch

 crypto map static-map

interface Serial0/0.101 point-to-point

 description Link to vpn18-2600-4

 bandwidth 512

 ip address 192.168.101.1 255.255.255.0

 frame-relay interface-dlci 101

  class ts-branch

 crypto map static-map

router eigrp 44

 network 10.0.0.0

 no auto-summary

 eigrp stub summary           # EIGRP stub configured

 eigrp log-neighbor-changes

! Two static routes to the head-end IPSec peers, 192.168.8.1 and

! 192.168.9.1 covered by the netmask of 255.255.254.0, the primary

! path to vpn18-2600-3 if available, otherwise use the second route

! with its higher administrative distance.

ip route 192.168.8.0 255.255.254.0 Serial0/0.100

ip route 192.168.8.0 255.255.254.0 Serial0/0.101 2

ip access-list extended vpn-static1

 permit gre host 192.168.2.1 host 192.168.8.1

ip access-list extended vpn-static2

 permit gre host 192.168.2.1 host 192.168.9.1

voice-port 1/0/0

 description 8-6666

dial-peer voice 10 voip

 destination-pattern 155467.....

 session target ipv4:10.251.0.1       # vpn18-2600-6

 ip qos dscp ef media

 ip qos dscp af31 signaling

 no vad

dial-peer voice 1 pots

 destination-pattern 15556786666

 port 1/0/0

end

Router Configuration—vpn18-2600-3

hostname vpn18-2600-3

boot system flash c2600-ik9s-mz.122-8.T

interface Serial0/0

 description link to vpn18-2600-4

 bandwidth 2000

 ip address 192.168.99.3 255.255.255.0

 clockrate 2000000

interface FastEthernet0/1

 description XTRA-NET

 ip address 10.254.1.42 255.255.255.0

interface Serial0/1

 bandwidth 512

 no ip address

 encapsulation frame-relay

 frame-relay traffic-shaping

interface Serial0/1.100 point-to-point

 description Link to vpn18-2600-2

 bandwidth 512

 ip address 192.168.100.2 255.255.255.0

 frame-relay interface-dlci 100

  class ts-headend

router eigrp 44

 redistribute static

 passive-interface Serial0/1.100

 network 10.0.0.0

 network 192.168.99.0

 network 192.168.100.0

 default-metric 64000 20000 255 1 1500

 no auto-summary

 eigrp log-neighbor-changes

! Create a /16 route to be advertised to vpn18-2600-6

ip route 192.168.0.0 255.255.0.0 Null0

! Redistribute the primary path into EIGRP, so vpn18-2600-4 will learn

! an EIGRP external dynamically.

ip route 192.168.2.0 255.255.255.0 Serial0/1.100

end

Router Configuration—vpn18-2600-4

hostname vpn18-2600-4

boot system flash c2600-ik9s-mz.122-8.T

interface Serial0/0

 description link to vpn18-2600-3

 bandwidth 2000

 ip address 192.168.99.4 255.255.255.0

interface FastEthernet0/1

 description XTRA-NET

 ip address 10.254.1.46 255.255.255.0

interface Serial0/1

 bandwidth 512

 no ip address

 encapsulation frame-relay

 frame-relay traffic-shaping

interface Serial0/1.101 point-to-point

 description link to vpn18-2600-2

 bandwidth 512

 ip address 192.168.101.2 255.255.255.0

 frame-relay interface-dlci 101

  class ts-headend

router eigrp 44

 redistribute static

 passive-interface Serial0/1.101

 network 10.0.0.0

 network 192.168.99.0

 network 192.168.101.0

 default-metric 64000 20000 255 1 1500

 no auto-summary

 eigrp log-neighbor-changes

! Create a /16 route to be advertised to vpn18-2600-6

ip route 192.168.0.0 255.255.0.0 Null0

! Due to admin distance of 240, this route will only be placed

! in the routing table if the EIGRP external (admin distance 170)

! from vpn18-2600-3 is withdrawn.

ip route 192.168.2.0 255.255.255.0 Serial0/1.101 240

end

Router Configuration—vpn18-2600-8

hostname vpn18-2600-8

boot system flash c2600-ik9s-mz.122-8.T

crypto isakmp key bigsecret address 192.168.2.1

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

 mode transport

crypto map static-map local-address Loopback0

crypto map static-map 10 ipsec-isakmp

 set peer 192.168.2.1

 set transform-set vpn-test

 match address vpn-static1

interface Loopback0

 ip address 192.168.8.1 255.255.255.0

interface Tunnel0

 ip address 10.0.100.2 255.255.255.0

 tunnel source Loopback0

 tunnel destination 192.168.2.1   # vpn18-2600-2

 crypto map static-map

interface FastEthernet0/1

 description CORE

 ip address 10.254.0.48 255.255.255.0

interface Ethernet1/0

 description XTRA-NET

 ip address 10.254.1.48 255.255.255.0

 crypto map static-map

router eigrp 44

 redistribute static

 network 10.0.0.0

 network 192.168.8.0

 default-metric 64000 20000 255 1 1500

 distribute-list 44 out Tunnel0

 no auto-summary

 eigrp log-neighbor-changes

! Create a /8 route to be advertised to the remote sites

ip route 10.0.0.0 255.0.0.0 Null0

ip access-list extended vpn-static1

 permit gre host 192.168.8.1 host 192.168.2.1

! Only need to send a /8 and /16 across the tunnel interface

access-list 44 permit 10.0.0.0

access-list 44 permit 192.168.0.0

access-list 44 deny any

end

Router Configuration—vpn18-2600-9

hostname vpn18-2600-9

boot system flash c2600-ik9s-mz.122-8.T

crypto isakmp key bigsecret address 192.168.2.1

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

 mode transport

crypto map static-map local-address Loopback0

crypto map static-map 10 ipsec-isakmp

 set peer 192.168.2.1

 set transform-set vpn-test

 match address vpn-static1

interface Loopback0

 ip address 192.168.9.1 255.255.255.0

interface Tunnel1

 ip address 10.0.101.2 255.255.255.0

 delay 60000

 tunnel source Loopback0

 tunnel destination 192.168.2.1   # vpn18-2600-2

 crypto map static-map

interface FastEthernet0/1

 description CORE

 ip address 10.254.0.49 255.255.255.0

interface Ethernet1/0

 description XTRA-NET

 ip address 10.254.1.49 255.255.255.0

 crypto map static-map

router eigrp 44

 redistribute static

 network 10.0.0.0

 network 192.168.9.0

 default-metric 64000 20000 255 1 1500

 distribute-list 44 out Tunnel1

 no auto-summary

 eigrp log-neighbor-changes

! Create a /8 route to be advertised to the remote sites

ip route 10.0.0.0 255.0.0.0 Null0

ip access-list extended vpn-static1

 permit gre host 192.168.9.1 host 192.168.2.1

! Only need to send a /8 and /16 across the tunnel interface

access-list 44 permit 10.0.0.0

access-list 44 permit 192.168.0.0

access-list 44 deny any

end

Router Configuration—vpn18-2600-10

hostname vpn18-2600-10

boot system flash c2600-ik9s-mz.122-8.T

! Example of matching on DSCP rather than IP Precedence

class-map match-all call-setup

  description AF31

  match ip dscp 26

class-map match-any mission-critical

  description cs2 and cs6

  match ip dscp 16

  match ip dscp 48

class-map match-all voice

  description EF

  match ip dscp 46

policy-map hdlc

  class voice

    priority 672

  class call-setup

   bandwidth percent 5

  class mission-critical

   bandwidth percent 22

  class class-default

   fair-queue

crypto isakmp key bigsecret address 192.168.6.1

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

 mode transport

crypto map HDLC local-address Loopback0

crypto map HDLC 10 ipsec-isakmp

 set peer 192.168.6.1

 set transform-set vpn-test

 match address hdlc-GRE

interface Loopback0

 ip address 192.168.10.1 255.255.255.0

interface Tunnel1

 ip address 10.249.0.2 255.255.255.0

 tunnel source Loopback0

 tunnel destination 192.168.6.1    # vpn18-2600-6

 crypto map HDLC

interface Serial0/0

 description to vpn-2600-6 se0/1

 bandwidth 2000

 ip address 192.168.65.2 255.255.255.0

 service-policy output hdlc

 clockrate 2000000

 crypto map HDLC

interface FastEthernet0/1

 description CORE

 ip address 10.254.0.50 255.255.255.0

router eigrp 44

 passive-interface Serial0/0

 network 10.0.0.0

 network 192.168.10.0

 distribute-list 44 out Tunnel1

 no auto-summary

 eigrp log-neighbor-changes

 no eigrp log-neighbor-warnings

! Need to know how to reach the crypto peer vpn18-2600-6

ip route 192.168.6.0 255.255.255.0 Serial0/0

ip access-list extended hdlc-GRE

 permit gre host 192.168.10.1 host 192.168.6.1

! Only need to send a /8 and /16 across the tunnel interface

access-list 44 permit 10.0.0.0

access-list 44 permit 192.168.0.0

access-list 44 deny any

end

Router Configuration—vpn18-2600-6

hostname vpn18-2600-6

boot system flash c2600-ik9s-mz.122-8.T

policy-map hdlc

  class voice

    priority 672

  class call-setup

   bandwidth percent 5

  class mission-critical

   bandwidth percent 22

  class class-default

   fair-queue

crypto isakmp key bigsecret address 192.168.10.1

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

 mode transport

crypto map HDLC local-address Loopback0

crypto map HDLC 10 ipsec-isakmp

 set peer 192.168.10.1

 set transform-set vpn-test

 match address hdlc-GRE

interface Loopback0

 description target for IPSec

 ip address 192.168.6.1 255.255.255.0

interface Loopback1

 description target for VoIP dial-peers

 ip address 10.251.0.1 255.255.255.0

interface Tunnel1

 ip address 10.249.0.1 255.255.255.0

! Summarize up to the network core

 ip summary-address eigrp 44 10.248.0.0 255.248.0.0 5

 qos pre-classify

 tunnel source Loopback0

 tunnel destination 192.168.10.1    # vpn18-2600-10

 crypto map HDLC

interface Serial0/1

 description to vpn-2600-10 se0/0

 bandwidth 2000

 ip address 192.168.65.1 255.255.255.0

 service-policy output hdlc

 crypto map HDLC

router eigrp 44

 passive-interface Serial0/1

 network 10.0.0.0

 no auto-summary

 eigrp stub summary

 eigrp log-neighbor-changes

 no eigrp log-neighbor-warnings

! Need to know how to reach crypto peer vpn18-2600-10

ip route 192.168.10.0 255.255.255.0 Serial0/1

ip access-list extended hdlc-GRE

 permit gre host 192.168.6.1 host 192.168.10.1

voice-port 1/0/0

 description 7-1111

dial-peer voice 10 voip

 destination-pattern 155567.....

 session target ipv4:10.0.3.1

 ip qos dscp ef media

 ip qos dscp af31 signaling

 no vad

dial-peer voice 1 pots

 destination-pattern 15546771111

 port 1/0/0

end

	Voice and Video Enabled IPSec VPN (V3PN) Solution Reference Network Design
	Configuration Supplement--Voice Module, EIGRP Stub, DSCP, HDLC
Voice and Video Enabled IPSec VPN (V3PN) Solution Reference Network Design Preface V3PN SRND Introduction V3PN Solution Overview and Best Practices V3PN Solution Components Planning and Design Product Selection Implementation and Configuration Verification and Troubleshooting Network Diagram Scalability Testbed and Configuration Files Configuration Supplement--Voice Module, EIGRP Stub, DSCP, HDLC Configuration Supplement--Dynamic Crypto Maps, Reverse Route Injection	Download this chapter Configuration Supplement--Voice Module, EIGRP Stub, DSCP, HDLC Download the complete book V3PN.pdf (PDF - 2 MB) Table Of Contents Configuration Supplement—Voice Module, EIGRP Stub, DSCP, HDLC Voice Module Configuration Router Configuration—vpn18-2600-2 Router Configuration—vpn18-2600-3 Router Configuration—vpn18-2600-4 Router Configuration—vpn18-2600-8 Router Configuration—vpn18-2600-9 Router Configuration—vpn18-2600-10 Router Configuration—vpn18-2600-6 Configuration Supplement—Voice Module, EIGRP Stub, DSCP, HDLC This appendix contains supplemental configurations used during a V3PN performance and scalability evaluation. Specific configurations address the following devices and supporting networking functions: •Voice Module Configuration •Router Configuration—vpn18-2600-2 •Router Configuration—vpn18-2600-3 •Router Configuration—vpn18-2600-4 •Router Configuration—vpn18-2600-8 •Router Configuration—vpn18-2600-9 •Router Configuration—vpn18-2600-10 •Router Configuration—vpn18-2600-6 Voice Module Configuration The full-scale solution test was designed to validate a site-to-site VoIP over IPSec solution where the voice bearer traffic would be received on the LAN interface rather than generated locally by the router from a voice network module. The purpose of this appendix is to create a single rack (small scale) configuration to supplement the main design guide to include the follow capabilities: •IPSec transport mode configuration example •EIGRP stub configuration •Redundant configuration for dual WAN aggregation routers in addition to dual IPSec/GRE head-end routers •Implement DSCP based class-map HDLC sample configuration for a point-to-point WAN link Figure B-1 illustrates an example network configuration. Figure B-1 Topology Diagram These configuration examples do not include class-map, policy-map or ISAKMP policy configurations unless they differ from the configurations illustrated previously in this design guide. To simplify the topology drawing, the interface descriptions in the following router configurations include the keywords XTRA-NET and CORE or in the case of serial links, the router on the opposite end of the link is listed. The addressing scheme is configured such that the 192.168.x.0 subnets would represent routable addresses (Non-RFC 1918) and the 10.0.0.0 address space would be representative of where an enterprise might deploy that address space. The third octet of the loopback 0 interface on the devices shown is the same as the last digit of the host name. For example, router vpn18-2600-8 has the loopback address of 192.168.8.1. It should be noted, that while IPSec transport mode decreases the WAN interface bandwidth requirements, it does not decrease the number of packets per second, which in most cases, is the limiting factor of a router's performance. The priority keyword of the voice class in the policy-map was not decreased from the value used in the design guide—bandwidth not used by the priority, or low-latency queue, is not wasted; it is available to the bandwidth classes. In IPSec transport mode, a G.729 voice call uses 48,000 bps (Layer 3 - 120 bytes * 50 pps * 8 = 48,000) verses 54,400 bps (Layer 3 - 136 bytes * 50 pps * 8 = 54,400). With one voice call active between the two handsets and VAD disabled, the following is an example show interface display output: vpn18-2600-6#show interface se 0/1 \| include rate Queueing strategy: weighted fair 30 second input rate 50000 bits/sec, 50 packets/sec 30 second output rate 50000 bits/sec, 50 packets/sec In these configuration examples, the alternate or backup path is not used unless the primary path is unavailable. Both the logical path (the GRE tunnel) and the physical path are similar. Router vpn18-2600-3 and vpn18-2600-8 are the primary logical and physical path and vpn18-2600-4 and vpn18-2600-9 are the backup logical and physical path. With this addressing scheme, recursive routing is addressed by more specific static routes targeted to the interface, while a supernet, 192.168.0.0/16 is advertised via EIGRP through the tunnel interface. Also note the core routers do not have a route to 192.168.6.1, the IPSec/GRE address for vpn18-2600-6, this is not an oversight, rather an illustration data traffic can be encrypted from network end to end without reachability to IPSec/GRE endpoints. In the case of routers vpn18-2600-8 and vpn18-2600-9, no QoS is enabled on these IPSec/GRE endpoints, QoS is addressed by the WAN aggregation routers vpn18-2600-3 and vpn18-2600-4, as well as the remote branch router vpn18-2600-2. However, in the case of vpn18-2600-10 and vpn18-2600-6, IPSec/GRE and QoS are configured on the same router. Either configuration is valid, however, from a design standpoint, separating QoS from IPSec/GRE head-end routers should be considered a more scalable and manageable approach. Router Configuration—vpn18-2600-2 ! hostname vpn18-2600-2 ! boot system flash c2600-ik9s-mz.122-8.T ! crypto isakmp key bigsecret address 192.168.8.1 crypto isakmp key bigsecret address 192.168.9.1 ! crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac mode transport ! crypto map static-map local-address Loopback0 crypto map static-map 10 ipsec-isakmp set peer 192.168.8.1 set transform-set vpn-test match address vpn-static1 crypto map static-map 20 ipsec-isakmp set peer 192.168.9.1 set transform-set vpn-test match address vpn-static2 ! interface Loopback0 ip address 192.168.2.1 255.255.255.252 ! interface Loopback1 description Target address for dial peer ip address 10.0.3.1 255.255.255.0 ! interface Tunnel0 ip address 10.0.100.1 255.255.255.0 ip summary-address eigrp 44 10.0.0.0 255.255.252.0 5 qos pre-classify tunnel source Loopback0 tunnel destination 192.168.8.1 # Primary IPSec/GRE peer vpn18-2600-8 crypto map static-map ! interface Tunnel1 ip address 10.0.101.1 255.255.255.0 ip summary-address eigrp 44 10.0.0.0 255.255.252.0 5 delay 60000 # Increasing the delay makes this the ! # backup peer qos pre-classify tunnel source Loopback0 tunnel destination 192.168.9.1 # Backup IPSec/GRE peer vpn18-2600-9 crypto map static-map ! interface Serial0/0 bandwidth 512 no ip address encapsulation frame-relay frame-relay traffic-shaping ! interface Serial0/0.100 point-to-point description Link to vpn18-2600-3 bandwidth 512 ip address 192.168.100.1 255.255.255.0 frame-relay interface-dlci 100 class ts-branch crypto map static-map ! interface Serial0/0.101 point-to-point description Link to vpn18-2600-4 bandwidth 512 ip address 192.168.101.1 255.255.255.0 frame-relay interface-dlci 101 class ts-branch crypto map static-map ! router eigrp 44 network 10.0.0.0 no auto-summary eigrp stub summary # EIGRP stub configured eigrp log-neighbor-changes ! ! Two static routes to the head-end IPSec peers, 192.168.8.1 and ! 192.168.9.1 covered by the netmask of 255.255.254.0, the primary ! path to vpn18-2600-3 if available, otherwise use the second route ! with its higher administrative distance. ! ip route 192.168.8.0 255.255.254.0 Serial0/0.100 ip route 192.168.8.0 255.255.254.0 Serial0/0.101 2 ! ip access-list extended vpn-static1 permit gre host 192.168.2.1 host 192.168.8.1 ip access-list extended vpn-static2 permit gre host 192.168.2.1 host 192.168.9.1 ! voice-port 1/0/0 description 8-6666 ! dial-peer voice 10 voip destination-pattern 155467..... session target ipv4:10.251.0.1 # vpn18-2600-6 ip qos dscp ef media ip qos dscp af31 signaling no vad ! dial-peer voice 1 pots destination-pattern 15556786666 port 1/0/0 ! end Router Configuration—vpn18-2600-3 ! hostname vpn18-2600-3 ! boot system flash c2600-ik9s-mz.122-8.T ! interface Serial0/0 description link to vpn18-2600-4 bandwidth 2000 ip address 192.168.99.3 255.255.255.0 clockrate 2000000 ! interface FastEthernet0/1 description XTRA-NET ip address 10.254.1.42 255.255.255.0 ! interface Serial0/1 bandwidth 512 no ip address encapsulation frame-relay frame-relay traffic-shaping ! interface Serial0/1.100 point-to-point description Link to vpn18-2600-2 bandwidth 512 ip address 192.168.100.2 255.255.255.0 frame-relay interface-dlci 100 class ts-headend ! router eigrp 44 redistribute static passive-interface Serial0/1.100 network 10.0.0.0 network 192.168.99.0 network 192.168.100.0 default-metric 64000 20000 255 1 1500 no auto-summary eigrp log-neighbor-changes ! ! Create a /16 route to be advertised to vpn18-2600-6 ! ip route 192.168.0.0 255.255.0.0 Null0 ! ! Redistribute the primary path into EIGRP, so vpn18-2600-4 will learn ! an EIGRP external dynamically. ! ip route 192.168.2.0 255.255.255.0 Serial0/1.100 ! end Router Configuration—vpn18-2600-4 ! hostname vpn18-2600-4 ! boot system flash c2600-ik9s-mz.122-8.T ! interface Serial0/0 description link to vpn18-2600-3 bandwidth 2000 ip address 192.168.99.4 255.255.255.0 ! interface FastEthernet0/1 description XTRA-NET ip address 10.254.1.46 255.255.255.0 ! interface Serial0/1 bandwidth 512 no ip address encapsulation frame-relay frame-relay traffic-shaping ! interface Serial0/1.101 point-to-point description link to vpn18-2600-2 bandwidth 512 ip address 192.168.101.2 255.255.255.0 frame-relay interface-dlci 101 class ts-headend ! router eigrp 44 redistribute static passive-interface Serial0/1.101 network 10.0.0.0 network 192.168.99.0 network 192.168.101.0 default-metric 64000 20000 255 1 1500 no auto-summary eigrp log-neighbor-changes ! ! ! Create a /16 route to be advertised to vpn18-2600-6 ! ip route 192.168.0.0 255.255.0.0 Null0 ! ! Due to admin distance of 240, this route will only be placed ! in the routing table if the EIGRP external (admin distance 170) ! from vpn18-2600-3 is withdrawn. ! ip route 192.168.2.0 255.255.255.0 Serial0/1.101 240 ! end Router Configuration—vpn18-2600-8 ! hostname vpn18-2600-8 ! boot system flash c2600-ik9s-mz.122-8.T crypto isakmp key bigsecret address 192.168.2.1 ! crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac mode transport ! crypto map static-map local-address Loopback0 crypto map static-map 10 ipsec-isakmp set peer 192.168.2.1 set transform-set vpn-test match address vpn-static1 ! interface Loopback0 ip address 192.168.8.1 255.255.255.0 ! interface Tunnel0 ip address 10.0.100.2 255.255.255.0 tunnel source Loopback0 tunnel destination 192.168.2.1 # vpn18-2600-2 crypto map static-map ! interface FastEthernet0/1 description CORE ip address 10.254.0.48 255.255.255.0 ! interface Ethernet1/0 description XTRA-NET ip address 10.254.1.48 255.255.255.0 crypto map static-map ! router eigrp 44 redistribute static network 10.0.0.0 network 192.168.8.0 default-metric 64000 20000 255 1 1500 distribute-list 44 out Tunnel0 no auto-summary eigrp log-neighbor-changes ! ! Create a /8 route to be advertised to the remote sites ! ip route 10.0.0.0 255.0.0.0 Null0 ! ip access-list extended vpn-static1 permit gre host 192.168.8.1 host 192.168.2.1 ! ! Only need to send a /8 and /16 across the tunnel interface ! access-list 44 permit 10.0.0.0 access-list 44 permit 192.168.0.0 access-list 44 deny any ! end Router Configuration—vpn18-2600-9 ! hostname vpn18-2600-9 ! boot system flash c2600-ik9s-mz.122-8.T ! crypto isakmp key bigsecret address 192.168.2.1 ! crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac mode transport ! crypto map static-map local-address Loopback0 crypto map static-map 10 ipsec-isakmp set peer 192.168.2.1 set transform-set vpn-test match address vpn-static1 ! interface Loopback0 ip address 192.168.9.1 255.255.255.0 ! interface Tunnel1 ip address 10.0.101.2 255.255.255.0 delay 60000 tunnel source Loopback0 tunnel destination 192.168.2.1 # vpn18-2600-2 crypto map static-map ! interface FastEthernet0/1 description CORE ip address 10.254.0.49 255.255.255.0 ! interface Ethernet1/0 description XTRA-NET ip address 10.254.1.49 255.255.255.0 crypto map static-map ! router eigrp 44 redistribute static network 10.0.0.0 network 192.168.9.0 default-metric 64000 20000 255 1 1500 distribute-list 44 out Tunnel1 no auto-summary eigrp log-neighbor-changes ! ! Create a /8 route to be advertised to the remote sites ! ip route 10.0.0.0 255.0.0.0 Null0 ! ip access-list extended vpn-static1 permit gre host 192.168.9.1 host 192.168.2.1 ! ! Only need to send a /8 and /16 across the tunnel interface ! access-list 44 permit 10.0.0.0 access-list 44 permit 192.168.0.0 access-list 44 deny any ! end Router Configuration—vpn18-2600-10 ! hostname vpn18-2600-10 ! boot system flash c2600-ik9s-mz.122-8.T ! ! Example of matching on DSCP rather than IP Precedence ! class-map match-all call-setup description AF31 match ip dscp 26 class-map match-any mission-critical description cs2 and cs6 match ip dscp 16 match ip dscp 48 class-map match-all voice description EF match ip dscp 46 ! policy-map hdlc class voice priority 672 class call-setup bandwidth percent 5 class mission-critical bandwidth percent 22 class class-default fair-queue ! crypto isakmp key bigsecret address 192.168.6.1 ! crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac mode transport ! crypto map HDLC local-address Loopback0 crypto map HDLC 10 ipsec-isakmp set peer 192.168.6.1 set transform-set vpn-test match address hdlc-GRE ! interface Loopback0 ip address 192.168.10.1 255.255.255.0 ! interface Tunnel1 ip address 10.249.0.2 255.255.255.0 tunnel source Loopback0 tunnel destination 192.168.6.1 # vpn18-2600-6 crypto map HDLC ! interface Serial0/0 description to vpn-2600-6 se0/1 bandwidth 2000 ip address 192.168.65.2 255.255.255.0 service-policy output hdlc clockrate 2000000 crypto map HDLC ! interface FastEthernet0/1 description CORE ip address 10.254.0.50 255.255.255.0 ! router eigrp 44 passive-interface Serial0/0 network 10.0.0.0 network 192.168.10.0 distribute-list 44 out Tunnel1 no auto-summary eigrp log-neighbor-changes no eigrp log-neighbor-warnings ! ! Need to know how to reach the crypto peer vpn18-2600-6 ! ip route 192.168.6.0 255.255.255.0 Serial0/0 ! ip access-list extended hdlc-GRE permit gre host 192.168.10.1 host 192.168.6.1 ! ! Only need to send a /8 and /16 across the tunnel interface ! access-list 44 permit 10.0.0.0 access-list 44 permit 192.168.0.0 access-list 44 deny any ! end Router Configuration—vpn18-2600-6 ! hostname vpn18-2600-6 ! boot system flash c2600-ik9s-mz.122-8.T ! policy-map hdlc class voice priority 672 class call-setup bandwidth percent 5 class mission-critical bandwidth percent 22 class class-default fair-queue ! crypto isakmp key bigsecret address 192.168.10.1 ! crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac mode transport ! crypto map HDLC local-address Loopback0 crypto map HDLC 10 ipsec-isakmp set peer 192.168.10.1 set transform-set vpn-test match address hdlc-GRE ! interface Loopback0 description target for IPSec ip address 192.168.6.1 255.255.255.0 ! interface Loopback1 description target for VoIP dial-peers ip address 10.251.0.1 255.255.255.0 ! interface Tunnel1 ip address 10.249.0.1 255.255.255.0 ! ! Summarize up to the network core ! ip summary-address eigrp 44 10.248.0.0 255.248.0.0 5 qos pre-classify tunnel source Loopback0 tunnel destination 192.168.10.1 # vpn18-2600-10 crypto map HDLC ! interface Serial0/1 description to vpn-2600-10 se0/0 bandwidth 2000 ip address 192.168.65.1 255.255.255.0 service-policy output hdlc crypto map HDLC ! router eigrp 44 passive-interface Serial0/1 network 10.0.0.0 no auto-summary eigrp stub summary eigrp log-neighbor-changes no eigrp log-neighbor-warnings ! ! Need to know how to reach crypto peer vpn18-2600-10 ! ip route 192.168.10.0 255.255.255.0 Serial0/1 ! ip access-list extended hdlc-GRE permit gre host 192.168.6.1 host 192.168.10.1 voice-port 1/0/0 description 7-1111 ! dial-peer voice 10 voip destination-pattern 155567..... session target ipv4:10.0.3.1 ip qos dscp ef media ip qos dscp af31 signaling no vad ! dial-peer voice 1 pots destination-pattern 15546771111 port 1/0/0 ! end
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks

Table Of Contents

Configuration Supplement—Voice Module, EIGRP Stub, DSCP, HDLC

Voice Module Configuration

Router Configuration—vpn18-2600-2

Router Configuration—vpn18-2600-3

Router Configuration—vpn18-2600-4

Router Configuration—vpn18-2600-8

Router Configuration—vpn18-2600-9

Router Configuration—vpn18-2600-10

Router Configuration—vpn18-2600-6
