Network Diagram Scalability Testbed and Configuration Files

This appendix contains configurations that were used during a V3PN performance and scalability evaluation based on the network illustrated in Figure A-1. Specific configurations address the following devices and supporting networking functions:

•Head-end VPN Router

•Branch VPN Router—Frame Relay

•Branch VPN Router—HDLC

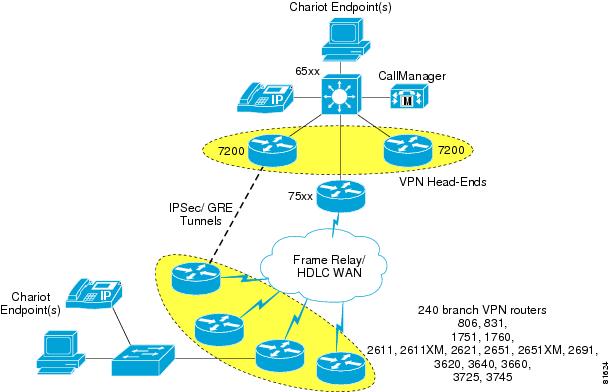

Figure A-1 V3PN Solution Testbed Diagram

Head-end VPN Router

The configuration below was taken from the Cisco 7200 VPN Router being used as a head-end. In this configuration, QoS was enabled on a separate WAN aggregation device, not on the same router terminating VPN tunnels.

As the configuration is extremely large in its entirety (due to the repetition involved to configure all 244 branches being terminated), repetitive commands were removed and noted.

!

version 12.1

no service pad

service timestamps debug datetime msec localtime show-timezone

service timestamps log datetime msec localtime show-timezone

no service password-encryption

service compress-config

!

hostname vpn3-7200-2

!

boot system flash disk0:c7200-ik2s-mz.121-9.E.bin

logging buffered 65535 debugging

enable password cisco

!

clock timezone EST -5

clock summer-time EDT recurring

clock calendar-valid

ip subnet-zero

ip cef

!

no ip domain-lookup

!

ip ssh time-out 120

ip ssh authentication-retries 3

!

xsm

xsm privilege configuration level 15

xsm privilege monitor level 1

xsm vdm

xsm edm

no xsm history vdm

no xsm history edm

!

!

crypto isakmp policy 1

 encr 3des

 authentication pre-share

 group 2

crypto isakmp key bigsecret address 192.168.244.2

crypto isakmp key bigsecret address 192.168.242.2

.

<repetition removed>

.

crypto isakmp key bigsecret address 192.168.1.2

!

!

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

crypto mib ipsec flowmib history tunnel size 200

crypto mib ipsec flowmib history failure size 200

!

crypto map static-map local-address FastEthernet1/0

crypto map static-map 1 ipsec-isakmp

 set peer 192.168.1.2

 set security-association lifetime seconds 86400

 set transform-set vpn-test

 set pfs group2

 match address vpn-static1

crypto map static-map 2 ipsec-isakmp

 set peer 192.168.2.2

 set security-association lifetime seconds 86400

set transform-set vpn-test

 set pfs group2

 match address vpn-static2

.

<repetition removed>

.

crypto map static-map 244 ipsec-isakmp

 set peer 192.168.244.2

 set security-association lifetime seconds 86400

 set transform-set vpn-test

 set pfs group2

 match address vpn-static244

!

controller ISA 2/1

!

buffers small permanent 2048

buffers small max-free 10240

buffers small min-free 512

buffers middle permanent 2048

buffers middle max-free 10240

buffers middle min-free 512

buffers big permanent 2048

buffers big max-free 10240

buffers big min-free 512

buffers verybig permanent 2048

buffers verybig max-free 10240

buffers verybig min-free 512

buffers large permanent 2048

buffers large max-free 10240

buffers large min-free 512

buffers huge permanent 128

buffers huge max-free 512

buffers huge min-free 32

!

!

interface Loopback0

 description Loopback0

 ip address 10.57.2.255 255.255.255.255

!

interface Tunnel1

 description vpn6-2600-1

 ip address 10.62.1.197 255.255.255.252

 ip summary-address eigrp 1 10.0.0.0 255.0.0.0 5

 load-interval 30

 delay 60000

 tunnel source 192.168.252.1

 tunnel destination 192.168.1.2

 crypto map static-map

!

interface Tunnel2

 description vpn6-2600-2

 ip address 10.62.2.197 255.255.255.252

 ip summary-address eigrp 1 10.0.0.0 255.0.0.0 5

 load-interval 30

 delay 60000

 tunnel source 192.168.252.1

 tunnel destination 192.168.2.2

 crypto map static-map

.

<repetition removed>

.

interface Tunnel244

 description vpn17-4200-2

 ip address 10.63.130.193 255.255.255.252

 ip summary-address eigrp 1 10.0.0.0 255.0.0.0 5

 load-interval 30

 tunnel source 192.168.252.1

 tunnel destination 192.168.244.2

 crypto map static-map

!

interface FastEthernet0/0

 description FastEthernet0/0

 ip address 172.26.156.18 255.255.254.0

 load-interval 30

 duplex full

!

interface FastEthernet1/0

 description FastEthernet1/0

 ip address 192.168.252.1 255.255.255.0

 load-interval 30

 duplex full

 speed 100

 crypto map static-map

!

interface FastEthernet1/1

 description FastEthernet1/1

 ip address 10.57.2.1 255.255.255.252

 load-interval 30

 duplex full

 speed 100

!

interface Hssi3/0

 ip address 192.168.253.10 255.255.255.252

 shutdown

 hssi internal-clock

 serial restart-delay 0

!

router eigrp 1

 passive-interface FastEthernet0/0

 passive-interface FastEthernet1/0

 network 10.0.0.0

 no auto-summary

 eigrp log-neighbor-changes

!

ip classless

ip route 0.0.0.0 0.0.0.0 192.168.252.2

ip route 172.26.0.0 255.255.0.0 172.26.156.1

no ip http server

!

!

ip access-list extended vpn-static1

 permit gre host 192.168.252.1 host 192.168.1.2

ip access-list extended vpn-static10

 permit gre host 192.168.252.1 host 192.168.10.2

ip access-list extended vpn-static100

 permit gre host 192.168.252.1 host 192.168.100.2

.

<repetition removed>

.

ip access-list extended vpn-static244

 permit gre host 192.168.252.1 host 192.168.244.2

logging trap debugging

logging 172.26.131.82

snmp-server community private RW

snmp-server community public RO

!

line con 0

 exec-timeout 0 0

 password cisco

 login

line aux 0

line vty 0 4

 exec-timeout 0 0

 password cisco

 login

line vty 5 15

 login

!

ntp clock-period 17179932

ntp server 172.26.156.1

end

!

Branch VPN Router—Frame Relay

The configuration shown below is from a Cisco 2651 VPN Router that was configured for V3PN. The Layer-2 technology used in this case was Frame Relay at a 1280 Kbps link speed.

!

! No configuration change since last restart

!

version 12.2

service timestamps debug datetime msec localtime show-timezone

service timestamps log datetime msec localtime show-timezone

no service password-encryption

!

hostname vpn12-2600-1

!

logging buffered 32768 debugging

enable password cisco

!

clock timezone EST -5

clock summer-time EDT recurring

ip subnet-zero

ip cef

!

no ip domain-lookup

!

ip audit notify log

ip audit po max-events 100

!

class-map match-all call-setup

  match ip precedence 3

class-map match-any mission-critical

  match ip precedence 2

  match ip precedence 6

class-map match-all voice

  match ip precedence 5

!

policy-map 1280kb

  class call-setup

   bandwidth percent 5

  class mission-critical

   bandwidth percent 22

  class voice

    priority 392

  class class-default

   fair-queue

!

crypto isakmp policy 1

 encr 3des

 authentication pre-share

 group 2

crypto isakmp key bigsecret address 192.168.252.1

crypto isakmp key bigsecret address 192.168.251.1

!

!

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

!

crypto map static-map local-address Serial0/0.1

crypto map static-map 10 ipsec-isakmp

 set peer 192.168.252.1

 set transform-set vpn-test

 match address vpn-static1

crypto map static-map 20 ipsec-isakmp

 set peer 192.168.251.1

 set transform-set vpn-test

 match address vpn-static2

!

!

fax interface-type fax-mail

mta receive maximum-recipients 0

!

!

interface Loopback0

 ip address 10.63.21.254 255.255.255.255

!

interface Tunnel0

 description Tunnel0

 ip address 10.63.21.194 255.255.255.252

 ip summary-address eigrp 1 10.63.21.0 255.255.255.0 5

 load-interval 30

 qos pre-classify

 tunnel source 192.168.181.2

 tunnel destination 192.168.252.1

 crypto map static-map

!

interface Tunnel1

 description Tunnel1

 ip address 10.63.21.198 255.255.255.252

 ip summary-address eigrp 1 10.63.21.0 255.255.255.0 5

 load-interval 30

 delay 60000

 qos pre-classify

 tunnel source 192.168.181.2

 tunnel destination 192.168.251.1

 crypto map static-map

!

!

interface FastEthernet0/0

 description FastEthernet0/0

 ip address 172.26.157.181 255.255.254.0

 no ip proxy-arp

 no ip mroute-cache

load-interval 30

 speed auto

 half-duplex

!

interface Serial0/0

 description Serial0/0

 bandwidth 1280

 no ip address

 encapsulation frame-relay

 no ip mroute-cache

 logging event subif-link-status

 logging event dlci-status-change

 load-interval 30

 no fair-queue

 frame-relay traffic-shaping

!

interface Serial0/0.1 point-to-point

 description Serial0/0.1

 bandwidth 1280

 ip address 192.168.181.2 255.255.255.252

 no ip mroute-cache

 frame-relay interface-dlci 101

  class 1280kb

 crypto map static-map

!

interface FastEthernet0/1

 description FastEthernet0/1

 ip address 10.63.21.1 255.255.255.128

 no ip mroute-cache

 load-interval 30

 speed 10

 full-duplex

!

router eigrp 1

 passive-interface Serial0/0

 passive-interface Serial0/0.1

 passive-interface FastEthernet0/1

 network 10.0.0.0

 no auto-summary

 eigrp log-neighbor-changes

!

ip default-gateway 192.168.181.1

ip classless

ip route 0.0.0.0 0.0.0.0 192.168.181.1

ip route 10.63.21.200 255.255.255.255 10.63.21.2

no ip http server

ip pim bidir-enable

!

ip access-list extended vpn-static1

 permit gre host 192.168.181.2 host 192.168.252.1

ip access-list extended vpn-static2

 permit gre host 192.168.181.2 host 192.168.251.1

!

map-class frame-relay 1280kb

 no frame-relay adaptive-shaping

 frame-relay cir 1216000

 frame-relay bc 12160

 frame-relay be 0

 frame-relay mincir 1216000

 service-policy output 1280kb

!

snmp-server engineID local 000000090200000628DBD3E0

snmp-server community private RW

snmp-server community public RO

call rsvp-sync

!

mgcp profile default

!

dial-peer cor custom

!

line con 0

 exec-timeout 0 0

line aux 0

line vty 0 4

 exec-timeout 0 0

 password cisco

 login

 length 30

line vty 5 15

 login

!

ntp clock-period 17208540

ntp server 172.26.156.1

!

end

!

Branch VPN Router—HDLC

The configuration shown below is from a Cisco 1751 VPN Router that was configured for V3PN. The Layer-2 technology used in this case was HDLC at an E1 link speed.

!

! No configuration change since last restart

!

version 12.2

service timestamps debug datetime msec localtime show-timezone

service timestamps log datetime msec localtime show-timezone

no service password-encryption

!

hostname vpn17-1700-1

!

logging buffered 65535 debugging

enable password cisco

!

clock timezone EST -5

clock summer-time EDT recurring

mmi polling-interval 60

no mmi auto-configure

no mmi pvc

mmi snmp-timeout 180

ip subnet-zero

!

!

no ip domain-lookup

!

ip audit notify log

ip audit po max-events 100

ip cef

ip ssh time-out 120

ip ssh authentication-retries 3

!

class-map match-all call-setup

  match ip precedence 3

class-map match-any mission-critical

  match ip precedence 2

  match ip precedence 6

class-map match-all voice

  match ip precedence 5

!

!

policy-map 2048kb

  class mission-critical

   bandwidth percent 22

  class voice

    priority 672

  class call-setup

   bandwidth percent 5

  class class-default

   fair-queue

!

crypto isakmp policy 1

 encr 3des

 authentication pre-share

 group 2

crypto isakmp key bigsecret address 192.168.251.1

crypto isakmp key bigsecret address 192.168.252.1

!

!

crypto ipsec transform-set vpn-test esp-3des esp-sha-hmac

!

crypto map static-map local-address Serial1/0

crypto map static-map 10 ipsec-isakmp

 set peer 192.168.251.1

 set transform-set vpn-test

 match address vpn-static1

crypto map static-map 20 ipsec-isakmp

 set peer 192.168.252.1

 set transform-set vpn-test

 match address vpn-static2

!

!

interface Loopback0

 ip address 10.63.100.254 255.255.255.255

!

interface Tunnel0

 description Tunnel0

 ip address 10.63.100.198 255.255.255.252

 ip summary-address eigrp 1 10.63.100.0 255.255.255.0 5

 load-interval 30

 delay 60000

 qos pre-classify

 tunnel source 192.168.236.2

 tunnel destination 192.168.251.1

 crypto map static-map

!

!

interface Tunnel1

 description Tunnel1

 ip address 10.63.100.194 255.255.255.252

 ip summary-address eigrp 1 10.63.100.0 255.255.255.0 5

 load-interval 30

 qos pre-classify

 tunnel source 192.168.236.2

 tunnel destination 192.168.252.1

 crypto map static-map

!

interface Ethernet0/0

 description FlashNet

 ip address 172.26.157.253 255.255.254.0

 half-duplex

!

interface FastEthernet0/0

 description FastEthernet0/0

 ip address 10.63.100.1 255.255.255.128

 load-interval 30

 speed 100

 full-duplex

!

interface Serial1/0

 description Serial1/0

 bandwidth 2048

 ip address 192.168.236.2 255.255.255.252

 no ip mroute-cache

 load-interval 30

 service-policy output 2048kb

 crypto map static-map

!

router eigrp 1

 network 10.0.0.0

 no auto-summary

 eigrp log-neighbor-changes

!

ip classless

ip route 0.0.0.0 0.0.0.0 192.168.236.1

ip route 172.18.0.0 255.255.0.0 172.26.156.1

ip route 172.26.0.0 255.255.0.0 172.26.156.1

no ip http server

ip pim bidir-enable

!

!

ip access-list extended vpn-static1

 permit gre host 192.168.236.2 host 192.168.251.1

ip access-list extended vpn-static2

 permit gre host 192.168.236.2 host 192.168.252.1

!

!

snmp-server engineID local 0000000902000003E38D8C20

snmp-server community private RW

snmp-server community public RO

!

line con 0

 exec-timeout 0 0

line aux 0

line vty 0 4

 exec-timeout 0 0

 password cisco

 login

!

no scheduler allocate

ntp clock-period 17180765

ntp server 172.26.156.1

end

!
