Hoot and Holler over V3PN Configuration Example

This document provides a configuration example that illustrates a basic multicast-based voice application over a Cisco Virtual Private Network (VPN).

Contents

•Introduction

•Prerequisites

•Configure

•Verify

•Troubleshoot

•Related Information

Introduction

This document provides a configuration example for Cisco Voice and Video over VPN (V3PN). The voice application used in this example is Hoot and Holler, which is typically used in trading floor financial institutions for communications to branch offices. The configuration scenario emphasizes implementation of the quality of service (QoS) and VPN capabilities; the configuration has the following characteristics:

•All traffic between two client branch sites and headquarters passes through a VPN of IPSec- encrypted tunnels.

•This implementation of Cisco V3PN features the use of Protocol Independent Multicast (PIM) in Sparse Mode and Auto-RP. The routing protocol used to transport traffic is Open Shortest Path First (OSPF).

•The techniques used include Internet Key Exchange/Dead Peer Detection (IKE/DPD), split tunneling, and group policy on the server with Domain Name System (DNS) information, Windows Information Name Service (WINS) information, domain name, and an IP address pool for clients.

•Headquarters uses a Cisco 3800 series router with an ATM interface.

•One branch uses a Cisco 2800 series router and employs a serial interface, while another branch with a Cisco 2800 Series router uses a Symmetrical High-Speed Digital Subscriber Line (SHDSL) interface.

•The various show commands demonstrate configurations for the Internet Security Association Key Management Protocol (ISAKMP) and IP Security (IPSec) security associations (SA) on the concentrator, as well as status on the clients.

Prerequisites

The following sections provide information important to understand this configuration example. Read these sections before you continue with the configuration example:

•Conventions

•Requirements

•Related Products

•Components Used

Requirements

There are no specific requirements for this document.

Components Used

The information in this document is based on these software and hardware versions:

•At Headquarters, a Cisco 3845 router with a Cisco CallManager cluster, with ATM access to the Internet

•At Branch 1, a Cisco 2801 router with a WIC-SHDSL-V2 interface card installed, and with DSL access to the Internet

•At Branch 2, a Cisco 2811 router with a serial interface connection to the Internet

•Cisco IOS Release 12.3(11)T or later releases

•Advanced Enterprise Services feature set

The information presented in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, make sure that you understand the potential impact of any command.

Related Products

This configuration can also be used with the following hardware and software:

•Cisco 2800 series routers

•Cisco 3800 series routers

•For Cisco 2800 series routers, Cisco IOS Release 12.3(8)T4 or later releases. For Cisco 3800 series routers, Cisco IOS Release 12.3(11)T and later releases.

Conventions

For information on document conventions, see the Cisco Technical Tips Conventions.

Configure

In this section, you are presented with the information to configure the features described in this document.

Note For additional information on the commands used in this document, use the Cisco IOS Command Lookup tool. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Configuration Tips

•Make sure that the tunnels work before you apply the crypto maps.

•Apply IPSec crypto maps to both the tunnel interface and the physical interface.

Network Diagram

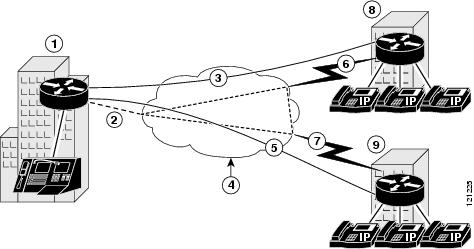

This document uses the network setup shown in the diagram below.

Following are the callout terms and definitions for the diagram, identified by number:


1	Headquarters location	6	DSL link from the Branch 1 router to the Internet
2	ATM link from the Headquarters router to the Internet	7	Serial link from the Branch 2 router to the Internet
3	VPN tunnel through the Internet to Branch 1	8	Branch 1 location
4	The Internet, as represented by the cloud	9	Branch 2 location
5	VPN tunnel through the Internet to Branch 2

The Headquarters location (callout 1) uses a Cisco 3845 router with these characteristics:

•ATM access to the Internet

•Operating in a Cisco CallManager cluster

•Public IP address: 10.32.152.26

•Private IP address pool: 192.168.1.0/24

The Branch 1 location (callout 8) uses a Cisco 2801 router with these characteristics:

•DSL access to the Internet

•WIC-SHDSL-V2 interface card installed

•Public IP address: 10.32.153.32

•Private IP address pool: 192.168.2.0/24

The Branch 2 location (callout 9) uses a Cisco 2811 router with these characteristics:

•Serial access to the Internet

•Public IP address: 10.32.150.46/30

•Private IP address pool: 192.168.3.0/24

Configurations

This document uses the following configurations:

•Headquarters Office Configuration (Cisco 3845 Router)

•Branch 1 Router Configuration (Cisco 2801 Router)

•Branch 2 Router Configuration (Cisco 2811 Router)

Headquarters Office Configuration (Cisco 3845 Router)

HUB-R1# show running-config

Building configuration...

Current configuration : 9385 bytes

version 12.3

no service pad

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

hostname HUB-R1

boot-start-marker

boot-end-marker

enable secret 5 $1$t8oN$hXmGodPh8ZM/ka6k/9aO51

username cisco secret 5 $1$cfjP$kKpBWe3pfKXfpK0RIqX/E.

no network-clock-participate slot 1

no network-clock-participate slot 2

no network-clock-participate slot 3

no network-clock-participate slot 4

no network-clock-participate wic 0

no network-clock-participate wic 1

no network-clock-participate wic 2

no network-clock-participate wic 3

no network-clock-participate aim 0

no network-clock-participate aim 1

aaa new-model

! ENABLE AAA AND USE LOCAL AUTHENTICATION FOR VPN CONNECTIONS

aaa authentication login USERLIST local

aaa session-id common

ip subnet-zero

ip cef

! CREATE DHCP POOL FOR INTERNAL CLIENTS ON VLAN 10

ip dhcp excluded-address 192.168.1.1

ip dhcp pool LOCAL

   network 192.168.1.0 255.255.255.0

   default-router 192.168.1.1

no ip domain lookup

ip domain name cisco.com

! ENABLE MULTICAST ROUTING

ip multicast-routing

ip ids po max-events 100

no ftp-server write-enable

voice-card 0

 no dspfarm

voice class permanent 1

 signal timing oos timeout 65535

 signal keepalive disabled

 signal sequence oos no-action

controller T1 0/2/0

 framing sf

 linecode ami

controller T1 0/2/1

 framing sf

 linecode ami

! CLASSIFY DIFFERENT QOS TRAFFIC, SETTING IP PRECEDENCE AND DSCP

class-map match-all data

 match ip precedence 2

class-map match-all control-traffic

 match ip dscp af31

class-map match-all video

 match ip precedence 4

class-map match-all voice

 match ip dscp ef

! ALLOCATE AVAILABLE BANDWIDTH FOR EACH QOS CLASSIFICATION, DEPENDING ON EXPECTED NEED

! FOR EXAMPLE, DSCP VALUE EF (CLASS VOICE) WILL BE GIVEN 35% OF THE BANDWIDTH

policy-map LLQ

 class control-traffic

  bandwidth percent 5

 class voice

  priority percent 35

 class video

  bandwidth percent 15

 class data

  bandwidth percent 20

 class class-default

  fair-queue

! SET THE IKE POLICY TO USE 3DES

crypto isakmp policy 10

 encr 3des

 authentication pre-share

 group 2

!SPECIFY THAT ISAKMP CLIENTS (SPOKE ROUTERS) WILL NOT NEED TO USE XAUTH (USERNAME AND
PASSWORD) WHEN CONNECTING

crypto isakmp key cisco address 10.32.150.46 no-xauth

crypto isakmp key cisco address 10.32.153.34 no-xauth

crypto ipsec transform-set TRANSFORM_1 esp-3des esp-sha-hmac

! DEFINE THE REMOTE SPOKES, THEIR IP ADDRESSES AND ANY POLICIES THAT NEED TO BE
IMPLEMENTED

crypto map INT_CM 1 ipsec-isakmp

 description === Peer device = Branch-2 ===

 set peer 10.32.150.46

 set security-association lifetime kilobytes 530000000

 set security-association lifetime seconds 14400

 set transform-set TRANSFORM_1

 match address IPSEC_ACL_1

crypto map INT_CM 2 ipsec-isakmp

 description === Peer device = Branch-1 ===

 set peer 10.32.153.34

 set security-association lifetime kilobytes 530000000

 set security-association lifetime seconds 14400

 set transform-set TRANSFORM_1

 match address IPSEC_ACL_2

! CREATE TUNNELS TO THE SPOKE ROUTERS. THE MTU IS LOWERED TO ALLOW THE GRE AND IP-SEC
HEADER

! PIM SD IS ENABLED SO AS TO ALLOW MULTICAST, AND THE TUNNEL SOURCE AND DESTINATION ARE
SPECIFIED

interface Tunnel0

 description === Peer device = Branch-2 ===

 bandwidth 10000

 ip unnumbered Vlan10

 ip mtu 1420

 ip pim sparse-dense-mode

 qos pre-classify

 tunnel source ATM1/0

 tunnel destination 10.32.150.46

 crypto map INT_CM

interface Tunnel1

 description === Peer device = Branch-1 ===

 bandwidth 10000

 ip unnumbered Vlan10

 ip mtu 1420

 ip pim sparse-dense-mode

 qos pre-classify

 tunnel source ATM1/0

 tunnel destination 10.32.153.34

 crypto map INT_CM

! THIS LOOPBACK INTERFACE ACTS AS THE MULTICAST RP

interface Loopback100

 ip address 192.168.4.1 255.255.255.255

 ip pim sparse-dense-mode

! THIS VIF INTERFACE IS USED AS THE MULTICAST SOURCE FOR THE VOICE ENDPOINT

interface Vif1

 ip address 192.168.6.1 255.255.255.0

 ip pim sparse-dense-mode

! NOT USED

interface GigabitEthernet0/0

 no ip address

 shutdown

 duplex auto

 speed auto

 media-type rj45

 no negotiation auto

! NOT USED

interface GigabitEthernet0/1

 no ip address

 shutdown

 duplex auto

 speed auto

 media-type rj45

 no negotiation auto

! INTERFACE CONNECTING TO THE PUBLIC NETWORK IN OUR SCENARIO

! ATM PVC 10/100 IS USED IN THIS EXAMPLE. THE PREVIOUSLY DEFINED LLQ QOS POLICY IS USED
HERE

interface ATM1/0

 description === Public interface ===

 bandwidth 155000

 ip address 10.32.152.26 255.255.255.252

 ip ospf network point-to-point

 no atm ilmi-keepalive

 crypto map INT_CM

 pvc 10/100

  protocol ip 10.32.152.25 broadcast

  vbr-rt 100000 100000

  service-policy output LLQ

! PLACE ALL SWITCHPORT INTERFACES INTO VLAN 10

interface FastEthernet4/0

 switchport access vlan 10

 no ip address

interface FastEthernet4/1

 switchport access vlan 10

 no ip address

! ... REDUNDANT FAST ETHERNET CONFIGURATION OMITTED.

interface FastEthernet4/15

 switchport access vlan 10

 no ip address

interface GigabitEthernet4/0

 no ip address

 shutdown

interface Vlan1

 no ip address

! INTERFACE FOR CONNECTING INTERNAL HOSTS.

interface Vlan10

 description === Private interface ===

 ip address 192.168.1.1 255.255.255.0

 ip pim sparse-dense-mode

! ENABLE ROUTING FOR ALL RELEVANT NETWORKS (INTERNAL USER SUBNET, LOOPBACK FOR RP AND VIF
FOR VOICE)

router ospf 1

 log-adjacency-changes

 network 192.168.1.0 0.0.0.255 area 0

 network 192.168.4.1 0.0.0.0 area 0

 network 192.168.6.0 0.0.0.255 area 0

! DEFINE STATIC ROUTES SO THAT THE REMOTE NETWORKS STAY IN THE ROUTING TABLE, EVEN IF
CONNECTION IS LOST

! THIS PREVENTS ROUTING TABLE FLAPS

ip classless

ip route 0.0.0.0 0.0.0.0 10.32.152.25

ip route 192.168.2.0 255.255.255.0 Null0 249

ip route 192.168.3.0 255.255.255.0 Null0 249

ip http server

no ip http secure-server

! CONFIGURE AUTOMATIC DISCOVERY OF GROUP-TO-RENDEZVOUS POINT (AUTO-RP)

ip pim send-rp-announce Loopback100 scope 5

ip pim send-rp-discovery Loopback100 scope 5

! SPECIFY TRAFFIC TO BE ENCRYPTED (HERE IT'S ALL GRE TRAFFIC)

ip access-list extended IPSEC_ACL_1

 permit gre host 10.32.152.26 host 10.32.150.46

ip access-list extended IPSEC_ACL_2

 permit gre host 10.32.152.26 host 10.32.153.34

control-plane

!CONFIGURE THE VOICE PORT AND LINK IT TO DIAL-PEER 100. THIS CONNECTION IS PERMANENT. THE
VOICE-CLASS WAS DEFINED EARLIER IN THE CONFIGURATION, AND ESTABLISHES AN 'ALWAYS ON'
CONNECTION

voice-port 0/1/0

 voice-class permanent 1

 timeouts call-disconnect 3

 connection trunk 100

voice-port 0/1/1

!THIS DIAL-PEER CONNECTS THE VOICE PORT TO MULTICAST GROUP 239.168.1.100. g711 CODEC (64k)
IS USED, AND VAD IS ENABLED

dial-peer voice 100 voip

 destination-pattern 100

 session protocol multicast

 session target ipv4:239.168.1.100:19890

 codec g711ulaw

 vad aggressive

line con 0

 stopbits 1

line aux 0

 stopbits 1

line vty 0 4

 login authentication USERLIST

end

Branch 1 Router Configuration (Cisco 2801 Router)

Branch-1# show running-config

Building configuration...

Current configuration : 6300 bytes

! Last configuration change at 03:11:55 UTC Sat Apr 17 2004

! NVRAM config last updated at 02:03:50 UTC Sat Apr 17 2004

version 12.3

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

hostname Branch-1

boot-start-marker

boot-end-marker

logging buffered 4096 informational

enable secret 5 $1$b7.Q$Y2x1UXyRifSStbkR/YyrP.

username cisco password 7 0519050B234D5C0617

memory-size iomem 20

no network-clock-participate wic 1

no network-clock-participate wic 2

no network-clock-participate wic 3

no network-clock-participate wic 4

no network-clock-participate wic 5

no network-clock-participate wic 6

no network-clock-participate wic 7

no network-clock-participate wic 8

no network-clock-participate aim 0

no network-clock-participate aim 1

mmi polling-interval 60

no mmi auto-configure

no mmi pvc

mmi snmp-timeout 180

aaa new-model

aaa authentication login USERLIST local

aaa session-id common

ip subnet-zero

ip cef

ip dhcp excluded-address 192.168.2.1

ip dhcp pool LOCAL

   network 192.168.2.0 255.255.255.0

   default-router 192.168.2.1

no ip domain lookup

ip domain name cisco.com

ip multicast-routing

ip sap cache-timeout 30

ip ssh time-out 30

ip ids po max-events 100

no ftp-server write-enable

voice-card 0

no virtual-template subinterface

voice class permanent 1

 signal timing oos timeout 65535

 signal keepalive disabled

 signal sequence oos no-action

controller T1 3/0

 framing sf

 linecode ami

controller T1 3/1

 framing sf

 linecode ami

! CLASSIFY DIFFERENT QOS TRAFFIC, SETTING IP PRECEDENCE AND DSCP

class-map match-all data

 match ip precedence 2

class-map match-all control-traffic

 match ip dscp af31

class-map match-all video

 match ip precedence 4

class-map match-all voice

 match ip dscp ef

! ALLOCATE AVAILABLE BANDWIDTH FOR EACH QOS CLASSIFICATION, DEPENDING ON EXPECTED NEED

! FOR EXAMPLE, DSCP VALUE EF (CLASS VOICE) WILL BE GIVEN 35% OF THE BANDWIDTH

policy-map LLQ

 class control-traffic

  bandwidth percent 5

 class voice

  priority percent 35

 class video

  bandwidth percent 15

 class data

  bandwidth percent 20

 class class-default

  fair-queue

! SET THE IKE POLICY TO USE 3DES

crypto isakmp policy 10

 encr 3des

 authentication pre-share

 group 2

crypto isakmp key cisco address 10.32.152.26 no-xauth

crypto ipsec transform-set TRANSFORM_1 esp-3des esp-sha-hmac

! SPECIFY REMOTE PEER

crypto map INT_CM 1 ipsec-isakmp

 description === Peer device = HUB-R1 ===

 set peer 10.32.152.26

 set security-association lifetime kilobytes 530000000

 set security-association lifetime seconds 14400

 set transform-set TRANSFORM_1

 match address IPSEC_ACL_1

! CREATE TUNNEL TO THE HUB ROUTERS. THE MTU IS LOWERED TO ALLOW THE GRE AND IPSEC HEADER

! PIM SD IS ENABLED SO AS TO ALLOW MULTICAST, AND THE TUNNEL SOURCE AND DESTINATION ARE
SPECIFIED

interface Tunnel0

 description === Peer device = HUB-R1 ===

 bandwidth 10000

 ip unnumbered FastEthernet0/0

 ip mtu 1420

 ip pim sparse-dense-mode

 qos pre-classify

 tunnel source 10.32.153.34

 tunnel destination 10.32.152.26

 crypto map INT_CM

! VIF INTERFACE FOR MULTICAST SOURCE ADDRESS (USED FOR VOICE MULTICAST)

interface Vif1

 ip address 192.168.7.1 255.255.255.0

 ip pim sparse-dense-mode

interface FastEthernet0/0

 description === Private interface ===

 ip address 192.168.2.1 255.255.255.0

 ip pim sparse-dense-mode

 duplex auto

 speed auto

interface FastEthernet0/1

 no ip address

 shutdown

 duplex auto

 speed auto

! DSL INTERFACE CONNECTING TO THE PUBLIC NETWORK IN OUR SCENARIO

! ATM PVC 8/35 IS USED IN THIS EXAMPLE.

interface ATM2/0

 no ip address

 no atm ilmi-keepalive

 dsl equipment-type CPE

 dsl operating-mode GSHDSL symmetric annex A

 dsl linerate AUTO

 pvc 0/35

  encapsulation aal5snap

 pvc 8/35

  vbr-nrt 2000 1000

  encapsulation aal5mux ppp Virtual-Template1

interface FastEthernet4/0

 no ip address

interface FastEthernet4/1

 no ip address

interface FastEthernet4/2

 no ip address

interface FastEthernet4/3

 no ip address

! LOGICAL INTERFACE FOR DSL LINK. THE PREVIOUSLY DEFINED LLQ QOS POLICY IS USED HERE

! PPP MULTILINK IS ENABLED SO INTERFACE CAN SUPPORT QOS

interface Virtual-Template1

 description === Public interface ===

 ip address 10.32.153.34 255.255.255.252

 service-policy output LLQ

 ppp multilink

 ppp multilink fragment delay 8

 ppp multilink interleave

 crypto map INT_CM

interface Vlan1

 no ip address

router ospf 1

 log-adjacency-changes

 network 192.168.2.0 0.0.0.255 area 0

 network 192.168.7.0 0.0.0.255 area 0

ip classless

ip route 0.0.0.0 0.0.0.0 10.32.153.33

ip route 192.168.1.0 255.255.255.0 Null0 249

ip http server

no ip http secure-server

! SPECIFY TRAFFIC TO BE ENCRYPTED (HERE IT'S ALL GRE TRAFFIC)

ip access-list extended IPSEC_ACL_1

 permit gre host 10.32.153.34 host 10.32.152.26

control-plane

! CONFIGURE THE VOICE PORT AND LINK IT TO DIAL-PEER 100. THIS CONNECTION IS PERMANENT. THE
VOICE-CLASS WAS DEFINED EARLIER IN

! THE CONFIGURATION, AND ESTABLISHES AN 'ALWAYS ON' CONNECTION

voice-port 1/0

 voice-class permanent 1

 timeouts call-disconnect 3

 connection trunk 100

voice-port 1/1

voice-port 1/2

voice-port 1/3

!THIS DIAL-PEER CONNECTS THE VOICE PORT TO MULTICAST GROUP 239.168.1.100. g711 CODEC (64k)
IS USED, AND VAD IS ENABLED

dial-peer voice 100 voip

 destination-pattern 100

 session protocol multicast

 session target ipv4:239.168.1.100:19890

 codec g711ulaw

 vad aggressive

line con 0

line aux 0

line vty 0 4

 login authentication USERLIST

end

Branch 2 Router Configuration (Cisco 2811 Router)

Branch-2# show running-config

Building configuration...

Current configuration : 5041 bytes

version 12.3

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

hostname Branch-2

boot-start-marker

boot-end-marker

enable secret 5 $1$9BB/$KP4mHUWzUxzpDEPg5s7ow/

username cisco password 7 10481A170C07

memory-size iomem 25

mmi polling-interval 60

no mmi auto-configure

no mmi pvc

mmi snmp-timeout 180

aaa new-model

aaa authentication login USERLIST local

aaa session-id common

ip subnet-zero

ip cef

ip dhcp excluded-address 192.168.3.1

ip dhcp pool LOCAL

   network 192.168.3.0 255.255.255.0

   default-router 192.168.3.1

no ip domain lookup

ip domain name cisco.com

ip multicast-routing

ip audit notify log

ip audit po max-events 100

no ftp-server write-enable

voice-card 0

 no dspfarm

voice class permanent 1

 signal timing oos timeout 65535

 signal keepalive disabled

 signal sequence oos no-action

crypto isakmp policy 10

 encr 3des

 authentication pre-share

 group 2

crypto isakmp key cisco address 10.32.152.26 no-xauth

crypto ipsec transform-set TRANSFORM_1 esp-3des esp-sha-hmac

crypto map INT_CM 1 ipsec-isakmp

 description === Peer device = HUB-R1 ===

 set peer 10.32.152.26

 set security-association lifetime kilobytes 530000000

 set security-association lifetime seconds 14400

 set transform-set TRANSFORM_1

 match address IPSEC_ACL_1

class-map match-all data

 match ip precedence 2

class-map match-all control-traffic

 match ip dscp af31

class-map match-all video

 match ip precedence 4

class-map match-all voice

 match ip dscp ef

policy-map LLQ

 class control-traffic

  bandwidth percent 5

 class voice

  priority percent 35

 class video

  bandwidth percent 15

 class data

  bandwidth percent 20

 class class-default

  fair-queue

interface Tunnel0

 description === Peer device = HUB-R1 ===

 bandwidth 10000

 ip unnumbered FastEthernet0/0

 ip mtu 1420

 ip pim sparse-dense-mode

 qos pre-classify

 tunnel source Serial0/0/0

 tunnel destination 10.32.152.26

 crypto map INT_CM

interface Vif1

 ip address 192.168.5.1 255.255.255.0

 ip pim sparse-dense-mode

interface FastEthernet0/0

 description === Private interface ===

 ip address 192.168.3.1 255.255.255.0

 ip pim sparse-dense-mode

 duplex auto

 speed auto

 no keepalive

interface FastEthernet0/1

 no ip address

 duplex auto

 speed auto

 pppoe enable

 pppoe-client dial-pool-number 1

interface FastEthernet0/3/0

 no ip address

 shutdown

interface FastEthernet0/3/1

 no ip address

 shutdown

interface FastEthernet0/3/2

 no ip address

 shutdown

interface FastEthernet0/3/3

 no ip address

 shutdown

interface Serial0/0/0

 description === Public interface ===

 ip address 10.32.150.46 255.255.255.252

 service-policy output LLQ

 crypto map INT_CM

interface Vlan1

 no ip address

router ospf 1

 log-adjacency-changes

 network 192.168.3.0 0.0.0.255 area 0

 network 192.168.5.0 0.0.0.255 area 0

ip classless

ip route 0.0.0.0 0.0.0.0 10.32.150.45

ip route 0.0.0.0 0.0.0.0 Serial0/0/0

ip http server

no ip http secure-server

ip access-list extended IPSEC_ACL_1

 permit gre host 10.32.150.46 host 10.32.152.26

control-plane

voice-port 0/1/0

 voice-class permanent 1

 timeouts call-disconnect 3

 connection trunk 100

voice-port 0/1/1

dial-peer cor custom

dial-peer voice 100 voip

 destination-pattern 100

 session protocol multicast

 session target ipv4:239.168.1.100:19890

 codec g711ulaw

 vad aggressive

line con 0

 exec-timeout 0 0

line aux 0

line vty 0 4

 password 7 0002000E0D4B

 login authentication USERLIST

end

Verify

This section provides information you can use to confirm your configuration is working properly. The verification process includes two parts:

•Verify Headquarters Connectivity

•Verify Remote Location Connectivity

Verify Headquarters Connectivity

This section provides instructions for verifying that your configuration works properly.

Certain show commands are supported by the Output Interpreter Tool (registered customers only), which allows you to view an analysis of show command output.

In summary:

•show crypto isakmp sa—Shows whether the remote routers have successfully connected.

•show crypto ipsec sa—Shows information about each IPSec SA.

•show ip ospf neighbor—Shows whether the router has Open Shortest Path First (OSPF) neighbors.

•show ip route—Shows whether the remote networks and multicast subnets are accessible (assess routing table).

•show ip pim neighbor—After a routing table is verified, shows whether a valid Protocol Independent Multicast (PIM) neighbor exists.

•show ip pim rp map—Shows whether the rendezvous point (RP) (in this instance, the router) is being correctly learned.

•show ip mroute active—Shows whether any active multicast streams exist (in this case, voice streams).

•show voice trunk-conditioning supervisory—Shows whether the voice port connection is up.

•show voip rtp connections—Presents sources and destination of a RTP voice stream.

•show voice call summary—Shows information about a call (such as the codec being used or the state of the phone).

•show class-map—Displays the QoS marking scheme (such as voice traffic that is marked up). This defines it as a V3PN implementation.

•show policy-map interface atm 1/0 output—Shows how traffic has been queued on the ATM interface. Note that different queues have different packet counts because traffic is assigned on the basis of differentiated services code point (DCSP) and IP precedence values.

•show crypto engine brief—Shows the VPN engine currently being run.

Representative output from each of these commands is presented in the verification summaries that follow.

Note Relevant display output is highlighted in bold text as appropriate.

The following is an output example for the show crypto isakmp sa command, performed using the configuration on the Headquarters router:

HUB-R1# show crypto isakmp sa

dst             src             state          conn-id slot

10.32.152.26    10.32.153.34    QM_IDLE             29    0

10.32.152.26    10.32.150.46    QM_IDLE             31    0

The following is an output example for the show crypto ipsec sa command, performed using the configuration on the Headquarters router:

HUB-R1# show crypto ipsec sa

interface: Tunnel0

    Crypto map tag: INT_CM, local addr. 10.32.152.26

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   current_peer: 10.32.153.34:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 174918, #pkts encrypt: 174918, #pkts digest: 174918

    #pkts decaps: 126855, #pkts decrypt: 126855, #pkts verify: 126855

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 66, #recv errors 0

     local crypto endpt.: 10.32.152.26, remote crypto endpt.: 10.32.153.34

     path mtu 1420, media mtu 1420

     current outbound spi: 69111392

     inbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5213, flow_id: 93, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508969241/10148)

        ike_cookies: DE2C7D5A FB6197B3 795753FB 41D07F6D

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

inbound pcp sas:

     outbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5214, flow_id: 94, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508968340/10147)

        ike_cookies: DE2C7D5A FB6197B3 795753FB 41D07F6D

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.150.46/255.255.255.255/47/0)

   current_peer: 10.32.150.46:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 168329, #pkts encrypt: 168329, #pkts digest: 168329

    #pkts decaps: 127676, #pkts decrypt: 127676, #pkts verify: 127676

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 5, #recv errors 0

     local crypto endpt.: 10.32.152.26, remote crypto endpt.: 10.32.150.46

     path mtu 1420, media mtu 1420

     current outbound spi: D3C362F0

     inbound esp sas:

      spi: 0x4589EBE8(1166666728)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5219, flow_id: 99, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (528510577/14207)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xC172073D(3245475645)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5221, flow_id: 101, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (522107198/14206)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x2A87D473(713544819)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5220, flow_id: 100, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (528510577/14205)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xD3C362F0(3552797424)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5222, flow_id: 102, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (522107166/14204)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

interface: Tunnel1

    Crypto map tag: INT_CM, local addr. 10.32.152.26

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   current_peer: 10.32.153.34:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 171877, #pkts encrypt: 171877, #pkts digest: 171877

    #pkts decaps: 123829, #pkts decrypt: 123829, #pkts verify: 123829

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 66, #recv errors 0

     local crypto endpt.: 10.32.152.26, remote crypto endpt.: 10.32.153.34

     path mtu 1420, media mtu 1420

     current outbound spi: 69111392

     inbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5213, flow_id: 93, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508970067/10208)

        ike_cookies: DE2C7D5A FB6197B3 795753FB 41D07F6D

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5214, flow_id: 94, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508969170/10207)

        ike_cookies: DE2C7D5A FB6197B3 795753FB 41D07F6D

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.150.46/255.255.255.255/47/0)

   current_peer: 10.32.150.46:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 165228, #pkts encrypt: 165228, #pkts digest: 165228

    #pkts decaps: 124592, #pkts decrypt: 124592, #pkts verify: 124592

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 5, #recv errors 0

     local crypto endpt.: 10.32.152.26, remote crypto endpt.: 10.32.150.46

     path mtu 1420, media mtu 1420

     current outbound spi: D3C362F0

     inbound esp sas:

      spi: 0x4589EBE8(1166666728)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5219, flow_id: 99, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (528510577/14267)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xC172073D(3245475645)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5221, flow_id: 101, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (522108046/14267)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x2A87D473(713544819)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5220, flow_id: 100, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (528510577/14266)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xD3C362F0(3552797424)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5222, flow_id: 102, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (522108025/14266)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

interface: ATM1/0

    Crypto map tag: INT_CM, local addr. 10.32.152.26

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   current_peer: 10.32.153.34:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 172131, #pkts encrypt: 172131, #pkts digest: 172131

    #pkts decaps: 124081, #pkts decrypt: 124081, #pkts verify: 124081

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 66, #recv errors 0

     local crypto endpt.: 10.32.152.26, remote crypto endpt.: 10.32.153.34

     path mtu 1420, media mtu 1420

     current outbound spi: 69111392

     inbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5213, flow_id: 93, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508969984/10202)

        ike_cookies: DE2C7D5A FB6197B3 795753FB 41D07F6D

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5214, flow_id: 94, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508969108/10202)

        ike_cookies: DE2C7D5A FB6197B3 795753FB 41D07F6D

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.150.46/255.255.255.255/47/0)

   current_peer: 10.32.150.46:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 165491, #pkts encrypt: 165491, #pkts digest: 165491

    #pkts decaps: 124855, #pkts decrypt: 124855, #pkts verify: 124855

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 5, #recv errors 0

     local crypto endpt.: 10.32.152.26, remote crypto endpt.: 10.32.150.46

     path mtu 1420, media mtu 1420

     current outbound spi: D3C362F0

     inbound esp sas:

      spi: 0x4589EBE8(1166666728)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5219, flow_id: 99, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (528510577/14263)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xC172073D(3245475645)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5221, flow_id: 101, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (522107974/14262)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x2A87D473(713544819)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5220, flow_id: 100, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (528510577/14262)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xD3C362F0(3552797424)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5222, flow_id: 102, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (522107953/14261)

        ike_cookies: 59F8CBF0 5B2E8553 7D356DD4 F5DE05AD

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

The following is an output example for the show ip ospf neighbors command, performed using the configuration on the Headquarters router:

HUB-R1# show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface

192.168.7.1       0   FULL/  -        00:00:39    192.168.2.1     Tunnel1

192.168.5.1       0   FULL/  -        00:00:36    192.168.3.1     Tunnel0

The following is an output example for the show ip route command, performed using the configuration on the Headquarters router:

HUB-R1# show ip route

Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

       ia - IS-IS inter area, * - candidate default, U - per-user static route

       o - ODR, P - periodic downloaded static route

Gateway of last resort is 10.32.152.25 to network 0.0.0.0

     192.168.4.0/32 is subnetted, 1 subnets

C       192.168.4.1 is directly connected, Loopback100

O    192.168.5.0/24 [110/11] via 192.168.3.1, 00:12:48, Tunnel0

     10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks

C       10.32.152.24/30 is directly connected, ATM1/0

C    192.168.6.0/24 is directly connected, Vif1

O    192.168.7.0/24 [110/11] via 192.168.2.1, 00:12:48, Tunnel1

C    192.168.1.0/24 is directly connected, Vlan10

O    192.168.2.0/24 [110/11] via 192.168.2.1, 00:12:50, Tunnel1

O    192.168.3.0/24 [110/11] via 192.168.3.1, 00:12:50, Tunnel0

S*   0.0.0.0/0 [1/0] via 10.32.152.25

The following is an output example for the show ip pim neighbors command, performed using the configuration on the Headquarters router:

HUB-R1# show ip pim neighbor

PIM Neighbor Table

Neighbor          Interface                Uptime/Expires    Ver   DR

Address                                                            Prio/Mode

192.168.3.1       Tunnel0                  00:13:52/00:01:40 v2    1 / S

192.168.2.1       Tunnel1                  00:13:44/00:01:18 v2    1 / S

The following is an output example for the show ip pim rp map command, performed using the configuration on the Headquarters router:

HUB-R1# show ip pim rp map

PIM Group-to-RP Mappings

This system is an RP (Auto-RP)

This system is an RP-mapping agent (Loopback100)

Group(s) 224.0.0.0/4

  RP 192.168.4.1 (?), v2v1

    Info source: 192.168.4.1 (?), elected via Auto-RP

         Uptime: 2d02h, expires: 00:02:25

The following is an output example for the show ip mroute active command, performed using the configuration on the Headquarters router:

HUB-R1# show ip mroute active

Active IP Multicast Sources - sending >= 4 kbps

Group: 239.168.1.100, (?)

   Source: 192.168.5.2 (?)

     Rate: 0 pps/0 kbps(1sec), 0 kbps(last 0 secs), 2 kbps(life avg)

   Source: 192.168.7.2 (?)

     Rate: 0 pps/0 kbps(1sec), 80 kbps(last 40 secs), 2 kbps(life avg)

The following is an output example for the show voice trunk-conditioning supervisory command, performed using the configuration on the Headquarters router:

HUB-R1# show voice trunk-conditioning supervisory

SLOW SCAN

0/1/0 : state : TRUNK_SC_CONNECT, voice : on, signal : on ,master

        status: trunk connected

        sequence oos : no-action

        pattern :

        timing : idle = 0, restart = 0, standby = 0, timeout = 65535

        supp_all = 0, supp_voice = 0, keep_alive = 0

        timer: oos_ais_timer = 0, timer = 0

The following is an output example for the show voip rtp connections command, performed using the configuration on the Headquarters router:

HUB-R1# show voip rtp connections

VoIP RTP active connections :

No. CallId  dstCallId  LocalRTP RmtRTP LocalIP         RemoteIP

1   16      15         20380    19890  192.168.6.2     239.168.1.100

Found 1 active RTP connections

The following is an output example for the show voice call summary command, performed using the configuration on the Headquarters router:

HUB-R1# show voice call summary

PORT           CODEC    VAD VTSP STATE            VPM STATE

============== ======== === ==================== ======================

0/1/0         g711ulaw  y  S_CONNECT             S_TRUNKED

0/1/1         -         -  -                     FXSLS_ONHOOK

The following is an output example for the show class-map command, performed using the configuration on the Headquarters router:

HUB-R1# show class-map

 Class Map match-all control-traffic (id 1)

   Match ip  dscp af31

 Class Map match-any class-default (id 0)

   Match any

 Class Map match-all video (id 3)

   Match ip  precedence 4

 Class Map match-all voice (id 2)

   Match ip  dscp ef

The following is an output example for the show policy-map interface atm 1/0 output command, performed using the configuration on the Headquarters router:

HUB-R1# show policy-map interface atm 1/0 output

 ATM1/0: VC 10/100 -

  Service-policy output: LLQ

    Class-map: control-traffic (match-all)

      180010 packets, 43922248 bytes

      5 minute offered rate 1000 bps, drop rate 0 bps

      Match: ip dscp af31

      Queueing

        Output Queue: Conversation 265

        Bandwidth 5 (%)

        Bandwidth 5000 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 89887/21932300

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: voice (match-all)

      6485132 packets, 1893649352 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip dscp ef

      Queueing

        Strict Priority

        Output Queue: Conversation 264

        Bandwidth 35 (%)

        Bandwidth 35000 (kbps) Burst 875000 (Bytes)

        (pkts matched/bytes matched) 147/42924

        (total drops/bytes drops) 48/14016

    Class-map: video (match-all)

      0 packets, 0 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip precedence 4

      Queueing

        Output Queue: Conversation 266

        Bandwidth 15 (%)

        Bandwidth 15000 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: data (match-all)

      0 packets, 0 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip precedence 2

      Queueing

        Output Queue: Conversation 267

        Bandwidth 20 (%)

        Bandwidth 20000 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: class-default (match-any)

      97836 packets, 15410572 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: any

      Queueing

        Flow Based Fair Queueing

        Maximum Number of Hashed Queues 256

        (total queued/total drops/no-buffer drops) 0/0/0

The following is an output example for the show crypto engine brief command, performed using the configuration on the Headquarters router:

HUB-R1# show crypto engine brief

        crypto engine name:  Virtual Private Network (VPN) Module

        crypto engine type:  hardware

                     State:  Enabled

              Product Name:  Onboard-VPN

                FW Version:  01100200

              Time running:  479742 seconds

               Compression:  Yes

                       DES:  Yes

                     3 DES:  Yes

                   AES CBC:  Yes (128,192,256)

                  AES CNTR:  No

     Maximum buffer length:  4096

          Maximum DH index:  0500

          Maximum SA index:  0500

        Maximum Flow index:  1000

      Maximum RSA key size:  2048

       crypto engine name:  Cisco VPN Software Implementation

        crypto engine type:  software

             serial number:  77C943AD

       crypto engine state:  installed

     crypto engine in slot:  N/A

Verify Remote Location Connectivity

This section provides instructions for verifying that your configuration works properly.

Certain show commands are supported by the Output Interpreter Tool (registered customers only), which allows you to view an analysis of show command output.

In general, the show commands that are used to verify remote location connectivity are the same as the commands used for the Headquarters router. See the "Verify Headquarters Connectivity" section for summaries of the show commands that are common to both Headquarters and branch verification. The following commands are used for the remote locations only:

•show policy-map interface virtual-access 4 output—Shows how traffic has been queued on the DSL interface (Branch 1). Note that different queues have different packet counts because traffic is assigned on the basis of DCSP and IP precedence values.

•show policy-map interface serial 0/0/0 output—Shows how traffic has been queued on the serial interface (Branch 2). Note that different queues have different packet counts because traffic is assigned on the basis of DCSP and IP precedence values.

Representative output for each of these commands is presented in the verification summaries that follow.

Note Relevant display output is highlighted in bold text.

Example output is split into two sections:

•Verifying Branch 1 Router

•Verifying Branch 2 Router

Verifying Branch 1 Router

The following is an output example for the show crypto isakmp sa command, performed using the configuration on the Branch 1 router (DSL):

Branch-1# show crypto isakmp sa

dst             src             state          conn-id slot

10.32.152.26    10.32.153.34    QM_IDLE              4    0

The following is an output example for the show crypto ipsec sa command, performed using the configuration on the Branch 1 router:

Branch-1# show crypto ipsec sa

interface: Tunnel0

    Crypto map tag: INT_CM, local addr. 10.32.153.34

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   current_peer: 10.32.152.26:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 78341, #pkts encrypt: 78341, #pkts digest: 78341

    #pkts decaps: 118387, #pkts decrypt: 118387, #pkts verify: 118387

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 11, #recv errors 0

     local crypto endpt.: 10.32.153.34, remote crypto endpt.: 10.32.152.26

     path mtu 1420, media mtu 1420

     current outbound spi: D5823DEF

     inbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5151, flow_id: 31, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508937407/10703)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5152, flow_id: 32, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508938275/10702)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

interface: Virtual-Template1

    Crypto map tag: INT_CM, local addr. 10.32.153.34

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   current_peer: 10.32.152.26:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 78380, #pkts encrypt: 78380, #pkts digest: 78380

    #pkts decaps: 118426, #pkts decrypt: 118426, #pkts verify: 118426

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 11, #recv errors 0

     local crypto endpt.: 10.32.153.34, remote crypto endpt.: 10.32.152.26

     path mtu 1420, media mtu 1420

     current outbound spi: D5823DEF

     inbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5151, flow_id: 31, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508937393/10702)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5152, flow_id: 32, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508938237/10700)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

interface: Virtual-Access3

    Crypto map tag: INT_CM, local addr. 10.32.153.34

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   current_peer: 10.32.152.26:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 78508, #pkts encrypt: 78508, #pkts digest: 78508

    #pkts decaps: 118555, #pkts decrypt: 118555, #pkts verify: 118555

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 11, #recv errors 0

     local crypto endpt.: 10.32.153.34, remote crypto endpt.: 10.32.152.26

     path mtu 1420, media mtu 1420

     current outbound spi: D5823DEF

     inbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5151, flow_id: 31, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508937361/10700)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5152, flow_id: 32, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508938204/10697)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

interface: Virtual-Access4

    Crypto map tag: INT_CM, local addr. 10.32.153.34

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.153.34/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   current_peer: 10.32.152.26:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 78628, #pkts encrypt: 78628, #pkts digest: 78628

    #pkts decaps: 118675, #pkts decrypt: 118675, #pkts verify: 118675

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 11, #recv errors 0

     local crypto endpt.: 10.32.153.34, remote crypto endpt.: 10.32.152.26

     path mtu 1420, media mtu 1420

     current outbound spi: D5823DEF

     inbound esp sas:

      spi: 0x69111392(1762726802)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5151, flow_id: 31, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508937328/10697)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0xD5823DEF(3582082543)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5152, flow_id: 32, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508938172/10695)

        ike_cookies: 795753FB 41D07F6D DE2C7D5A FB6197B3

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

The following is an output example for the show ip ospf neighbor command, performed using the configuration on the Branch 1 router:

Branch-1# show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface

192.168.1.1       0   FULL/  -        00:00:35    192.168.1.1     Tunnel0

The following is an output example from the show ip route command, performed using the configuration on the Branch 1 router:

Branch-1# show ip route

Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

       ia - IS-IS inter area, * - candidate default, U - per-user static route

       o - ODR, P - periodic downloaded static route

Gateway of last resort is 10.32.153.33 to network 0.0.0.0

     192.168.4.0/32 is subnetted, 1 subnets

O       192.168.4.1 [110/11] via 192.168.1.1, 00:33:28, Tunnel0

O    192.168.5.0/24 [110/21] via 192.168.1.1, 00:33:28, Tunnel0

     10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks

C       10.32.153.33/32 is directly connected, Virtual-Access4

C       10.32.153.32/30 is directly connected, Virtual-Access3

                        is directly connected, Virtual-Access4

O    192.168.6.0/24 [110/11] via 192.168.1.1, 00:33:28, Tunnel0

C    192.168.7.0/24 is directly connected, Vif1

O    192.168.1.0/24 [110/11] via 192.168.1.1, 00:33:28, Tunnel0

C    192.168.2.0/24 is directly connected, FastEthernet0/0

O    192.168.3.0/24 [110/21] via 192.168.1.1, 00:33:28, Tunnel0

S*   0.0.0.0/0 [1/0] via 10.32.153.33

The following is an output example for the show ip pim neighbor command, performed using the configuration on the Branch 1 router:

Branch-1# show ip pim neighbor

PIM Neighbor Table

Neighbor          Interface                Uptime/Expires    Ver   DR

Address                                                            Prio/Mode

192.168.1.1       Tunnel0                  00:20:59/00:01:25 v2    1 / S

The following is an output example for the show ip pim rp mapping command, performed using the configuration on the Branch 1 router:

Branch-1# show ip pim rp mapping

PIM Group-to-RP Mappings

Group(s) 224.0.0.0/4

  RP 192.168.4.1 (?), v2v1

    Info source: 192.168.4.1 (?), elected via Auto-RP

         Uptime: 00:20:28, expires: 00:02:23

The following is an output example for the show ip mroute active command, performed using the configuration on the Branch 1 router:

Branch-1# show ip mroute active

Active IP Multicast Sources - sending >= 4 kbps

Group: 239.168.1.100, (?)

   Source: 192.168.5.2 (?)

     Rate: 0 pps/0 kbps(1sec), 80 kbps(last 10 secs), 7 kbps(life avg)

   Source: 192.168.7.2 (?)

     Rate: 0 pps/0 kbps(1sec), 80 kbps(last 10 secs), 7 kbps(life avg)

The following is an output example for the show voice trunk-conditioning supervisory command, performed using the configuration on the Branch 1 router:

Branch-1# show voice trunk-conditioning supervisory

SLOW SCAN

1/0 : state : TRUNK_SC_CONNECT, voice : on, signal : on ,master

        status: trunk connected

        sequence oos : no-action

        pattern :

        timing : idle = 0, restart = 0, standby = 0, timeout = 65535

        supp_all = 0, supp_voice = 0, keep_alive = 0

        timer: oos_ais_timer = 0, timer = 0

The following is an output example for the show voip rtp connections command, performed using the configuration on the Branch 1 router:

Branch-1# show voip rtp connections

VoIP RTP active connections :

No. CallId  dstCallId  LocalRTP RmtRTP LocalIP         RemoteIP

1   4       3          31156    19890  192.168.7.2     239.168.1.100

Found 1 active RTP connections

The following is an output example for the show voice call summary command, performed using the configuration on the Branch 1 router:

Branch-1# show voice call summary

PORT           CODEC    VAD VTSP STATE            VPM STATE

============== ======== === ==================== ======================

1/0           g711ulaw  y  S_CONNECT             S_TRUNKED

1/1           -         -  -                     FXSLS_ONHOOK

1/2           -         -  -                     FXSLS_ONHOOK

1/3           -         -  -                     FXSLS_ONHOOK

The following is an output example for the show class map command, performed using the configuration on the Branch 1 router:

Branch-1# show class-map

 Class Map match-all control-traffic (id 1)

   Match ip  dscp af31

 Class Map match-any class-default (id 0)

   Match any

 Class Map match-all video (id 3)

   Match ip  precedence 4

 Class Map match-all voice (id 2)

   Match ip  dscp ef

The following is an output example for the show policy-map interface virtual-access 4 output command, performed using the configuration on the Branch 1 router:

Branch-1 #show policy-map interface virtual-access 4 output

 Virtual-Access4

  Service-policy output: LLQ

    Class-map: control-traffic (match-all)

      45166 packets, 10659176 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip dscp af31

      Queueing

        Output Queue: Conversation 265

        Bandwidth 5 (%)

        Bandwidth 50 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: voice (match-all)

      3241999 packets, 920726516 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip dscp ef

      Queueing

        Strict Priority

        Output Queue: Conversation 264

        Bandwidth 35 (%)

        Bandwidth 350 (kbps) Burst 8750 (Bytes)

        (pkts matched/bytes matched) 3217794/913852296

        (total drops/bytes drops) 0/0

    Class-map: video (match-all)

      0 packets, 0 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip precedence 4

      Queueing

        Output Queue: Conversation 267

        Bandwidth 15 (%)

        Bandwidth 150 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: data (match-all)

      0 packets, 0 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip precedence 2

      Queueing

        Output Queue: Conversation 266

        Bandwidth 20 (%)

        Bandwidth 200 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: class-default (match-any)

      41789 packets, 6646861 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: any

      Queueing

        Flow Based Fair Queueing

        Maximum Number of Hashed Queues 256

        (total queued/total drops/no-buffer drops) 0/0/0

The following is an output example for the show crypto engine brief command, performed using the configuration on the Branch 1 router:

Branch-1# show crypto engine brief

        crypto engine name:  Virtual Private Network (VPN) Module

        crypto engine type:  hardware

                     State:  Enabled

        VPN Module in slot:  0

              Product Name:  AIM-VPN/BPII

         Software Serial #:  55AA

                 Device ID:  0014 - revision 0002

                 Vendor ID:  13A3

               Revision No:  0x00140002

              VSK revision:  0

              Boot version:  255

               DPU version:  0

               HSP version:  2.2(21) (ALPHA)

              Time running:  0 Seconds

               Compression:  Yes

                       DES:  Yes

                     3 DES:  Yes

                   AES CBC:  Yes (128,192,256)

                  AES CNTR:  No

     Maximum buffer length:  4096

          Maximum DH index:  1000

          Maximum SA index:  1000

        Maximum Flow index:  2000

      Maximum RSA key size:  2048

        crypto engine name:  Cisco VPN Software Implementation

        crypto engine type:  software

             serial number:  70107010

       crypto engine state:  installed

     crypto engine in slot:  N/A

Verifying Branch 2 Router

The following is an output example for the show crypto isakmp sa command, performed using the configuration on the Branch 2 router (serial):

Branch-2# show crypto isakmp sa

dst             src             state          conn-id slot

10.32.152.26    10.32.150.46    QM_IDLE              3    0

The following is an output example for the show crypto ipsec sa command, performed using the configuration on the Branch 2 router:

Branch-2# show crypto ipsec sa

interface: Tunnel0

    Crypto map tag: INT_CM, local addr. 10.32.150.46

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.150.46/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   current_peer: 10.32.152.26:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 1706, #pkts encrypt: 1706, #pkts digest: 1706

    #pkts decaps: 1715, #pkts decrypt: 1715, #pkts verify: 1715

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 10, #recv errors 0

     local crypto endpt.: 10.32.150.46, remote crypto endpt.: 10.32.152.26

     path mtu 1420, media mtu 1420

     current outbound spi: C172073D

     inbound esp sas:

      spi: 0x2A87D473(713544819)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5151, flow_id: 31, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508372675/14364)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xD3C362F0(3552797424)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5153, flow_id: 33, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (521045477/14364)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x4589EBE8(1166666728)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5152, flow_id: 32, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508372675/14364)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xC172073D(3245475645)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5154, flow_id: 34, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (521045458/14363)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

interface: Serial0/0/0

    Crypto map tag: INT_CM, local addr. 10.32.150.46

   protected vrf:

   local  ident (addr/mask/prot/port): (10.32.150.46/255.255.255.255/47/0)

   remote ident (addr/mask/prot/port): (10.32.152.26/255.255.255.255/47/0)

   current_peer: 10.32.152.26:500

     PERMIT, flags={origin_is_acl,}

    #pkts encaps: 1864, #pkts encrypt: 1864, #pkts digest: 1864

    #pkts decaps: 1874, #pkts decrypt: 1874, #pkts verify: 1874

    #pkts compressed: 0, #pkts decompressed: 0

    #pkts not compressed: 0, #pkts compr. failed: 0

    #pkts not decompressed: 0, #pkts decompress failed: 0

    #send errors 10, #recv errors 0

     local crypto endpt.: 10.32.150.46, remote crypto endpt.: 10.32.152.26

     path mtu 1420, media mtu 1420

     current outbound spi: C172073D

     inbound esp sas:

      spi: 0x2A87D473(713544819)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5151, flow_id: 31, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508372675/14361)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xD3C362F0(3552797424)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5153, flow_id: 33, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

Branch-2#         sa timing: remaining key lifetime (k/sec): (521045425/14360)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

     inbound ah sas:

     inbound pcp sas:

     outbound esp sas:

      spi: 0x4589EBE8(1166666728)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5152, flow_id: 32, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (508372675/14360)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

      spi: 0xC172073D(3245475645)

        transform: esp-3des esp-sha-hmac ,

        in use settings ={Tunnel, }

        slot: 0, conn id: 5154, flow_id: 34, crypto map: INT_CM

        crypto engine type: Hardware, engine_id: 2

        sa timing: remaining key lifetime (k/sec): (521045411/14359)

        ike_cookies: 7D356DD4 F5DE05AD 59F8CBF0 5B2E8553

        IV size: 8 bytes

        replay detection support: Y

     outbound ah sas:

     outbound pcp sas:

The following is an output example for the show ip ospf neighbor command, performed using the configuration on the Branch 2 router:

Branch-2# show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface

192.168.1.1       0   FULL/  -        00:00:37    192.168.1.1     Tunnel0

The following is an output example for the show ip route command, performed using the configuration on the Branch 2 router:

Branch-2# show ip route

Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP

       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

       E1 - OSPF external type 1, E2 - OSPF external type 2

       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2

       ia - IS-IS inter area, * - candidate default, U - per-user static route

       o - ODR, P - periodic downloaded static route

Gateway of last resort is 10.32.150.45 to network 0.0.0.0

     192.168.4.0/32 is subnetted, 1 subnets

O       192.168.4.1 [110/11] via 192.168.1.1, 00:31:10, Tunnel0

C    192.168.5.0/24 is directly connected, Vif1

     10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks

C       10.32.150.44/30 is directly connected, Serial0/0/0

O    192.168.6.0/24 [110/11] via 192.168.1.1, 00:31:10, Tunnel0

O    192.168.7.0/24 [110/21] via 192.168.1.1, 00:31:10, Tunnel0

O    192.168.1.0/24 [110/11] via 192.168.1.1, 00:31:11, Tunnel0

O    192.168.2.0/24 [110/21] via 192.168.1.1, 00:31:11, Tunnel0

C    192.168.3.0/24 is directly connected, FastEthernet0/0

S*   0.0.0.0/0 [1/0] via 10.32.150.45

               is directly connected, Serial0/0/0

The following is an output example for the show ip pim neighbor command, performed using the configuration on the Branch 2 router:

Branch-2# show ip pim neighbor

PIM Neighbor Table

Neighbor          Interface                Uptime/Expires    Ver   DR

Address                                                            Prio/Mode

192.168.1.1       Tunnel0                  00:31:52/00:01:26 v2    1 / S

The following is an output example for the show ip pim rp mapping command, performed using the configuration on the Branch 2 router:

Branch-2# show ip pim rp mapping

PIM Group-to-RP Mappings

Group(s) 224.0.0.0/4

  RP 192.168.4.1 (?), v2v1

    Info source: 192.168.4.1 (?), elected via Auto-RP

         Uptime: 2d03h, expires: 00:02:47

The following is an output example for the show ip mroute active command, performed using the configuration on the Branch 2 router:

Branch-2# show ip mroute active

Active IP Multicast Sources - sending >= 4 kbps

Group: 239.168.1.100, (?)

   Source: 192.168.5.2 (?)

     Rate: 50 pps/80 kbps(1sec), 80 kbps(last 10 secs), 2 kbps(life avg)

   Source: 192.168.7.2 (?)

     Rate: 50 pps/80 kbps(1sec), 80 kbps(last 30 secs), 2 kbps(life avg)

The following is an output example for the show voice trunk-conditioning supervisory command, performed using the configuration on the Branch 2 router:

Branch-2# show voice trunk-conditioning supervisory

SLOW SCAN

0/1/0 : state : TRUNK_SC_CONNECT, voice : on, signal : on ,master

        status: trunk connected

        sequence oos : no-action

        pattern :

        timing : idle = 0, restart = 0, standby = 0, timeout = 65535

        supp_all = 0, supp_voice = 0, keep_alive = 0

        timer: oos_ais_timer = 0, timer = 0

The following is an output example for the show voip rtp connections command, performed using the configuration on the Branch 2 router:

Branch-2# show voip rtp connections

VoIP RTP active connections :

No. CallId  dstCallId  LocalRTP RmtRTP LocalIP         RemoteIP

1   9       8          18618    19890  192.168.5.2     239.168.1.100

Found 1 active RTP connections

The following is an output example for the show voice call summary command, performed using the configuration on the Branch 2 router:

Branch-2# show voice call summary

PORT           CODEC    VAD VTSP STATE            VPM STATE

============== ======== === ==================== ======================

0/1/0         g711ulaw  y  S_CONNECT             S_TRUNKED

0/1/1         -         -  -                     FXSLS_ONHOOK

The following is an output example for the show policy-map interface serial 0/0/0 output command, performed using the configuration on the Branch 2 router:

Branch-2# show policy-map interface serial 0/0/0 output

 Serial0/0/0

  Service-policy output: LLQ

    Class-map: control-traffic (match-all)

      50099 packets, 11823300 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip dscp af31

      Queueing

        Output Queue: Conversation 265

        Bandwidth 5 (%)

        Bandwidth 77 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 863/203668

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: voice (match-all)

      3241968 packets, 920715872 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip dscp ef

      Queueing

        Strict Priority

        Output Queue: Conversation 264

        Bandwidth 35 (%)

        Bandwidth 540 (kbps) Burst 13500 (Bytes)

        (pkts matched/bytes matched) 13/3532

        (total drops/bytes drops) 0/0

    Class-map: video (match-all)

      0 packets, 0 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip precedence 4

      Queueing

        Output Queue: Conversation 266

        Bandwidth 15 (%)

        Bandwidth 231 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: data (match-all)

      0 packets, 0 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: ip precedence 2

      Queueing

        Output Queue: Conversation 267

        Bandwidth 20 (%)

        Bandwidth 308 (kbps) Max Threshold 64 (packets)

        (pkts matched/bytes matched) 0/0

        (depth/total drops/no-buffer drops) 0/0/0

    Class-map: class-default (match-any)

      75804 packets, 9111740 bytes

      5 minute offered rate 0 bps, drop rate 0 bps

      Match: any

      Queueing

        Flow Based Fair Queueing

        Maximum Number of Hashed Queues 256

        (total queued/total drops/no-buffer drops) 0/0/0

The following is an output example for the show crypto engine brief command, performed using the configuration on the Branch 2 router:

Branch-2# show crypto engine brief

        crypto engine name:  Virtual Private Network (VPN) Module

        crypto engine type:  hardware

                     State:  Enabled

              Product Name:  Onboard-VPN

  NetGX Middleware Version:  v1.2.0

    NetGX Firmware Version:  v2.2.0

              Time running:  414404 seconds

               Compression:  Yes

                       DES:  Yes

                     3 DES:  Yes

                   AES CBC:  Yes (128,192,256)

                  AES CNTR:  No

     Maximum buffer length:  4096

          Maximum DH index:  0300

          Maximum SA index:  0300

        Maximum Flow index:  2400

      Maximum RSA key size:  2048

        crypto engine name:  Cisco VPN Software Implementation

        crypto engine type:  software

             serial number:  FFFFFFFF

       crypto engine state:  installed

     crypto engine in slot:  N/A

Troubleshoot

This section provides information you can use to confirm that your configuration is working properly.

See the following tech notes:

•IP Security Troubleshooting - Understanding and Using debug Commands

Troubleshooting Commands

Note Before issuing debug commands, please see Important Information on Debug Commands.

The following debug commands must be running on both IPSec routers (peers). Security associations must be cleared on both peers.

•debug crypto engine—Displays information pertaining to the crypto engine, such as when the Cisco IOS software is performing encryption or decryption operations.

•debug crypto ipsec—Displays IPSec negotiations of phase 2.

•debug crypto isakmp—Displays ISAKMP negotiations of phase 1.

•debug ip pim auto-rp—Displays the contents of each PIM packet used in the automatic discovery of group-to-rendezvous point (RP) mapping as well as the actions taken on the address-to-RP mapping database.

•clear crypto isakmp—Clears the security associations related to phase 1.

•clear crypto sa—Clears the security associations related to phase 2.

The following is an example of output for the debug crypto isakmp and debug crypto ipsec commands. Relevant display output is shown in bold text, and comments are preceded by an exclamation point and shown in italics.

router# debug crypto isakmp

router# debug crypto ipsec

Jul 29 16:06:33.619 PDT: ISAKMP (0:134217730): received packet from 10.32.150.46 dport 500
sport 500 Global (I) MM_SA_SETUP

Jul 29 16:06:33.619 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH

Jul 29 16:06:33.619 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_I_MM3  New State = IKE_I_MM4

Jul 29 16:06:33.619 PDT: ISAKMP:(0:2:SW:1): processing KE payload. message ID = 0

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): processing NONCE payload. message ID = 0

Jul 29 16:06:33.635 PDT: ISAKMP: Looking for a matching key for 10.32.150.46 in default :
success

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1):found peer pre-shared key matching 10.32.150.46

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1):SKEYID state generated

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): processing vendor id payload

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): vendor ID is Unity

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): processing vendor id payload

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): vendor ID is DPD

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): processing vendor id payload

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1): speaking to another IOS box!

Jul 29 16:06:33.635 PDT: ISAKMP:received payload type 20

Jul 29 16:06:33.635 PDT: ISAKMP:received payload type 20

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_MAIN_MODE

Jul 29 16:06:33.635 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_I_MM4  New State = IKE_I_MM4

Jul 29 16:06:33.639 PDT: ISAKMP:(0:2:SW:1):Send initial contact

Jul 29 16:06:33.639 PDT: ISAKMP:(0:2:SW:1):SA is doing pre-shared key authentication using
id type ID_IPV4_ADDR

Jul 29 16:06:33.639 PDT: ISAKMP (0:134217730): ID payload

        next-payload : 8

        type         : 1

        address      : 10.32.152.26

        protocol     : 17

        port         : 500

        length       : 12

Jul 29 16:06:33.639 PDT: ISAKMP:(0:2:SW:1):Total payload length: 12

Jul 29 16:06:33.639 PDT: ISAKMP:(0:2:SW:1): sending packet to 10.32.150.46 my_port 500
peer_port 500 (I) MM_KEY_EXCH

Jul 29 16:06:33.639 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_INTERNAL, IKE_PROCESS_COMPLETE

Jul 29 16:06:33.639 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_I_MM4  New State = IKE_I_MM5

Jul 29 16:06:33.643 PDT: ISAKMP (0:134217730): received packet from 10.32.150.46 dport 500
sport 500 Global (I) MM_KEY_EXCH

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1): processing ID payload. message ID = 0

Jul 29 16:06:33.643 PDT: ISAKMP (0:134217730): ID payload

        next-payload : 8

        type         : 1

        address      : 10.32.150.46

        protocol     : 17

        port         : 500

        length       : 12

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1): processing HASH payload. message ID = 0

! REMOTE PEER IS SHOWN TO BE AUTHENTICATED IN THE NEXT LINE.

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):SA authentication status:

        authenticated

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):SA has been authenticated with 10.32.150.46

Jul 29 16:06:33.643 PDT: ISAKMP: Trying to insert a peer 10.32.152.26/10.32.150.46/500/,
and inserted successfully.

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_FROM_PEER, IKE_MM_EXCH

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_I_MM5  New State = IKE_I_MM6

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_INTERNAL,
IKE_PROCESS_MAIN_MODE

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_I_MM6  New State = IKE_I_MM6

Jul 29 16:06:33.643 PDT: ISAKMP (0:134217730): received packet from 10.32.150.46 dport 500
sport 500 Global (I) MM_KEY_EXCH

Jul 29 16:06:33.643 PDT: ISAKMP: set new node 2118711810 to QM_IDLE

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1): processing HASH payload. message ID =
2118711810

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1): processing DELETE payload. message ID =
2118711810

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):peer does not do paranoid keepalives.

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):deleting node 2118711810 error FALSE reason
"Informational (in) state 1"

Jul 29 16:06:33.643 PDT: IPSEC(key_engine): got a queue event with 1 kei messages

Jul 29 16:06:33.643 PDT: IPSEC(key_engine_delete_sas): rec'd delete notify from ISAKMP

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_INTERNAL, IKE_PROCESS_COMPLETE

! PHASE 1 IS SHOWN TO BE COMPLETED SUCCESSFULLY IN THE NEXT LINE.

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_I_MM6  New State =
IKE_P1_COMPLETE

Jul 29 16:06:33.643 PDT: ISAKMP:(0:2:SW:1):beginning Quick Mode exchange, M-ID of
159862783

Jul 29 16:06:33.651 PDT: ISAKMP:(0:2:SW:1): sending packet to 10.32.150.46 my_port 500
peer_port 500 (I) QM_IDLE

Jul 29 16:06:33.651 PDT: ISAKMP:(0:2:SW:1):Node 159862783, Input = IKE_MESG_INTERNAL,
IKE_INIT_QM

Jul 29 16:06:33.651 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_QM_READY  New State =
IKE_QM_I_QM1

Jul 29 16:06:33.651 PDT: ISAKMP:(0:2:SW:1):Input = IKE_MESG_INTERNAL, IKE_PHASE1_COMPLETE

Jul 29 16:06:33.651 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_P1_COMPLETE  New State =
IKE_P1_COMPLETE

Jul 29 16:06:33.923 PDT: ISAKMP (0:134217730): received packet from 10.32.150.46 dport 500
sport 500 Global (I) QM_IDLE

Jul 29 16:06:33.923 PDT: ISAKMP:(0:2:SW:1): processing HASH payload. message ID =
159862783

Jul 29 16:06:33.923 PDT: ISAKMP:(0:2:SW:1): processing SA payload. message ID = 159862783

Jul 29 16:06:33.923 PDT: ISAKMP:(0:2:SW:1):Checking IPSec proposal 1

Jul 29 16:06:33.923 PDT: ISAKMP: transform 1, ESP_3DES

Jul 29 16:06:33.923 PDT: ISAKMP:   attributes in transform:

Jul 29 16:06:33.923 PDT: ISAKMP:      encaps is 1 (Tunnel)

Jul 29 16:06:33.923 PDT: ISAKMP:      SA life type in seconds

Jul 29 16:06:33.923 PDT: ISAKMP:      SA life duration (basic) of 3600

Jul 29 16:06:33.923 PDT: ISAKMP:      SA life type in kilobytes

Jul 29 16:06:33.923 PDT: ISAKMP:      SA life duration (VPI) of  0x0 0x46 0x50 0x0

Jul 29 16:06:33.923 PDT: ISAKMP:      authenticator is HMAC-SHA

Jul 29 16:06:33.923 PDT: ISAKMP:      group is 1

! A PROPOSAL IS FOUND THAT IS COMPATIBLE IN THE NEXT LINE.

Jul 29 16:06:33.923 PDT: ISAKMP:(0:2:SW:1):atts are acceptable.

Jul 29 16:06:33.923 PDT: IPSEC(validate_proposal_request): proposal part #1,

  (key eng. msg.) INBOUND local= 10.32.152.26, remote= 10.32.150.46,

    local_proxy= 10.32.152.26/255.255.255.255/47/0 (type=1),

    remote_proxy= 10.32.150.46/255.255.255.255/47/0 (type=1),

    protocol= ESP, transform= esp-3des esp-sha-hmac  (Tunnel),

    lifedur= 0s and 0kb,

    spi= 0x0(0), conn_id= 0, keysize= 0, flags= 0x12

Jul 29 16:06:33.923 PDT: Crypto mapdb : proxy_match

        src addr     : 10.32.152.26

        dst addr     : 10.32.150.46

        protocol     : 47

        src port     : 0

        dst port     : 0

Jul 29 16:06:33.923 PDT: ISAKMP:(0:2:SW:1): processing NONCE payload. message ID =
159862783

Jul 29 16:06:33.923 PDT: ISAKMP:(0:2:SW:1): processing KE payload. message ID = 159862783

Jul 29 16:06:33.931 PDT: ISAKMP:(0:2:SW:1): processing ID payload. message ID = 159862783

Jul 29 16:06:33.931 PDT: ISAKMP:(0:2:SW:1): processing ID payload. message ID = 159862783

Jul 29 16:06:33.931 PDT: ISAKMP: Locking peer struct 0x6635AA1C, IPSEC refcount 1 for for
stuff_ke

Jul 29 16:06:33.931 PDT: ISAKMP:(0:2:SW:1): Creating IPSec SAs

Jul 29 16:06:33.931 PDT:         inbound SA from 10.32.150.46 to 10.32.152.26 (f/i)  0/ 0

        (proxy 10.32.150.46 to 10.32.152.26)

Jul 29 16:06:33.931 PDT:         has spi 0x1442EBFC and conn_id 0 and flags 13

Jul 29 16:06:33.931 PDT:         lifetime of 3600 seconds

Jul 29 16:06:33.931 PDT:         lifetime of 4608000 kilobytes

Jul 29 16:06:33.931 PDT:         has client flags 0x0

Jul 29 16:06:33.931 PDT:         outbound SA from 10.32.152.26 to 10.32.150.46 (f/i) 0/0

        (proxy 10.32.152.26 to 10.32.150.46)

Jul 29 16:06:33.931 PDT:         has spi -2093906224 and conn_id 0 and flags 1B

Jul 29 16:06:33.931 PDT:         lifetime of 3600 seconds

Jul 29 16:06:33.931 PDT:         lifetime of 4608000 kilobytes

Jul 29 16:06:33.931 PDT:         has client flags 0x0

Jul 29 16:06:33.931 PDT: ISAKMP:(0:2:SW:1): sending packet to 10.32.150.46 my_port 500
peer_port 500 (I) QM_IDLE

Jul 29 16:06:33.935 PDT: ISAKMP:(0:2:SW:1):deleting node 159862783 error FALSE reason "No
Error"

Jul 29 16:06:33.935 PDT: ISAKMP:(0:2:SW:1):Node 159862783, Input = IKE_MESG_FROM_PEER,
IKE_QM_EXCH

! PHASE 2 IS SHOWN TO BE COMPLETED SUCCESSFULLY IN THE NEXT LINE.

Jul 29 16:06:33.935 PDT: ISAKMP:(0:2:SW:1):Old State = IKE_QM_I_QM1  New State =
IKE_QM_PHASE2_COMPLETE

Jul 29 16:06:33.935 PDT: IPSEC(key_engine): got a queue event with 2 kei messages

Jul 29 16:06:33.935 PDT: IPSEC(initialize_sas): ,

  (key eng. msg.) INBOUND local= 10.32.152.26, remote= 10.32.150.46,

    local_proxy= 10.32.152.26/0.0.0.0/47/0 (type=1),

    remote_proxy= 10.32.150.46/0.0.0.0/47/0 (type=1),

    protocol= ESP, transform= esp-3des esp-sha-hmac  (Tunnel),

    lifedur= 3600s and 4608000kb,

    spi= 0x1442EBFC(339930108), conn_id= 0, keysize= 0, flags= 0x13

Jul 29 16:06:33.935 PDT: IPSEC(initialize_sas): ,

  (key eng. msg.) OUTBOUND local= 10.32.152.26, remote= 10.32.150.46,

    local_proxy= 10.32.152.26/0.0.0.0/47/0 (type=1),

    remote_proxy= 10.32.150.46/0.0.0.0/47/0 (type=1),

    protocol= ESP, transform= esp-3des esp-sha-hmac  (Tunnel),

    lifedur= 3600s and 4608000kb,

    spi= 0x833186D0(2201061072), conn_id= 0, keysize= 0, flags= 0x1B

Jul 29 16:06:33.935 PDT: Crypto mapdb : proxy_match

        src addr     : 10.32.152.26

        dst addr     : 10.32.150.46

        protocol     : 47

        src port     : 0

        dst port     : 0

Jul 29 16:06:33.935 PDT: IPSEC(crypto_ipsec_sa_find_ident_head): reconnecting with the
same proxies and 101.253.249.204

Jul 29 16:06:33.935 PDT: IPSec: Flow_switching Allocated flow for sibling 80000003

Jul 29 16:06:33.935 PDT: IPSEC(policy_db_add_ident): src 10.32.152.26, dest 10.32.150.46,
dest_port 0

Jul 29 16:06:33.935 PDT: IPSEC(create_sa): sa created,

  (sa) sa_dest= 10.32.152.26, sa_proto= 50,

    sa_spi= 0x1442EBFC(339930108),

    sa_trans= esp-3des esp-sha-hmac , sa_conn_id= 4002

Jul 29 16:06:33.935 PDT: IPSEC(create_sa): sa created,

  (sa) sa_dest= 10.32.150.46, sa_proto= 50,

    sa_spi= 0x833186D0(2201061072),

    sa_trans= esp-3des esp-sha-hmac , sa_conn_id= 4001

Related Information

•Cisco IOS Quality of Service Configuration Guide, Release 12.3

•Cisco IOS Security Configuration Guide

•Cisco IOS Voice Command Reference, Release 12.3

•Cisco IOS Wide-Area Networking Configuration Guide

•Cisco Technical Assistance Center

Table Of Contents
