Emerging service providers deploying new broadband wireless systems need to build Mobile WiMAX networks in the most capital-efficient way. Established service providers want to use their existing cell towers as much as possible. Both want to offer high-performance service over the widest possible area and with excellent indoor coverage. The Cisco® BWX 8300 Series Broadband Wireless Access System meets these needs, and more, for all types of service providers.
Features and Benefits
The Cisco BWX 8300 Series Broadband Wireless Access System offers service providers the following benefits:
• Standards-compliant Mobile WiMAX performance
• Adaptive beamforming with multiple-input, multiple-output (MIMO) service to increase coverage and capacity (planned future software release)
• Decreased capital expenditures and operating expenses due to reduced number of cell sites and basestations
• Excellent spectral efficiency, throughput, and indoor coverage for increased customer satisfaction
• Comprehensive integration with the Cisco Service Exchange Framework, enabling the full range of subscriber management and service control
• A licensed Mobile WiMAX radio access component of the Cisco Broadband Wireless network architecture for a tested, integrated end-to-end system

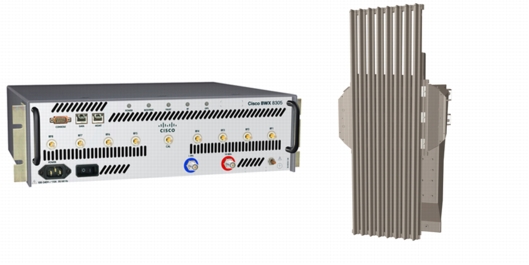

Figure 1. Cisco BWX 8305 Broadband Wireless Access System
Product Architecture
The Cisco BWX 8305 Broadband Wireless Access System uses an eight-element antenna array and advanced RF techniques, such as adaptive beamforming, to reduce service provider capital expense by 30 to 50 percent while also offering substantial operating expense savings.
The Cisco BWX 8305 is a key element of the Cisco Broadband Wireless Solution (Figure 1) featuring leading Mobile WiMAX radio access technologies and tight integration with Cisco's proven IP Next-Generation Network transport and service-delivery infrastructures. This open-standards solution is compliant with the Mobile WiMAX specification and the Profile C Network Reference Model and includes a full suite of base stations, antenna systems, access service network gateways, management systems, and customer premises equipment.

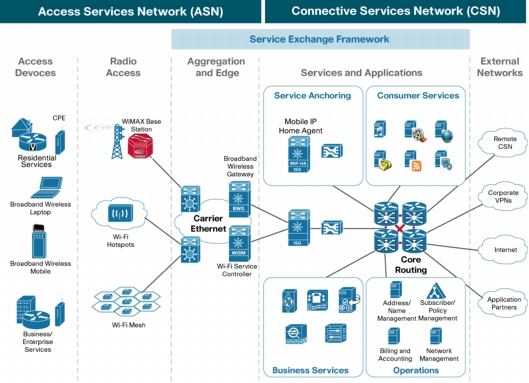

Figure 2. Cisco Broadband Wireless Solution
The integration of IP technologies throughout this end-to-end broadband wireless architecture allows service providers to make use of a large body of innovation in IP transport, service control, and application delivery, extending from the core through the access networks to the subscriber devices. Building on more than 20 years of Internet technology innovation, Cisco uses Mobile WiMAX to extend broadband beyond the reach of wired networks.
Orthogonal Frequency Division Multiple Access (OFDMA)
Duplexing scheme
Time Division Duplexing (TDD)
Downlink/uplink duplex
32:15 typical
Channel bandwidth
5 MHz
Baseband modulation
QPSK/16QAM/64QAM adaptive
Bandwidth allocation
Dynamic
Beamforming gain
D/L: 18 dB
U/L: 9 dB
Power control
Forward/reverse, open/closed loop
TX RF power
20-30 dBm to each antenna element (23-33 dBm for 3.5 GHz high power)
36-46 dBm EIRP, per antenna element (39-49 dBm for 3.5 GHz high power)
Security
PKMv2
Serviceability
EMS remote operation
Upgradeability
Software downloads
Number of users
200/BTS average
Backhaul interface
10/100 Ethernet (RJ-45) data/management port
Mechanical
Operational temperature
BTS: 0 to 50°C (32 to 122°F)
Ant: -40 to 50°C (-40 to 122°F)
Power consumption
(at peak TX power)
655 W
700 W
772 W
835 W (high power)
Dimension/weight
BTS: 13 x 48 x 37 cm / 11 kg
Ant: 147 x 56 x 53 cm / 35 kg
BTS: 13 x 48 x 37 cm / 11 kg
Ant: 147 x 56 x 53 cm / 35 kg
BTS: 13 x 48 x 37 cm / 11 kg
Ant: 101 x 56 x 51 cm / 30 kg
Regulatory
FCC Part 15-B and Part 27, ETSI EN 302 326-2,
EN 301 489-1 and -4,
EN 60950-1, UL 60950
FCC Part 15-B and Part 27, ETSI EN 302 326-2,
EN 301 489-1 and -4,
EN 60950-1, UL 60950
ETSI EN 302 326-2,
EN 301 489-1 and -4,
EN 60950-1, UL 60950
Certification
The Cisco BWX 8305 Basestation and Antenna have been designed to be WiMAX Forum compliant. Certification is underway and will be dependent on test lab readiness for the various system profiles.
• The assumptions used to calculate the above performance values may not represent actual deployment conditions.
• Performance values are subject to change without notice. Please contact Cisco for the latest product specifications.
