WiMAX service providers need low-cost basestations to enhance coverage, fill gaps, and relieve capacity. The Cisco® BWX 2300 Series Broadband Wireless Access System offers uncompromised radio performance at low cost through the use of advanced radio systems. Service providers can easily add capacity and extend service coverage with the assurance of complete compatibility with their current Cisco systems.
Features and Benefits
The Cisco BWX 2300 Series Broadband Wireless Access System offers service providers the following benefits:
• The ability to offer service in uncovered areas at reduced cost
• Added capacity where needed in stadiums, shopping centers, or office buildings
• Multiple-input, multiple-output (MIMO) service with 3 dB beamforming gain for increased coverage and capacity (planned future software release)
• Comprehensive integration with the Cisco Service Exchange Framework, enabling the full range of subscriber management and service control
• A licensed Mobile WiMAX radio access component of the Cisco Broadband Wireless network architecture for a tested, integrated end-to-end system
Figure 1. Cisco BWX 2305 Basestation
Product Architecture
The Cisco BWX 2300 Series uses a two-element antenna and advanced antenna techniques to enhance throughput and capacity in areas where macro-cells are overloaded or where a macro-cell infrastructure is not economically justified.
The Cisco BWX 2305 Broadband Wireless Access System is a key element of the Cisco Broadband Wireless Solution (Figure 1), featuring leading Mobile WiMAX radio access technologies and tight integration with Cisco's proven IP Next-Generation Network transport and service-delivery infrastructures. This open-standards solution is compliant with the Mobile WiMAX specification and the Profile C Network Reference Model and includes a full suite of base stations, antenna systems, access service network gateways, management systems, and customer premises equipment.

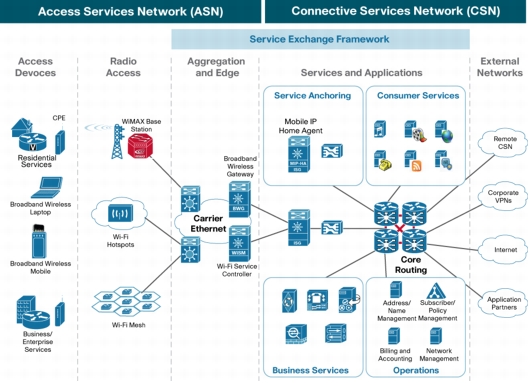

Figure 2. Cisco Broadband Wireless Solution
The integration of IP technologies throughout this end-to-end broadband wireless architecture allows service providers to make use of a large body of innovation in IP transport, service control, and application delivery, extending from the core through the access networks to the subscriber devices. Building on more than 20 years of Internet technology innovation, Cisco uses Mobile WiMAX to extend broadband beyond the reach of wired networks.
Product Specifications
Specifications for the Cisco BWX 2305 Broadband Wireless Access System are listed in Table 1.
Orthogonal Frequency Division Multiple Access (OFDMA)
Duplexing scheme
Time Division Duplexing (TDD)
Downlink/uplink duplex
32:15 typical
Channel bandwidth
5 MHz
Baseband modulation
QPSK/16QAM/64QAM adaptive
Bandwidth allocation
Dynamic
Beamforming gain
D/L: 6 dB
U/L: 3 dB
Power control
Forward/reverse, open/closed loop
TX RF power
20-30 dBm to each antenna element
34-45 dBm EIRP, per antenna element
Security
PKMv2
Serviceability
EMS remote operation
Upgradeability
Software downloads
Number of users
200/BTS typical
Backhaul interface
10/100 Ethernet (RJ-45) data/management port
Mechanical
Operational temperature
BTS: 0 to 50°C (32 to 122°F)
RFS/Ant: -40 to 50°C (-40 to 122°F)
Power consumption
(at peak TX power)
325 W
325 W
325 W
Dimension/weight
BTS: 13 x 48 x 37 cm / 11 kg
RFS: 41 x 39 x 14 cm / 12 kg
ANT: 101 x 21 x 11 cm / 5 kg
BTS: 13 x 48 x 37 cm / 11 kg
RFS: 41 x 39 x 14 cm / 12 kg
ANT: 101 x 21 x 11 cm / 5 kg
BTS: 13 x 48 x 37 cm / 11 kg
RFS: 41 x 39 x 14 cm / 12 kg
ANT: 77 x 15 x 8 cm / 4 kg
Regulatory
FCC Part 15-B and Part 27, ETSI EN 302 326-2,
EN 301 489-1 and -4,
EN 60950-1, UL 60950
FCC Part 15-B and Part 27, ETSI EN 302 326-2,
EN 301 489-1 and -4,
EN 60950-1, UL 60950
ETSI EN 302 326-2,
EN 301 489-1 and -4,
EN 60950-1, UL 60950
Certification
The Cisco BWX 2305 Basestation and Antenna have been designed to be WiMAX Forum compliant. Certification is underway and will be dependent on test lab readiness for the various system profiles.
• The assumptions used to calculate the above performance values may not represent actual deployment conditions.
• Performance values are subject to change without notice. Please contact Cisco for the latest product specifications.
Service and Support
Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.
Additional Information
For more information about the Cisco BWX 2300 Series Broadband Wireless Access System, contact your local account representative or visit: http://www.cisco.com/go/bwx.
