Increase the Wireless Network Coverage Area for Your Small Business
Highlights
• Improves signal strength to increase range and provide coverage in hard-to-reach areas
• Weatherproof, lightning-protected casing for safe deployment on the exterior of your building
• Easy installation, with no software or configuration required

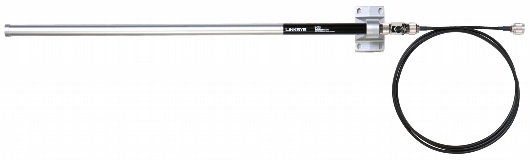

Figure 1. Cisco HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors
Product Overview
Use the Cisco® HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors (Figure 1) to increase the range of your wireless network. Attach the antenna to the exterior access point to increase both the effective strength of the outgoing signals and the receive sensitivity of the incoming signals.
The added signal strength and sensitivity also improve midrange communication reliability, because every packet comes through loud and clear, reducing retransmissions due to weak signal reception.
The 9-dBi signal strength allows the signals to travel farther and provides better signal detection in a 360-degree radius.
The weatherproof housing is able to withstand harsh outdoor conditions. The antenna also includes a lightning surge protector, mounting kit, and cable.
Features
• National Electrical Manufacturers Association (NEMA) rated, lightning-protected, weatherproof housing
Table 1 gives the specifications, package contents, and minimum requirements for the Cisco HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors.
Table 1. Specifications for the Cisco HGA9N High-Gain Omnidirectional Antenna for N-Type Connectors
Specifications
Ports
1 N-type female connector
Cabling type
Coax: 50-ohm impedance
Electrical Specifications
Frequency range
2400 MHz to 2500 MHz
Gain
9 dBi
Voltage standing wave ratio (VSWR)
1.92 : 1 max
Polarization
Linear, vertical
Half-power beamwidth (HPBW): horizontal
360º
HPBW: vertical
11º
Maximum power
4W
Impedance
50 ohms
Range
Maximum outdoor range:* 120 m (0.078 mi) at 54 Mbps, 880 m (0.55 mi) at 11 Mbps
*Range estimation is based on 1 Cisco WAP200E Access Point with Cisco HGA9N antenna connecting to wireless client with 0-dBi antenna under ideal line-of-sight conditions
Environmental
Dimensions
W x H x D
2.95 x 24.61 x 2.20 in.
(75 x 625 x 56 mm)
Unit weight
0.44 lb (0.2 kg)
Mounting options
Mounting kit provided
Certification
FCC, IC
Operating temperature
-22° to 176°F (-30° to 80°C)
Storage temperature
-22° to 176°F (-30° to 80°C)
Operating humidity
5% to 95% noncondensing
Storage humidity
5% to 95% noncondensing
Package Contents
• Antenna body
• Antenna cable
• Lightning protector
• User guide on CD
• Quick installation guide
Minimum Requirements
• Cisco WAP200E Access Point
Product Warranty
90-day limited hardware warranty with return to factory replacement
Cisco Limited Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with a 90-day limited hardware warranty with return to factory replacement. In addition, Cisco offers software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to:http://www.cisco.com/go/smallbiz.
