The Cisco® 4400 Series Wireless LAN Controller provides systemwide wireless LAN functions for medium to large-sized facilities. By automating WLAN configuration and management functions, network managers have the control, security, redundancy, and reliability needed to cost-effectively scale and manage their wireless networks as easily as they scale and manage their traditional wired networks.
The Cisco 4400 Series Wireless LAN Controller (Figure 1) works in conjunction with Cisco Aironet® access points, the Cisco Wireless Control System (WCS), and the Cisco Wireless Location Appliance to support business-critical wireless data, voice, and video applications. It provides real-time communication between access points and other wireless LAN controllers to deliver centralized security policies, wireless intrusion prevention system (IPS) capabilities, award-winning RF management, quality of service (QoS), and mobility.

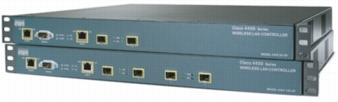

Figure 1. Cisco 4400 Series Wireless LAN Controller
Because the Cisco 4400 Series Wireless LAN Controller supports 802.11a/b/g and the IEEE 802.11n draft 2.0 standard, organizations can deploy the solution that best meets their individual requirements. Organizations can offer robust coverage with 802.11 a/b/g or deliver greater performance with 5x the throughput and unprecedented reliability using 802.11n and Cisco's Next-Generation Wireless Solutions and Cisco Enterprise Wireless Mesh.
The Cisco 4400 Series Wireless LAN Controller is available in two models. The Cisco 4402 Wireless LAN Controller with two 1 GB Ethernet ports comes in configurations that support 12, 25, and 50 access points. The Cisco 4404 Wireless LAN Controller with four 1 GB Ethernet ports supports 100 access points. The Cisco 4402 controller provides one expansion slot. The Cisco 4404 controller provides two expansion slots that can be used to add VPN termination today, as well as enhanced functionality in the future. In addition, each Cisco 4400 WLAN Controller supports an optional redundant power supply to ensure maximum availability.
Product Specifications
Table 1 lists the product specification for Cisco 4400 Series wireless LAN controllers.
Table 1. Product Specifications for Cisco 4400 Series Wireless LAN Controllers
Table 2. Ordering Information for Cisco 4400 Series Wireless LAN Controllers
Part Number
Product Name
AIR-WLC4402-12-K9
4400 Series WLAN Controller for up to 12 Cisco access points
AIR-WLC4402-25-K9
4400 Series WLAN Controller for up to 25 Cisco access points
AIR-WLC4402-50-K9
4400 Series WLAN Controller for up to 50 Cisco access points
AIR-WLC4404-100-K9
4400 Series WLAN Controller for up to 100 Cisco access points
AIR-PWR-4400-AC=
4400 Series WLAN Controller AC Power Supply (redundant)
Summary
The Cisco 4400 Series Wireless LAN Controller is ideal for enterprise and service provider wireless LAN deployments. It simplifies deployment and operation of wireless networks, helping to ensure smooth performance, enhance security, and maximize network availability. The Cisco 4400 Series Wireless LAN Controller manages all of the Cisco access points within campus environments and branch locations, eliminating complexity and providing network administrators with visibility and control of their wireless LANs.
Service and Support
Cisco offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.
