Monitor, Record, and Play Back Video from Cisco® Small Business Video Surveillance Cameras
Highlights
• Advanced discovery and management of up to 16 Cisco Small Business Video Surveillance cameras
• Multiple viewing formats to match user requirements
• Real-time digital enhancement during playback, allowing adjustment of video visibility, sharpness, brightness, contrast, and grayscale
• Multilanguage user interface for configuration in English, French, German, Italian, Portuguese (standard and Brazilian), and Spanish
Product Overview
Integrate your Cisco Small Business Video Surveillance Cameras into a complete video monitoring solution by using the Video Monitoring System for 16 Cameras (SWVMS16). SWVMS16 provides centralized management of up to 16 cameras with monitoring, recording, and playback capabilities (Figure 1).
SWVMS16 supports nine video viewing formats and simultaneous display of up to 16 cameras. In addition, the system supports multiple recording modes, including continuous, scheduled, manual, and event triggered.
An intuitive user interface allows for quick configuration of the motion detection settings. Ten motion detection windows can be created in the SWVMS16 interface, regardless of the number of motion detection windows natively supported by the camera. Configurable motion detection settings and external input triggers reduce storage needs by recording only video of interest.
With SWVMS16, you can save recordings locally or on accessible network storage devices such as the Cisco Small Business Network Storage Systems (NSS). Recordings are limited only by available disk space. The system also supports two-way audio recordings.
The playback options supported by SWVMS16 include digital zoom, variable forward and backward playback speed (1x, 2x, 4x, 8x, and 16x), and real-time on-the-fly video enhancement (visibility, sharpness, brightness, contrast, and grayscale). SWVMS16 also provides advanced management features such as multiple password-protected user accounts.
Setup is simple, with automatic camera discovery and the ability to copy camera settings from one camera to another. Complete configuration files can also be imported or exported from one computer to another.

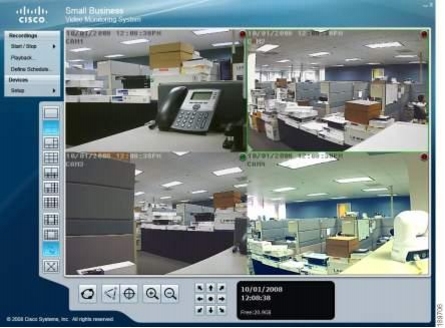

Figure 1. Cisco Small Business Video Monitoring System for 16 Cameras
Features
• Allows simultaneous onscreen monitoring, recording, and playback of video from up to 16 Cisco Small Business Video Surveillance Cameras
• Records up to 30 frames per second
• Supports MPEG-4 and MJPEG video compression formats
• Supports unlimited two-way audio (on cameras that support this feature), G.711, and G.726
• Supports nine onscreen viewing formats: 1, 4, 5+1, 9, 12+1, 16+1, 8+2, 12+1, and 16
• Supports four recording modes: continuous, motion, scheduled, manual, and with audio
• Provides a simple user interface with easy-to-use motion detection alerts for playback
English, French, German, Italian, Portuguese (standard and Brazilian), Spanish
Onscreen status
Free hard disk space report
Video
Video format
Audio Video Interleave (AVI), Advanced Systems Format (ASF)
Export video
Save video in standard format
Compression
MPEG-4, MJPEG
Recording frame rate
Up to 30 frames per second
Audio
Unlimited 2-way audio (on cameras that support this feature), G.711, and G.726
Analytics
General motion
Backup database
Video database can be backed up by user-selectable time windows for playback on any SWVMS16 system
Recording modes
Continuous, motion, scheduled, manual, with audio
Playback speeds
Forward and backward speeds variable in 1x, 2x, 4x, 8x, and 16x
Digital zoom
4x digital zoom on playback
Playback timeline
View recording activity in a simple-to-understand timeline; magnify timeline as needed
PTZ camera control
Supports PTZ camera control, including auto-patrol of preset locations (on cameras that include this feature)
Schedule recordings
Customize camera recording schedules; two modes of customization (week and day)
Video enhancement
Each view can be digitally enhanced on the fly during playback (visibility, sharpness, brightness, contrast, grayscale)
Pictures
Format
BMP, JPG
Printing
Print images directly from the playback interface
Minimum Requirements for 16-Camera Viewing
CPU
Intel Pentium D 930 or higher
RAM
1 GB
Motherboard
Intel 945 or 965 chip or above, Intel chipset recommended
Video card
ATI Radeon 9200, NVIDIA GeForce FX-5200, Intel 945G/965G, or above (ATI is recommended)
Ethernet
100BASE-T or above, Gigabit LAN recommended
Hard disk
80 GB or larger
Operating system
Microsoft Windows XP Pro SP2 (32-bit & 64-bit) or Microsoft Vista (32-bit & 64-bit)
Minimum Requirements for 8-Camera Viewing
CPU
Intel Pentium 4 (2.8 GHz)
RAM
512 MB
Motherboard
Intel 945 or 965 chip or above, Intel chipset recommended
Video card
ATI Radeon 9200, NVIDIA GeForce FX-5200, Intel 945G/965G, or above (ATI is recommended)
Ethernet
100BASE-T or above, Gigabit LAN recommended
Hard disk
80 GB or larger
Operating system
Microsoft Windows XP Pro SP2 (32-bit & 64-bit) or Microsoft Vista (32-bit & 64-bit)
Minimum Requirements for 4-Camera Viewing
CPU
Intel Pentium 4 (2.4 GHz)
RAM
512 MB
Motherboard
Intel 945 or 965 chip or above, Intel chipset recommended
Video card
ATI Radeon 9200, NVIDIA GeForce FX-5200, Intel 945G/965G, or above (ATI is recommended)
Ethernet
100BASE-T or above, Gigabit LAN recommended
Hard disk
80 GB or larger
Operating system
Microsoft Windows XP Pro SP2 (32-bit & 64-bit) or Microsoft Vista (32-bit & 64-bit)
Ships With
IP Surveillance Cameras
PVC300, WVC2300, PVC2300, WVC210
Product Warranty
3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
Cisco Limited Warranty for Cisco Small Business Series Products
This Cisco Small Business product comes with a 3-year limited hardware warranty with return to factory replacement and a 90-day limited software warranty. In addition, Cisco offers software application updates for bug fixes and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to: http://www.cisco.com/go/smallbiz.
