Cisco® Video Surveillance 4500E Series IP Cameras are high-definition, feature-rich digital cameras designed for superior performance in a wide variety of video surveillance applications. The cameras employ true high-definition (HD) video and H,264 compression, streaming up to 30 frames per second (fps) at 1080p (1920 x 1080) resolution, and 60 fps at 720p (1280 x 720) resolution, offering efficient network utilization with the highest-quality video. Contact closures and two-way audio allow integration with microphones, speakers, and access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.
Cisco Video Surveillance 4500E IP Cameras has the additional digital signal processor (DSP) capabilities specifically designed to support real-time video analytics at the edge on the 4500E IP Camera. Applications and end users have the option to run multiple analytics packages without compromising video streaming performance on the camera. This highly flexible computing platform is ideal for next-generation video analytics applications.
Figure 1. IP Camera with Optional DC Auto Iris Lens (Available Separately)
.
The Cisco Video Surveillance 4500E IP Camera offers a variety of benefits, including:
• True high-definition video. The camera streams crisp and clear 1080p (1920 x 1080) video at 30 frames per second while maintaining surprisingly low network bandwidth. For fast motion applications, the camera can be set to stream 720p (1280 x 720) video at 60 frames per second.
• Progressive scan video. The camera captures each frame at its entire resolution using a progressive scan rather than interlaced video capture, which captures each field of video. This feature allows for better detail for video of moving objects, such as faces and license plates on automobiles.
• Dual streaming. The camera can stream H.264 and MJPEG video simultaneously. Each video stream can be configured with individual resolution, quality, and frame rate settings.
• Day/night operation. The camera provides true day/night functionality, and includes an IR filter that automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or scheduled control.
• Flexible power options. The camera supports Power over Ethernet (PoE) 802.3af, 12 VDC, or 24 VAC power through an optional external power supply.
• Mounting options.* The camera can be installed with a fixed mount or with an optional external pan/tilt mount and motorized zoom lens.
• Multicast support. For enhanced bandwidth management, the camera supports IP Multicast.
• Event notification.* The camera can examine designated areas for activity and notify users or other applications when it detects activity that exceeds a predefined sensitivity and threshold. The camera also provides two digital inputs and two digital outputs that can be used to initiate specific actions when an alarm is detected.
• Medianet support. The camera supports the medianet interface. When connected to a Cisco switch that also supports medianet, the camera is recognized as a video endpoint by the switch, which then uses SmartPort macros to set the right network parameters for the video stream on the network.
• Video analytics support. The camera provides real-time, edge-based video analytics capabilities.
• Local storage. The camera supports local storage to a USB flash drive slot, and requires an optional Cisco USB storage accessory (sold separately). Video is stored locally in case of loss of network connectivity, and requires a separate utility to retrieve and view the video from individual cameras. Locally stored video cannot be used with Cisco Video Surveillance Manager.
• Analog video. The camera supports an analog video port for ease of camera installation and field-of-view and focus adjustments.
Note: Features with an asterisk are not available when the camera is used with Cisco Video Surveillance Manager.
Features
Table 1 describes the features of the Cisco Video Surveillance 4500E IP Cameras.
Table 1. Cisco Video Surveillance 4500E IP Camera Features
Item
Specification
Imaging Device
1/3-in. progressive-scan RGB CMOS
Image Control
Automatic white balance (AWB), automatic gain control (AGC), automatic exposure (AE), and auto/manual iris
Dynamic Range
65 dB
Minimum Illumination
• Color mode: F1.4 @ 0.4 lux
• Black and white mode: F1.4 @ 0.2 lux
Signal-to-Noise Ratio (SNR)
53 dB
Lens Selection
Accepts manual or DC auto iris lens
Lens Mount
• CS mount
• C mount, with provided adapter
Shutter Speed
Electronic Rolling Shutter (ERS)
Video Compression
H.264, MJPEG
Audio Compression*
AAC (encoding only), G.711 A-Law, G.711 U-Law
Resolution and Frame Rate (H.264)
• 1920 x 1080 @ 30 fps (1080p)
• 1280 x 720 @ 60 fps (720p)*
• 720 x 480/576 @ 30/25 fps (D1)
• 704 x 480/576 @ 30/25 fps (4CIF)
• 352 x 240/288 @ 30/25 fps (CIF)
Resolution and Frame Rate (MJPEG)
• 720 x 480/576 @ 30/25 fps (D1)
• 704 x 480/576 @ 30/25 fps (4CIF)
• 352 x 240/288 @ 30/25 fps (CIF)
Video Streaming
• Single-stream H.264 up to 1080p (1920 x 1080) @ 30 fps
• Dual-stream H.264 and MJPEG
• H.264: Primary stream programmable up to 1280 x 720 @ 30/25 fps
• MJPEG: Secondary stream programmable up to 720 x 576 @ 30/25 fps
Protocols*
Dynamic Host Control Protocol (DHCP), Hypertext Transfer Protocol (HTTP), Secure HTTP (HTTPS), Network Time Protocol (NTP), Real-Time Transport Protocol (RTP), Real-Time Streaming Protocol (RTSP), Simple Mail Transfer Protocol (SMTP), Secure Sockets Layer/Transport Layer Security (SSL/TLS), Transmission Control Protocol/Internet Protocol (TCP/IP), Secure Real-Time Transport Protocol (SRTP), Cisco Discovery Protocol, Bonjour, Simple Network Management Protocol (SNMP), and Secure Shell (SSH)
Quality of Service (QoS)*
Differentiated services code point (DSCP) marking, class of service (CoS) marking
Power
• 12 VDC or 24 VAC through optional external power supply, available separately
• PoE (802.3af) @ 48V/0.3A
Power Consumption
• 11.5W (max)
Storage
USB flash drive slot (up to 8 GB). Requires an optional Cisco USB storage accessory (sold separately). Video is stored locally in case of loss of network connectivity, and requires a separate utility to retrieve and view the video from individual cameras. Locally stored video cannot be used with Cisco Video Surveillance Manager.
*Not supported when the camera is used with Cisco Video Surveillance Manager.
Table 2 lists the video stream support for the Cisco Video Surveillance 4500E IP cameras.
Table 2. Cisco Video Surveillance 4500E Video Stream Support
Resolution
Primary (fps)
Secondary (fps)*
1080p
Any
Secondary stream not supported if resolution is 1080p
720p or Lower
60
Secondary stream not supported if primary is at 60fps
720p or Lower
30
30
15
10
5
3
1
720p or Lower
25
25
13
5
1
-
-
720p or Lower
20
20
10
5
1
-
-
720p or Lower
15
15
8
5
3
1
-
720p or Lower
10
10
5
1
-
-
-
720p or Lower
8
8
-
-
-
-
-
720p or Lower
6
6
-
-
-
-
-
* If a secondary frame rate is selected in Cisco Video Surveillance Manager that is not listed in this table, the camera will automatically use the closest frame rate.
Connectors
Table 3 describes the connectivity and connectors of the Cisco Video Surveillance 4500E IP Cameras.
Table 3. Cisco Video Surveillance 4500E IP Camera Connectors
Item
Specification
Network Connectivity
100 BASE-TX Ethernet with RJ-45 connector
Audio*/Analog Video Port
• 1, 3.5-mm input/output jack for optional external speaker and optional external line-in via Y-cable
• Built-in microphone
• Two-way (full-duplex)
• Analog video output (requires optional BNC cable)
Serial Port*
RS-232, Pelco D protocol only
Alarm Input*
2, logic-level programmable
Alarm Output*
2, logic-level programmable
Storage
USB flash drive slot
Power Input
3-pin terminal
*Not supported when the camera is used with Cisco Video Surveillance Manager.
Software
Table 4 describes the primary features of the Cisco Video Surveillance 4500E IP Camera software.
Table 4. Cisco Video Surveillance 4500E IP Camera Primary Software Features
Item
Specification
Activity Detection
User-definable alerts with configurable sensitivities and thresholds, e-mail alerts, and HTTP notifications
Video Format
NTSC and PAL
Image Settings
Configurable brightness, sharpness, contrast, saturation, hue, and white balance
Overlay Capabilities
Time, date, and text
Selectable Bit Rate
Support for Constant Bit Rate or Variable Bit Rate* (constant quality)
IP Filtering*
Users can enter a list of allowed or blocked IP addresses for viewing video and configuring camera settings
• Browser-based using Internet Explorer 8, SP2 and above
• Two levels of user access with password protection
Video Analytics
4500E IP Camera includes a fully programmable DSP-based analytics co-processor. The camera comes pre-loaded with a Base Analytics package. Please refer to the Cisco Video Analytics data sheet for more information.
Activity Detection
User-definable alerts with configurable sensitivities and thresholds, e-mail alerts, and HTTP notifications
*Not supported when the camera is used with Cisco Video Surveillance Manager.
Specifications
Table 5 provides specifications of the Cisco Video Surveillance 4500E IP Camera.
Table 5. Cisco Video Surveillance 4500E IP Camera Mechanical Specifications
Item
Specification
Housing
Aluminum
LEDs
Power, Ethernet link, and activity
Dimensions (L x W x H)
• 5.2 x 3.1 x 2.5 in.
• 135 x 79.5 x 65 mm
Weight
• 1.25 lb
• 0.56 kg
Certifications
Safety:
UL 60950
AS/NZS 60950
IEC 60950-1 (2005) Second edition
EMC-Emissions:
FCC-47 CFR Part 15
CISPR22
EN300386: V1.3.3
EN55022
EN61000-3-2
EN61000-3-3
ICES-003 Issue 4
KN 22
VCCI: V-3
CNS-13438
EN 55024
EMC-Immunity:
CISPR24
EN300386: V1.3.3 EN50082-1
EN50082-1
EN55024
EN61000-6-1
Operating Temperature
Indoors:
• 32 to 122°F
• 0 to 50°C
Outdoors (when installed in an appropriate outdoor enclosure with heating and cooling):
• -40 to 158°F
• -40 to 70°C
Figure 2 shows the dimensions of the Cisco Video Surveillance 4500E IP Cameras.

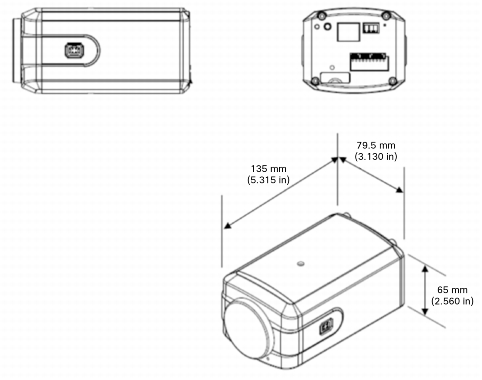

Figure 2. Cisco Video Surveillance 4500E IP Camera Dimensions
Package Contents
Table 6 describes the items that ship with the Cisco Video Surveillance 4500E IP Cameras.
Table 6. Package Contents
Item
Cisco Video Surveillance 4500E IP Camera
Regulatory compliance and safety information
Quick start guide
Accessories: Lens-opening dust cap, terminal block for power connection, C mount lens adaptor, 0.9-mm Allen wrench, port cover
Availability
The Cisco Video Surveillance 4500E IP Cameras are available through Cisco Authorized Technology Provider (ATP) Partners.
Ordering Information
Table 7 lists the part numbers for the Cisco Video Surveillance 4500E IP Cameras and for the lenses that the cameras support.
Table 7. Ordering Information
Part Number
Description
CIVS-IPC-4500E
Cisco Video Surveillance 4500E IP Camera, HD, DSP, Day/Night
CIVS-PWRPAC-12V
12 VDC @ 1.6A Power Supply
Lenses
CIVS-IPC-VFM28-12
Cisco IP Camera Megapixel Lens, 2.8-12 mm, Fujinon
CIVS-IPC-VFM15-50
Cisco IP Camera Megapixel Lens, 15-50 mm, Fujinon
CIVS-IPC-VTM38
Cisco IP Camera Lens Megapixel 3-8mm Tamron
CIVS-IPC-VTM55
Cisco IP Camera Lens Megapixel 5-50mm Tamron
CIVS-IPCA-1021
Y Cable for Audio and BNC Cable for Analog Video
CIVS-IPC-USB-8GB
8 GB USB Flash Drive
Using the Camera with Cisco Video Surveillance Manager
Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle:
• Reduce deployment costs by identifying the features that will best meet your business requirements
• Accelerate migration by assessing the readiness of your network to support the system and by developing a sound design
• Support smooth implementation through effective planning and expert installation, configuration, and integration
• Increase operational efficiency and extend the value of your investment with award-winning technical support
For more information about the Cisco Video Surveillance 4500E IP Cameras, visit http://www.cisco.com/go/physec or contact your local account representative.
