The Cisco® Physical Access Reader Module (Figure 1) is an optional component of the Cisco Physical Access Control solution. The module can be connected to a Cisco Physical Access Gateway in order to expand the solution to include additional doors.
The Cisco Physical Access Reader Module can connect to a maximum of two doors and associated inputs and outputs. It must be used in conjunction with the Cisco Physical Access Gateway, and cannot be used standalone.

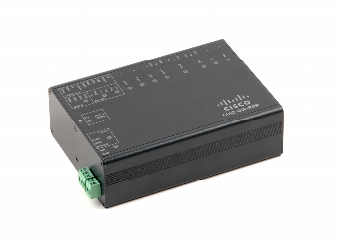

Figure 1. Cisco Physical Access Reader Module
Features
Table 1 describes the features of the Cisco Physical Access Reader Module.
Table 1. Cisco Physical Access Reader Module Features
Feature
Description
Doors Managed
Up to two doors.
Reader/Lock Power
Powers external devices such as readers or locks. The maximum current draw is limited to 650mA at 12 VDC.
Connectors
Table 2 describes the connectivity and connectors of the Cisco Physical Access Reader Module.
There is one 10-pin Weigand/clock and data reader interface on the device. This can be configured as two 5-pin Weigand/clock and data interfaces for installations where a 5-pin interface is sufficient.
Inputs
There are three inputs, each of which can be configured as supervised or unsupervised.
Outputs
There are three Form C relay outputs, with contacts rated 5A @ 30V DC or 125VAC (resistive). Each can be configured as either Normally Closed (NC) or Normally Open (NO).
Tamper Input
Unsupervised input; raises a "tamper" alarm when activated. Can be repurposed for general use by software configuration.
Power Fail Input
Unsupervised input; raises a "power fail" alarm when activated. Can be repurposed for general use by software configuration.
Power
Includes a 2-pin connector for connecting a 12 to 24 VDC external power source.
RS-485
The RS-485 interface is reserved for future use.
CAN Bus
A 3-wire connection is used to connect to the controller area network (CAN) bus.
CAN Termination
A switch allows for the CAN bus to be terminated. This is needed for the last module on the CAN bus.
Specifications
Table 3 provides specifications of the Cisco Physical Access Reader Module.
12 to 24 VDC (+/- 10%) through an external power supply
Package Contents
Table 4 describes the items that ship with the Cisco Physical Access Reader Module.
Table 4. Package Contents
Item
Cisco Physical Access Reader Module
Connector plugs
Pin
Qty
10
1
3
4
2
6
6 resistors (1K) for input supervision
2 mounting brackets, with 4 screws for each bracket
Regulatory compliance and safety information
Quick start guide
Availability
The Cisco Physical Access Input Module is available through Cisco Authorized Technology Provider (ATP) Partners.
Ordering Information
Table 5 lists the part numbers for the Cisco Physical Reader Module .
Table 5. Ordering Information
Part Number
Description
CIAC-GW-RDR
Cisco Physical Access Reader Module
Service and Support
Cisco offers a wide range of services programs to accelerate customer success. These innovative programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you to protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, visit Cisco Technical Support Services or Cisco Advanced Services.
For More Information
For more information about the Cisco Physical Access Reader Module, visit http://www.cisco.com/go/eac or contact your local account representative.
