Intrusion prevention systems (IPSs) are critical to protecting your network and assets against worms, Trojans, and other malicious attacks. Cisco® IPS Manager Express is a powerful, all-in-one IPS management application designed to meet the needs of small and medium-sized businesses. With one application, you can provision, monitor, troubleshoot, and generate reports for as many as 10 Cisco IPS sensors. Cisco IPS Manager Express is an integral part of a Cisco IPS solution, providing intuitive, powerful, and secure protection of your network and assets.
• Intuitive: Easy-to-use interfaces simplify deployment and management
• Powerful: High performance and advanced features provide strong security protection and reduce analysis time
• Secure: Security updates delivered by global security intelligence team working 24 hours a day helps provide peace of mind
Features and Benefits
Intuitive Customizable Dashboards
The Cisco IPS Manager Express dashboard (Figure 1) lets you look at the health of both your IPS sensor and the network. Offering numerous drag-and-drop gadgets, the dashboard is customizable and remembers your settings, so you can come back to the same settings the next time you start Cisco IPS Manager Express.

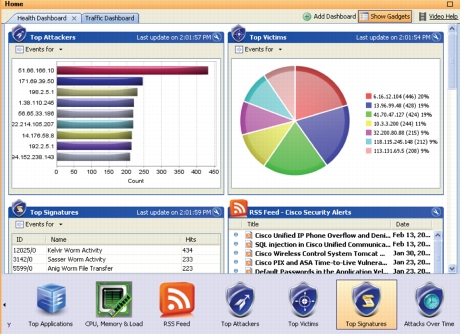

Figure 1. Customizable Dashboard
Live RSS Feeds
Live RSS feeds (Figure 2) keep you informed about the most recent security threats on the network. The feeds can be personalized to your needs and can provide recommendations for securing your network.

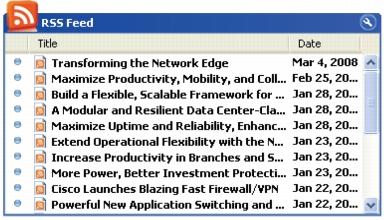

Figure 2. Live RSS Feeds Gadget
Powerful Monitoring of Real-Time and Historical Events with Cisco IPS Manager Express Event Viewer
Cisco IPS Manager Express provides many advanced event-monitoring capabilities to reduce troubleshooting and analysis time. With the Cisco IPS Manager Express Event Viewer (Figure 3), you can monitor real-time and historical events in the same view. To help you with analysis, the Event Viewer provides filtering, coloring, and grouping capabilities. Events can be colored or filtered using numerous parameters, and can be grouped into tiered levels. To help you better understand an event, the Event Details section provides information about the event and the signature.

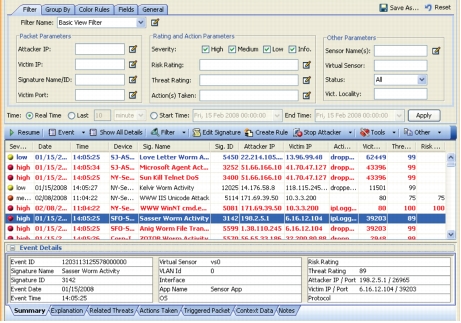

Figure 3. Cisco IPS Manager Express Event Viewer
Flexible Reporting Tool
The Cisco IPS Manager Express reporting tool allows you to generate custom and compliance reports in seconds. Choose from predefined templates or create your own report with easy-to-use filters. The reporting tool allows you to choose from pie charts or bar graphs, customize your report to specific time periods, and include IP addresses in the reports. For easier reading, you can use the built-in DNS resolution to convert the IP addresses to DNS names. All reports can be printed or saved to PDF or RTF format for sharing and future viewing.
Advanced Policy Provisioning
The Cisco IPS Manager Express policy provisioning table allows you to quickly and easily define your network security policy based on Risk Rating, an innovative Cisco feature that quantifies the level of risk of each event. Different policy actions can be assigned to different Risk Rating ranges; for example, dropping packets from events with high Risk Ratings and alerting you about events with medium Risk Ratings. You can also create exceptions to your policy using the policy exception table.
Tight Integration Between Application Functions
Tight integration between different application functions within Cisco IPS Manager Express shortens threat response time. With one click, for each event, you can link from the Event Viewer to the policy table or to the signature table. When you link from the Event Viewer to the policy table, you will see pre-populated event information. This simplifies policy provisioning and reduces the chance of mistakes. One-click blocking allows you to stop an attack directly from the Event Viewer.
Intuitive Startup Wizard
The Cisco IPS Manager Express Startup Wizard simplifies IPS sensor setup and reduces deployment time. It provides step-by-step instructions on how to set up an IPS sensor, whether the sensor is a Cisco IPS 4200 Series appliance; an IPS module for a Cisco ASA 5500 Series appliance; or a module for a Cisco Catalyst® switch. With the Cisco IPS Manager Express Startup Wizard, you can set up a fully functional IPS sensor in minutes.
Feature Specifications
Table 1 describes supported features of Cisco IPS Manager Express. Table 2 describes the minimum system requirements for Cisco IPS Manager Express. Table 3 lists the Cisco IPS Manager Express features that are available on different versions of Cisco IPS software.
Table 1. Supported Features
Features
Feature Description
Cisco IPS Sensor Software
Cisco IOS® IPS
Homepage
Ten-Sensor Dashboard View
Ten-sensor dashboard view of primary sensor statistics, including CPU utilization, memory utilization, IP address, sensor health status, and license expiration for easy at-a-glance viewing.
Yes
No
Sensor Health Meter
An intuitive tri-level (red, yellow, green) meter provides an at-a-glance view of the health of each sensor. Adjustable thresholds on each of six customizable parameters allow the user to customize the meter to the organization's needs.
Yes
No
Security Health Meter
An intuitive tri-level (red, yellow, green) meter provides a Threat Rating based on network security health. Adjustable thresholds allow the user to customize the meter to the organization's needs.
Yes
No
Customizable Dashboards
Health and Real-Time Traffic Gadgets
Drag-and-drop gadgets for at-a-glance view of sensor health statistics and real-time traffic statistics.
• Sensor information:
• Sensor health
• Sensor information
• CPU, memory, disk, and sensor load
• Licensing information
• Interface status
• Real-time traffic statistics:
• Top applications
• Network security
Yes
No
Event Statistics and Security News Gadgets
Drag-and-drop gadgets for at-a-glance view of event statistics and security news.
• Event statistics:
• Top attackers
• Top victims
• Top signatures
• Attacks over time
• Security news:
• RSS feeds
Yes
Yes
Customizable Gadgets
Customizable graphs (pie chart, bar chart, table) and time intervals for personalization and ease of troubleshooting.
Yes
Yes
Minimize Gadgets
Gadgets can be minimized to save dashboard space.
Yes
Yes
Multiple Dashboard Views
Multiple dashboard views enable customization and flexible viewing.
Yes
Yes
Saved Dashboard Views
Saved dashboard views allow you to see the same view the next time you start Cisco IPS Manager Express.
Multilevel event grouping (by signature, severity, attacker/victim IP address, Risk Rating, Threat Rating, sensor) simplifies analysis and troubleshooting.
Yes
Yes
Drag-and-Drop Columns
Drag-and-drop columns allow easy column reordering and customized views.
Yes
Yes
Multicolumn Sort
Columns can be sorted alphanumerically for easy viewing on multiple columns.
Yes
Yes
Customizable Views
Create and save customized event views (including filter, color, group settings, and column arrangements) for simplified analysis and troubleshooting.
Yes
Yes
Inline Packet Decode
Under Event Details, you can see the inline packet decode for troubleshooting and forensics.
Yes
Yes
Ethereal Integration Support
Cisco IPS Manager Express can integrate Wireshark Ethereal for advanced troubleshooting and forensics.
Yes
Yes
Dynamic Linkages to Cisco Security Center
Under Event Details, view event information based on data from Cisco Security Center for simplified analysis and troubleshooting.
Yes
Yes
Dynamic Event Linkages to Policy Table
Dynamic event linkages to the policy table provide an easy way to create policy exceptions and simplify provisioning.
Yes
No
Dynamic Linkages to Signature Table
Dynamic event linkages to signature table simplify signature tuning.
Yes
No
One-Click Block/Deny
In a single click, block or deny attacker packets for immediate threat prevention.
Yes
No
Integrated Network Tools
Network tools, including ping, trace-route, DNS lookup, and whois, are integrated into the Event Viewer for simplified analysis and troubleshooting.
Yes
Yes
Event Incident Handling
Event incident handling settings help you simplify your incident handling process. You can assign incident handling settings (assigned, acknowledged, closed) to events, filter events based on these settings, and create notes for each event.
Yes
Yes
Event Save and Export
Save all events or selected events to HTML or CSV for further analysis or recordkeeping. Events can be exported from Cisco IPS Manager Express for sharing and recordkeeping.
Yes
Yes
Events per Second (EPS) Meter
The EPS meter gives you an indication of the number of events Cisco IPS Manager Express is processing per second. Users can also view EPS per sensor.
Yes
Yes
Email Notification
Email notification keeps you informed about threats when you are away. You can specify email notification intervals and events. Events can be filtered based on severity and Risk Rating.
Yes
Yes
Data Archive
On-box data archive with customizable archive schedule allows faster data analysis.
Yes
Yes
Configuration
Policy Provisioning
Provision policies based on Risk Rating. IPS actions are assigned to different Risk Rating ranges.
Yes
No
Policy Exceptions
Provision policy exceptions based on Risk Rating, attacker IP address/port, victim IP address/port, and signature.
Yes
No
Anomaly Detection Provisioning
Configure a sensor to send alerts upon abnormal network behavior. Cisco anomaly detection provides zero-day attack protection.
Yes
No
Signature Provisioning
Signature Action Assignment
Choose from 14 actions to assign to signatures ("deny packets," "alert," etc.).
Yes
No
Signature Enable and Disable
Enable and disable signatures based on your requirements.
Yes
No
Auto-Signature Updates
Sensor automatically retrieves and applies new signature updates at user-specified times, for enhanced security and ease of deployment.
Yes
No
Signature Wizard
Signature wizard provides a step-by-step guide to creating custom signatures.
Drag-and-drop columns allow easy column reordering and customized views.
Yes
No
Column Sort
Columns can be sorted alphanumerically for easy viewing.
Yes
No
Signature Export
Signature export allows you to export signature tables to CSV or HTML format.
Yes
No
Reporting
Predefined Report Templates
More than 10 predefined report templates simplify report generation. Predefined report templates include top 10 attacker last 1 hour, top 10 victims last 1 hour, and attacks over last 1 hour.
Yes
Yes
Customizable Reports
Create customized reports based on specified timeframe and filter criteria such as attacker IP address, victim IP address, victim port, signature, Risk Rating, Threat Rating, signature, and action taken.
Yes
Yes
Customizable Graphs
Specify graph types (pie chart or bar graph) for personalized reporting.
Yes
Yes
Report Save
Save report to PDF or RTF format for compliance reporting or recordkeeping.
Yes
Yes
Setup and Help
Startup Wizard
Intuitive startup wizard provides step-by-step instructions on setting up an IPS, including network settings, time setting, and interface configuration.
Yes
No
Administrator Password Requirements
Specify minimum administrator password requirements, including number of attempts, minimum number of characters, minimum character types, and number of historical passwords.
Yes
No
Video Help
Video help provides visual step-by-step guide on using primary features in Cisco IPS Manager Express.
Yes
Yes
Table 2. Minimum System Requirements
Component
Minimum Requirements
System Hardware
• IBM PC-compatible with 2-GHz or faster processor
• Color monitor with at least 1024x768 resolution and a video card capable of 16-bit colors
Hard Drive
100 GB
Memory (RAM)
2 GB
Supported Operating Systems
• Windows Vista Business and Ultimate (32-bit only)
• Windows XP Professional (32-bit only)
• Windows 2003 server
Note: Cisco IPS Manager Express supports only the 32-bit U.S. English version of Windows.
Table 3. Supported IPS Sensors and IPS Sensor Software
Sensor
IPS Software
• Cisco IPS 4240, 4255, 4260, and 4270 Sensors
• Cisco ASA 5500 Series Advanced Inspection and Prevention Security Services Modules and Cards
• Cisco ASA 5500 Series IPS Security Services Processors
• Cisco ASA 5500 Series Adaptive Security Appliances
• Cisco IPS Advanced Integration Module (AIM)
• Cisco Catalyst® 6500 Series Intrusion Detection System (IDSM-2) Services Module
