Q. What is the Cisco® Small Business ISA500 Series Integrated Security Appliance?
A. The Cisco Small Business ISA500 Series Integrated Security Appliance is an all-in-one security solution. It combines highly secure Internet, wireless, site-to-site, and remote access with a breadth of unified threat management (UTM) capabilities that include firewall, email, and web security, and application control to provide the peace of mind you need in order to know your small or medium business is protected. Optimized specifically for small and medium businesses, it is an affordable and easy-to-use solution that can be set up to start protecting your business in minutes. It takes full advantage of Cisco Security Intelligence Operations (SIO), which provide unrivaled threat intelligence to deliver superior threat protection. The combined power of the ISA500's comprehensive UTM security capabilities, easy-to-use design, and superior threat intelligence, helps keep your organization secure, and increases both uptime and employee productivity while minimizing risk and operational costs.
General Cisco ISA500 Product Information
Q. What are the primary differences between the ISA550 and ISA570 appliances?
A. Listed below is a table that outlines the primary differences between the ISA550 and IS570 appliances. The key differences between the two models is their performance and VPN scalability (refer to the Table 1). Thus, selecting between the two models should be based on the customers' traffic volume and the number of remote offices and mobile workers that need to be supported. Generally speaking, for a site with total protected users of more than 25, we suggest the ISA570 because of its higher UTM throughput. Also, if a business is expecting to interconnect more than three remote offices to each other, we recommend the ISA570 because it supports a larger number of site-to-site VPN tunnels than the ISA550. Similarly, if a business needs to provide more than ten remote workers with VPN access, we recommend the ISA570.
Table 1. Cisco ISA500 and ISA570 Comparison Chart
Security Appliance UTM Models
ISA550
ISA570
ISA550
ISA550W
ISA570
ISA570W
Hardware
Ports
7 GE
10 GE
Wireless (802.11b/g/n, 2.4 GHz)
Yes (on ISA550W)
Yes (on ISA570W)
Security Acceleration HW
No
Yes
Performance
Firewall
200 Mbps
500 Mbps
VPN
75 Mbps
130 Mbps
AV
50 Mbps
80 Mbps
IPS
60 Mbps
90 Mbps
UTM *
45 Mbps
75 Mbps
Maximum Connections
15,000
40,000
IPsec VPN Site-to-Site Tunnels
25
100
IPsec Remote Access Tunnels
10
75
SSL VPN Tunnels
10
50
Q. What security services are included in the security subscription services in ISA500?
A. ISA500 offers the following seven subscription based security services:
Prevent wide spread and active viruses, spyware and malware at networks
Spam Filter
Stop spam at the connection level
IPS (Intrusion Prevention Systems)
Block malicious attacks on businesses
Application Access Control
Block unproductive application usage
Network Reputation Filter
Block malicious senders
Web URL Filter
Block unwanted web site access by category, domain, and URL
Web Reputation Filter
Prevent dangerous web site access
Q. Do I need to buy a separate license to use security subscription services?
A. Cisco ISA500 comes standard with both hardware and UTM security services. Customers do not need to purchase a separate license for the security services. Listed below are eight SKUs for the ISA500. Each of the SKUs is a "bundle" SKU that includes both hardware and a comprehensive security subscription service suite. Customers will need to buy a "renewal" license to continue using security services when their subscription term expires.
Table 3. Cisco ISA500 Bundles and SKUs
Package Selection
SKU
Product Bundle
Low-end
Wired
1-year
ISA550-BUN1-K9
3-year
ISA550-BUN3-K9
Wireless
1-year
ISA550W-BUN1-K9
3-year
ISA550W-BUN3-K9
High-end
Wired
1-year
ISA570-BUN1-K9
3-year
ISA570-BUN3-K9
Wireless
1-year
ISA570W-BUN1-K9
3-year
ISA570W-BUN3-K9
Q. Can I use security subscription services right away or do I need to activate the security subscription license first?
A. While ISA500 will come with a security subscription license, customers will need to activate the license first before they can use security subscription services. The license term will start only after the license is activated not after the unit is purchased.
Q. Does the gateway anti-virus supported on the ISA500 prevent malware from web traffic only?
A. The Cisco ISA500 gateway anti-virus prevents the wide spread virus, spyware, and malware that may come from various applications, including web, email, and file transfer applications. The solution scans traffic from not just HTTP (web) but also SMTP, FTP, NetBIOS, and CIFS protocols to identify and prevent infected files from downloading into users' devices. In addition to the gateway anti-viurs, Cisco ISA500 also supports web reputation filter which prevents users from accessing web sites that may contain malware. By combining both gateway anti-virus and web reputation filter, Cisco ISA500 can effectively protect businesses from the most active malicious malware.
Q. Can I use ISA500 as an Internet gateway or do I need to put another router in front of it?
A. Cisco ISA500 comes with many Internet features, such as dual WAN, PPPoE, DHCP, NAT, PAT, routing, VLAN, inter-vlan routing, etc. features. Thus, it can be used as a Internet gateway.
Q. Does ISA500 support wireless to allow my iPhone, iPad, laptop, and other wireless devices to connect?
A. Yes, Cisco ISA500 provides 802.11b/g/n capability in its wireless models, which can allow different mobile wireless devices to connect to the network. It also supports multiple SSIDs and guest wireless Internet access to the secure intranet from guest networks.
Q. Can ISA500 support WAN redundancy?
A. ISA500 supports different types of WAN redundancy, such as the following to improve business continuity:
• Failover
• Load balancing based on bandwidth
• Load balancing based on remaining bandwidth
• Policy based routing (PBR)
Q. Can you customize IPS signatures on the ISA500?
A. ISA500 is designed for simplicity. It does not provide customization support so that administrators can tune their IPS signatures. However, you can disable and enable certain types of signatures to improve performance. For example, you can select signatures that are relevant to Unix operating systems and disable them if there are no Unix based servers and devices on your networks.
Q. When IPS is enabled, what is the throughput on the ISA500?
A. Table 1 provides a high-level performance comparison of the ISA550 and ISA570. Both offer superior performance compared to third-party vendors like SonicWALL and Fortinet (see the Cisco ISA500, Fortinet and SonicWALL comparison table later in this document).
Q. Does the ISA500 provide both onbox and cloud-based management options? Does it support reporting?
A. The ISA500 can be managed using the embedded Security Appliance Configuration Utility, a powerful yet easy-to-use browser-based management and monitoring interface. It provides browser-based configuration GUI that uses a simplified configuration flow with default settings (i.e. step-by-step configuration wizards). In addition to supporting management and monitoring, the Configuration Utility provides security and network usage reports so administrators can quickly and easily review security activities and network operation status. Your partner can also manage the Cisco ISA500 for you through the Cisco OnPlus™ Service. This cloud-based platform provides discovery and monitoring of the entire small business network. It also lets you offload network management tasks to your trusted partner, so you're free to focus on your core business instead of network management. Cisco OnPlus also provides reporting services via its Advanced Security Services* capabilities. With Advanced Security Services, partners can generate security, network usage, and system status reports such as intrusion attack events and WAN bandwidth utilization at a scheduled intervals and times. These reports can be stored in a PDF file format and shared via email. All combined, the Cisco ISA500 provides a variety of management capabilities and options that support proactive network service and support that can help increase your network availability and give you peace of mind.
*Please contact your sales representative for availability
Q. Do I need to purchase Cisco OnPlus to use OnPlus Advanced Security Services?
A. Yes. Cisco OnPlus Advanced Security services are advanced services provided on top of Cisco OnPlus. In order to use them, customers need to have Cisco OnPlus. However, OnPlus Advanced Security Services is provided free of charge along with Cisco OnPlus.
Q. What kind of support does Cisco provide for the ISA500?
A. The Cisco ISA500 service option is the Small Business Support Contract. It's supported by a dedicated Cisco Small Business Support team. Its service option is the Small Business Support Services - CON-SBS-SVC2. This service provides:
• Three year `peace-of-mind' support
• Call and online chat support
• Software updates
• Next-business-day hardware replacement
Q. What are typical use cases supported by the ISA500?
A. The ISA500 supports a wide variety of use cases that include multi-site businesses, businesses with multiple departments that want to segregate traffic by department in addition to remote and mobile workers. Some sample use cases are:
• Multi-site businesses, businesses with multiple departments that want to segregate traffic by department and secure VPN

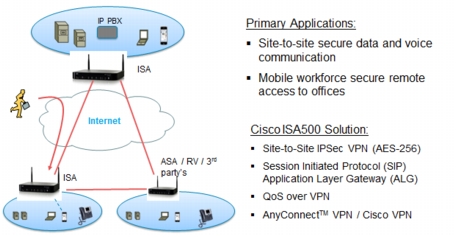

• Secure VPN gateway for remote workers and remote offices to securely connect to offices

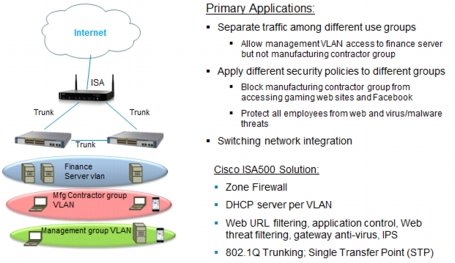

• A 75 employees manufacturing firm that wants to separate traffic by business groups and applies different access rules among the groups

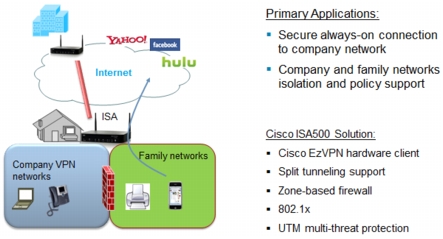

• Teleworker devices for executive or remote workers

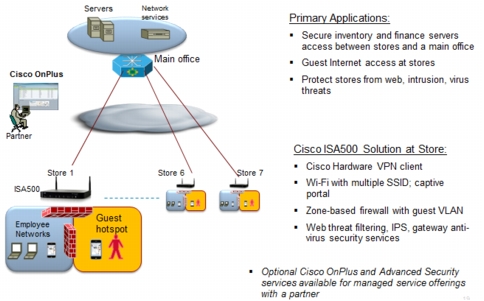

A typical multi-site retail use case is shown in Figure 1. See Appendix A for application diagrams and additional use cases.
Figure 1. Cisco ISA500 Use Case: Security Gateway at Multiple Company Locations
Primary Differences between the New Cisco ISA500 and Cisco SA500
Q. Is the Cisco SA500 still available?
A. The Cisco SA500 is being replaced by the new Cisco ISA500.
Q. What are the primary differences between the Cisco SA500 and the new Cisco ISA500?
A. Cisco ISA500 is built with brand new hardware and software architectures compared to the SA500. It provides more advanced and deeper security services than the Cisco SA500. Table 4 summarizes the primary feature differences.
In addition to the feature differences, ISA500 has adopted many Cisco security solutions. For example, instead of using the Trend Micro Protectlink product for web blocking and filtering, ISA500 uses Cisco Security Intelligence Operations (SIO), which provides strong threat intelligence to deliver superior threat protection. It also uses 75 TB of threat telemetry per day from market-leading email, web, firewall, IPS, and endpoint clients. This allows it to provide unparalleled global threat intelligence, and to protect infrastructure and applications from advanced persistent threats (APTs) and other sophisticated attacks. This does not only enhance threat protection, but also makes the support experience better with faster turnaround times. Cisco ISA500 will also take full advantage of Cisco AnyConnect for VPN clients - both IPSec and SSL.
Table 4. Primary Feature Differences between the New Cisco ISA500 and Cisco SA500
Feature Highlights
SA500
ISA500 (New)
Firewall
Stateful firewall
Zone-based stateful firewall
Gateway Anti-virus
No
Yes
Web Reputation
Trend Micro
Cisco
Web URL filtering
Trend Micro
Cisco
Network Reputation
No
Yes
Spam Filtering
Trend Micro
Cisco
Application Control
No (basic IM/P2P)
Yes, more than 100 applications
Rogue Access Point Detection
No
Yes
Remote User IPSec VPN
Open VPN client
Cisco VPN client
Remote User SSL VPN
Non Cisco
Cisco AnyConnect VPN client
Teleworker VPN client (EzVPN Client Mode)
No
Yes
802.1x Support
No
Yes
IPS Performance
Less than 30 Mbps
60 Mbps on ISA550 and 90 Mbps on ISA570
UTM Performance
Less than 30 Mbps
45 Mbps on ISA550 and 75 Mbps on ISA570
Guest Access Management
No
Yes, guest VLAN isolation and captive portal support
DMZ
Either dual WAN or 1 Wan and 1 DMZ
Up to 4 DMZ; supports both dual WAN and DMZ together
IPS Hardware Acceleration
No
Yes on ISA570 and ISA570W
Configuration Wizards
No
Yes, six wizards
QoS
Basic
Advanced, including low latency queuing
Dual WAN
Yes
Advanced, with weighted load balancing
Network Address Translation (NAT)
Basic
Advanced
Virtual Router Redundancy Protocol (VRRP)
No
Yes (one VLAN only)
Spanning Tree
No
Yes
OnPlus Advanced Security Services
No
Yes
Onbox Security Reports
No
Yes
Q. What is the performance of the Cisco ISA500 compared to Fortinet and SonicWALL?
A. The Cisco ISA500 has equal to or better than throughput performance compared to Fortinet and SonicWALL. In particular, it outperforms both of these competing offerings when the full breadth of UTM services is enabled (see Table 5).
Primary Cisco ISA500 Competitive Differentiators
Table 5. Cisco ISA500 Comparison with Competitive Offerings
Performance Area
Cisco ISA550
Cisco ISA570
Fortinet
FG-20C
Fortinet
FG-40C
Fortinet
FG-60C
SonicWALL TZ105
SonicWALL TZ205
SonicWALL TZ215
Firewall Throughput
200 Mbps
500 Mbps
20 Mbps
200 Mbps
1 Gbps
200 Mbps
500 Mbps
500 Mbps
VPN Throughput
75 Mbps
130 Mbps
20 Mbps
60 Mbps
70 Mbps
75 Mbps
100 Mbps
130 Mbps
Anti-Virus Throughput
50 Mbps
80 Mbps
20 Mbps
40 Mbps
40 Mbps
40 Mbps
60 Mbps
70 Mbps
IPS Throughput
60 Mbps
90 Mbps
20 Mbps
135 Mbps
135 Mbps
60 Mbps
80 Mbps
110 Mbps
UTM Throughput
45 Mbps
75 Mbps
<20 Mbps
<40 Mbps
<40 Mbps
25 Mbps
40 Mbps
60 Mbps
Q. Why choose Cisco ISA500 over SonicWALL?
A. See Table 6 for a listing of Cisco advantages.
Table 6. Cisco Advantages over SonicWALL TZ Series
Cisco Advantages
Cisco ISA500
SonicWALL TZ Series
Superior Internet Access and Security Solution
• Superior security threat protection by unrivaled global security threat intelligence from Cisco SIO
• Higher UTM performance
• Security R&D investment is only a fraction of Cisco's
• Lower UTM performance
Easy to Use and Fast to Deploy
• Easy to navigate; simplified setup flow
• Interoperability tested with other Cisco products
• Cumbersome navigation
• More steps required to set up
Simplified Pricing, Cost Effective to Deploy and Manage
• Simplified packaging - eight SKUs, only one license, consistent features
• Manageable by Cisco hosted cloud-based management services - OnPlus, and Cisco Advanced Security Services
• Pay-as-you-go pricing model with Cisco OnPlus
• Complicated packaging
• Requires higher upfront cost ($7000 or more for GSM security appliance) and can only manage the security solution
• Requires resources to host and manage its management appliance
Q. Why choose Cisco ISA500 over Fortinet?
A. See Table 7 for a listing of Cisco advantages.
Table 7. Cisco Advantages over Fortinet Fortigate 20/40/60
Cisco Advantages
Cisco ISA500
Fortinet Fortigate 20/40/60
Superior Internet Access and Security Solution
• Superior security threat protection by unrivaled global security threat intelligences from Cisco SIO
• Higher security service (UTM) performance
• Security R&D investment is only a subset of Cisco's
• Its claimed "ASIC" performance disappears with security services enabled
Easy to Use and Fast to Deploy
• Easy to navigate; simplified setup flow
• Interoperability tested with other Cisco products
• "Fit" to SMB (not designed for SMBs)
• No built-in wizard; More steps required to set up security services
Simplified Pricing, Cost Effective to Deploy and Manage
• Simplified packaging - eight SKUs, only one license, consistent features
• Manageable by Cisco hosted cloud-based management services - OnPlus and Advanced Security Services
• Pay-as-you-go pricing model with Cisco OnPlus
• Requires high upfront cost
• Managed service offerings
• Requires resource to host and manage its management appliance
Cisco ISA500 Purchasing Information and Additional Resources
A. For more information about the Cisco Small Business ISA500 Series Integrated Security Appliance, contact your local Cisco partner or visit www.cisco.com/go/isa500resources.
