Product Overview
The Cisco® Media Transformation category, which includes the Cisco Media Experience Engine Family of products, is a class of devices designed to expand the reach and usefulness of video as a collaboration and communications tool. As a part of the Cisco any-to-any vision for network-based media processing, the Cisco Media Experience Engine Family provides a suite of media adaptation and customization features that allow Cisco and our partners and systems integrators to develop a broad range of media-oriented applications.
The Cisco Media Experience Engine (MXE) 5600 is a modular media-processing platform that combines advanced media-processing features with high performance and scalability to extend the reach of collaboration.
The Cisco MXE 5600 Power Supply Modules (Figure 1) deliver fault tolerance, high efficiency, and hot-swappable features to the Cisco MXE 5600. Each Cisco MXE 5600 Chassis can accommodate multiple power supplies providing both chassis-level and facility power fault tolerance.
The power supply modules are fully hot-swappable, helping ensure no system interruption occurs during installation, upgrades, or service. They are fitted at the back of the Cisco MXE 5600 chassis, allowing installation and removal without disturbing the network cabling on the front, and reducing the vertical rack-space requirements for the chassis.

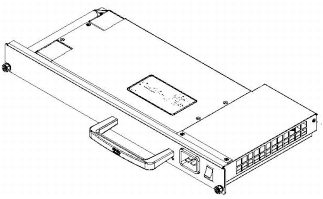

Figure 1. Cisco MXE 5600 Power Supply Module
Features and Benefits
• Six hot swap-capable, intelligent power-supply modules with internal protection and over-current protection provide redundant, hot-swappable power to the system.
• Auto-ranging input (100-120 VAC and 200-240 VAC; 50-60 Hz) simplifies installation and eliminates configuration errors.
• Rear-accessed module slots allow servicing without disrupting network cabling, and reduce the vertical rack space required by the chassis.
• The better-than-85 percent efficiency conserves power and reduces waste heat.
Cisco MXE 5600 Power Supply Module
Each AC power-supply module for the Cisco MXE 5600 is a single 15-ampere AC input unit. The AC power cord for the Cisco MXE 5600 Power Supply Module is detachable, allowing you to easily use the same power supply in different geographies by using region-specific power cords.
The three or six power supply modules provide up to the maximum power drawn by a fully configured Cisco MXE 5600 (1)-up to 4000 Watts-and support multiple system-level redundancy options for greater availability. Designed to address high-availability requirements, the power-supply modules incorporate internal component-level monitoring, temperature sensors, and intelligent remote-management capabilities.
The Cisco MXE 5600 Power Supply Modules support a six-member redundancy scheme. In such a redundant configuration, three pairs of supplies are installed.
Note: To run three Media Processing Modules in a Cisco MXE 5600 chassis, the power supplies must have 200-240 VAC input voltage
Table 1 lists the power redundancy modes for the Cisco MXE 5600 Power Supply Module.
Table 1. Power Redundancy Modes
Product Specifications
Table 2 lists the product specifications for the Cisco MXE 5600 Power Supply Module.
Table 2. Product Specifications
Warranty Information
For warranty information about the Cisco MXE 5600 Power Supply Module, please visit Product Warranties at Cisco.com.
Ordering Information
The Cisco Media Experience Engine (MXE) 5600 is targeted to be orderable early 2010.
Cisco Services
Cisco and our partners provide a broad portfolio of intelligent, personalized services and support that can help you realize the full value of your video investment, increase business agility and network availability. This portfolio of services drives business transformation through a network-based collaboration platform that enables business to collaborate anywhere, anytime. For more information about these services, visit: http://www.cisco.com/go/services/digitalmedia.
For More Information
For more information about the Cisco MXE 5600, visit http://www.cisco.com/go/mxe or contact your local Cisco account representative.
