The Cisco® D9824 Advanced Multi Decryption Receiver (Figure 1) is designed for satellite and terrestrial content distribution applications requiring Digital Video Broadcasting - Satellite (DVB-S), Digital Video Broadcasting - Satellite - Second Generation (DVB-S2) reception capabilities and IP reception capabilities with advanced digital outputs for digital tier program distribution. A built-in decoder can decode an MPEG-2 or MPEG-4 Advanced Video Coding (AVC) high definition (HD) program for analog monitoring, or a standard definition (SD) down-conversion for composite. Decoding of an MPEG-2 or MPEG-4 AVC SD program is also available for analog. By supporting decryption of up to 32 Cisco PowerVu® encrypted programs, the Cisco D9824 receiver allows users to efficiently receive and distribute multiple programs through their network using a single receiver.
Figure 1. Cisco D9824 Advanced Multi Decryption Receiver
Digital Program Distribution
The Asynchronous Serial Interface (ASI) transport output provides a number of output modes and can carry decrypted programs for digital tier distribution. This capability helps ensure that compressed video programs are efficiently distributed to households equipped with digital set-top boxes.
Digital Program Mapping
Digital program mapping allows programmers to "transparently" substitute programs at the uplink. It maintains predictable and compliant transport output during service replacement, network information table (NIT) retuning, and channel changes, including forced tunings. This feature remaps the packet identifier (PID) information from the primary service to an alternate service, allowing downstream devices to continue to operate without headend operator intervention. This helps ensure availability of alternative programming in the digital tier.
Digital Advertisement Insertion
Digital program insertion (DPI) information is available with the video and audio PIDs for external advertisement insertion in a compressed digital format.
Main Features
• Four L-band inputs
• New H/W with up to 180 Mbps throughput/bandwidth
• MPEGoIP Input with Redundancy (1 MPTS or 1 SPTS)
• MPEGoIP Output with Redundancy (1 MPTS or 32 SPTS)
• DVB-S2QPSK and eight phase shift keying (8PSK) demodulation
• Cisco PowerVu conditional access with Data Encryption Standard (DES) or DVB descrambling
• Support for Basic Interoperable Scrambling System (BISS) conditional access for a single key for 32 programs
• DVB Common Interface (DVB-CI) support for CAM-based conditional access
• 4:2:0 HD MPEG-4 AVC and MPEG-2 1080i and 720p decoding
• 4:2:0 SD MPEG-4 AVC and MPEG-2 decoding
• Aspect ratio conversion (4:3, 16:9, 14:9) with Active Format Descriptor (AFD) control for SD programs
• AFD support for down-conversion of HD programs with aspect ratio conversion
• ASI output
• Closed captioning support for EIA-608 and EIA-708
• MPEG and Dolby Digital (AC-3) audio decoding
• DVB or Imitext subtitling
• Four audio outputs providing either two stereo pairs or four mono channels of balanced audio, each with the ability to use part of the output for applications such as second audio program (SAP), cue tones, etc.
• Uplink addressable decoder output control, including vertical blanking interval (VBI) data, audio routing, DPI, and ASI output
• Fingerprint trigger for the decoded program
• Field upgradeable software and security
• Simple Network Management Protocol (SNMP) for setup, control, and monitoring
• Front panel liquid crystal display (LCD) for control and monitoring
• Web browser interface for easy setup, control, and monitoring
• DVB-VBI and SCTE-127 support
• Dual-tone multifrequency (DTMF) cue tone and cue trigger outputs for advertisement insertion
• Digital program mapping providing uplink control for service replacements in blackout areas
• Live event control support
Product Specifications
Table 1 provides product specifications for the Cisco D9824 Advanced Multi Decryption Receiver.
Table 1. Product Specifications
Feature
Description
System
Standards
MPEG-2 and DVB compatible
EN 300 421, EN 300 468
Demodulation
DVB-S QPSK, DVB-S2 QPSK and 8PSK
Tuner
Number of RF inputs
4 (1 active at a time)
Input level
-25 to -65 dBm per carrier
Frequency range
950 to 2150 MHz
Symbol rate range
• DVB-S:
• 1.0 to 45 Msymbols per second
• DVB-S2
• 10.0 to 30 Msymbols per second
• 1.0 to 10 Msymbols per second (contact Cisco)
Carrier capture range
≥ ±3.0 MHz (1-10 Msymbols)
≥ ±5.0 MHz (10-30 Msymbols)
Satellites
C-band and Ku-band
Input impedance
75 ohms
ASI input
MPEG-2 transport input
EN50083-9, DVB-ASI coaxial, 188/204 byte packets
MPEGoIP Input
Physical
RJ-45
Ethernet
100BASE-T Ethernet, and 1000BASE-T Ethernet
FEC
FEC based on SMPTE 2022 for MPEGoIP input
Input modes
UDP Raw, RTP , FEC
Analog Outputs
Analog HD Video Output
Number of channels
1
Video decompression type
MPEG-2 4:2:0 and MPEG-4 AVC 4:2:0
Video standard
1080i at 29.97 frames per second (fps), 1080i at 25 fps, 720p at 59.94 fps, and 720p at 50 fps
Horizontal video resolutions
1080i: 1920, 1440, and 1280
720p: 1280, 960, and 640
Analog SD Video Output
Number of channels
1 (2 identical outputs)
Video decompression type
MPEG-2 4:2:0 and MPEG-4 AVC 4:2:0
Video standard
NTSC and PAL B/G/I/D/M/N
Maximum video resolution
720x480 and 576
Analog Audio Output
Number of channels
2 stereo pairs or 4 mono channels and 5.1 channel downmix
Audio decompression
MPEG or Dolby Digital (AC-3)
HE-AAC single stereo pair or Dolby Digital Plus single stereo pair
Output level
Balanced, adjustable audio outputs are factory set for unity gain (0 dBm out over 600 ohms for 0 dBm in). Output is adjustable at the front panel by ±6.0 dB (ref. 100 kilohms) and is factory calibrated to +18 dBu (at full scale).
Frequency response
±0.5 dB, 20 Hz to 20 kHz (ref., 100 kilohms)
Total harmonic distortion
< 0.3% at 1 kHz (ref. 100 kilohms)
Dynamic range
85 dB (CCIR average response meter [ARM] weighting)
Crosstalk
80 dB at 1 kHz (typical)
Aspect Ratio
Display aspect ratios
4:3, 16:9
Aspect ratio conversions for down-conversion
4:3: 16:9 letterbox and14:9 letterbox, center cutout
16:9: center cutout
Aspect ratio conversions for SD programs
4:3: 16:9 letterbox, 14:9 letterbox, center cutout, none
16:9: Scale to 16:9
VBI
NTSC
• NTSC lines 10 to 22, fields 1 and 2
• Line 21 closed captions
• NABTS
• AMOL I and II (Neilsen)
• VITC
• WSS
PAL
• PAL lines 7 to 22, fields 1 and 2
• WST
• WSS
• VPS
• VITC
Conditional Access
Cisco PowerVu conditional access
DES or DVB
DVB descrambling
BISS Mode 1/E
DVB-CI
Interface: 2 CI slots - EN 50221
CA Method: Multicrypt, and Simulcrypt
CAS: Irdeto, Viaccess, Nagravision, Conax, MediaGuard, Roscrypt, Videoguard and Cryptoworks
Other Outputs
ASI Output
MPEG-2 transport output
EN50083-9, DVB-ASI coaxial, 188/204 byte packets
MPEGoIP Output
Physical
RJ-45
Ethernet
100BASE-T Ethernet, and 1000BASE-T Ethernet
Output modes
UDP Raw, RTP, FEC
FEC
FEC based on SMPTE 2022
Relay output
Programmable relay output
Alarm or configurable to one of the 8 open collector outputs
Cue Tone Output
Balanced audio output
-3.0 dBu ±3 dB, 600 ohms
Output impedance
< 50 ohms
Cue Trigger Outputs
Number of outputs
8
Type
Open Collector
Ethernet Output
Ethernet output for control and monitoring
100BASE-T Ethernet and 1000BASE-T Ethernet
Environmental and Physical
Operating temperature
32-122°F (0-50°C)
Storage temperature
-4-158°F (-20-70°C)
Physical dimensions
1.72 x 17.35 x 13.78 in. (4.37 x 44.07 x 35.0 cm) 1RU high, 19 in., EIA rack mountable
Weight
10 lbs (4.5 kg) approximate
Power
Voltage range
100 V to 240 V AC
Line frequency
50/60 Hz
Power consumption
50 W typical (without LNB)
Line-noise block (LNB) power on RF1
+13 or +18 V at400 mA maximum

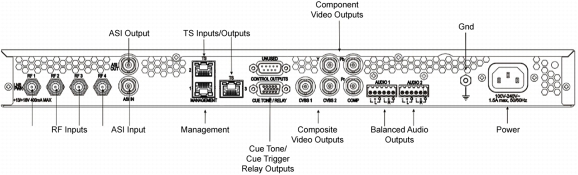

Figure 2 shows the rear panel of the Cisco D9824 Advanced Multi Decryption Receiver.
1RU with GEN-ISE, HD, MPEG-4, BVB-S2 & MPEGoIP out
D9824-IPIN-GEN-1RU
1RU with MDR-ISE HD with MPEG-4, BVB-S2 & MPEGoIP out
D9824-IPIN-MDR-1RU
Table 3 provides ordering information on country-specific power cords.
Table 3. Ordering Information: Country-Specific Power Cords
Power Cord Descriptions
Part Number
North American Power Cord (US, IEC, 10AMP, 2.5m)
CAB-PWR-DMN-US
Japan Power Cord
CAB-PWR-DMN-JPN
China Power Cord (IEC)
CAB-PWR-DMN-CHN
Australia Power Cord
CAB-PWR-DMN-AUS
Italy Power Cord
CAB-PWR-DMN-IT
European Power Cord (EU)
CAB-PWR-DMN-EU
Brazil Power Cord
CAB-PWR-DMN-BRA
India Power Cord
CAB-PWR-DMN-IND
Argentina Power Cord
CAB-PWR-DMN-ARG
UK Power Cord (IEC, 10AMP, 2.5m)
CAB-PWR-DMN-UK
Service and Support
Using the Cisco Lifecycle Services approach, Cisco and its partners provide a broad portfolio of end-to-end services and support that can help increase your network's business value and return on investment. This approach can help you successfully deploy and operate Cisco technologies and optimize their performance throughout the lifecycle of your network.
For More Information
To learn more about this product, contact your local account representative.
Managing your network with ROSA service and element management can help you decrease your mean-time-to-repair, increase uptime, and get management that evolves as you provision your networks. http://www.cisco.com/go/rosa.
