The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
Product Overview
Cisco IE 2000 Series are designed for low cost, low ports, and small sizes:
• 4, 8, or 16 10/100Base-T Ethernet ports fixed configurations with compact form factor
• 2x Gigabit Combo ports, SFP (100MB and 1G) or RJ45 uplink
• Dual-input DC power supply, alarm relays, DIN rail mount
• Industrial PoE solution
• Conformal coating available
• Swappable SD flash card, mini-USB connector
• Industrial environmental compliance and certifications
• Industrial partner applications: Ethernet/IP and PROFINET
Primary Applications and Features
• Easy deployment: Zero-touch discovery using DHCP, express setup, fast bootup time (60 sec) to help migrating to Ethernet environment without resistance
• Security: Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users
• Resiliency: Flex links for fast recovery, Cisco REP protocol for fast convergence
• Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA and Cisco Prime 1.2.1
• Network Address Translation (NAT): Line-rate, hardware-enabled 1:1 static address translation designed to enable duplicate IP addresses usage in the Layer2/ machine node networks.
• Industrial PoE: PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models.
• Industrial automation protocols: Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments
Switch Performance and Scalability
• Line rate/nonblocking uplink/downlink ports
• Forwarding rate: 6.5 Mpps with 64 bytes packets
• Egress buffer: 2MB
• Unicast MAC addresses: 8000
• IGMP multicast groups: 255
• Max VLANs: 255
• IPv4 Mac security ACEs: 384 (default TCAM template)
• Bi-directional, 128 NAT translation entries
Switch Configurations
Figure 1 shows switch models, and Table 1 shows Cisco IE 2000 Series Configuration information.

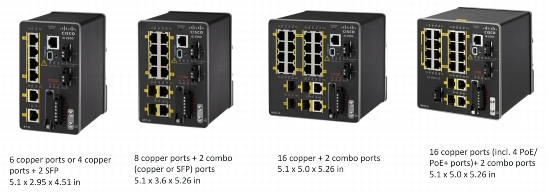

Figure 1. Industrial Ethernet 2000 Series
Table 1. Industrial Ethernet 2000 Series
Product Number
Total Ports
RJ45 Ports
Combo Ports
SFP Ports
Software
IEEE 1588
NAT
PoE(+)
Conformal Coating
IE-2000-4TS-L1
6
4
2 FE
LAN Lite
IE-2000-4TS-B
6
4
2 FE
LAN Base
IE-2000-4T-L
6
6
LAN Lite
IE-2000-4T-B
6
6
LAN Base
IE-2000-4TS-G-L
6
4
2 GE
LAN Lite
IE-2000-4TS-G-B
6
4
2 GE
LAN Base
IE-2000-4T-G-L
6
6 (2 GE)
LAN Lite
IE-2000-4T-G-B
6
6 (2 GE)
LAN Base
IE-2000-8TC-L
10
8
2 FE
LAN Lite
IE-2000-8TC-B
10
8
2 FE
LAN Base
IE-2000-8TC-G-L
10
8
2 GE
LAN Lite
IE-2000-8TC-G-B
10
8
2 GE
LAN Base
IE-2000-8TC-G-E
10
8
2 GE
LAN Base
X
X2
IE-2000-16TC-L
20
16
2 FE
2 FE
LAN Lite
IE-2000-16TC-B
20
16
2 FE
2 FE
LAN Base
IE-2000-16TC-G-L
20
16
2 GE
2 FE
LAN Lite
IE-2000-16TC-G-E
20
16
2 GE
2 FE
LAN Base
X
X2
IE-2000-16TC-G-X
20
16
2 GE
2 FE
LAN Base
X
X2
X
IE-2000-8TC-G-N
10
8
2 GE
Enhanced LAN Base
X
X
IE-2000-16TC-G-N
20
16
2 GE
2FE
Enhanced LAN Base
X
X
IE-2000-16PTC-G-L
18
16
2GE
LAN Lite
X
IE-2000-16PTC-G-E
18
16
2GE
LAN Base
X
X2
X
IE-2000-16PTC-G-NX
18
16
2GE
Enhanced LAN Base
X
X
X
X
1. "-L" models are field upgradable from LAN Lite to LAN Base.
2. Upgradable to Enhanced LAN Base through license upgrade.
Table 2. Power Supply and License Upgrade
Product Number
Description
PWR-IE50W-AC-IEC
AC to DC 24V / 2.1A DIN Rail power supply, 110/220 VAC and 88-300 VDC with IEC plug
PWR-IE50W-AC
AC to DC 24V / 2.1A DIN Rail power supply, 110/220 VAC and 88-300 VDC, to replace PWR-IE3000-AC
PWR-IE65W-PC-AC
AC to DC, 65W Power Module for PoE/PoE+. support up to 4 PoE or 2 PoE+ device
PWR-IE65W-PC-DC
DC to DC, 65W Power Module for PoE/PoE+. support up to 4 PoE or 2 PoE+ device
MEM-SD-1GB-RGD
1GB SD Memory card
STK-RACKMNT-2955
19" DIN Rail Mount Kit
L-IE2000-L-B=
IE2000 LAN Lite to LAN Base E-License
IE2000-L-B=
IE2000 LAN Lite to LAN Base paper License
L-IE2000-B-E=
IE2000 LAN Base to Enhanced LAN Base E-License
IE2000-B-E=
IE2000 LAN Base to Enhanced LAN Base paper License
Table 3. Product Specifications
Description
Specification
Hardware
• 256MB DRAM with ECC memory
• IEEE 1588v2 FPGA
• 64MB on-board flash memory
• 1GB removable SD flash memory card (optional)
• Mini-USB connector
Alarm
• Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Power Supply
• Rated redundant DC input voltage with operating range: +/- 12 to 48VDC (maximum voltage range 9.6 to 60VDC)
• Maximum rated DC input current:
IE-2000-4 & 8 models: 2A to 0.5A @ +/- 12 to 48VDC (recommend minimum 20W rated power input source)
IE-2000-16 models: 3A to 0.5A @ +/- 12 to 48VDC (recommend minimum 30W rated power input source)
Cisco is committed to minimizing total cost of ownership (TCO). The company offers a portfolio of technical support services to help make sure that its products operate efficiently, remain highly available, and benefit from the most up-to-date system software. The services and support programs described in Table 5 are available as part of the Cisco Desktop Switching Service and Support solution and are available directly from Cisco and through resellers.
Table 7. Cisco Services and Support Programs
Service and Support
Features
Benefits
Advanced Services
• Cisco Total Implementation Solutions (TIS), available direct from Cisco
• Cisco Packaged TIS, available through resellers
• Cisco SMARTnet® and SMARTnet Onsite support, available direct from Cisco
• Cisco Packaged SMARTnet support program, available through resellers
• Cisco SMB Support Assistant
• Project management
• Site survey, configuration, and deployment
• Installation, text, and cutover
• Training
• Major moves, adds, and changes
• Design review and product staging
• Access to software updates 24 hours
• Web access to technical repositories
• Telephone support through the Cisco Technical Assistance Center (TAC)
• Advance replacement of hardware parts
• Supplements existing staff
• Helps ensure that functions meet needs
• Mitigates risk
• Helps enable proactive or expedited issue resolution
• Lowers TCO by taking advantage of Cisco expertise and knowledge
• Minimizes network downtime
