Product Overview
The Cisco Nexus® 7000 M1-Series 48-Port Gigabit Ethernet Modules are highly scalable modules designed for performance-based mission-critical Ethernet networks. Cisco Nexus 7000 M1-Series 48-Port modules have both copper and fiber options for Gigabit Ethernet modules. The copper module is a 48-port 10/100/1000 Ethernet module with RJ-45 connectors (Figure 1), and the fiber module is a 48-port Gigabit Ethernet module with SFP optics (Figure 2).
The Cisco Nexus 7000 Series Switches comprise a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 15 terabits per second (Tbps). Designed to meet the requirements of the most mission-critical data centers, it delivers continuous system operation and virtualized pervasive services. The Cisco Nexus 7000 Series is based on the proven Cisco® NX-OS Software operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. Its innovative design is purpose built to support end-to-end data center connectivity, consolidating IP, storage, and interprocess communication (IPC) networks onto a single Ethernet fabric.

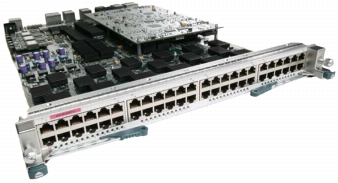

Figure 1. Cisco Nexus 7000 M1-Series 48-Port 10/100/1000 Ethernet Module

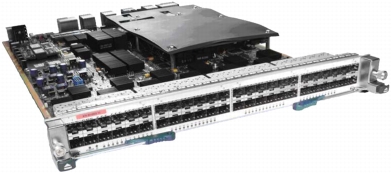

Figure 2. Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet SFP Module
Features and Benefits
The Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules with 46 Gbps of bandwidth to the fabric are high-performance, highly scalable modules designed for mission-critical Ethernet networks. Populating the Cisco Nexus 7000 18-Slot Switch chassis with these modules delivers up to 768 ports of Gigabit Ethernet in a single chassis. Populating the Cisco Nexus 7000 10-Slot Switch chassis with these modules delivers up to 384 ports of Gigabit Ethernet in a single chassis. The Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules provide 48 Gbps of local switching and are excellent for the access layer of a data center network, in which high density, high performance, and continuous system operation are crucial.
All Cisco Nexus 7000 Series I/O modules contain an integrated forwarding engine. This architecture scales the forwarding performance of the chassis linearly by the number of I/O modules employed. The forwarding engine on the Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules are part of the Cisco Nexus 7000 M-Series forwarding engines.
The M-Series forwarding engine on the Gigabit Ethernet modules delivers 60 million packets per second (Mpps) of Layer 2 and 3 IPv4 unicast forwarding or 30 Mpps of IPv6 unicast forwarding across all ports on a single I/O module. A 10-slot chassis with eight M-Series I/O modules delivers up to 480 Mpps of forwarding. Multicast forwarding is built into the I/O module performing egress replication. The M-Series forwarding engine also delivers access control list (ACL) filtering, marking, rate limiting, and NetFlow with no degradation of performance. Powerful ACL processing supports up to 64,000 entries per module, where entries can address Layer 2, 3, and 4 fields in addition to new Cisco metadata fields that employ security group tags (SGTs).
The Cisco Nexus 7000 M1-Series 48-Port gigabit Ethernet Modules offer exceptional security, with integrated hardware support for Cisco TrustSec® technology. This security includes line rate data confidentiality, data integrity, and ACL processing for Security Group Tags. Data confidentiality and integrity conform to the IEEE MAC security standard (IEEE 802.1AE [MACsec]). All 48 ports on the module support the Advanced Encryption Standard (AES) cipher using a 128-bit key. New security ACLs are enhanced through hardware support for Cisco metadata headers capable of carrying SGTs. Security group ACLs (SGACLs) use SGT information to provide hardware-based enforcement of security policies. This feature removes dependencies on IP addresses, thus improving scalability and simplifying manageability.
The fabric interface on the Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules deliver 46 Gbps of bandwidth in each direction. Traffic destined for a different module is distributed across up to five fabric modules. At least one fabric module is required in the chassis. The installation of two fabric modules in the chassis delivers fabric fault tolerance with no loss of bandwidth.
The Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules buffer data in virtual output queues (VOQs) before the data flows to the fabric. The data flow is controlled by a central arbiter on the supervisor module using a credit-based buffer design. This architecture offers a lossless fabric that delivers quality of service (QoS) and fairness across all ports, even during congestion.
Table 1 summarizes the features and benefits of the Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Modules.
Table 1. Features and Benefits*
* Initial software releases may support a subset of the overall hardware capabilities. Refer to Cisco Nexus 7000 Series NX-OS release notes for up-to-date software version information and feature support details.
Product Specifications
Table 2 lists the productions specifications for the Cisco Nexus 7000 M1-Series 48-Port 10/100/1000 Ethernet Module and Cisco Nexus 7000 M1-Series 48-port Gigabit Ethernet Module with SFP Optics.
Table 2. Product Specifications
Interface Distances
Table 3 summarizes the interfaces, cabling specifications, and distances supported by the Cisco Nexus 7000 M1-Series 48-Port Gigabit Ethernet Module (SFP Optics). Not all optics are supported in the first software release. Refer to the Cisco Nexus 7000 Series NX-OS Release Notes for up-to-date software version information and optics support details.
Table 3. Gigabit Ethernet Interface Distances and Options1
1 See the Cisco Gigabit Ethernet SFP Modules Data Sheet for additional information: http://www.cisco.com/en/US/prod/collateral/modules/ps5455/ps6577/product_data_sheet0900aecd8033f885.html.
2 Bandwidth is specified at transmission wavelength.
3 A mode-conditioning patch is required for use over legacy MMF types such as FDDI-grade, OM1, and OM2. Please refer to the product bulletin at http://www.cisco.com/en/US/prod/collateral/modules/ps5455/product_bulletin_c25-530836.html.
4 Multiple wavelengths are offered. See the Cisco Coarse Division Multiplexing (CWDM) SFP Modules Data Sheet for additional product numbers and information: http://www.cisco.com/en/US/prod/collateral/modules/ps5455/ps6575/product_data_sheet09186a00801a557c.html.
5 Multiple wavelengths are offered. See the Cisco Dense Wavelength-Division Multiplexing (DWDM) SFP Modules Data Sheet for additional product numbers and information: http://www.cisco.com/en/US/prod/collateral/modules/ps5455/ps6576/product_data_sheet0900aecd80582763.html.
Ordering Information
To place an order, visit the Cisco Ordering Homepage. To download software, visit the Cisco Software Center. Table 4 provides ordering information.
Table 4. Ordering Information
|
Product Name |
Part Number |
|
Cisco Nexus 7000 Series 48-Port 10/100/1000 Ethernet Module |
N7K-M148GT-11 |
|
Cisco Nexus 7000 Series 48-Port Gigabit Ethernet Module (SFP) |
N7K-M148GS-11 |
Service and Support
Cisco offers a wide range of services to help accelerate your success in deploying and optimizing Cisco Nexus 7000 Series Switches in your data center. Our innovative services are delivered through a unique combination of people, processes, tools, and partners and are focused on helping you increase operational efficiency and improve your data center network. Cisco Advanced Services uses an architecture-led approach to help you align your data center infrastructure with your business goals and provide long-term value. Cisco SMARTnet® Service helps you resolve mission-critical problems with direct access at any time to Cisco network experts and award-winning resources. With this service, you can take advantage of the Cisco Smart Call Home service capability, which offers proactive diagnostics and real-time alerts on your Cisco Nexus 7000 Series Switches. Spanning the entire network lifecycle, Cisco Services helps maximize investment protection, optimize network operations, provide migration support, and strengthen your IT expertise. For more information about Cisco Data Center Services, visit http://www.cisco.com/go/dcservices.
For More Information
For more information about the Cisco Nexus 7000 Series, visit the product homepage at http://www.cisco.com/go/nexus7000 or contact your local account representative.
