The Cisco® Nexus™ 2000 and Nexus 5000 Series Data Center switches deliver an innovative architecture to simplify data center transformation by enabling a high-performance, standards-based Ethernet unified fabric.
Both Nexus 2000 and Nexus 5000 series switches use SFP+ form-factor for 10GE interconnects, which is capable of providing 10GE support in either copper or fiber media.

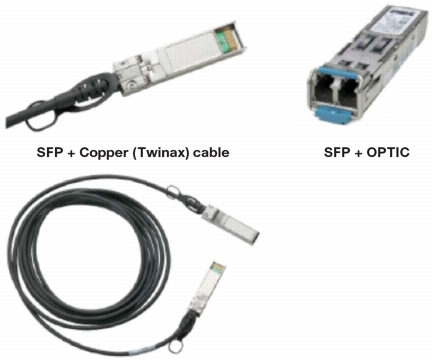

Figure 1. 10GBase-SFP Modules
Note: Requirements and procedures for initial configurations and software upgrades tend to change and therefore appear only in the switch or router software release notes. Before installing, configuring, or upgrading a switch, refer to the product release notes on Cisco.com for the latest information. This matrix does not replace or supersede the release notes.
Twinax Cables Certification Matrix for Nexus 2000 and Nexus 5000 Switches
Platform
Twinax Cables
Length
Vendor
Minimum Software
N5K-C5010P-BF
N5K-C5020P-BF
N5K-M1600
N5K-M1404
N5K-C5548P-FA
N55-M16P
N55-M8P8FP
N5K-C5548UP-FA
N5K-C5596UP-FA
N55-M16UP
N2K-C2148T-1GE
N2K-C2248TP-1GE
N2K-C2248TP-E-1GE
N2K-C2224TP-1GE
N2K-C2232PP-10GE
N2K-C2232TM-10GE
SFP-H10GB-CU1M
SFP-H10GB-CU3M
SFP-H10GB-CU5M
SFP-H10GB-ACU7M
SFP-H10GB-ACU10M
NEX-5020-TX1M
NEX-5020-TX3M
NEX-5020-TX5M
3722 S51 5510
3722 S51 5520
3722 S51 5530
AP784A
AP785A
X-SFP-H10GB-CU1M-R6
X-SFP-H10GB-CU1M-R6-C
X-SFP-H10GB-CU3M-R6
X-SFP-H10GB-CU3M-R6-C
X-SFP-H10GB-CU5M-R6
X-SFP-H10GB-CU5M-R6-C
PSF1PXA1MBU
PSF1PXA1.5MBU
PSF1PX2MBU
PSF1PXA2.5MBU
PSF1PXA3MBU
PSF1PXD5MBU
1M
3M
5M
7M
10M
1M
3M
5M
1M
3M
5M
3M
5M
1M
1M
3M
3M
5M
5M
1M
1.5M
2M
2.5M
3M
5M
Cisco
Cisco
Cisco
Cisco
Cisco
EMC
EMC
EMC
IBM
IBM
IBM
HP StorageWorks
HP StorageWorks
NetApp
NetApp
NetApp
NetApp
NetApp
NetApp
Panduit
Panduit
Panduit
Panduit
Panduit
Panduit
NX-OS 4.0(0)N1(1)
NX-OS 4.0(0)N1(1)
NX-OS 4.0(0)N1(1)
NX-OS 4.2(1)N1(1)
NX-OS 4.2(1)N1(1)
NX-OS 4.0(0)N1(2a)
NX-OS 4.0(0)N1(2a)
NX-OS 4.0(0)N1(2a)
NX-OS 4.1(3)N1(1)
NX-OS 4.1(3)N1(1)
NX-OS 4.1(3)N1(1)
NX-OS 4.1(3)N1(1)
NX-OS 4.1(3)N1(1)
NX-OS 4.0(1A)N1(1)
NX-OS 4.0(1A)N1(1)
NX-OS 4.0(1A)N1(1)
NX-OS 4.0(1A)N1(1)
NX-OS 4.0(1A)N1(1)
NX-OS 4.0(1A)N1(1)
NX-OS 5.0(3)N1(1)
NX-OS 5.0(3)N1(1)
NX-OS 5.0(3)N1(1)
NX-OS 5.0(3)N1(1)
NX-OS 5.0(3)N1(1)
NX-OS 5.0(3)N1(1)
Twinax Cable Support Algorithm on Nexus 2000 and Nexus 5000 Switches
Starting NX-OS 4.1(3)N2.1 software release, following algorithm is used while detecting SFP+ twinax cables on Nexus 2000 and Nexus 5000 switches:
If attached interconnect (transceiver) is a twinax cable, then verify transceiver SPROM to match Cisco magic code. If the check succeeds then bring up the interface else check whether the Vendor Part Number (PN) has been certified. If the Vendor PN is certified bring up the interface else print a warning message stating that non-Cisco transceiver is attached (shown below) and try to bring up the port.
2009 Oct 9 01:46:42 switch %ETHPORT-3-IF_NON-CISCO_TRANSCEIVER: Non-Cisco transceiver on interface Ethernet1/18 is detected.
Cisco Service and Support
If customer has valid support contract for Cisco Nexus switches, Cisco TAC will support twinax cables that are part of compatibility matrix for respective switches. However, if the twinax cables are not purchased through Cisco, customer cannot RMA these cables to Cisco for replacement.
If a twinax cable that is not part of the compatibility matrix is connected into a system, Cisco TAC will still debug the problem provided the customer has valid support contract on the switches. However TAC may ask the customer to replace with Cisco qualified cables if there is a situation that points to cables possibly being faulty or the customer will be redirected to the cable provider for support. Cisco TAC cannot issue an RMA against uncertified cables for replacement.
