High-Performance, Reliable, Stacking Switch for Small Businesses
Highlights
• 24 high-speed ports optimized for the network core or to support bandwidth-intensive applications
• Resilient clustering provides the ability to manage several switches as a single switch to support growing businesses
• Basic QoS helps ensure a consistent network experience and supports networked applications including voice, video, and data storage
• Strong security protects network traffic to keep unauthorized users off the network
• Limited lifetime warranty

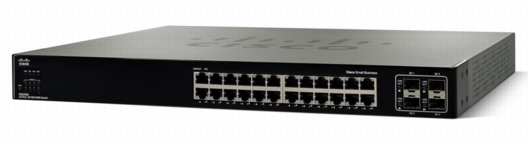

Figure 1. Cisco SGE2000 24-Port Gigabit Switch
Product Overview
The Cisco SGE2000 24-Port Gigabit Switch (Figure 1) helps maximize system availability, with fully redundant stacking and dual images for resilient firmware upgrades. The switch helps secure the network through IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access control lists (ACLs), denial-of-service (DoS) prevention, and MAC-based filtering. The enhanced quality of service (QoS) and traffic-management features help ensure clear and reliable voice and video communications.
The Cisco SGE2000 includes an intuitive, secure management interface, enabling you to take advantage of the comprehensive feature set for a better-optimized, more secure network.
Features
• Twenty-four 10/100/1000 Ethernet ports
• Four Small Form-Factor Pluggable (SFP) slots (shared with four copper ports) for fiber Gigabit Ethernet expansion
• Dual images for resilient firmware upgrades
• Up to 48-Gbps, nonblocking, store-and-forward switching capacity
• Simplified QoS management using 802.1p, differentiated services (DiffServ), or (ToS) traffic prioritization specifications
• Fully resilient stacking for optimized growth with simplified management
• ACLs for granular security and QoS implementation
• Can be configured and monitored from a standard web browser
• Secure remote management of the switch via Secure Shell (SSH) and SSL encryption
• 802.1Q-based VLANs enable segmentation of networks for improved performance and security
• Private VLAN Edge (PVE) for simplified network isolation of guest connections or autonomous networks
• Automatic configuration of VLANs across multiple switches through Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
• User/network port-level security via 802.1X authentication and MAC-based filtering
• Increased bandwidth and added link redundancy with link aggregation
• Enhanced rate-limiting capabilities, including back pressure, multicast, and broadcast flood control
• Port mirroring for noninvasive monitoring of switch traffic
• Jumbo frame support up to 10KB
• Simple Network Management Protocol (SNMP) versions 1, 2c, and 3 and Remote Monitoring (RMON) support
• Fully rack mountable using the included rack-mounting hardware
• Simple, one-step automated installation and initial configuration
Specifications
Table 1 contains the specifications, package contents, and minimum requirements for the Cisco SGE2000 24-Port Gigabit Switch.
Table 1. Specifications for the Cisco SGE2000 24-Port Gigabit Switch
Feature
Description
Specifications
Ports
• 24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 4 shared Gigabit SFP slots
• Console port
• Auto medium dependent interface (MDI) and MDI crossover (MDI-X)
• Auto negotiate/manual setting
• RPS port for connecting to redundant power supply unit
Buttons
Reset button
Cabling type
• Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX
• UTP Category 5 Ethernet or better for 1000BASE-T
LEDs
PWR, Fan, Link/Act, Speed, RPS, Master, Stack ID 1 through 8
Performance
Switching capacity
Up to 48 Gbps, nonblocking
Forwarding rate
(based on 64-byte packets)
Up to 35.7 mpps
Stacking
Stack operation
• Up to 8 units in a stack (192 ports)
• Hot insertion and removal
• Ring and chain stacking options
• Master and backup master for resilient stack control
• Auto-numbering or manual configuration of units in stack
Layer 2
MAC table size
8000
Number of VLANs
256 active VLANs (4096 range)
VLAN
• Port-based and 802.1Q tag-based VLANs
• Protocol-based VLAN
• Management VLAN
• Private VLAN Edge (PVE)
• GVRP
Head-of-line (HOL) blocking
HOL blocking prevention
Layer 3
Layer 3 options
• Static routing
• Classless interdomain routing (CIDR)
• 128 static routes
• IPv4
• Forwarding in silicon - wire-speed forwarding of Layer 3 traffic
IPv6
IPv6
IPv6 Host Mode
IPv6 over Ethernet
Dual IPv6/IPv4 stack
IPv6 Neighbor and Router Discovery (ND)
IPv6 Stateless Address Autoconfiguration
Path MTU Discovery
Duplicate Address Detection (DAD)
ICMPv6
IPv6 over IPv4 network with ISATAP tunnel support
IPv6 QoS
Prioritize IPv6 packets in hardware
IPv6 ACL
Drop or Rate Limit IPv6 packets in hardware
MLD Snooping
Deliver IPv6 multicast packets only to the required receivers
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
Firmware upgrade
• Web browser upgrade (HTTP) and Trivial File Transfer Protocol (TFTP)
• Dual images for resilient firmware upgrades
Port mirroring
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe
Other management
• Traceroute
• Single IP management
• SSL security for web user interface
• SSH
• RADIUS
• Port mirroring
• TFTP upgrade
• DHCP client
• BOOTP
• Simple Network Time Protocol (SNTP)
• Xmodem upgrade
• Cable diagnostics
• Ping
• Syslog
• Telnet client (SSH secure support)
Security
IEEE 802.1X
• 802.1X - RADIUS authentication; MD5 hash
• Guest VLAN
• Single/multiple host mode
Access control
ACLs - drop or rate limit based on:
• Source and destination MAC-based
• Source and destination IP address
• Protocol
• Port
• VLAN
• Differentiated services code point (DSCP)/IP precedence
• TCP/User Datagram Protocol (UDP) source and destination ports
• 802.1p priority
• Ethernet type
• Internet Control Message Protocol (ICMP) packets
• Internet Group Management Protocol (IGMP) packets
• Up to 1018 rules
Availability
Link aggregation
• Link aggregation using IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Up to 8 ports in up to 8 groups
Storm control
Broadcast and multicast storm protection
DoS prevention
DoS attack prevention
Spanning Tree
• IEEE 802.1D Spanning Tree
• IEEE 802.1w Rapid Spanning Tree
• IEEE 802.1s Multiple Spanning Tree, Fast Linkover
IGMP snooping
IGMP (versions 1 and 2) snooping limits bandwidth-intensive video traffic to only the requestors. Supports 256 multicast groups.
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature
32º to 104ºF (0º to 40ºC)
Storage temperature
-4º to 158ºF (-20º to 70ºC)
Operating humidity
10% to 90% relative humidity, noncondensing
Storage humidity
10% to 95% relative humidity, noncondensing
Number of fans
2
Acoustic noise
55 dB max.
Power
100-240V AC, 50-60Hz, internal, universal; also equipped with redundant power supply connector for external power supply 48V DC
Power consumption
12V at 7.5A (90W)
Package Contents
• Cisco SGE2000 24-Port Gigabit Switch
• Console cable
• AC power cord
• Rack-mounting kit
• Quick installation guide
Minimum Requirements
• Web browser: Mozilla Firefox 1.5 or later, Internet Explorer 5.5 or later, Netscape 7.01 or later
• Category 5 Ethernet network cable
• TCP/IP installed on each computer within the network
• Network adapter installed in each computer
• Network operating system
Product Warranty
Limited lifetime warranty with return to factory replacement, one year telephone support and software fixes for the warranty term.
Service & Support
Cisco Small Business switches are backed by the Cisco Small Business Support Service, which provides affordable peace-of-mind coverage. This subscription-based service helps you protect your investment and derive maximum value from Cisco Small Business products. Delivered by Cisco and backed by your trusted partner, this comprehensive service includes software updates, access to the Cisco Small Business Support Center, and expedited hardware replacement.
Cisco Small Business products are supported by professionals in Cisco Small Business Support Center locations worldwide who are specifically trained to understand your needs. The Cisco Small Business Support Community, an online forum, enables you to collaborate with your peers and reach Cisco technical experts for support information.
Cisco Limited Lifetime Hardware Warranty
This Cisco Small Business product offers a limited lifetime hardware warranty with return to factory replacement and a 1-year limited warranty for fans and power supplies. In addition, Cisco offers telephone technical support at no charge for the first 12 months following the date of purchase and software bug fixes for the warranty term. To download software updates, go to: http://www.cisco.com/cisco/web/download/index.html.
