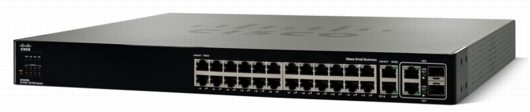

The Cisco® SFE2000 24-Port 10/100 Ethernet Switch (Figure 1) is optimized to maximize system availability, with fully redundant stacking, redundant power options, and dual images for resilient firmware upgrades. The Cisco SFE2000 is able to secure the network through IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access control lists (ACLs), denial-of-service (DoS) prevention, and MAC-based filtering. The enhanced QoS and traffic management features help ensure clear and reliable voice and video communications.
The Cisco SFE2000 provides an intuitive, secure management interface, enabling you to better utilize the switch's comprehensive feature set, resulting in a better-optimized, more secure network.
Features
• Twenty-four 10/100 Ethernet ports plus four 10/100/100 copper ports
• Two Small Form-Factor Pluggable (SFP) slots (shared with two copper ports) for fiber Gigabit Ethernet expansion
• Dual images for resilient firmware upgrades
• Up to 12.8-Gbps nonblocking, store-and-forward switching capacity
• Simplified quality of service (QoS) management using 802.1p, Differentiated Services (DiffServ), or type of service (ToS) traffic prioritization specifications
• Fully resilient stacking provides optimized growth with simplified management
• ACLs for granular security and QoS implementation
• Can be configured and monitored from a standard web browser
• Secure remote management of the switch via Secure Shell (SSH) and Secure Sockets Layer (SSL) encryption
• 802.1Q-based VLANs enable segmentation of networks for improved performance and security
• Private VLAN Edge (PVE) for simplified network isolation of guest connections or autonomous networks
• Automatic configuration of VLANs across multiple switches through Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
• User/network port-level security via 802.1X authentication and MAC-based filtering
• Increased bandwidth and added link redundancy with link aggregation
• Enhanced rate-limiting capabilities, including back pressure, multicast, and broadcast flood control
• Port mirroring for noninvasive monitoring of switch traffic
• Mini jumbo frame support (1600 bytes)
• Simple Network Management Protocol (SNMP) v1, v2c, v3 and Remote Monitoring (RMON) support
• Fully rack-mountable using the included rack-mounting hardware
• Simple, one-step automated installation and initial configuration
Specifications
Table 1 contains the specifications, package contents, and minimum requirements for the Cisco SFE2000P 24-Port 10/100 Ethernet Switch.
Table 1. Specifications for the Cisco SFE2000 24-Port 10/100 Ethernet Switch
Feature
Description
Specifications
Ports
• 24 RJ-45 connectors for 10BASE-T/100BASE-TX
• Four 10BASE-T/100BASE-TX/1000BASE-T with 2 Gigabit combo ports
• Shared between mini Gigabit Interface Converter (mini-GBIC) ports
• Console port
• Auto medium dependent interface (MDI) and MDI crossover (MDI-X)
• Auto negotiate/manual setting
• RPS port for connecting to redundant power supply unit
Buttons
Reset button
Cabling type
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX, UTP Category 5 Ethernet or better for 1000BASE-T
LEDs
PWR, Fan, Link/Act, Speed, RPS, Master, Stack ID 1 through 8
Performance
Switching capacity
Up to 12.8 Gbps, nonblocking
Forwarding rate
(based on 64-byte packets)
Up to 9.5 mpps
Stacking
Stack operation
• Up to 8 units in a stack (192 ports)
• Hot insertion and removal
• Ring and chain stacking options
• Master and backup master for resilient stack control
• Auto-numbering or manual configuration of units in stack
Layer 2
MAC table size
8000
Number of VLANs
256 active VLANs (4096 range)
VLAN
• Port-based and 802.1Q tag-based VLANs
• Protocol-based VLAN
• Management VLAN
• Private VLAN Edge (PVE)
• GVRP
Head-of-line (HOL) blocking
HOL blocking prevention
Layer 3
Layer 3 options
• Static routing
• Classless interdomain routing (CIDR)
• 128 static routes
• IPv4
• Forwarding in silicon-wire-speed forwarding of Layer 3 traffic
IPv6
IPv6
IPv6 Host Mode
IPv6 over Ethernet
Dual IPv6/IPv4 stack
IPv6 Neighbor and Router Discovery (ND)
IPv6 Stateless Address Autoconfiguration
Path MTU Discovery
Duplicate Address Detection (DAD)
ICMPv6
IPv6 over IPv4 network with ISATAP tunnel support
IPv6 QoS
Prioritize IPv6 packets in hardware
IPv6 ACL
Drop or Rate Limit IPv6 packets in hardware
MLD Snooping
Deliver IPv6 multicast packets only to the required receivers
Embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
Firmware upgrade
• Web browser upgrade (HTTP) and Trivial File Transfer Protocol (TFTP)
• Dual images for resilient firmware upgrades
Port mirroring
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe
UL (UL 60950), CSA (CSA 22.2), CE Mark, FCC Part 15 (CFR 47) Class A
Operating temperature
32º to 104ºF (0 to 40ºC)
Storage temperature
-4º to 158ºF (-20 to 70ºC)
Operating humidity
10% to 90% relative humidity,
Storage humidity
10% to 95% relative humidity, noncondensing
Number of fans
1
Acoustic noise
50 dB max.
Power
100-240V AC, 50-60 Hz, internal, universal; also equipped with redundant power supply connector for external power supply, 48V DC
Power consumption
12V@4.5A (54W)
Package Contents
• Cisco SFE2000 24-Port 10/100 Ethernet Switch
• Console cable
• AC power cord
• Rack-mount kit
• Quick installation guide
Minimum Requirements
• Web-based utility: web browser (Mozilla Firefox 1.5 or later, Internet Explorer 5.5 or later, Netscape 7.01 or later)
• Category 5 Ethernet network cables
• Operating system: Windows 2000, XP, or later
Product Warranty
Limited lifetime warranty with return to factory replacement, one year telephone support and software fixes for the warranty term.
Service & Support
Cisco Small Business switches are backed by the Cisco Small Business Support Service, which provides affordable peace-of-mind coverage. This subscription-based service helps you protect your investment and derive maximum value from Cisco Small Business products. Delivered by Cisco and backed by your trusted partner, this comprehensive service includes software updates, access to the Cisco Small Business Support Center, and expedited hardware replacement.
Cisco Small Business products are supported by professionals in Cisco Small Business Support Center locations worldwide who are specifically trained to understand your needs. The Cisco Small Business Support Community, an online forum, enables you to collaborate with your peers and reach Cisco technical experts for support information.
Cisco Limited Lifetime Hardware Warranty
This Cisco Small Business product offers a limited lifetime hardware warranty with return to factory replacement and a 1-year limited warranty for fans and power supplies. In addition, Cisco offers telephone technical support at no charge for the first 12 months following the date of purchase and software bug fixes for the warranty term. To download software updates, go to: http://www.cisco.com/cisco/web/download/index.html.
