Cisco Catalyst 2960-S Series Switches Data Sheet [Cisco Catalyst 2960-S Series Switches]

The Cisco^® Catalyst^® 2960-S Series Switches are fixed-configuration Gigabit Ethernet switches (Figure 1) that provide enterprise-class Layer 2 switching for campus and branch access applications. They enable reliable and secure business operations with lower total cost of ownership through a range of innovative features including FlexStack, Power over Ethernet Plus (PoE+), and Cisco Catalyst SmartOperations.

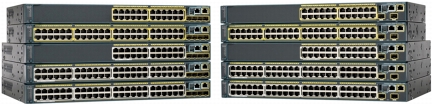

Figure 1. Cisco Catalyst 2960-S Series Switches

Product Highlights

Cisco Catalyst 2960-S switches feature:

• 24 or 48 Gigabit Ethernet ports

• 1G Small Form-Factor Pluggable (SFP) or 1G/10G SFP+ slots

• Cisco FlexStack stacking with 20 Gbps of stack throughput (optional)

• IEEE 802.3at-compliant PoE+ for up to 30W of power per port

• Up to 740W of combined PoE/PoE+ budget

• USB interfaces for management and file transfers

• LAN Base or LAN Lite Cisco IOS^® Software feature set

• SmartOperations tools that simplify deployment and reduce the cost of network administration

• An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement

Applications and Benefits

The Cisco Catalyst 2960-S Series is ideal for:

• Deploying cost-effective wired connectivity in traditional desktop workspace environments

• Implementing quality of service (QoS) to provide priority treatment of voice and critical business applications

• Enforcing basic security policies to limit access to the network and mitigate threats

• Reducing total cost of ownership through simplified operations and automation

Switch Configurations

Table 1. Cisco Catalyst 2960-S Series Switches Configurations

Model	10/100/1000 Ethernet Interfaces	Uplink Interfaces	Cisco IOS Software Feature Set	Available PoE Power	FlexStack Stacking
Cisco Catalyst 2960S-48FPD-L	48	2 SFP+	LAN Base	740W	Optional
Cisco Catalyst 2960S-48LPD-L	48	2 SFP+	LAN Base	370W	Optional
Cisco Catalyst 2960S-24PD-L	24	2 SFP+	LAN Base	370W	Optional
Cisco Catalyst 2960S-48TD-L	48	2 SFP+	LAN Base	-	Optional
Cisco Catalyst 2960S-24TD-L	24	2 SFP+	LAN Base	-	Optional
Cisco Catalyst 2960S-48FPS-L	48	4 SFP	LAN Base	740W	Optional
Cisco Catalyst 2960S-48LPS-L	48	4 SFP	LAN Base	370W	Optional
Cisco Catalyst 2960S-24PS-L	24	4 SFP	LAN Base	370W	Optional
Cisco Catalyst 2960S-48TS-L	48	4 SFP	LAN Base	-	Optional
Cisco Catalyst 2960S-24TS-L	24	4 SFP	LAN Base	-	Optional
Cisco Catalyst 2960S-48TS-S	48	2 SFP	LAN Lite	-	No
Cisco Catalyst 2960S-24TS-S	24	2 SFP	LAN Lite	-	No

Cisco FlexStack

Cisco FlexStack provides stacking of up to four 2960-S switches through an optional module (Figure 2).

The FlexStack stack module is hot-swappable and can be added to any Cisco Catalyst 2960-S switch with LAN Base software. Switches connected to a stack will automatically upgrade to the stack's Cisco IOS Software version and transparently join the stack without additional intervention.

Cisco FlexStack and Cisco IOS Software provide true stacking, with all switches in a stack acting as a single switch unit. FlexStack provides a unified data plane, unified configuration, and single IP address for switch management. The advantages of true stacking include lower total cost of ownership and higher availability through simplified management and cross-stack features including EtherChannel, SPAN, and FlexLink. Note that cross-stack features must be disabled before removing the stack module from an active stack member switch.

FlexStack also allows mixed stacking: 2960-S and 2960-SF switches can be combined to provide a combination of Gigabit and Fast Ethernet ports in a single switch stack.

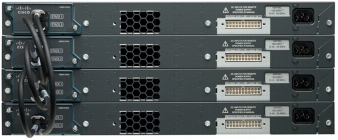

Figure 2. Cisco FlexStack Switch Stack

Power over Ethernet Plus - PoE+

Cisco Catalyst 2960-S switches support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port) to deliver lower total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet^® wireless access points, or other standards-compliant PoE/PoE+ end devices. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. Table 2 shows the total PoE/PoE+ power available in each 2960-S model.

Table 2. Switch PoE and PoE+ Power Capacity

Switch Model	Maximum Number of PoE+ (IEEE 802.3at) Ports^*	Maximum Number of PoE (IEEE 802.3af) Ports^*	Available PoE Power
Cisco Catalyst 2960S-48FPD-L	24 ports up to 30W	48 ports up to 15.4W	740W
Cisco Catalyst 2960S-48LPD-L	12 ports up to 30W	24 ports up to 15.4W	370W
Cisco Catalyst 2960S-24PD-L	12 ports up to 30W	24 ports up to 15.4W	370W
Cisco Catalyst 2960S-48FPS-L	24 ports up to 30W	48 ports up to 15.4W	740W
Cisco Catalyst 2960S-48LPS-L	12 ports up to 30W	24 ports up to 15.4W	370W
Cisco Catalyst 2960S-24PS-L	12 ports up to 30W	24 ports up to 15.4W	370W

^* Intelligent power management allows flexible power allocation across all ports.

Network Security

The Cisco Catalyst 2960-S Series Switches provide a range of security features to limit access to the network and mitigate threats, including:

• Features to control access to the network, including Flexible Authentication, 802.1x Monitor Mode, and RADIUS Change of Authorization

• Cisco SXP to simplify security and policy enforcement throughout the network

• Threat defense features including Port Security, Dynamic ARP Inspection, and IP Source Guard

• IPv6 First-Hop Security to protect against rogue router advertisements, spoofing, and other risks introduced by IPv6

For more information about Cisco security solutions, visit http://www.cisco.com/go/trustsec.

Enhanced Quality of Service

The Cisco 2960-S Series Switches offers intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed. Primary QoS features include:

• Four egress queues per port and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic

• Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) congestion avoidance

• Flow-based rate limiting and up to 64 aggregate or individual policers per port

• 802.1p class of service (CoS) and differentiated services code point (DSCP) field classification, with marking and reclassification on a per-packet basis by source and destination IP address, MAC address, or Layer 4 TCP/UDP port number

• Cross-stack QoS to allow QoS to be configured across a stack of 2960-S switches

Cisco Catalyst SmartOperations

Cisco Catalyst SmartOperations is a comprehensive set of capabilities that simplify LAN planning, deployment, monitoring, and troubleshooting. Deploying SmartOperations tools reduces the time and effort required to operate the network and lowers total cost of ownership (TCO).

• Cisco Smart Install enables zero-touch deployment by providing automated Cisco IOS Software image installation and configuration when new switches are connected to the network.

• Cisco Auto Smartports enables automatic configuration of switch ports as devices connect to the switch, with settings optimized for the device type.

• Cisco Smart Troubleshooting is an extensive array of diagnostic commands and system health checks within the switch, including Smart Call Home.

For more information about Cisco Catalyst SmartOperations, visit http://www.cisco.com/go/smartoperations.

Cisco EnergyWise

Cisco EnergyWise empowers IT teams to measure and manage the power consumed by devices connected to the network, providing measurable energy savings and reduced greenhouse gas emissions. EnergyWise policies can be used to control the power consumed by PoE-powered endpoints, desktop and data-center IT equipment, and a wide range of building infrastructure. EnergyWise technology is included on all Cisco Catalyst 2960-S Series Switches.

For more information about Cisco EnergyWise^™, visit http://www.cisco.com/go/energywise.

Network Management

The Cisco Catalyst 2960-S Series Switches offer a superior CLI for detailed configuration and administration. 2960-S switches are also supported in the full range of Cisco network management solutions.

Cisco Prime Infrastructure

Cisco Prime^™ network management solutions provide comprehensive network lifecycle management. Cisco Prime Infrastructure provides an extensive library of easy-to-use features to automate the initial and day-to-day management of your Cisco network. Cisco Prime integrates hardware and software platform expertise and operational experience into a powerful set of workflow-driven configuration, monitoring, troubleshooting, reporting, and administrative tools.

For detailed information about Cisco Prime, visit http://www.cisco.com/go/prime.

Cisco Network Assistant

A PC-based network management application designed for small and medium-sized business (SMB) networks with up to 250 users, Cisco Network Assistant offers centralized network management and configuration capabilities. This application also features an intuitive GUI where users can easily apply common services across Cisco switches, routers, and access points.

For detailed information about Cisco Network Assistant, visit http://www.cisco.com/go/cna.

Software Features

Cisco Catalyst 2960-S Series Switches are available with the LAN Base and LAN Lite feature sets. LAN Lite models provide reduced functionality and scalability for small deployments with basic requirements.

Note that each switch model is tied to a specific feature level; LAN Lite models cannot be upgraded to the LAN Base feature set.

For more information about the features included in the LAN Base and LAN Lite feature sets, refer to Cisco Feature Navigator: http://tools.cisco.com/ITDIT/CFN/jsp/index.jsp.

Technical Specifications

Table 3. Cisco Catalyst 2960-S Series Hardware

Hardware Specifications
Flash memory	64 MB
DRAM	128 MB

Table 4. Cisco Catalyst 2960-S Series Performance

Performance and Scalability
	LAN Base (-L) Models	LAN Lite (-S) Models
Forwarding bandwidth	88Gbps	50 Gbps
Switching bandwidth^*	176 Gbps	100 Gbps
Maximum active VLANs	255	64
VLAN IDs available	4000	4000
Maximum transmission unit (MTU) - L3 packet	9198 bytes	9198 bytes
Jumbo frame - Ethernet frame	9216 bytes	9216 bytes

^* Switching bandwidth is full-duplex capacity.

Table 5. Cisco Catalyst 2960-S Series Forwarding Performance

Forwarding Rate: 64-Byte L3 Packets
Cisco Catalyst 2960S-48FPD-L	101.2 mpps
Cisco Catalyst 2960S-48LPD-L	101.2 mpps
Cisco Catalyst 2960S-24PD-L	65.5 mpps
Cisco Catalyst 2960S-48TD-L	101.2 mpps
Cisco Catalyst 2960S-24TD-L	65.5 mpps
Cisco Catalyst 2960S-48FPS-L	77.4 mpps
Cisco Catalyst 2960S-48LPS-L	77.4 mpps
Cisco Catalyst 2960S-24PS-L	41.7 mpps
Cisco Catalyst 2960S-48TS-L	77.4 mpps
Cisco Catalyst 2960S-24TS-L	41.7 mpps
Cisco Catalyst 2960S-48TS-S	74.4 mpps
Cisco Catalyst 2960S-24TS-S	38.7 mpps

Table 6. Cisco Catalyst 2960-S Mechanical and Environmental Specifications

Dimensions (H x W x D)
Model	Inches			Centimeters
Cisco Catalyst 2960S-48FPD-L	1.75 x 17.5 x 15.2			4.5 x 44.5 x 38.6
Cisco Catalyst 2960S-48LPD-L
Cisco Catalyst 2960S-24PD-L
Cisco Catalyst 2960S-48TD-L	1.75 x 17.5 x 11.8			4.5 x 44.5 x 30
Cisco Catalyst 2960S-24TD-L
Cisco Catalyst 2960S-48FPS-L	1.75 x 17.5 x 15.2			4.5 x 44.5 x 38.6
Cisco Catalyst 2960S-48LPS-L
Cisco Catalyst 2960S-24PS-L
Cisco Catalyst 2960S-48TS-L	1.75 x 17.5 x 11.8			4.5 x 44.5 x 30
Cisco Catalyst 2960S-24TS-L
Cisco Catalyst 2960S-48TS-S	1.75 x 17.7 x 11.8			4.5 x 45 x 30
Cisco Catalyst 2960S-24TS-S	1.75 x 17.7 x 11.8			4.5 x 45 x 30
Weight
Model	Pounds			Kilograms
Cisco Catalyst 2960S-48FPD-L	13			5.9
Cisco Catalyst 2960S-48LPD-L	12.5			5.7
Cisco Catalyst 2960S-24PD-L	12.5			5.7
Cisco Catalyst 2960S-48TD-L	9.5			4.3
Cisco Catalyst 2960S-24TD-L	9.5			4.3
Cisco Catalyst 2960S-48FPS-L	13			5.9
Cisco Catalyst 2960S-48LPS-L	12.5			5.7
Cisco Catalyst 2960S-24PS-L	12.5			5.7
Cisco Catalyst 2960S-48TS-L	10.5			4.8
Cisco Catalyst 2960S-24TS-L	10			4.5
Cisco Catalyst 2960S-48TS-S	10.5			4.8
Cisco Catalyst 2960S-24TS-S	10			4.5
Environmental Ranges
	Fahrenheit			Centigrade
Operating temperature up to 5000 ft (1500 m)	23º to 113ºF			-5º to 45ºC
Operating temperature up to 10,000 ft (3000 m)	23º to 104ºF			-5º to 40ºC
Short-term exception at sea level^*	23º to 131ºF			-5º to 55ºC
Short-term exception up to 5000 feet (1500 m)^*	23º to 122ºF			-5º to 50ºC
Short-term exception up to 10,000 feet (3000 m)^*	23º to 113ºF			-5º to 45ºC
Short-term exception up to 13,000 feet (4000 m)^*	23º to 104ºF			-5º to +40ºC
Storage temperature up to 15,000 feet (4573 m)	-13º to 158ºF			-25º to 70ºC
	Feet			Meters
Operating altitude	Up to 10,000			Up to 3000
Storage altitude	Up to 13,000			Up to 4000
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
Acoustic Noise
Measured per ISO 7779 and declared per ISO 9296.
Bystander positions operating mode at 25°C ambient.
	Sound Pressure		Sound Power
Model	LpA (Typical)	LpAD (Maximum)	LwA (Typical)		LwAD (Maximum)
Cisco Catalyst 2960S-48FPD-L	42 dB	45 dB	5.2 B		5.5 B
Cisco Catalyst 2960S-48LPD-L
Cisco Catalyst 2960S-24PD-L
Cisco Catalyst 2960S-48TD-L	44 dB	47 dB	5.4 B		5.7 B
Cisco Catalyst 2960S-24TD-L
Cisco Catalyst 2960S-48FPS-L	42 dB	45 dB	5.2 B		5.5 B
Cisco Catalyst 2960S-48LPS-L
Cisco Catalyst 2960S-24PS-L
Cisco Catalyst 2960S-48TS-L	44 dB	47 dB	5.4 B		5.7 B
Cisco Catalyst 2960S-24TS-L
Cisco Catalyst 2960S-48TS-S	44 dB	47 dB	5.4 B		5.7 B
Cisco Catalyst 2960S-24TS-S
Predicted Reliability
Model	MTBF in hours^**
Cisco Catalyst 2960S-48FPD-L	183,498
Cisco Catalyst 2960S-48LPD-L	198,300
Cisco Catalyst 2960S-24PD-L	237,016
Cisco Catalyst 2960S-48TD-L	311,291
Cisco Catalyst 2960S-24TD-L	332,958
Cisco Catalyst 2960S-48FPS-L	189,242
Cisco Catalyst 2960S-48LPS-L	205,052
Cisco Catalyst 2960S-24PS-L	245,604
Cisco Catalyst 2960S-48TS-L	328,058
Cisco Catalyst 2960S-24TS-L	349,824
Cisco Catalyst 2960S-48TS-S	357,740
Cisco Catalyst 2960S-24TS-S	335,014
Cisco Catalyst 2960S-STACK	25,743,890

^* Not more than the following in a 1-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
^** Based on Telcordia SR-332 Issue 2 methodology

Table 7. Connectors and Interfaces

Ethernet Interfaces

• 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

• 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

• 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

• 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

SFP and SFP+ Interfaces

For information about supported SFP/SFP+ modules, refer to the Transceiver Compatibility matrix tables at http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html.

Indicator LEDs

• Per-port status: Link integrity, disabled, activity, speed, and full duplex

• System status: System, RPS, Stack link status, link duplex, PoE, and link speed

Stacking Interfaces

Cisco Catalyst 2960-S FlexStack stacking cables:

• CAB-STK-E-0.5M FlexStack stacking cable with a 0.5 m length

• CAB-STK-E-1M FlexStack stacking cable with a 1.0 m length

• CAB-STK-E-3M FlexStack stacking cable with a 3.0 m length

Console

Cisco Catalyst 2960-S console cables:

• CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

• CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Power

• The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC

• Use the supplied AC power cord to connect the AC power connector to an AC power outlet

• The Cisco RPS connector offers connection for an optional Cisco RPS 2300 that uses AC input and supplies DC output to the switch.

• Only the Cisco RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle

Table 8. Management and Standards Support

Category	Specification
Management	• BRIDGE-MIB • CISCO-CABLE-DIAG-MIB • CISCO-CDP-MIB • CISCO-CLUSTER-MIB • CISCO-CONFIG-COPY-MIB • CISCO-CONFIG-MAN-MIB • CISCO-DHCP-SNOOPING-MIB • CISCO-ENTITY-VENDORTYPE-OID-MIB • CISCO-ENVMON-MIB • CISCO-ERR-DISABLE-MIB • CISCO-FLASH-MIB • CISCO-FTP-CLIENT-MIB • CISCO-IGMP-FILTER-MIB • CISCO-IMAGE-MIB • CISCO-IP-STAT-MIB • CISCO-LAG-MIB • CISCO-MAC-NOTIFICATION-MIB • CISCO-MEMORY-POOL-MIB • CISCO-PAGP-MIB • CISCO-PING-MIB • CISCO-POE-EXTENSIONS-MIB • CISCO-PORT-QOS-MIB • CISCO-PORT-SECURITY-MIB • CISCO-PORT-STORM-CONTROL-MIB • CISCO-PRODUCTS-MIB • CISCO-PROCESS-MIB • CISCO-RTTMON-MIB • CISCO-SMI-MIB • CISCO-STP-EXTENSIONS-MIB • CISCO-SYSLOG-MIB	• CISCO-TC-MIB • CICSO-TCP-MIB • CISCO-UDLDP-MIB • CISCO-VLAN-IFTABLE • RELATIONSHIP-MIB • CISCO-VLAN-MEMBERSHIP-MIB • CISCO-VTP-MIB • ENTITY-MIB • ETHERLIKE-MIB • IEEE8021-PAE-MIB • IEEE8023-LAG-MIB • IF-MIB • INET-ADDRESS-MIB • OLD-CISCO-CHASSIS-MIB • OLD-CISCO-FLASH-MIB • OLD-CISCO-INTERFACES-MIB • OLD-CISCO-IP-MIB • OLD-CISCO-SYS-MIB • OLD-CISCO-TCP-MIB • OLD-CISCO-TS-MIB • RFC1213-MIB • RMON-MIB • RMON2-MIB • SNMP-FRAMEWORK-MIB • SNMP-MPD-MIB • SNMP-NOTIFICATION-MIB • SNMP-TARGET-MIB • SNMPv2-MIB • TCP-MIB • UDP-MIB • ePM MIB • CISCO-STACKWISE-MIB (2960-S)
	For an updated list of supported MIBs, refer to the MIB Locator at http://www.cisco.com/go/mibs.
Standards	• IEEE 802.1D Spanning Tree Protocol • IEEE 802.1p CoS Prioritization • IEEE 802.1Q VLAN • IEEE 802.1s • IEEE 802.1w • IEEE 802.1X • IEEE 802.1ab (LLDP) • IEEE 802.3ad • IEEE 802.3af and IEEE 802.3at • IEEE 802.3ah (100BASE-X single/multimode fiber only) • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports	• IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • RMON I and II standards • SNMP v1, v2c, and v3
RFC compliance	• RFC 768 - UDP • RFC 783 - TFTP • RFC 791 - IP • RFC 792 - ICMP • RFC 793 - TCP • RFC 826 - ARP • RFC 854 - Telnet • RFC 951 - Bootstrap Protocol (BOOTP) • RFC 959 - FTP • RFC 1112 - IP Multicast and IGMP • RFC 1157 - SNMP v1 • RFC 1166 - IP Addresses • RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery • RFC 1305 - NTP • RFC 1492 - TACACS+ • RFC 1493 - Bridge MIB • RFC 1542 - BOOTP extensions • RFC 1643 - Ethernet Interface MIB • RFC 1757 - RMON	• RFC 1901 - SNMP v2C • RFC 1902-1907 - SNMP v2 • RFC 1981 - Maximum Transmission Unit (MTU) Path Discovery IPv6 • FRC 2068 - HTTP • RFC 2131 - DHCP • RFC 2138 - RADIUS • RFC 2233 - IF MIB v3 • RFC 2373 - IPv6 Aggregatable Addrs • RFC 2460 - IPv6 • RFC 2461 - IPv6 Neighbor Discovery • RFC 2462 - IPv6 Autoconfiguration • RFC 2463 - ICMP IPv6 • RFC 2474 - Differentiated Services (DiffServ) Precedence • RFC 2597 - Assured Forwarding • RFC 2598 - Expedited Forwarding • RFC 2571 - SNMP Management • RFC 3046 - DHCP Relay Agent Information Option • RFC 3376 - IGMP v3 • RFC 3580 - 802.1X RADIUS

Table 9. Voltage and Power Ratings

Input Voltage and Current
Model		Voltage (Autoranging)	Current	Frequency
Cisco Catalyst 2960S-48FPD-L		100 to 240 VAC	9 to 4 A	50 to 60Hz
Cisco Catalyst 2960S-48LPD-L			5 to 2 A
Cisco Catalyst 2960S-24PD-L			5 to 2 A
Cisco Catalyst 2960S-48TD-L			1 to 0.5 A
Cisco Catalyst 2960S-24TD-L			1 to 0.5 A
Cisco Catalyst 2960S-48FPS-L			9 to 4 A
Cisco Catalyst 2960S-48LPS-L			5 to 2 A
Cisco Catalyst 2960S-24PS-L			5 to 2 A
Cisco Catalyst 2960S-48TS-L			1 to 0.5 A
Cisco Catalyst 2960S-24TS-L			1 to 0.5 A
Cisco Catalyst 2960S-48TS-S		100 to 240 VAC	1 to 0.5 A	50 to 60 Hz
Cisco Catalyst 2960S-24TS-S		100 to 240 VAC	1 to 0.5 A	50 to 60 Hz
Power Rating
Cisco Catalyst 2960S-48FPD-L		0.89 kVA
Cisco Catalyst 2960S-48LPD-L		0.48 kVA
Cisco Catalyst 2960S-24PD-L		0.46 kVA
Cisco Catalyst 2960S-48TD-L		0.09 kVA
Cisco Catalyst 2960S-24TD-L		0.09 kVA
Cisco Catalyst 2960S-48FPS-L		0.89 kVA
Cisco Catalyst 2960S-48LPS-L		0.48 kVA
Cisco Catalyst 2960S-24PS-L		0.46 kVA
Cisco Catalyst 2960S-48TS-L		0.13 kVA
Cisco Catalyst 2960S-24TS-L		0.09 kVA
Cisco Catalyst 2960S-48TS-S		0.13 kVA
Cisco Catalyst 2960S-24TS-S		0.08 kVA
DC Input Voltages (RPS Input)
Cisco Catalyst 2960S-48FPD-L	12V at 4 A		-52 V at 15 A
Cisco Catalyst 2960S-48LPD-L	12V at 4 A		-52 V at 8 A
Cisco Catalyst 2960S-24PD-L	12V at 3 A		-52 V at 8 A
Cisco Catalyst 2960S-48TD-L	12V at 4 A
Cisco Catalyst 2960S-24TD-L	12V at 3 A
Cisco Catalyst 2960S-48FPS-L	12V at 4 A		-52 V at 15A
Cisco Catalyst 2960S-48LPS-L	12V at 4 A		-52 V at 8 A
Cisco Catalyst 2960S-24PS-L	12V at 3 A		-52 V at 8 A
Cisco Catalyst 2960S-48TS-L	12V at 4 A
Cisco Catalyst 2960S-24TS-L	12V at 4 A

Table 10. Power Consumption

Measured Power Consumption^*
Model	100 Percent Throughput	5 Percent Throughput	5 Percent Throughput (with 50 Percent PoE Loads)	100 Percent Throughput (with Maximum Possible PoE Loads)
Cisco Catalyst 2960S-48FPD-L	81	80	464 (386W PoE)	870 (744W PoE)
Cisco Catalyst 2960S-48LPD-L	71	70	266 (195W PoE)	466 (375W PoE)
Cisco Catalyst 2960S-24PD-L	55	54	249 (195W PoE)	451 (375W PoE)
Cisco Catalyst 2960S-48TD-L	55	53
Cisco Catalyst 2960S-24TD-L	39	38
Cisco Catalyst 2960S-48FPS-L	79	78	464 (386W PoE)	870 (744W PoE)
Cisco Catalyst 2960S-48LPS-L	71	70	266 (195W PoE)	466 (375W PoE)
Cisco Catalyst 2960S-24PS-L	55	54	249 (195W PoE)	449 (375W PoE)
Cisco Catalyst 2960S-48TS-L	52	50
Cisco Catalyst 2960S-24TS-L	40	39
Cisco Catalyst 2960S-48TS-S	53	50
Cisco Catalyst 2960S-24TS-S	36	36

^* ATIS methodology

Disclaimer: All power consumption numbers were measured under controlled laboratory conditions and are provided as an estimate.

Note: The wattage rating on the power supply does not represent actual power draw. It indicates the maximum power draw possible by the power supply. This rating can be used for facility capacity planning. For PoE switches, cooling requirements are smaller than total power draw as a significant portion of the load is dissipated in the endpoints.

Table 11. Safety and Compliance

Category	Certifications
Safety certifications	• UL 60950-1, Second Edition • CAN/CSA 22.2 No. 60950-1, Second Edition • TUV/GS to EN 60950-1, Second Edition • CB to IEC 60950-1 Second Edition with all country deviations • CE Marking • NOM (through partners and distributors)
Electromagnetic emissions (EMC)	• FCC Part 15 Class A • EN 55022 Class A (CISPR22) • EN 55024 (CISPR24) • AS/NZS CISPR22 Class A • CE • CNS13438 Class A • MIC • GOST • China EMC Certifications
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
US Government Certifications	USGv6 and IPv6 Ready Logo

Cisco Enhanced Limited Lifetime Hardware Warranty

Cisco Catalyst 2960-S Series Switches come with an enhanced limited lifetime warranty (E-LLW). The E-LLW provides the same terms as Cisco's standard limited lifetime warranty but adds next business day delivery of replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC) support.

Your formal warranty statement, including the warranty applicable to Cisco software, appears in the Cisco information packet that accompanies your Cisco product. We encourage you to review carefully the warranty statement shipped with your specific product before use. Cisco reserves the right to refund the purchase price as its exclusive warranty remedy. For further information about warranty terms, visit http://www.cisco.com/go/warranty

Table 12. Warranty Terms

Cisco Enhanced Limited Lifetime Hardware Warranty
Device covered	Applies to all Cisco Catalyst 2960-S Series Switches
Warranty duration	As long as the original customer owns the product.
End-of-life policy	In the event of discontinuance of product manufacture, Cisco warranty support is limited to five (5) years from the announcement of discontinuance.
Hardware replacement	Cisco or its service center will use commercially reasonable efforts to ship a Cisco Catalyst 2960-S replacement part for next business day delivery, where available. Otherwise, a replacement will be shipped within ten (10) working days after the receipt of the RMA request. Actual delivery times may vary depending on customer location.
Effective date	Hardware warranty commences from the date of shipment to customer (and in case of resale by a Cisco reseller, not more than ninety [90] days after original shipment by Cisco).
TAC support	Cisco will provide during customer's local business hours, 8 hours per day, 5 days per week basic configuration, diagnosis, and troubleshooting of device-level problems for up to 90 days from the date of shipment of the originally purchased Cisco Catalyst 2960-S product. This support does not include solution or network-level support beyond the specific device under consideration.
Cisco.com Access	Warranty allows guest access only to Cisco.com

Software Update Policy

Customers with Cisco Catalyst LAN Base and LAN Lite software licenses will be provided with maintenance updates and bug fixes designed to maintain the compliance of the software with published specifications, release notes, and industry standards compliance as long as the original end user continues to own or use the product or up to one year from the end-of-sale date for this product, whichever occurs earlier.

This policy supersedes any previous warranty or software statement and is subject to change without notice.

Technical Support and Services

Table 13. Technical Services Available for Cisco Catalyst 2960-S Series Switches

Technical Services

Cisco SMARTnet Service

• Around-the-clock, global access to the Cisco TAC

• Unrestricted access to the extensive Cisco.com knowledge base and tools

• Next-business-day, 8x5x4, 24x7x4, or 24x7x2 advance hardware replacement and onsite parts replacement and installation available1

• Ongoing operating system software updates within the licensed feature set2

• Proactive diagnostics and real-time alerts on Smart Call Home enabled devices

Cisco Smart Foundation Service

• Next-business-day advance hardware replacement as available

• Access to SMB TAC during business hours (access levels vary by region)

• Access to Cisco.com SMB knowledge base

• Online technical resources through Smart Foundation Portal

• Operating system software bug fixes and patches

Cisco Smart Care Service

• Network-level coverage for the needs of small and medium-sized businesses

• Proactive health checks and periodic assessments of Cisco network foundation, voice, and security technologies

• Technical support for eligible Cisco hardware and software through Smart Care Portal

• Cisco operating system and application software updates and upgrades²

• Next-business-day advance hardware replacement as available, 24x7x4 option available¹

Cisco SP Base Service

• Around-the-clock, global access to the Cisco TAC

• Registered access to Cisco.com

• Next-business-day, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement. Return to factory option available¹

• Ongoing operating system software updates²

Cisco Focused Technical Support Services

Three levels of premium, high-touch services are available:

• Cisco High-Touch Operations Management Service

• Cisco High-Touch Technical Support Service

• Cisco High-Touch Engineering Service

Valid Cisco SMARTnet or SP Base contracts are required on all network equipment.

¹ Advance hardware replacement is available in various service-level combinations. For example, 8x5xNBD indicates that shipment will be initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant region), with next-business-day (NBD) delivery. Where NBD is not available, same day shipping is provided. Restrictions apply; please review the appropriate service descriptions for details.

² Cisco operating system updates include the following: maintenance releases, minor updates, and major updates within the licensed feature set.

Ordering Information

Table 14. Cisco Catalyst 2960-S Series Switches Ordering Information

Part Number	10/100/1000 Ethernet Interfaces	Uplink Interfaces	Cisco IOS Software Feature Set	Available PoE Power	FlexStack Stacking
WS-C2960S-48FPD-L	48	2 SFP+	LAN Base	740W	Optional
WS-C2960S-48LPD-L	48	2 SFP+	LAN Base	370W	Optional
WS-C2960S-24PD-L	24	2 SFP+	LAN Base	370W	Optional
WS-C2960S-48TD-L	48	2 SFP+	LAN Base	-	Optional
WS-C2960S-24TD-L	24	2 SFP+	LAN Base	-	Optional
WS-C2960S-48FPS-L	48	4 SFP	LAN Base	740W	Optional
WS-C2960S-48LPS-L	48	4 SFP	LAN Base	370W	Optional
WS-C2960S-24PS-L	24	4 SFP	LAN Base	370W	Optional
WS-C2960S-48TS-L	48	4 SFP	LAN Base	-	Optional
WS-C2960S-24TS-L	24	4 SFP	LAN Base	-	Optional
WS-C2960S-48TS-S	48	2 SFP	LAN Lite	-	No
WS-C2960S-24TS-S	24	2 SFP	LAN Lite	-	No

Table 15. Cisco Catalyst 2960-S Accessories

Part Numbers	Description
C2960S-STACK	FlexStack hot-swappable stacking module
CAB-STK-E-0.5M	FlexStack stacking cable with a 0.5 m length
CAB-STK-E-1M	FlexStack stacking cable with a 1.0 m length
CAB-STK-E-3M	FlexStack stacking cable with a 3.0 m length
CAB-CONSOLE-RJ45	Console cable 6 ft with RJ45
CAB-CONSOLE-USB	Console cable 6 ft with USB Type A and mini-B connectors
RCKMNT-1RU=	Spare rack-mount kit for Cisco Catalyst 2960 and 2960-S Series for 19- and 24-inch racks
RCKMNT-REC-1RU=	1 RU recessed rack-mount kit for Cisco Catalyst 2960 and 2960-S Series
PWR-CLP	Power cable restraining clip

Table 16. Cisco Catalyst 2960-S Redundant Power Supply Options

Part Numbers	Description
PWR-RPS2300	Cisco Redundant Power System 2300 and blower, no power supply
BLNK-RPS2300=	Spare bay insert for Cisco Redundant Power System 2300 for Cisco Catalyst 2960 and Cisco Catalyst 2960-S switches
CAB-RPS2300-E=	Spare RPS2300 cable for Cisco Catalyst 2960-S switches
BLWR-RPS2300=	Spare 45 CFM blower for RPS 2300
C3K-PWR-750WAC=	RPS 2300 750W AC power supply spare for Cisco Catalyst 2960-S

For more information about the RPS-2300, visit http://www.cisco.com/en/US/products/ps7130/index.html.

Table 17. Cisco Catalyst 2960-S SFP Modules

SFP and SFP+ Modules

For the list of supported SFP and SFP+ modules, visit http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html.

Table 18. Power Cords for Cisco Catalyst 2960-S Series

Part Numbers	Description
CAB-16AWG-AC	AC Power Cord (US, Canada), C13, NEMA 5-15P, 2.5m
CAB-ACE	AC Power Cord (Europe), C13, CEE 7, 1.5m
CAB-L620P-C13-US	Power Cord, C13, NEMA L6-20, 2.5m
CAB-ACI	AC Power Cord (Italy), C13, CEI 23-16, 2.5m
CAB-ACU	AC Power Cord (UK), C13, BS 1363, 2.5m
CAB-ACA	AC Power Cord (China/Australia), C13, AS 3112, 2.5m
CAB-ACS	AC Power Cord (Switzerland), C13, IEC 60884-1, 2.5m
CAB-ACR	AC Power Cord (Argentina), C13, EL 219 (IRAM 2073), 2.5m
CAB-ACC	AC Power Cord (China), C13, PRC/3 GB2099/GB1002
CAB-JPN-12A	AC Power Cord (Japan), C13, Japan 2-prong, 1.8m
CAB-L620P-C13-JPN	AC Power Cord (Japan), C13, NEMA L6-20, JAPAN
CAB-IND-10A	AC Power Cord (India), C13, IS1293, 2.5m
CAB-ACBZ-12A	AC Power Cord (Brazil), C13, BR-3-20, 12A (FPS model)
CAB-ACBZ-10A	AC Power Cord (Brazil), C13, BR-3-20, 10A (all except FPS model)
CAB-AC15A-90L-US	AC Power Cord, United States, Left Angle
CAB-ACE-RA	AC Power Cord Europe, Right Angle
CAB-ACI-RA	AC Power Cord-Italian, Right Angle
CAB-ACU-RA	AC Power Cord UK, Right Angle
CAB-ACC-RA	AC Power Cord China, Right Angle
CAB-ACA-RA	AC Power Cord, Australian, Right Angle
CAB-ACS-RA	AC Power Cord for Switzerland, Right Angle
CAB-ACR-RA	AC Power Cord, Argentina, Right Angle
CAB-JPN-RA	AC Power Cord, Japan, Right Angle
CAB-ACB10A-RA	AC Power Cord, Brazil, Right Angle, 10A (all except FPS model)

Contact Cisco

For more information about Cisco products, visit http://www.cisco.com or call:

• United States and Canada: (toll free) 800 553-NETS (6387)

• Europe: 32 2 778 4242

• Australia: 612 9935 4107

• Other: 1-408-526-7209

Cisco Catalyst 2960-S Series Switches

Cisco Catalyst 2960-S Series Switches Data Sheet

Hierarchical Navigation

Let Us Help

Downloads

Programs

Programs

Programs

Programs
