Build a Powerful, Easy-to-Use Basic Business Network at an Affordable Price
The key to succeeding in today's competitive business environment is investing resources wisely - knowing how to separate the essential from the extraneous and get the most value for your dollar. As the backbone of your business and productivity applications, the small business network clearly falls into the "essential" category. But that doesn't mean you need the most advanced feature set on the market.
With Cisco® 200 Series Smart Switches, you can achieve business-class network security and performance without paying for advanced network management features that you will not need. When you need a reliable solution to share network resources and connect computers, printers, and servers, but low cost is a top priority, Cisco 200 Series Smart Switches provide the ideal solution.

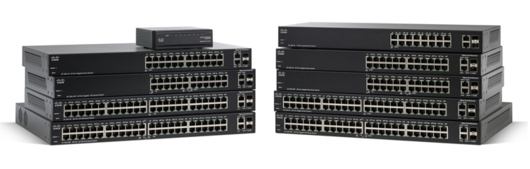

Figure 1. Cisco 200 Series Smart Switches
Cisco 200 Series Smart Switches
The Cisco 200 Series (Figure 1) is a series of affordable smart switches that combine powerful network performance and reliability with the essential network management features you need for a solid business network. These expandable Fast Ethernet or Gigabit Ethernet switches provide basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface, Cisco Discovery Protocol, and Cisco Smartports, you can deploy and configure a rock-solid business network in minutes.
Business Applications
Whether you need basic high-speed connectivity for your computers and servers or a comprehensive voice, data, and wireless technology solution, Cisco 200 Series switches can meet your business needs. Possible deployment scenarios include:
• High-speed desktop connectivity. Cisco 200 Series switches can quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
• Highly secure wireless connectivity. Cisco 200 Series switches work with Cisco and third-party wireless solutions to extend the reach of your network. Employees can work productively from conference rooms and common areas, collaborate in any office, and access business applications from wherever they are. With their security features, Power over Ethernet (PoE), Auto Smartports, VLAN, and QoS, these switches are the perfect foundation to add business-grade wireless to a network.
• Unified communications. The Cisco 200 Series provides QoS features to enable you to prioritize delay-sensitive traffic in your network and let you converge all of your communications solutions - such as IP telephony and video surveillance - onto a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and Cisco 200 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.
Features and Benefits
Cisco 200 Series Smart Switches provide all of the features you need to create a basic business-class network at an affordable price. These features include:
• Easy configuration and management: Cisco 200 Series switches are designed to be easy to deploy and use by small businesses or the partners that serve them. Simple-to-use web-based interfaces reduce the time it takes to deploy, manage, and troubleshoot your network. Key features include:
– Cisco Discovery Protocol and Link Layer Discovery Protocol (LLDP-MED) automatically detect all the devices connected to your network and then automatically configure themselves for the appropriate connectivity and instruct the devices to use appropriate voice VLAN or QoS parameters.
– Cisco Smartports technology provides for more advanced capabilities and hands-on control by automatically configuring ports with specific levels of security, QoS, and availability according to the type of connected device, based on Cisco best practices and pretested configurations. The Auto Smartports feature automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero-touch deployments.
– Cisco FindIT Network Discovery Utility works through a simple toolbar on the user's web browser to discover Cisco devices on the network and display basic information, such as serial numbers and IP addresses, to aid in the configuration and speed the deployment of Cisco Small Business products. For more information, and to download the utility, visit www.cisco.com/go/findit.
• Performance and reliability: Cisco 200 Series switches have been tested to deliver the high availability and performance you would expect from a Cisco switch and help you prevent costly downtime. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on Cisco 200 Series switches, you can address all of your business communications and connectivity needs and reduce the total cost of ownership of your technology infrastructure.
• Power over Ethernet (PoE): Cisco 200 Series switches are available with PoE on both Fast Ethernet and Gigabit Ethernet models. This capability simplifies the deployment of IP telephony, wireless, video surveillance, and other solutions by allowing you to send data and power to network endpoints over the same network cable. With no need for separate power supplies or outlets for IP phones, IP cameras, or wireless access points, you can speed up deployment and installation and take advantage of advanced communications technologies quickly, and at a lower cost.
• Network security: Cisco 200 Series switches provide security and network management features you need to maintain a high level of security for your business, keep unauthorized users off the network, and protect your business data. The switches provide integrated network security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network. Denial-of-service (DOS) attack prevention increases network uptime in the presence of an attack.
• IP telephony support: Cisco 200 Series switches include QoS features to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services.
• Networkwide automatic voice deployment: Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smartports, and Voice Services Discovery Protocol (VSDP) - a unique patent-pending Cisco protocol - customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge into a single voice VLAN and set of QoS parameters and then propagate them out to the phones on the ports where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic.
• IPv6 support: As the IP network addressing scheme evolves to accommodate more devices, you can make sure that your network is ready. Cisco 200 Series switches provide native support for IPv6 alongside traditional IPv4. That means you can take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment.
• An energy-efficient solution: Cisco 200 Series switches are designed to be energy efficient and eco-friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include:
– Energy-Efficient Ethernet (EEE, the IEEE 802.3az standard), supported on all Cisco 200 Series Gigabit Ethernet switch models. EEE improves the efficiency of network equipment and provides standardized signaling mechanisms that can enable rapid transitions between normal operation and low power idle (LPI) states in systems on either end of the physical layer link.
– Automatic power down on Gigabit Ethernet ports when a link is not active.
– Embedded intelligence to adjust power based on cable length on Gigabit Ethernet models.
– Fanless design in most models, which reduces power consumption, increases reliability, and provides quieter operation.
• Additional Gigabit Ethernet ports: The Cisco 200 Series provides more ports per switch than other switches in the market, giving you more flexibility to connect and empower your business. Gigabit Ethernet models feature 26- and 50-port switches, versus traditional devices that offer 20 or 44 ports with 4 shared ports. The Cisco 200 Series also offers mini Gigabit Interface Converter (mini-GBIC) expansion slots that give you the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of the switches, you have more flexibility to design your network around your unique business environment, and to easily connect switches on different floors or across the business.
• Peace of mind and investment protection: Cisco 200 Series switches offer the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. When you invest in the Cisco 200 Series, you gain the benefit of:
– Cisco limited lifetime warranty to protect your investment.
– Rigorous testing to help ensure easy integration and compatibility with other Cisco networking and communications products, including the complete Cisco Small Business portfolio.
• Limited lifetime warranty: The Cisco 200 Series switches come with the Cisco Limited Lifetime Hardware Warranty, with return-to-factory replacement, a 1-year limited warranty for fans and power supplies, and a 90-day limited software warranty. In addition, Cisco offers software updates for bug fixes for the warranty term and telephone technical support at no charge for the first 12 months following the date of purchase. To download software updates, go to www.cisco.com/cisco/web/download/index.html.
• World-class support: To extend the support coverage beyond the warranty provisions, choose the Cisco Small Business Support Service, which helps you get the most value from Cisco Small Business solutions, providing peace of mind at an affordable price. The subscription-based service offers software upgrades and updates, access to the Cisco Small Business Support Center, next-business-day hardware replacement (if needed), and telephone and online chat support. To learn more, visit www.cisco.com/go/smbservices.
• Multiple language options: The Cisco 200 Series is available in seven languages: English, French, German, Italian, Spanish, Japanese, and simplified Chinese. All product documentation and most user interfaces are translated, giving you the ability to select your preferred language.
Product Specifications
Table 1 gives the product specifications for the Cisco 200 Series Switches.
Table 1. Product Specifications
Feature
Description
Performance
Switching capacity and
forwarding rate
Model
Capacity in Millions of Packets per Second (mpps) (64-byte packets)
Switching Capacity in Gigabits per Second (Gbps)
SF200-24
6.55
8.8
SF200-24P
6.55
8.8
SF200-24FP
6.55
8.8
SF200-48
10.12
13.6
SF200-48P
10.12
13.6
SG200-08
11.9
13.6
SG200-08P
11.9
13.6
SG200-10FP
14.88
20.0
SG200-18
26.78
36.0
SG200-26
38.69
52.0
SG200-26P
38.69
52.0
SG200-26FP
38.69
52.0
SG200-50
74.41
100.0
SG200-50P
74.41
100.0
SG200-50FP
74.41
100.0
Layer 2 Switching
Spanning Tree Protocol (STP)
Standard 802.1d STP support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Port grouping
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Up to 4 groups
• Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN
Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08
and SG200-08P
Port-based and 802.1Q tag-based VLANs
Voice VLAN
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS
Internet Group Management Protocol (IGMP) versions 1 and 2 snooping
IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups
Head-of-line (HOL) blocking
HOL blocking prevention
Security
IEEE 802.1X
(Authenticator role)
802.1X: RADIUS authentication, MD5 hash
Port security
Locks MAC addresses to ports, and limits the number of learned MAC addresses
Storm control
Broadcast, multicast, and unknown unicast
DoS prevention
DoS attack prevention
Quality of Service
Priority levels
4 hardware queues
Scheduling
Strict priority and weighted round-robin (WRR)
Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)
Class of service
Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)
RFC 1981: Path maximum transmission unit (MTU) discovery
RFC 4007: IPv6 scoped address architecture
RFC 3484: Default address selection mechanism
RFC 4214: ISATAP tunneling
RFC 4293: MIB IPv6: Textual conventions and general group
RFC 3595: Textual conventions for IPv6 flow label
Management
Web user interface
Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring
Simple Network Management Protocol (SNMP)
SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Standard MIBs
draft-ietf-bridge-8021x-MIB
draft-ietf-bridge-rstpmib-04-MIB
draft-ietf-hubmib-etherif-MIB-v3-00-MIB
draft-ietf-syslog-device-MIB
ianaaddrfamnumbers-MIB
ianaifty-MIB
ianaprot-MIB
inet-address-MIB
ip-forward-MIB
ip-MIB
RFC1155-SMI
RFC1213-MIB
SNMPv2-MIB
SNMPv2-SMI
SNMPv2-TM
RMON-MIB.my
dcb-raj-DCBX-MIB-1108-MIB
rfc1724-MIB
RFC-1212.my_for_MG-Soft
rfc1213-MIB
rfc1757-MIB
RFC-1215.my
SNMPv2-CONF.my
SNMPv2-TC.my
rfc2674-MIB
rfc2575-MIB
rfc2573-MIB
rfc2233-MIB
rfc2013-MIB
rfc2012-MIB
rfc2011-MIB
draft-ietf-entmib-sensor-MIB
lldp-MIB
lldpextdot1-MIB
lldpextdot3-MIB
lldpextmed-MIB
p-bridge-MIB
q-bridge-MIB
rfc1389-MIB
rfc1493-MIB
rfc1611-MIB
rfc1612-MIB
rfc1850-MIB
rfc1907-MIB
rfc2571-MIB
rfc2572-MIB
rfc2574-MIB
rfc2576-MIB
rfc2613-MIB
rfc2665-MIB
rfc2668-MIB
rfc2737-MIB
rfc2925-MIB
rfc3621-MIB
rfc4668-MIB
rfc4670-MIB
trunk-MIB
tunnel-MIB
udp-MIB
Private MIBs
CISCOSB-lldp-MIB
CISCOSB-brgmulticast-MIB
CISCOSB-bridgemibobjects-MIB
CISCOSB-bonjour-MIB
CISCOSB-dhcpcl-MIB
CISCOSB-MIB
CISCOSB-wrandomtaildrop-MIB
CISCOSB-traceroute-MIB
CISCOSB-telnet-MIB
CISCOSB-stormctrl-MIB
CISCOSB-ssh-MIB
CISCOSB-socket-MIB
CISCOSB-sntp-MIB
CISCOSB-smon-MIB
CISCOSB-phy-MIB
CISCOSB-multisessionterminal-MIB
CISCOSB-mri-MIB
CISCOSB-jumboframes-MIB
CISCOSB-gvrp-MIB
CISCOSB-endofmib-MIB
CISCOSB-dot1x-MIB
CISCOSB-deviceparams-MIB
CISCOSB-cli-MIB
CISCOSB-cdb-MIB
CISCOSB-brgmacswitch-MIB
CISCOSB-3sw2swtables-MIB
CISCOSB-smartPorts-MIB
CISCOSB-tbi-MIB
CISCOSB-macbaseprio-MIB
CISCOSB-policy-MIB
CISCOSB-env_mib
CISCOSB-sensor-MIB
CISCOSB-aaa-MIB
CISCOSB-application-MIB
CISCOSB-bridgesecurity-MIB
CISCOSB-copy-MIB
CISCOSB-CpuCounters-MIB
CISCOSB-Custom1BonjourService-MIB
CISCOSB-dhcp-MIB
CISCOSB-dlf-MIB
CISCOSB-dnscl-MIB
CISCOSB-embweb-MIB
CISCOSB-fft-MIB
CISCOSB-file-MIB
CISCOSB-greeneth-MIB
CISCOSB-interfaces-MIB
CISCOSB-interfaces_recovery-MIB
CISCOSB-ip-MIB
CISCOSB-iprouter-MIB
CISCOSB-ipv6-MIB
CISCOSB-mnginf-MIB
CISCOSB-lcli-MIB
CISCOSB-localization-MIB
CISCOSB-mcmngr-MIB
CISCOSB-mng-MIB
CISCOSB-physdescription-MIB
CISCOSB-Poe-MIB
CISCOSB-protectedport-MIB
CISCOSB-rmon-MIB
CISCOSB-rs232-MIB
CISCOSB-SecuritySuite-MIB
CISCOSB-snmp-MIB
CISCOSB-specialbpdu-MIB
CISCOSB-banner-MIB
CISCOSB-syslog-MIB
CISCOSB-TcpSession-MIB
CISCOSB-traps-MIB
CISCOSB-trunk-MIB
CISCOSB-tuning-MIB
CISCOSB-tunnel-MIB
CISCOSB-udp-MIB
CISCOSB-vlan-MIB
CISCOSB-ipstdacl-MIB
CISCO-SMI-MIB
CISCOSB-DebugCapabilities-MIB
CISCOSB-CDP-MIB
CISCOSB-vlanVoice-MIB
CISCOSB-EVENTS-MIB
CISCOSB-sysmng-MIB
CISCOSB-sct-MIB
CISCO-TC-MIB
CISCO-VTP-MIB
CISCO-CDP-MIB
CISCOSB-eee-MIB
CISCOSB-ssl-MIB
CISCOSB-qosclimib-MIB
CISCOSB-digitalkeymanage-MIB
CISCOSB-tbp-MIB
CISCOSMB-MIB
CISCOSB-secsd-MIB
CISCOSB-draft-ietf-entmib-sensor-MIB
CISCOSB-draft-ietf-syslog-device-MIB
CISCOSB-rfc2925-MIB
Remote Monitoring (RMON)
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
IPv4 and IPv6 dual stack
Coexistence of both protocol stacks to ease migration
Firmware upgrade
Web browser upgrade (HTTP) and TFTP
Port mirroring
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported.
VLAN mirroring
Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported.
Dynamic Host Configuration Protocol (DHCP) (options 66 and 67)
(DHCP) options facilitate tighter control from a central point (DHCP server) to obtain IP address and perform auto-configuration (with configuration file download)
Text-editable config files
Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment
Smartports
Simplified configuration of QoS and security capabilities
Auto Smartports
Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero touch deployments.
Cloud services
Support for FindIT Network Discovery Utility and Cisco OnPlus™ technology
Localization
Localization of GUI and documentation into multiple languages
Supports 802.3az on all copper Gigabit Ethernet ports (SG200-xx models)
Not supported on SG200-08 and SG200-08P models
Energy Detect mode
Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down
Active mode is resumed without loss of any packets when the switch detects that the link is back up
Cable length detection
Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m.
General
Jumbo frames
Frame sizes up to 10 KB supported on 10/100 and Gigabit Ethernet interfaces
(9 KB for SG200-08 and SG200-08P)
MAC table
Up to 8000 MAC addresses
Discovery
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions
LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones.
Cisco Discovery Protocol
The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via this protocol.
Auto Smartports
Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero-touch deployments.
Bonjour
The switch advertises itself using the Bonjour protocol
Power over Ethernet (PoE)
IEEE 802.3af PoE delivered on half of the RJ-45 ports within the listed power budgets
Maximum power of 15.4W to any 10/100 or Gigabit Ethernet base port supporting PoE. The total power available for PoE per switch is as follows:
Model
Power Dedicated to PoE
Number of Ports That Support PoE
SF200-24P
100W
12
SF200-24FP
180W
24
SF200-48P
180W
24
SG200-08P
32W
4
SG200-10FP
62W
8
SG200-26P
100W
12
SG200-26FP
180W
24
SG200-50P
180W
24
SG200-50FP
375W
48
Power consumption
Model
Power Savings Mode
Power Consumption:
Worst Case
Heat Dissipation (BTU/hr)
SF200-24
Energy Detect
110V/0.272A/13.7W
220V/0.169A/14.5W
49.5
SF200-24P
Energy Detect
110V/0.346A/21.3W
220V/0.166A/22.2W
75.8
SF200-24FP
Short reach plus Energy Detect
110V/0.231A/23.5W
220V/0.179A/24.4W
85.6
SF200-48
Energy Detect
110V/0.453A/26.2W
220V/0.276A/26.8W
91.5
SF200-48P
Energy Detect
110V/0.355A/37.2W
220V/0.217A/37.4W
127.6
SG200-08
Auto power down for link down
110V/P=6.7W
220V/P=7.21W
24.6
SG200-08P
Auto power down for link down
110V/P=7.6W
220V/P=8.1W
27.6
SG200-10FP
Short reach plus Energy Detect
110V/P=13.13W
220V/P=13.48W
46.0
SG200-18
Energy Detect (link down), short reach
110V/P=22.4W
220V/P=22.9W
78.2
SG200-26
Short reach plus Energy Detect
110V/0.513A/27.8W
220V/0.306A/28.3W
96.6
SG200-26P
Short reach plus Energy Detect
110V/0.591A/36.8W
220V/0.381A/37.5W
97.9
SG200-26FP
Short reach plus Energy Detect
110V/0.269A/27.8W
220V/0.196A/28.7W
128.0
SG200-50
Short reach plus Energy Detect
110V/0.569A/61.8W
220V/0.296A/61.4W
209.6
SG200-50P
Short reach plus Energy Detect
110V/0.595A/62W
220V/0.338A/61.2W
211.6
SG200-50FP
Short reach plus Energy Detect
110V/0.749A/76.4W
220V/0.412A/78.3W
267.2
Ports
Model Name
Total System Ports
RJ-45 Ports
Combo Ports
(RJ-45 + SFP)
SF200-24
24 Fast Ethernet
2 Gigabit Ethernet
24 Fast Ethernet
2 Gigabit Ethernet combo
SF200-24P
24 Fast Ethernet
2 Gigabit Ethernet
24 Fast Ethernet
2 Gigabit Ethernet combo
SF200-24FP
24 Fast Ethernet
2 Gigabit Ethernet
24 Fast Ethernet
2 Gigabit Ethernet combo
SF200-48
48 Fast Ethernet
2 Gigabit Ethernet
48 Fast Ethernet
2 Gigabit Ethernet combo
SF200-48P
48 Fast Ethernet
2 Gigabit Ethernet
48 Fast Ethernet
2 Gigabit Ethernet combo
SG200-08
8 Gigabit Ethernet
8 Gigabit Ethernet
-
SG200-08P
8 Gigabit Ethernet
8 Gigabit Ethernet
-
SG200-10FP
8 Gigabit Ethernet
8 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-18
18 Gigabit Ethernet
16 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-26
26 Gigabit Ethernet
24 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-26P
26 Gigabit Ethernet
24 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-26FP
26 Gigabit Ethernet
24 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-50
50 Gigabit Ethernet
48 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-50P
50 Gigabit Ethernet
48 Gigabit Ethernet
2 Gigabit Ethernet combo
SG200-50FP
50 Gigabit Ethernet
48 Gigabit Ethernet
2 Gigabit Ethernet combo
Buttons
Reset button
Cabling type
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs
System, Link/Act, PoE, Speed
Flash
16 MB (8 MB in SG200-08 and SG200-08P)
CPU memory
128 MB (32 MB in SG200-08 and SG200-08P)
Packet buffer
All numbers are aggregate across all ports, as the buffers are dynamically shared:
Model
Packet Buffer
SF200-24
4 Mb
SF200-24P
4 Mb
SF200-24FP
4 Mb
SF200-48
2 @ 8 Mb
SF200-48P
2 @ 8 Mb
SG200-08
4 Mb
SG200-08P
4 Mb
SG200-10FP
4 Mb
SG200-18
4 Mb
SG200-26
4 Mb
SG200-26P
4 Mb
SG200-26FP
4 Mb
SG200-50
2 @ 8 Mb
SG200-50P
2 @ 8 Mb
SG200-50FP
2 @ 8 Mb
Supported Small Form-Factor Pluggable (SFP) Modules
Product Ordering Number
Media
Speed
Typical Distance
MFEFX1
Multimode fiber
100 Mbps
2 km
MFELX1
Single-mode fiber
100 Mbps
10 km
MFEBX1
Single-mode fiber
100 Mbps
20 km
MGBBX1
Single-mode fiber
1000 Mbps
40 km
MGBSX1
Multimode fiber
1000 Mbps
300 m
MGBLH1
Single-mode fiber
1000 Mbps
40 km
MGBLX1
Single-mode fiber
1000 Mbps
10 km
Environmental
Dimensions (W x H x D)
Model
Metric (mm)
Inches
SF200-24
440 x 44.32 x 257
17.35 x 1.74 x 10.1
SF200-24P
440 x 44 x 257
17.35 x 1.73 x 10.1
SF200-24FP
440 x 44 x 257
17.35 x 1.73 x 10.1
SF200-48
440 x 44 x 257
17.35 x 1.73 x 10.1
SF200-48P
440 x 44.32 x 350
17.35 x 1.74 x 13.8
SG200-08
113 x 27 x 130
4.45 x 1.06 x 5.12
SG200-08P
130 x 42.3 x 130
5.12 x 1.52 x 5.12
SG200-10FP
279.4 x 44.45 x 170
11 x 1.45 x 6.7
SG200-18
440.6 x 44.32 x 202.82
17.35 x 1.74 x 7.99
SG200-26
440 x 44 x 257
17.35 x 1.73 x 10.1
SG200-26P
440 x 44 x 257
17.35 x 1.73 x 10.1
SG200-26FP
440 x 44 x 257
17.35 x 1.73 x 10.1
SG200-50
440 x 44 x 257
17.35 x 1.73 x 10.1
SG200-50P
440 x 44 x 350
17.35 x 1.73 x 13.8
SG200-50FP
440 x 44 x 350
17.35 x 1.73 x 13.8
Unit weight
Model
Kilograms
Pounds
SF200-24
3.04
6.70
SF200-24P
3.45
7.61
SF200-24FP
3.67
8.09
SF200-48
3.42
7.54
SF200-48P
4.73
10.43
SG200-08
0.75
1.65
SG200-08P
1.26
2.78
SG200-10FP
1.26
2.78
SG200-18
2.01
4.43
SG200-26
3.27
7.21
SG200-26P
3.67
8.09
SG200-26FP
3.82
8.42
SG200-50
3.96
8.73
SG200-50P
5.47
12.06
SG200-50FP
6.04
13.32
Power
Model
Power
SF200-24
100V-240V, 12V/2.5A, 50-60 HZ
SF200-24P
100V-240V, 50V/2A, 50-60 HZ
SF200-24FP
100V-240V 47-63 Hz, internal, universal
100V-240V, 50V/3.6A, 12V/4, 50-60 Hz
SF200-48
100V-240V, 12V/4.5A, 50-60 HZ
SF200-48P
100V-240V, 50V/3.6A, 12V/4A, 50-60 HZ
SG200-08
(external) 100V-240V, 0.5A, 50-60 HZ
SG200-08P
(external) 100V-240V, 1.0.56A, 50-60 HZ
SG200-10FP
(external) 100V-240V, 2.5A, 50-60 Hz
SG200-18
100V-240V, 1.0-0.5A, 50-60 HZ
SG200-26
100V-240V, 12V/2.5A, 50-60 HZ
SG200-26P
100V-240V, 50V/2A, 50-60 HZ
SG200-26FP
100V-240V 50-60 Hz, internal, universal
100V-240V, 50V/3.6A, 12V/4, 50-60 Hz
SG200-50
110V-240V, 12V/8.33A, 50-60 HZ
SG200-50P
100V-240V, 50V/2A, 50-60 HZ
SG200-50FP
100V-240V 47-63 Hz, internal, universal
100V-240V, 50V/7.5A, 12V/7.5A, 50-60 Hz
Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature
32° to 104°F (0° to 40°C)
Storage temperature
-4° to 158°F (-20° to 70°C)
Operating humidity
10% to 90%, relative, noncondensing
Storage humidity
10% to 90%, relative, noncondensing
Acoustic noise and mean time between failures (MTBF)
Model
Fan (Number)
Acoustic Noise
MTBF @ 40°C (hours)
SF200-24
No
N/A
414,166
SF200-24P
1
40.2 dB
307,098
SF200-24FP
2
40.2 dB at 45°C
314,444.5 (based on 45°C)
SF200-48
No
-
267,865
SF200-48P
2
41.7 dB
174,966
SG200-08
No
-
71,834
SG200-10FP
No
-
287,436 (based on 45°C)
SG200-08P
No
-
69,003
SG200-18
No
-
68,033
SG200-26
No
-
194,278
SG200-26P
1
40.2 dB
218,842
SG200-26FP
2
40.2 dB at 45°C
319,407 (based on 45°C)
SG200-50
2
41.7 dB
237,610
SG200-50P
4
42.5 dB at 30°C
54.7 dB at 40°C
208,976
SG200-50FP
4
42.1 dB at 30°C
55.9 dB at 50°C
192,790 (based on 45°C)
Warranty
Limited lifetime
Package Contents
• Cisco 200 Series Smart Switch
• Power cord (power adapter for 8-port and 10-port SKUs)
• Mounting hardware
• CD-ROM with user documentation (PDF) included
• Quick-start guide
Minimum Requirements
• Web browser: Mozilla Firefox version 8 or later; Microsoft Internet Explorer version 7 or later, Safari, Chrome
• Category 5 Ethernet network cable
• TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network
Ordering Information
Table 2 provides ordering information for the Cisco 200 Series Switches. Table 3 gives ordering information for the MFE and MGE transceivers.
Table 2. Cisco 200 Series Switches Ordering Information
Model
Product Ordering Number
Description
Fast Ethernet
SF200-24
SLM224GT-xx
• 24 10/100 ports
• 2 combo mini-GBIC ports*
SF200-24P
SLM224PT-xx
• 24 10/100 ports
• 2 combo mini-GBIC ports*
• PoE support on 12 ports
SF200-24FP
SF200-24FP-xx
• 24 10/100 ports
• 2 combo mini-GBIC ports*
• PoE support on 24 ports
SF200-48
SLM248GT-xx
• 48 10/100 ports
• 2 combo mini-GBIC ports*
SF200-48P
SLM248PT-xx
• 48 10/100 ports
• 2 combo mini-GBIC ports*
• PoE support on 24 ports
SF200-48
SLM248GT-xx
• 48 10/100 ports
• 2 combo mini-GBIC ports*
Gigabit Ethernet
SG200-08
SLM2008T-xx
• 8 10/100/1000 ports
SG200-08P
SLM2008PT-xx
• 8 10/100/1000 ports
• PoE support on 4 ports
SG200-10FP
SG200-10FP-xx
• 10 10/100/1000 ports
• 2 combo mini-GBIC ports*
• PoE support on 8 ports
SG200-18
SLM2016T-xx
• 16 10/100/1000 ports
• 2 combo mini-GBIC ports*
SG200-26
SLM2024T-xx
• 24 10/100/1000 ports
• 2 combo mini-GBIC ports*
SG200-26P
SLM2024PT-xx
• 24 10/100/1000 ports
• 2 combo mini-GBIC ports*
• PoE support on 12 ports
SG200-26FP
SG200-26FP-xx
• 24 10/100/1000 ports
• 2 combo mini-GBIC ports*
• PoE support on 24 ports
SG200-50
SLM2048T-xx
• 48 10/100/1000 ports
• 2 combo mini-GBIC ports*
SG200-50P
SLM2048PT-xx
• 48 10/100/1000 ports
• 2 combo mini-GBIC ports*
• PoE support on 24 ports
SG200-50FP
SG200-50FP-xx
• 48 10/100/1000 ports
• 2 combo mini-GBIC ports*
• PoE support on 48 ports
* Each combo mini-GBIC port has one 10/100/1000 Ethernet port and one mini-GBIC/SFP Gigabit Ethernet slot, with one port active at a time.
Table 3. Service and Support Ordering Information
Service Ordering Number
Description
CON-SBS-SVC2
3 years support, software updates, Small Business Support Center access via online, telephone, or community, next-business-day advance replacement
Table 4. MFE and MGE Transceiver Ordering Information
Product Ordering Number
Description
MFE Transceivers
MFEBX1
100BASE-BX-20U SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 20 km
MFELX1
100BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 2 km
MFEFX1
100BASE-FX SFP transceiver for multimode fiber, 1310 nm wavelength, supports up to 10 km
MGE Transceivers
MGBBX1
1000BASE-BX-20U SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 40 km
MGBLH1
1000BASE-LH SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 40 km
MGBLX1
1000BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km
MGBSX1
1000BASE-SX SFP transceiver for multimode fiber, 850 nm wavelength, supports up to 550 m
A Powerful Foundation for the Basic Business Network
As you strive to make your business more competitive and efficient, every dollar counts. Cisco 200 Series Smart Switches give you just the right the features, performance, and reliability you need, without making you pay for advanced features you don't. With Cisco 200 Series switches, you can rest assured that your business applications and communications tools are resting on a strong technology foundation, so you can focus on achieving your business goals.
