Product Overview
The Cisco® ASR 9000 Series Route Switch Processor (RSP) is a scalable, low-power, next-generation Carrier Ethernet platform with a system architecture specifically designed to accommodate service providers' unique convergence requirements of Layer 2 Ethernet transport plus Layer 3 services (Figure 1).

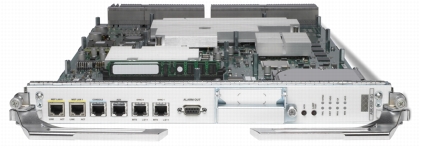

Figure 1. Cisco ASR 9000 Series Route Switch Processor
Cisco ASR 9000 Series Aggregation Services Routers offer one of the industry's highest-capacity Carrier Ethernet platforms. These routers are optimized for aggregation of dense 10 Gigabit Ethernet and 100 Gigabit Ethernet connections.
In addition to a higher capacity and scale, the Cisco ASR 9000 Series offers:
• Distributed forwarding and control planes for higher performance
• Modularized system components in both hardware and software, isolating failure and faults to subsystem and component
• Hardware-based signaling for the fabric: support for zero packet loss on switchover
• Built-in redundancy in hardware components such as the route switch processor, switch fabric, control-plane chassis control bus, and power supplies, thereby avoiding a single point of failure
The Cisco ASR 9000 Series operates in a fully distributed fashion, meaning that all packet-forwarding decisions and actions take place on each individual line card. The Cisco ASR 9000 Series Line Cards provide flexible programming infrastructure with high-density hierarchical quality-of-service (HQoS) services, security, and integrated Synchronous Ethernet (SyncE). The distributed nature of the Cisco ASR 9000 Series also presents itself in the control plane. The distributed control plane facilitates scale in features such as Bidirectional Forwarding Detection (BFD) and Ethernet operations, administration, and management (EOAM), which improve resilience and provide comprehensive instrumentation.
Cisco ASR 9000 Series routers bring the time-tested and comprehensive carrier-class capabilities of Cisco IOS® XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity. The capabilities of Cisco IOS XR Software allow each process to run in separate protected memory, including each routing protocol along with multiple instances of control, data, and management planes supported.The software also supports distributed route processing.
Cisco ASR 9000 Series Route Switch Processor
The Cisco ASR 9000 Series Route Switch Processor is designed to deliver the high scalability, performance, and fast convergence required for today's and tomorrow's demanding video, cloud, and mobile services.
The Cisco ASR 9000 Series RSP provides a superior set of features that deliver unprecedented scale, service flexibility, and high availability:
• Switch fabric architecture
– Active-active switch fabric architecture that provides scalability and high availability
– Single-stage nonblocking architecture
– Service intelligence and traffic prioritization
• Network synchronization support
– Support for centralized Building Integrated Timing Supply (BITS) and DOCSIS® Timing Interface (DTI) timing reference system
Features and benefits of the Cisco ASR 9000 Series RSP are listed in Table 1.
Table 1. Features and Benefits of Cisco ASR 9000 Series RSP
Table 2 lists all the hardware that ships with the Cisco ASR 9000 Series RSP.
Table 2. Hardware Available
Software
The Cisco ASR 9000 Series delivers superior scale, service flexibility, and high availability into access and aggregation networks. It is powered by Cisco IOS XR Software - an innovative self-healing, distributed operating system designed for always-on operation while scaling system capacity up into the Tbps.
Cisco ASR 9000 Series Carrier Ethernet applications include business services such as Layer 2 VPN (L2VPN) and L3VPN, IPTV, Content Delivey Networks (CDNs), and Mobile Backhaul transport networks. Features supported include Ethernet Services; L2VPN; IPv4, IPv6, and L3VPN; Layer 2 and Layer 3 Multicast; IP over dense wavelength-division multiplexing (IPoDWDM), SyncE, EOAM and Multiprotocol Label Switching (MPLS) OAM, Layer 2 and Layer 3 access control lists (ACLs), H-QoS, MPLS Traffic Engineering Fast Reroute (MPLS TE-FRR), Multichassis Link Aggregation (MC-LAG), Integrated Routing and Bridging (IRB) and Cisco Nonstop Forwarding (NSF) and Nonstop Routing (NSR).
Cisco IOS XR Software Releases 4.0.0 and 4.0.1 introduce the support for a comprehensive portfolio of shared port adaptors (SPAs) to facilitate the multiservice edge (MSE) and Ethernet MSE (E-MSE) capability on the Cisco ASR 9000 Series. The Cisco ASR 9000 Series MSE and E-MSE capabilities allow enterprises to offer powerful business VPN services with strong SLA (service-level agreement) enforcement. Such services typically require simultaneous scale increases across multiple dimensions, for example, the number of Virtual Route Forwarding (VRF) interfaces, IPv4 and IPv6 route scaling, Bidirectional Forwarding Detection (BFD) sessions and instances of Border Gateway Protocol (BGP) NSR interfaces, and so on. A Cisco ASR 9000 Series system configuration requiring high multiple dimensional scale requires an RSP with 8G memory to support the increased system scale.
Product Specifications
Table 3 provides details about two chassis variants of the Cisco ASR 9000 Series: the Cisco ASR 9010 and Cisco ASR 9006. Both systems are designed to the same high standards of performance and reliability, feature the same power and thermal innovations, and can share RSPs, line cards, power entry modules (PEMs), and power supplies, for maximum flexibility in your network planning.
Table 3. Product Specifications
Cisco Services for Cisco ASR 9000 Series
Through a lifecycle services approach, Cisco delivers comprehensive support to service providers to help them successfully deploy, operate, and optimize their IP Next-Generation Networks (IP NGNs). Cisco Services for the Cisco ASR 9000 Aggregation Services Routers provide the services and proven methodologies that help assure service deployment with substantial return on investment, operational excellence, optimal performance, and high availability. These services are delivered using leading practices, tools, processes, and lab environments developed specifically for Cisco ASR 9000 Series deployments and post-implementation support. The Cisco Services team addresses your specific requirements, mitigates risk to existing revenue-generating services, and helps accelerate time to market for new network services.
For more information about Cisco Services, contact your local Cisco account representative or visit http://www.cisco.com/go/spservices.
Ordering Information
Table 4 provides ordering information for the Cisco ASR 9000 Series Route Switch Processor.
Table 4. Ordering Information
To place an order, visit Cisco Ordering Home Page or refer to Table 4.
