The Cisco® ASR 1000 Series DSP-SPA is a single-width, half-height, high-power shared port adaptor (SPA) digital signal processor (DSP) module that can be used in multiple Cisco platforms (Figure 1). The SPA-DSP provides voice service such as voice transcoding and transrating and dual-tone multifrequency (DTMF) interworking capability for the platforms that support SPA modules.
Figure 1. Cisco ASR 1000 Series DSP-SPA Card
The DSP-SPA helps position a peering session border controller (SBC) with another carrier's voice-over-IP (VoIP) network and helps provide access to the SBC in the service provider edge, enabling Session Initiation Protocol (SIP) trunking and aggregation of enterprise and residential customers. These cards can also be used when the Cisco ASR 1000 Series Aggregation Services Routers are deployed in Cisco Unified Border Element (CUBE) Enterprise Edition for public-switched telephone network (PSTN) access using SIP trunks. Transcoding is used for voice codec translation between two VoIP networks, as part of the data border element (DBE) functions. Transrating is used for repacketization for packets with the same codec.
Transcoding is the process of translating a media stream encoded using one codec into a media stream encoded using another codec: for example, translating a media stream encoded using G.711 into G.729. It requires DSPs. Customers take two approaches to transcoding (Figure 2). One set of customers expects SBCs to have DSPs on board to perform the transcoding when required (model 1). Another set of customers wants to centralize the DSP resources, so SBCs at the edge offload transcoding to a centralized DSP resource (model 2); this centralized DSP resource could be serving a number of SBCs and providing many other DSP-dependant services in addition to transcoding. The Cisco ASR 1000 Series SBC supports both models.

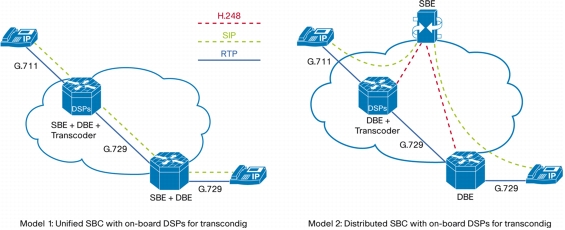

Figure 2. DSP-SPA in Unified SBC as Transcoder
When deployed in an enterprise customer's network, the DSP-SPA cards can be used to transcode between a codec required by a SIP service provider and a codec used within the enterprise network. As shown in Figure 2, the DSPs can reside either in the same device (in-box transcoding) or in a different device (out-of-box transcoding).
Features and Benefits
The DSP-SPA card for the Cisco ASR 1000 Series enhances the Cisco SBC voice experience, providing both voice transcoding and transrating capabilities. Benefits include:
• Tight integration of SBE and transcoder
– Capability for SBC to use on-board DSP-SPA as transcoder
– Faster delivery of voice content.
– Very low latency
– Transrate voice codec for incompatible endpoints and gateways
• Enhanced DTMF capability
– In-band DTMF to RFC-2833 and out-of-band DTMF interworking
• Optimized bandwidth
– Optimized media path; no external, third transcoder needed
– Use of less bandwidth because transcoding is on board
• Lower customer deployment and maintenance costs
– No dedicated servers or appliances
– Transparent operations and ease of deployment
– Little configuration and administration
– Investment protection; DSP-SPA can be used together with SBE or DBE
The DSP-SPA card is implemented on the industry-leading Cisco SPA design. The Cisco SPA/SIP portfolio offers the following additional advantages:
– Pioneering programmable interface processors provide flexibility for the service diversity required in next-generation networks.
– Innovative design supports intelligent service delivery without compromising performance.
• Increased speed-to-service revenue
– The scalable, programmable Cisco architecture extended to 10 Gbps dramatically improves customer density, increasing potential revenue per platform.
• Dramatically improved return on routing investment
– Improved slot economics and increased density reduce capital expenditures (CapEx).
– The capability to easily add new interfaces as they are needed facilitates a "pay-as-you-grow" business model. SPAs are shared across multiple platforms and can easily be moved from one platform to another, providing consistent feature support, accelerated product delivery, and a significant reduction in operating expenses (OpEx) through common sparing as service needs change.
Table 3 lists the part number for the DSP-SPA card.
Table 3. Ordering Information
Product Name
Part Number
Digital Signal Processor SPA
SPA-DSP
For More Information
For more information about the Cisco ASR 1000 Series or the Cisco ASR 1000 Series DSP-SPA, visit http://www.cisco.com/go/asr1000 or contact your local Cisco account representative.
