Cisco is reinventing edge routing with the Cisco® ASR 1000 Series Aggregation Services Routers, a portfolio of midrange routers that establish a new price-to-performance class offering, benefiting both service providers and enterprises alike:
• For service providers, the Cisco ASR 1000 Series Routers facilitate more flexible, efficient, and cost-effective delivery of complex consumer and business services.
• For enterprises, the Cisco ASR 1000 Series Routers deliver a highly reliable, high-performance WAN edge solution where information, communication, collaboration, and commerce converge.
The Cisco ASR 1000 Series Routers:
• Accelerate services by offering outstanding performance and resiliency with optimized, intelligent services
• Establish a new benchmark for price-to-performance offerings in the enterprise advanced routing, service provider edge, and broadband aggregation segments
• Facilitate significant network architectural innovations in areas such as secure WAN aggregation, managed customer-premises-equipment (CPE) services, and service provider edge services
• Reduce operating expenses (OpEx) and capital expenditures (CapEx) by facilitating managed or hosted services over identical architectures and operating environments
Product Overview
The Cisco ASR 1000 Series consists of these different versions (Figure 1): the Cisco ASR 1001 Router, the Cisco ASR 1002 Fixed Router, the Cisco ASR 1002 Router, the Cisco ASR 1002-X Router, the Cisco ASR 1004 Router, the Cisco ASR 1006 Router, and the Cisco ASR 1013 Router. All models use the innovative and powerful Cisco QuantumFlow Processor, which provides a huge leap in performance and resiliency for network processors.

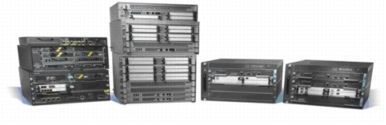

Figure 1. Cisco ASR 1000 Series Aggregation Services Routers
The Cisco ASR 1000 Series provides a significant enhanced value compared to prior generations of Cisco midrange routing solutions by providing more than tenfold performance improvement with services running. Additionally, the routers have hardware and software redundancy, as well as an industry-leading high-availability design.
The Cisco ASR 1000 Series delivers multiple services embedded in the Cisco QuantumFlow Processor at wire speeds from 2.5 to 200 Gbps. The services supported on the Cisco QuantumFlow Processor include security services (for example, encryption and firewall), quality of service (QoS), Network-Based Application Recognition (NBAR), Cisco IOS® Flexible Packet Matching (FPM), broadband aggregation, and Cisco Unified Border Element (SP Edition) (formerly called Session Border Controller, or SBC), among others.
With the separation of the control and data planes in the Cisco ASR 1000 Series Router architecture, software redundancy (on the Cisco ASR 1001, ASR 1002 Fixed, ASR 1002, ASR 1002-X, and ASR 1004 Routers) and hardware redundancy (on the Cisco ASR 1006 and ASR 1013 Routers) are provided. Additionally, the modular Cisco IOS XE Software that is introduced with the Cisco ASR 1000 Series facilitates In-Service Software Upgrade (ISSU).
The Cisco ASR 1001 Router also introduces the concept of integrated daughter cards (IDCs). There is one Cisco ASR 1001 base model without an integrated daughter card and five models with integrated daughter cards offering different additional I/O connectivity or an integrated hard disk drive (HDD); their part numbers follow:
As of Cisco IOS XE Software Release 3.2S:
• ASR1001: Base version without an IDC
• ASR1001-2XOC3POS: Delivered with an IDC that provides 2 OC-3 Packet-over-SONET/SDH (PoS) ports
• ASR1001-4XT3: Delivered with an IDC that provides 4 T3 ports (no E3 circuitry)
As of Cisco IOS XE Software Release 3.3S:
• ASR1001-4X1GE: Delivered with an IDC that provides 4 Gigabit Ethernet (GE) ports
• ASR1001-8CHT1E1: Delivered with an IDC that provides 8 Channelized T1/E1 ports
• ASR1001-HDD: Delivered with an integrated HDD
Note: The IDCs are not field-upgradable.
Cisco Software Activation is supported for performance upgrade from 2.5 to 5 Gbps (on the Cisco ASR 1001 Router) and from 5 to 10, 20, or 36 Gbps (on the Cisco ASR 1002-X Router). From a price-to-performance perspective, the Cisco ASR 1000 Series Router solution fits well between the Cisco 7200 Series, Cisco 7300 Series, and Cisco 7600 Series; Cisco ASR 9000 Series; and Cisco Catalyst® 6000 Series Routers, thus dramatically enhancing the Cisco midrange routing portfolio (Figure 2).

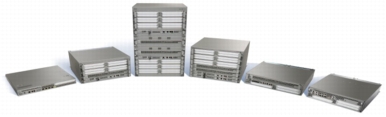

Figure 2. Cisco Midrange Routing Portfolio
More details about the individual Cisco ASR 1000 Series components, such as the Cisco ASR 1000 Series Embedded Services Processors (ESPs), the Cisco ASR 1000 Series Route Processors, and the Cisco ASR 1000 Series SPA Interface Processor (SIP) cards, are available in the respective data sheets:
Tables 1 and 2 describe enterprise and service provider application examples, respectively.
Table 1. Cisco ASR 1000 Series Enterprise Applications
Applications
Benefits
Implementations
Superior application availability at the WAN edge:
Guarantee high-priority applications by creating a virtual "glass ceiling" for lower-priority applications.
• Applies Modular QoS CLI (MQC) policies on VLANs or tunnels
• Clamps an arbitrary collection of low-priority traffic to a certain bandwidth
• Classifies based on differentiated services code point (DSCP), NBAR, and Cisco IOS FPM into numerous hierarchies, one for high priority and one for low priority
• Implements flexible hierarchies
• Supports 232,000 queues
• Allows all queues to have a minimum, maximum, and excess bandwidth with priority propagation
Multiservice, scalable, and secure headend:
The Cisco ASR 1000 Series offers full-service IP Security (IPsec*) VPN aggregation that scales to meet the new bandwidth demands of service provider IP VPNs.
• Reduces capital expenditures (CapEx) and operating expenses (OpEx) by migrating and consolidating to fewer Cisco ASR 1000 Series Routers
• Protects investment through easy transition to much higher encryption support, offering encryption support of up to 78 Gbps with the 200-Gbps Cisco ASR 1000 Series ESP (ASR1000-ESP200)
• Offers easier management through embedded security services in the Cisco QuantumFlow Processor, with no additional service modules or blades required
• Optimized for QoS and IP Multicast applications
• Supports thousands of sites
• Supports 8,000 IPsec tunnels
• Offers up to 78-Gbps encryption performance and up to 200-Gbps noncryptographic throughput support with the Cisco ASR 1000 Series 200-Gbps Embedded Services Processor (ASR1000-ESP200) engine
Embedded high-speed firewall:
With the Zone-Based Policy Firewall, the Cisco ASR 1000 Series acts as an implicit complete barrier between any interfaces not members of the same zone. An explicit zone-pair policy must be specified (using Cisco Policy Language; that is, MQC) in each direction between each zone pair. The policy establishes within the router the kind of stateful inspection (Layer 4, Layer 7, or application) and session parameters to apply to each zone pairing.
Example: An explicit policy allowing HTTP and Domain Name System (DNS) to traverse the Internet-DMZ zone boundary would be required.
• The firewall is embedded in the Cisco QuantumFlow Processor; no additional service blades or modules are required
• Multigigabits of bandwidth are routed while at the same time the router performs Zone-Based Policy Firewall and other baseline features such as QoS, IPv4, IPv6, NetFlow, etc.
• The Cisco ASR 1000 Series provides logging of all firewall session states off to network-management applications capable of accepting relatively huge amounts of flow data. Third-party applications can handle the session data.
• Provides firewall performance of 2.5 to 200 Gbps, depending on the embedded services processor
• Offers high-speed logging of 40,000 sessions per second with NetFlow Version 9
Managed CPE:
This implementation of branch-office architecture offers powerful investment protection with services and scale.
• Managed CPE helps branch offices route correctly over various types of Ethernet service-level agreements (SLAs).
• This application encrypts multigigabits of bandwidth - without any additional service blades or modules.
• Managed CPE optimizes the WAN to route around brownouts in the service provider network to further guarantee mission-critical applications.
• This application offers small form factors (1 rack unit [1RU] for the Cisco ASR 1001 and 2RUs for the Cisco ASR 1002 Fixed, ASR 1002, and ASR 1002-X Routers), including software modularity and ISSU.
Note: ISSU is not supported on ASR1001, ASR1002-F, ASR1002, ASR1002-X, or ASR1004. Managed CPE offers accessibility even when the Cisco IOS Software is down.
• Offers first-in-industry software redundancy support, without any additional hardware module, on ASR1001, ASR1002-F, ASR1002, ASR1002-X, and ASR1004; hardware redundancy and ISSU are supported on ASR1006 and ASR1013
• Offers powerful firewall and Network Address Translation (NAT) performance of 2.5 to 200 Gbps and 1.8- to 78-Gbps encryption support in addition to WAN optimization and voice features
* This product includes software developed by Cavium Networks.
Table 2. Cisco ASR 1000 Series Service Provider Applications
Applications
Benefits
Implementations
Broadband L2TP Access Concentrator (LAC) or L2TP Network Server (LNS):
The solution offers Layer 2 Tunneling Protocol (L2TP) endpoint-to-tunnel Point-to-Point Protocol (PPPoX) or IP sessions with bandwidth demands in the STM-1 ATM, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet range.
• The application is ideal for triple-play (data, voice, and video) wholesale deployments.
• It offers integral service delivery.
• Per-user firewall, SBC, etc. are supported.
• Provides very high scalability of up to 64,000 subscribers and up to 64,000 tunnels
Service provider edge: Layer 3 VPN (L3VPN) provider edge:
Example: You can deploy the solution at the distributed provider edge, or provider edge in global VPN networks for bandwidth demands such as asymmetric DSL (ADSL), T1/E1, STM-1, STM-4, Fast Ethernet, Gigabit Ethernet, etc.
• The application provides integral services in the Cisco QuantumFlow Processor.
• It provides encryption, FPM, NBAR, SBC, IP Multicast, etc.
• Offers excellent multicast performance
• Scales to 8,000 Virtual Route Forwarding (VRF) instances, 1 million Label Distribution Protocol (LDP) labels, and 4,000 access control lists (ACLs)
• Supports up to 4 million IPv4 routes
• Supports up to 4 million IPv6 routes
Service provider edge: High-end route reflector:
You can use the solution as a route reflector for bandwidth support of 40 Gbps.
• The application provides high scalability.
• It offers a modular design of the route processor and embedded services processor with hardware and software redundancy.
• Scales up to 29 million IPv4 routes
• Supports 64,000 Layer 3 adjacencies
• Offers sufficient memory (8-GB DRAM) (on ASR1001, ASR1002-X, and ASR1000-RP2)
• Offers optional upgrade to 16-GB DRAM (on ASR1001, ASR1002-X, and ASR1000-RP2)
Note: The Cisco ASR 1001, ASR 1002 Fixed, ASR 1002, and ASR1002-X Routers ship by default with 4-GB DRAM. The Cisco ASR 1001 and ASR1002-X are upgradable to 8- or 16-GB DRAM.
• Offers extensive Border Gateway Protocol (BGP) feature support
Next-generation voice and multimedia example: Cisco Unified Border Element (SP Edition):
The SBC application (named Cisco Unified Border Element [SP Edition]) performs the voice and video gateway functions simultaneously with regular IP data services. No appliance or additional service blade is required. The control protocols and media protocols work transparently within a complex voice architecture.
• The WAN edge is simpler to manage because only one egress and one ingress point need management and policy application.
• With the distributed control plane and separate data-forwarding plane, the signaling and control processing remain separate from media processing.
• ISSU support allows for easy addition of new-use cases.
• You can use a single SBC application on the Cisco ASR 1000 Series for residential, enterprise, and service provider peering applications.
• Facilitates SBC with security, QoS, IPv4, and IPv6 (IP Unicast and IP Multicast simultaneously)
• Supports 32,000 simultaneous voice calls and multimedia data of up to 40 Gbps with accounting, firewall, and call quality enabled
• Integrated with inbox high-availability infrastructure and Dynamic Host Configuration Protocol (DHCP) Relay
Software
The Cisco ASR 1000 Series is supported in Cisco IOS XE Software, which was introduced with the Cisco ASR 1000 Series Routers as a modular operating system. Based on Cisco IOS Software (Cisco IOS Software Release 12.2SR for Cisco IOS XE Software Releases 2.1.0 through 2.6.0 and Cisco IOS Software Release 15S starting with Cisco IOS XE Software Release 3.1.0S), Cisco IOS XE Software is designed to provide modular packaging, feature velocity, and powerful resiliency. Because of the extreme flexibility and robust performance of the Cisco ASR 1000 Series, ESPs - which are based on the Cisco QuantumFlow Processor technology, network security, deep packet inspection, Cisco IOS Firewall, and many other advanced features - are implemented in Cisco IOS XE Software without the need for additional hardware support (for example, in the form of a service blade).
One of the most innovative features is that the Cisco IOS XE Software supports dual Cisco IOS Software consolidated packages in a single Cisco ASR 1000 Series Route Processor for software redundancy in the Cisco ASR 1001, ASR 1002 Fixed, ASR 1002, ASR 1002-X, and ASR 1004 Routers. This dual Cisco IOS Software consolidated package could be the same consolidated package for backup, or a different consolidated package also on a different Cisco IOS XE Software release for resilient upgrade. Information about the compatibility of supported dual consolidated packages is available in the release notes (Cisco IOS XE Software Release Notes 2: http://www.cisco.com/en/US/docs/ios/ios_xe/2/release/notes/rnasr21.html and Cisco IOS XE Software Release Notes 3: http://www.cisco.com/en/US/docs/ios/ios_xe/3/release/notes/asr1k_rn_3s_rel_notes.html). The (optional) hardware-redundant route processor and ESP configuration in the Cisco ASR 1006 and ASR 1013 Routers does not support Cisco IOS Software redundancy in a single route processor because each of the two route processors supports one Cisco IOS XE Software image.
For ease of ordering, you can choose from six supported consolidated packages in each Cisco IOS XE Software release:
• IP Base without Crypto
• IP Base
• Advanced IP Services
• Advanced IP Services without Crypto
• Advanced Enterprise Services
• Advanced Enterprise Services without Crypto
All Cisco IOS XE Software Route Processor 1 (RP1) consolidated packages are compatible across the entire Cisco ASR 1000 Series with the Cisco ASR 1000 Series Route Processor 1 (ASR1000-RP1). Similar compatibility exists for the Cisco ASR 1000 Series Route Processor 2 (ASR1000-RP2) across Cisco ASR 1004, ASR 1006, and ASR 1013 Routers and for Cisco ASR 1001 and ASR 1002-X Routers with the route processor integrated. Table 3 describes each of the Cisco IOS XE consolidated packages supported on the Cisco ASR 1000 Series Route Processor 1 (ASR1000-RP1) as an example. With the Cisco ASR 1001 Router supported as of Cisco IOS XE Software Release 3.2.0S, the concept of Cisco Software Activation is introduced for the Cisco ASR 1000 Series - initially on the Cisco ASR 1001 only, now on the Cisco ASR 1002-X as well. Table 4 describes the three Cisco IOS XE universal consolidated packages supported on the Cisco ASR 1001, and Table 5 describes them on the Cisco ASR 1002-X. Table 6 lists the Cisco ASR 1001 and ASR 1002-X universal consolidated package and technology package license combinations that correspond to the equivalent software feature sets on the other Cisco ASR 1000 Series chassis.
Table 3. Descriptions of Cisco IOS XE Software Consolidated Packages for Cisco ASR 1000 Series RP1 (ASR1000-RP1), ASR 1002 (ASR1002), and ASR 1002 Fixed (ASR1002-F) Routers with Integrated Cisco ASR 1000 Series RP1 (ASR1000-RP1)
Cisco IOS XE Consolidated Package
Part Number
Description
Cisco ASR 1000 Series RP1 IP Base without Crypto
SASR1R1-IPB
• Provides low-cost base consolidated package
• Offers only basic IP feature support
• Satisfies export requirements for noncryptographic software
Cisco ASR 1000 Series RP1 IP Base
SASR1R1-IPBK9
• Provides low-cost base consolidated package
• Offers only basic IP feature support, including Secure Shell (SSH) Protocol and Simple Network Management Protocol Version 3 (SNMPv3) support
• Does not support IPsec*, Triple Digital Encryption Standard 3DES], or Advanced Encryption Standard [AES]
Cisco ASR 1000 Series RP1 Advanced IP Services
SASR1R1-AISK9
• Targeted for service provider customers
• Supports all features, including encryption (IPsec, 3DES, AES, and SSH), Lawful Intercept, and SBC
• Does not support older protocols
Cisco ASR 1000 Series RP1 Advanced IP Services without Crypto
SASR1R1-AIS
• Targeted for export-restricted customers
• Supports all features, including Lawful Intercept and SBC
• Does not support older protocols
• Does not support encryption services
Cisco ASR 1000 Series RP1 Advanced Enterprise Services
SASR1R1-AESK9
• Supports all features included in the Advanced IP Services image as well as older protocols
Cisco ASR 1000 Series RP1 Advanced Enterprise Services without Crypto
SASR1R1-AES
• Does not support encryption services
• Supports all other features included in the Advanced IP Services image as well as older protocols
* This product includes software developed by Cavium Networks.
Table 4. Descriptions of Universal Cisco IOS XE Software Consolidated Packages for Cisco ASR 1001 with an Integrated Route Processor
Cisco IOS XE Consolidated Package
Part Number
Description
Cisco ASR1001 IOS XE UNIVERSAL
SASR1001U
• Provides low-cost base consolidated package
• Offers only basic IP feature support
• Satisfies export requirements for noncryptographic software
Cisco ASR1001 IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL
SASR1001NPEK9
• Provides low-cost base consolidated package
• Offers only basic IP feature support, including SSH and SNMPv3 support
Cisco ASR1001 IOS XE - ENCRYPTION UNIVERSAL
SASR1001UK9
• Supports all features, including encryption (IPsec, 3DES, AES, and SSH), Lawful Intercept, and SBC as well as older protocols
Table 5. Descriptions of Universal Cisco IOS XE Software Consolidated Packages for Cisco ASR 1002-X with an Integrated Route Processor
Cisco IOS XE Consolidated Package
Part Number
Description
Cisco ASR1002-X IOS XE UNIVERSAL
SASR1K2XU
• Provides low-cost base consolidated package
• Offers only basic IP feature support
• Satisfies export requirements for noncryptographic software
Cisco ASR1002-X IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL
SASR1K2XNPEK9
• Provides low-cost base consolidated package
• Offers only basic IP feature support, including SSH and SNMPv3 support
Cisco ASR1002-X IOS XE - ENCRYPTION UNIVERSAL
SASR1K2XUK9
• Supports all features, including encryption (IPsec, 3DES, AES, and SSH), Lawful Intercept, and SBC as well as older protocols
Table 6. Part Numbers for Cisco ASR 1001 and ASR 1002-X Software Feature Set Enablement
For the Equivalent Feature Set on Cisco ASR 1000 Series (Cisco ASR 1002 Fixed/ASR1002/ASR1004/ASR1006/ASR1013)
To Order Universal Software Image Part Number
In Combination
With Technology Package License Part Number
IP Base without crypto (IPB)
SASR1001U/
SASR1K2XU
SLASR1-IPB
IP Base (IPBK9)
SASR1001NPEK9/
SASR1K2XNPEK9
SLASR1-IPB
Advanced IP Services without crypto (AIS)
SASR1001U/
SASR1K2XU
SLASR1-AIS
Advanced IP Services (AISK9)
SASR1001UK9/
SASR1K2XUK9
SLASR1-AIS
Advanced Enterprise Services without crypto (AES)
SASR1001U/
SASR1K2XU
SLASR1-AES
Advanced Enterprise Services (AESK9)
SASR1001UK9/
SASR1K2XUK9
SLASR1-AES
Each of the Cisco IOS XE Software consolidated packages consists of seven different subpackages. You can download each Cisco IOS XE consolidated package from Cisco.com. For upgrades for support of new features, you can upgrade the consolidated package as a whole or each of the seven subpackages as an individual subpackage. Compatibility of the different subpackages in each consolidated package is checked with a compatibility matrix.
Table 7 lists the seven software subpackages that make up each of the Cisco IOS XE Software consolidated packages.
Table 7. Cisco IOS XE Software Subpackages
Cisco IOS XE Subpackages
Function of Each Subpackage
RPBase
This subpackage provides the operating system software for the route processor.
RPControl
This subpackage controls the control-plane processes that interface between the Cisco IOS Software and the rest of the platform.
RPAccess (non-K9)
This subpackage is required for router access. It is included only in the Cisco IOS XE consolidated packages that do not have cryptographic or SSH support.
RPAccess (K9)
This subpackage is required for router access. It includes restricted components (Secure Sockets Layer [SSL] and SSH). The Cisco IOS XE Software consolidated packages with this subpackage are subject to export controls.
RPIOS
This subpackage provides the Cisco IOS Software kernel, which is where Cisco IOS Software features are stored and run. Each Cisco IOS XE Software consolidated package has a different Cisco IOS Software image (for example, the Cisco IOS XE Software consolidated package Cisco ASR 1000 Series RP1 IP Base without Crypto contains the Cisco IOS IP Base without Crypto image).
ESPBase
This subpackage provides the ESP operating system and control processes and the ESP software.
SIPSPA
This subpackage provides the shared-port-adaptor (SPA) driver and associated field-programmable device (FPD) images.
SIPBase
This subpackage controls the SIP carrier-card operating system and control processes.
Product Specifications
Table 8 compares the different Cisco ASR 1000 Series Routers, and Table 9 provides further Cisco ASR 1000 Series product specifications. Table 10 lists the SPAs supported; this list will be extended over time, so please check with your local Cisco account representative for information about the latest SPAs offered.
Table 8. Cisco ASR 1000 Series: Chassis Comparison and Specifications
Model
Cisco ASR 1001
Cisco ASR 1002 Fixed
Cisco ASR 1002
Cisco ASR 1002-X
Cisco ASR 1004
Cisco ASR 1006
Cisco ASR 1013
Physical specifications
Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power supply handles and cable management brackets.
Refer to applicable hardware installation guide for additional detail.
Height: 1.71 in. (43.43 mm)
Width: 17.3 in. (439.42 mm)
Depth: 18.42 in. (467.9 mm)
Weight:
• 23.30 lb (10.59 kg) (with dual AC power and integrated daughter card)
• 22.70 lb (8.94 kg) (with dual DC power and integrated daughter card)
• No SPA included
Note: The Cisco ASR 1001 Router has the route processor, ESP, and SIP integrated.
Height: 3.5 in. (88.9 mm)
Width: 17.2 in. (437.4 mm)
Depth: 18.15 in. (461.0 mm)
Weight:
• 33.65 lb (15.23 kg) (with dual AC power supply and SPA blank covers)
• 36.85 lb (16.75 kg) (with dual DC power supply, blank covers, and Cisco ASR 1000 Series 2.5-Gbps ESP)
• No SPA included
Note: The Cisco ASR 1002 Fixed Router has the route processor, ESP, and SIP integrated.
Height: 3.5 in. (88.9 mm)
Width: 17.2 in. (437.4 mm)
Depth: 18.15 in. (461.0 mm)
Weight:
• 33.65 lb (15.23 kg) (with dual AC power supply and SPA blank covers)
• 36.85 lb (16.75 kg) (with dual DC power supply, blank covers, and Cisco ASR 1000 Series 5-Gbps ESP [ASR1000-ESP5])
• No SPAs included
Note: The Cisco ASR 1002 has the route processor and SIP integrated.
Height: 3.5 in. (88.9 mm)
Width: 17.2 in. (437.4 mm)
Depth: 18.15 in. (461.0 mm)
Weight:
• 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)
• 39.05 lb (17.72 kg) (with dual DC power supply and blank covers)
• No SPAs included
Note: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.
Height: 7 in. (177.8 mm)
Width: 17.2 in. (437.4 mm)
Depth: 18.15 in. (461.0 mm)
Weight:
• 68.7 lb (31.16 kg) (with dual AC power supply, SPA blank covers, Cisco ASR 1000 Series 10-Gbps ESP [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESP [ASR1000-ESP-40], Cisco ASR 1000 Series Route Processor 1 [RP1] [ASR1000-RP1], two Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)
Height: 10.5 in. (266.7 mm)
Width: 17.2 in. (437.4 mm)
Depth: 18.15 in. (461.0 mm)
Weight:
• 98.70 lb (44.77 kg) (with dual AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 10-Gbps ESPs [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP-40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100], two Cisco ASR 1000 Series RP1s [ASR1000-RP1], three Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)
Height: 22.8 in. (579.1 mm)
Width: 17.2 in. (437.4 mm)
Depth: 18.15 in. (461.0 mm)
Weight:
• 184.0 lb (83.46 kg) (with redundant AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], six Cisco ASR 1000 Series 40-Gbps SIPs [ASR1000-SIP40], and no SPAs)
Shared port adapters
1 single-height SPA slot
1 single-height SPA slot
3 SPA slots
3 SPA slots
8 SPA slots
12 SPA slots
24 SPA slots
Cisco ASR 1000 Series ESP
Integrated in chassis
Integrated in chassis
1 ESP slot
Integrated in chassis
1 ESP slot
2 ESP slots
2 ESP slots
Route Processor
Integrated in the chassis: Cisco ASR 1001 Series Route Processor with Dual Core Processor
Integrated in chassis
Integrated in chassis
Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Dual Core Processor
1 route-processor slot
2 route-processor slots
2 route-processor slots
Number of SIPs or Ethernet Line Cards supported
Integrated in chassis
Integrated in chassis
Integrated in chassis
Integrated in chassis
2
3
6
Redundancy
Software: Yes
Software: Yes
Software: Yes
Software: Yes
Software: Yes
Hardware: Yes
Hardware: Yes
Built-in Gigabit Ethernet ports
Yes: 4 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports
Yes: 4 Gigabit Ethernet SFP ports
Yes: 4 Gigabit Ethernet SFP ports
Yes: 6 Gigabit Ethernet SFP ports
0
0
0
Integrated daughter card (IDC)
Yes:
• ASR1001-4XT3 provides an IDC with four built-in T3 ports
Note: E3 circuitry is not supported.
• ASR1001-2XOC3POS provides an IDC with 2 built-in OC-3 PoS ports.
Note: The functions of these ports are the same as on the SPA module SPA-2XOC3-PO
• ASR1001-4X1GE provides an IDC with 4 built-in Gigabit Ethernet ports
Note: The functions of these ports are the same as on the SPA module SPA-5X1GE-V2.
• ASR1001-8XCHT1E1 provides an IDC with 8 built-in Channelized E1/T1 ports
Note: The functions of these ports are the same as on the SPA module SPA-8XCHT1/E1
• ASR1001-HDD provides an IDC in form of a hard disk drive. Default size is 160 GB.
Note: IDCs are not field-upgradable with the exception of the HDD on the ASR1001-HDD model.
No
No
No
No
No
No
Airflow
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Note: The 1RU and 2RU chassis (ASR1001, ASR1002, ASR1002-F, and ASR1002-X) come by default with 4-GB DRAM. In the ASR1002 and ASR1002-F, 4 GB is required for the software-redundancy implementation, which is also of high interest for the managed CPE application. In the ASR1001 and ASR1002-X, 8 GB is required for the software redundancy implementation.
Table 9. Cisco ASR 1000 Series: Detailed Specifications
Cisco ASR 1000 Series
Cisco ASR 1001
Cisco ASR 1002 Fixed Router
Cisco ASR 1002 Router
Cisco ASR 1002-X Router
Cisco ASR 1004 Router
Cisco ASR 1006 Router
Cisco ASR 1013 Router
Embedded Services Processor
ESP support
• Cisco ASR 1000 Series 2.5-Gbps ESP (default)
• Upgradable through a software activated feature license to 5 Gbps
• Cisco ASR 1000 Series 2.5-Gbps ESP
• Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5), Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), and noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)
• Cisco ASR 1002-X ESP with 5-Gbps (default)
• Upgradable through software activated feature license to 10, 20, or 36 Gbps
• Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), and Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40)
• Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10), noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N), Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20), Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40), and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100)
• Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40),
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200)
ESP bandwidth
2.5 to 5 Gbps
2.5 Gbps
5 to 10 Gbps
5 to 36 Gbps
10 to 40 Gbps
10 to 100 Gbps
40 to 200 Gbps
ESP memory
• Share the same control memory on route processor
• Cisco ASR 1000 Series 2.5-Gbps ESP: 1-GB DRAM default; 1-GB DRAM maximum
• Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5): 1-GB DRAM default; 1-GB DRAM maximum
• Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2-GB DRAM default; 2-GB DRAM maximum
• Share the same control memory on route processor
• Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2-GB DRAM default; 2-GB DRAM maximum
• Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4-GB DRAM default; 4-GB DRAM maximum
• Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2-GB DRAM default; 2-GB DRAM maximum
• Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4-GB DRAM default; 4-GB DRAM maximum
• Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8-GB DRAM
• Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM
• Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):
8-GB DRAM
• Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM
• Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM
Route Processors
Route processor
Integrated in the chassis: Cisco ASR 1001 Series Route Processor with Dual Core Processor; not upgradable
Integrated in the chassis: Cisco ASR 1000 Series RP1 (ASR1000-RP1); the Cisco ASR 1000 Series RP2 (ASR1000-RP2) is not supported on the Cisco ASR 1002 Fixed Router (ASR1002-F)
Integrated in the chassis: Cisco ASR 1000 Series RP1 (ASR1000-RP1)
Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor; not upgradable
Cisco ASR 1000 Series RP1 (ASR1000-RP1):
• Supported as a module on the Cisco ASR 1004 and ASR 1006
• Cisco ASR 1000 Series RP2 (ASR1000-RP2):
• Supported as a module on the Cisco ASR 1004, ASR 1006, and ASR 1013
Same as for Cisco ASR 1004
Cisco ASR 1000 Series RP2 (ASR1000-RP2):
• Supported as a module on the Cisco ASR 1004, ASR 1006, and ASR 1013
Route-processor memory
• Cisco ASR 1001 Route Processor: Comes with 4-GB DRAM (default); upgradable to 8- and 16-GB DRAM; 16-GB DRAM is maximum
• Cisco ASR 1001: Offers 8-GB embedded USB memory (eUSB) support (partitioned: two 32-MB partitions for nonvolatile RAM [NVRAM] and the rest for mass storage)
• Cisco ASR 1000 Series RP1 (ASR1000-RP1): Is integrated in the chassis of the Cisco ASR 1002 Fixed Router
• Cisco ASR 1002 Fixed Router: Comes with 4-GB DRAM (default and maximum)
• Cisco ASR 1002 Fixed Router: Offers 8-GB eUSB support (partitioned: two 32-MB partitions for NVRAM and the rest for mass storage)
• Cisco ASR 1000 Series RP1 (ASR1000-RP1): Is integrated in the chassis of the Cisco ASR 1002
• Cisco ASR 1002: Comes with 4-GB DRAM (default and maximum)
• Cisco ASR 1002: Offers 8-GB EUSB support (partitioned: two 32-MB partitions for NVRAM and the rest for mass storage)
• Cisco ASR 1002-X Route Processor: Comes with 4-GB DRAM (default); upgradable to 8- and 16-GB DRAM; 16-GB DRAM is maximum
• Cisco ASR 1002-X: Offers 8-GB eUSB memory support (partitioned: two 32-MB partitions for NVRAM and the rest for mass storage)
• Cisco ASR 1000 Series Route Processor (ASR1000-RP1): 2-GB DRAM default; 4-GB DRAM maximum
• 1-GB eUSB memory support (partitioned: two 32-MB partitions for NVRAM and the rest for mass storage)
• For mass storage: HDD (40-GB) or solid-state drive (32-GB) support (will be offered later)
• Same as for Cisco ASR 1004
• Cisco ASR 1000 Series RP2 (ASR1000-RP2):
8-GB DRAM default; 16-GB DRAM maximum
• 2-GB eUSB memory support
• For mass storage: HDD (80-GB)
SIPs and Ethernet Line Cards
Integrated in chassis; not upgradable
Integrated in chassis: Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10); not upgradable
Integrated in chassis: Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10); not upgradable
Integrated in chassis: not upgradable
Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10) and Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40) and ASR 1000 Fixed Ethernet Line Card, 2x10GE + 20X1GE (ASR1000-2T+20X1GE)
Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10) and Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40) and ASR 1000 Fixed Ethernet Line Card, 2x10GE + 20X1GE (ASR1000-2T+20X1GE)
Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40) and ASR 1000 Fixed Ethernet Line Card, 2x10GE + 20X1GE (ASR1000-2T+20X1GE)
Embedded hardware-based encryption
Yes: On Cisco ASR 1000 Series 2.5- and 5-Gbps ESPs with up to 1.8-Gbps crypto support throughput
Yes: On Cisco ASR 1000 Series 2.5-Gbps ESP with up to 1.0-Gbps crypto support throughput
Yes: On Cisco ASR 1000 Series 5-Gbps ESP (ASR1000-ESP5) with up to 1.8-Gbps crypto support throughput and on Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4-Gbps crypto support throughput
Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)
Yes: On Cisco ASR 1002-X ESP with up to 4-Gbps crypto support throughput
Yes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps and on Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput
Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)
Yes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps, Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8 Gbps, Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps, and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput
Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)
Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11 Gbps, and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78 Gbps crypto support throughput
Minimum Cisco IOS XE Software release
Cisco IOS XE Software Release 3.2.0S (ASR1001, ASR1001-4XT3, and ASR1001-2XOC3POS);
Cisco IOS XE Software Release 3.3.0S (ASR1001-4X1GE, ASR1001-8XCHT1E1, and ASR1001-HDD)
Cisco IOS XE Software Release 2.4.0
Cisco IOS XE Software Release 2.1
Cisco IOS XE Software Release 3.7.0S
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002 except Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S
Note: Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S.
Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S, ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S, and ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) requires Cisco IOS XE Software Release 3.10.0S
Rack-mounting
Yes: 19-inch
Yes: 19-inch
Yes: 19-inch
Yes: 19-inch
Yes: 19-inch
Yes: 19-inch
Yes: 19-inch
Wall-mounting
No
No
No
No
No
No
No
External USB flash memory
1-GB USB flash-memory support
1-GB USB flash-memory support
1-GB USB flash-memory support
4-GB USB flash-memory support
1-GB USB flash-memory support
1-GB USB flash-memory support
1-GB USB flash-memory support
Power Requirements
Redundant power supply
Same as for Cisco ASR 1002
Yes: Dual power supplies by default; option of either AC or DC power supply
Note: A mix of one AC and one DC power supply is not supported. The spare AC and DC power supplies for Cisco ASR 1002 Fixed Router (ASR1002-F) are the same as those for Cisco ASR 1002 (ASR1002-PWR-AC= and ASR1002-PWR-DC=, respectively).
Yes: Dual power supplies by default; option of either AC or DC power supply
Note: A mix of one AC and one DC power supply is not supported.
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Yes: Quad power supplies (redundant pairs) by default; option of either AC or DC power supplies
Note: A mix of AC and DC power supplies is not supported.
Power input
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Worldwide ranging AC (85 to 264V; 120 or 240V; 60 or 50 Hz nominal)
Worldwide ranging DC
(-40.5 to -72:
-48V nominal)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Worldwide ranging AC (180 to 264V; 240V; 60 or 50 Hz nominal)
Worldwide ranging DC
(-40.5 to -72; -48V nominal)
Power consumption
• Maximum (DC): 500W
• Maximum (AC): 471W
• Maximum (out): 400W
• Maximum (DC): 590W
• Maximum (AC): 560W
• Maximum (out): 470W
• Maximum (DC): 590W
• Maximum (AC): 560W
• Maximum (out): 470W
• Maximum (DC): 590W
• Maximum (AC): 560W
• Maximum (out): 470W
• Maximum (DC): 1020W
• Maximum (AC): 960W
• Maximum (out): 765W
• Maximum (DC): 1700W
• Maximum (AC): 1600W
• Maximum (out): 1275W
Or
• Maximum (DC): 2100W
• Maximum (AC - high line): 2000W
• Maximum (out): 1695W
• Maximum (DC): 4200W
• Maximum (AC - high line): 4000W
• Maximum (out): 3390W
Airflow
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Front-to-back
Environmental Specifications
Operating temperature (nominal)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
41 to 104ºF
(5 to 40ºC)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Operating temperature (short-term)
-
Same as for Cisco ASR 1002
23 to 131°F
(-5 to 55°C)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Operating humidity (nominal) (relative humidity)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
10 to 85%
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Operating humidity (short-term)
-
Same as for Cisco ASR 1002
5 to 90%
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Storage temperature
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
-38 to 150°F
(-39 to 70°C)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Storage humidity (relative humidity)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
5 to 95%
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Operating Altitude
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Regulatory Compliance
Network Equipment Building Standards (NEBS)
-
Same as for Cisco ASR 1002
GR-1089 and GR-63
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
EMC standards
Same as for Cisco ASR 1002
Same as for Cisco ASR 1002
• FCC 47 CFR Part 15 Class A
• VCCI Class A
• AS/NSZ Class A
• ICES-003 Class A
• EN55022/CISPR 22 Information Technology Equipment (Emissions)
• EN55024/CISPR 24 Information Technology Equipment (Immunity)
Table 10. Supported SPAs on the Cisco ASR 1000 Series
Product Description
Form Factor
Product Number
Serial and Channelized SPA
Cisco 8-Port Channelized T1/E1 Shared Port Adapter
Single height
SPA-8XCHT1/E1
Cisco 4-Port Channelized T3 (DS-0) Shared Port Adapter
Single height
SPA-4XCT3/DS0
Cisco 2-Port Channelized T3 (DS-0) Shared Port Adapter
Single height
SPA-2XCT3/DS0
Cisco 2-Port Clear Channel T3/E3 Shared Port Adapter
Single height
SPA-2XT3/E3
Cisco 4-Port Clear Channel T3/E3 Shared Port Adapter
Single height
SPA-4XT3/E3
Cisco 8-Port Clear Channel T3/E3 Shared Port Adapter
Single height
SPA-8XT3/E3
Cisco 1-Port Channelized STM-1/OC-3c to DS-0 Shared Port Adapter
Single height
SPA-1XCHSTM1/OC3
Cisco 1-Port Channelized OC-12/STM-4 SPA
Double height
SPA-1XCHOC12/DS0
Cisco 4 Port Serial SPA
Single height
SPA-4XT-SERIAL
Ethernet SPA
Cisco 4-Port 10BASE-T/100BASE Fast Ethernet Shared Port Adapter, V-2
Single height
SPA-4X1FE-TX-V2
Cisco 8-Port 10BASE-T/100BASE Fast Ethernet Shared Port Adapter, V-2
Single height
SPA-8X1FE-TX-V2
Cisco 2-Port Gigabit Ethernet Shared Port Adapter, Version 2
Single height
SPA-2X1GE-V2
Cisco 5-Port Gigabit Ethernet Shared Port Adapter, Version 2
Single height
SPA-5X1GE-V2
Cisco 8-Port Gigabit Ethernet Shared Port Adapter, Version 2
Single height
SPA-8X1GE-V2
Cisco 10-Port Gigabit Ethernet Shared Port Adapter, Version 2
Double height
SPA-10X1GE-V2
Cisco 1-Port 10 Gigabit Ethernet Shared Port Adapter, Version 2
Single height
SPA-1X10GE-L-V2
Cisco 1-Port 10 Gigabit Ethernet LAN/WAN-PHY Shared Port Adapter
Single height
SPA-1X10GE-WL-V2
Packet over SONET/SDH (PoS)
Cisco 2-Port OC3-c/STM-1c PoS Shared Port Adapter
Single height
SPA-2XOC3-POS
Cisco 4-Port OC3-c/STM-1c PoS Shared Port Adapter
Single height
SPA-4XOC3-POS
Cisco 4-Port OC3-c/STM-1c PoS Shared Port Adapter, Version 2
Single height
SPA-4XOC3-POS-V2
Cisco 8-Port OC3-c/STM-1c PoS Shared Port Adapter
Single height
SPA-8XOC3-POS
Cisco 1-Port Channelized STM-1/OC-3c to DS-0 Shared Port Adapter
Single height
SPA-1XCHSTM1/OC3
Cisco 1-Port OC-12c/STM-4c PoS Shared Port Adapter
Single height
SPA-1XOC12-POS
Cisco 2-Port OC-12c/STM-4 PoS Shared Port Adapter
Single height
SPA-2XOC12-POS
Cisco 4-Port OC-12c/STM-4 PoS Shared Port Adapter
Single height
SPA-4XOC12-POS
Cisco 8-Port OC-12c/STM-4 PoS Shared Port Adapter
Single height
SPA-8XOC12-POS
Cisco 1-Port OC-48/STM-16 POS/RPR Shared Port Adapter
Single height
SPA-1XOC48POS/RPR
Cisco 2-Port OC-48/STM-16 POS/RPR Shared Port Adapter
Single height
SPA-2XOC48POS/RPR
Cisco 4-Port OC-48/STM-16 POS/RPR Shared Port Adapter
Single height
SPA-4XOC48POS/RPR
Cisco 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter with XFP Optics
Single height
SPA-OC192POS-XFP
ATM SPA
Cisco 1-Port OC3c/STM1c ATM Shared Port Adapter
Single height
SPA-1XOC3-ATM-V2
Cisco 3-Port OC3c/STM1c ATM Shared Port Adapter
Single height
SPA-3XOC3-ATM-V2
Cisco 1-Port OC12c/STM4c ATM Shared Port Adapter
Single height
SPA-1XOC12-ATM-V2
Clocking/Sync SPA
Synchronous Ethernet SPA
Single height
SPA-2X1GE-SYNCE
Service SPA
Cisco SPA, WebEx Node for ASR 1000 Series
Double height
SPA-WMA-K9
Digital Signal Processor SPA
Single height
SPA-DSP
CEOP (Circuit Emulation Over Packet) SPA
1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA
Single height
SPA-1CHOC3-CE-ATM
Cisco 2-Port T3/E3 Circuit Emulation and ATM SPA
Single height
SPA-2CHT3-CE-ATM
Cisco 24-Port T1/E1/J1 Circuit Emulation and ATM SPA
Single height
SPA-24CHT1-CE-ATM
This list will be extended over time. Please check with your local Cisco account representative for information about the latest SPA, SFP, and optics support on the Cisco ASR 1000 Series Routers or check the Cisco ASR 1000 price list.
Availability
The Cisco ASR 1000 Series is orderable and shipping.
Table 11 gives hardware component ordering information, and Table 12 gives software (consolidated packages) and license ordering information for the Cisco ASR 1000 Series with the exception of the Cisco ASR 1001 and ASR 1002-X Routers. For the Cisco ASR 1001 and ASR 1002-X, this information is provided in Table 13.
Table 14 gives the respective software spare ordering information. If you need to purchase a Cisco ASR 1001 or ASR 1002-X spare license (for example, for a technology package upgrade from IP Base to Advanced Enterprise Services, or for a performance upgrade from 2.5 to 5 Gbps on the Cisco ASR 1001 chassis or from 5 to 10, 20, or 36 Gbps on the Cisco ASR 1002-X chassis, or for a feature that requires a license and the license had not been purchased at time of order), two types of spare licenses are available: the SLASR1-xxx-=, which provides a product activation key (PAK) or license file through paper delivery, and the L-SLASR1-xxx-=, which provides a PAK or license file through eDelivery. The spares can also be purchased as a "multiuse PAK" by either ordering SLFL-ASR1= (for paper delivery) or L-SLFL-ASR1= (for eDelivery).
Not all of the available product numbers are listed in Tables 11, 12, and 13. For additional product numbers, including the Cisco ASR 1000 Series bundle offerings, please check the Cisco price list or contact your local Cisco account representative. More details about the Cisco ASR 1000 Series Bundles and how to order the Cisco ASR 1000 Series is also provided in the Cisco ASR 1000 Ordering Guide.
Table 11. Ordering Information for Cisco ASR 1000 Series Hardware
Cisco ASR 1000 Series SPA Interface Processor and Ethernet Line Cards
ASR1000-SIP10
Cisco ASR1000 SPA Interface Processor 10
ASR1000-SIP10=
Cisco ASR1000 SPA Interface Processor 10, Spare
ASR1000-SIP40
Cisco ASR1000 SPA Interface Processor 40
ASR1000-SIP40=
Cisco ASR1000 SPA Interface Processor 40, SPARE
ASR1000-2T+20X1GE
Cisco ASR 1000 Fixed Ethernet Line Card, 2X10GE + 20X1GE
ASR1000-2T+20X1GE=
Cisco ASR 1000 Fixed Ethernet Line Card, 2X10GE + 20X1GE, Spare
Cisco ASR 1000 Series USB Memory Options
MEMUSB-1024FT
1GB USB Flash Token for Cisco ASR 1000 Series
MEMUSB-1024FT=
1GB USB Flash Token for Cisco ASR 1000 Series, Spare
Table 12. Ordering Information for Cisco ASR 1000 Series Software Consolidated Packages and Licenses with the Exception of the Cisco ASR 1001 and ASR 1002-X
Product Number
Product Description
Cisco ASR 1000 Series Consolidated Packages
SASR1R1-IPB
Cisco ASR 1000 Series RP1 IP Base without Crypto
SASR1R1-IPBK9
Cisco ASR 1000 Series RP1 IP BASE
SASR1R1-AISK9
Cisco ASR 1000 Series RP1 Advanced IP Services
SASR1R1-AIS
Cisco ASR 1000 Series RP1 Advanced IP Services without Crypto
SASR1R1-AESK9
Cisco ASR 1000 Series RP1 Advanced Enterprise Services
SASR1R1-AES
Cisco ASR 1000 Series RP1 Advanced Enterprise Services without Crypto
SASR1R2-IPB
Cisco ASR 1000 Series RP2 IP Base without Crypto
SASR1R2-IPBK9
Cisco ASR 1000 Series RP2 IP Base
SASR1R2-AISK9
Cisco ASR 1000 Series RP2 Advanced IP Services
SASR1R2-AIS
Cisco ASR 1000 Series RP2 Advanced IP Services without Crypto
SASR1R2-AESK9
Cisco ASR 1000 Series RP2 Advanced Enterprise Services
SASR1R2-AES
Cisco ASR 1000 Series RP2 Advanced Enterprise Services without Crypto
Cisco ASR 1000 Series Licenses
Cisco ASR 1000 Series Licenses-Security
FLASR1-IPSEC-RTU
Encryption Right-To-Use Feature Lic for ASR1000 Series
FLASR1-FPI-RTU
Flex. Pack. Insp. Right-To-Use Feat Lic for ASR1000 Series
FLASR1-FW-RTU
Firewall Right-To-Use Feature Lic for ASR1000 Series
Cisco ASR 1000 Series Licenses-Software Redundancy
FLASR1-IOSRED-RTU
SW Redundancy Right-To-Use Feat Lic for ASR1000 Series
Cisco ASR 1000 Series Licenses-Application Visibility and Control
FLASR1-AVC-RTU
Appl. Visibility & Control RTU Feat. Lic for ASR1000 Series
Cisco ASR 1000 Series Licenses-Lawful Intercept
FLASR1-LI-RTU
ASR1000 Lawful Intercept RTU
Cisco ASR 1000 Series Licenses-Broadband
FLASR1-BB-RTU
Broadband Right-To-Use Feature Lic for ASR1000 Series
FLASR1-BB-4K
Broadband 4K Sessions Feature Lic for ASR1000 Series
FLASR1-BB-16K
Broadband 16K Sessions Feature Lic for ASR1000 Series
FLASR1-BB-32K
Broadband 32K Sessions Feature Lic for ASR1000 Series
FLASR1-BB-48K
Broadband up to 48K Sessions Feature Lic for ASR1000 Series
FLASR1-BB-64K
Broadband up to 64K Sessions Feature Lic for ASR1000 Series
Cisco ASR 1000 Series Licenses-Cisco Unified Border Element - Service Provider Edition
FLASR1-CUBES-250P
CUBE(SP) 250 Calls Perpetual Lic for ASR 1000 Series
FLASR1-CUBES-2KP
CUBE(SP) 2K Calls Perpetual Lic for ASR 1000 Series
FLASR1-CUBES-4KP
CUBE(SP) 4K Calls Perpetual Lic for ASR 1000 Series
FLASR1-CUBES-10KP
CUBE(SP) 10KCalls Perpetual Lic for ASR 1000 Series
FLASR1-CUBES-16KP
CUBE(SP) 16KCalls Perpetual Lic for ASR 1000 Series
FLASR1-CUBES-32KP
CUBE(SP) 32K Calls Perpetual Lic for ASR 1000 Series
FLASR1-CUBES-LAB
CUBE(SP) Lab Use Only Lic for ASR 1000 Series
FLASR1-CUBES-TPEX
CUBE(SP) Perpetual Lic for ASR 1000 Series in B2BTP Exchange
NOTE: For the complete list of Cisco ASR 1000 Feature Licenses including Product Numbers for the Cisco Unified Border Element - Enterprise Edition, please consult the Cisco ASR 1000 Price List. For Cisco ASR 1000 demo licenses to test the Cisco ASR 1000 Series in the lab, please contact your local Cisco representative.
Table 13. Ordering Information for Cisco ASR 1001 and ASR 1002-X Router Software Consolidated Packages and Licenses Note: For the complete list of feature licenses enforced by software activation, please consult the Cisco ASR 1000 Price List.
Product Number
Product Description
Cisco ASR1001 IOS XE Software Universal Software
SASR1001UK
Cisco ASR1001 IOS XE UNIVERSAL
SASR1001NPEK9
Cisco ASR1001 IOS XE - NO PAYLOAD ENCRYPTION UNIVERSAL
Firewall/NAT Stateful Inter-Chassis Redundancy Paper PAK for ASR1000 Series
L-FLSASR1-FWNAT-R=
Firewall/NAT Stateful Inter-Chassis Redundancy E-Delivery PAK for ASR1000 Series
Application Visibility and Control
FLSASR1-AVC
Appl. Visibility & Control License for ASR1000 Series
FLSASR1-AVC=
Appl. Visibility & Control Paper PAK for ASR1000 Series
L-FLSASR1-AVC=
Appl. Visibility & Control E-Delivery PAK for ASR1000 Series
Lawful Intercept
FLSASR1-LI
Lawful Intercept License for ASR1000 Series
FLSASR1-LI=
Lawful Intercept Paper PAK for ASR1000 Series
L-FLSASR1-LI=
Lawful Intercept E-Delivery PAK for ASR1000 Series
Broadband
FLSASR1-BB
Broadband RTU and 500 Sessions License for ASR1000 Series
FLSASR1-BB=
BB RTU and 500 Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB=
BB RTU and 500 Sessions E-Delivery PAK for ASR1000 Series
FLSASR1-BB-4K
Broadband 4K Sessions for ASR1000 Series
FLSASR1-BB-4K=
Broadband 4K Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB-4K=
Broadband 4K Sessions E-Delivery PAK for ASR1000 Series
FLSASR1-BB-16K
Broadband 16K Sessions for ASR1000 Series
FLSASR1-BB-16K=
Broadband 16K Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB-16K=
Broadband 16K Sessions E-Delivery PAK for ASR1000 Series
FLSASR1-BB-32K
Broadband 32K Sessions for ASR1000 Series
FLSASR1-BB-32K=
Broadband 32K Sessions Paper PAK for ASR1000 Series
L-FLSASR1-BB-32K=
Broadband 32K Sessions E-Delivery PAK for ASR1000 Series
NOTE: For the complete list of Cisco ASR 1001 Feature Licenses not enforced via Software Activation including Product Numbers for the Cisco Unified Border Element - Service Provider Edition and Enterprise Edition, please consult the Cisco ASR 1000 Price List. For Cisco ASR 1000 demo licenses to test the Cisco ASR 1000 Series in the lab, please contact your local Cisco representative.
All Cisco IOS XE Software Route Processor 1 consolidated packages are compatible across the entire Cisco ASR 1000 Series with the Cisco ASR 1000 Series RP1 (ASR1000-RP1), and the Cisco IOS XE Software Route Processor 2 consolidated packages are compatible across the entire Cisco ASR 1000 Series with the Cisco ASR 1000 Series RP2 (ASR1000-RP2).
For the Cisco ASR 1001 and ASR 1002-X, you must select one of the Cisco ASR 1001 or ASR 1002-X universal consolidated packages as well as one of the technology package licenses (SLASR1-IPB, SLASR1-AIS, or SLASR1-AES).
Example 1 for Cisco ASR 1001: For the IP Base software feature set, you must select the universal image SASR1001U and the technology package license SLASR1-IPB, which enforces the IP Base feature set.
Example 2 for Cisco ASR 1001: For the AESK9 software feature set, you must select the universal image SASR1001UK9 and the technology package license SLASR1-AES, which enforces the AESK9 feature set. Please note that some functions, for example, IPsec or Firewall, require selection of an additional feature license; that is, if you want to deploy encryption, for example, you need to purchase the universal software image and respective technology package license that contains the support for encryption as well as the IPsec feature license. Using this example, you need to purchase the following part numbers:
Note: All licenses on the Cisco ASR 1001 and ASR 1002-X with the exception of the performance upgrade license from 2.5 to 5 Gbps (for Cisco ASR 1001) or from 5 to 10 to 20 to 36 Gbps (for Cisco ASR 1002-X) are not enforced but are honor-based. To download any of the Cisco ASR 1000 Series consolidated packages and Cisco ASR 1001 and ASR 1002-X universal images of a specific Cisco IOS XE Software release, go to Download Software, click "Router Software", and go to Cisco ASR 1000 Series Aggregation Services Routers.
Table 14. Ordering Information for Cisco ASR 1000 Series Software Spares
Product Number
Product Description
Cisco ASR 1000 Series Software Spare
ASR1000-SW-SPARECD
Cisco ASR 1000 Series Software Spare CD
CDASR1000R1-IPB=
Cisco ASR 1000 RP1 IP Base without Crypto, Spare
CDASR1000R1-IPBK9=
Cisco ASR 1000 RP1 IP Base, Spare
CDASR1000R1-AISK9=
Cisco ASR 1000 RP1 Advanced IP Services, Spare
CDASR1000R1-AESK9=
Cisco ASR 1000 RP1 Advanced Enterprise Services, Spare
Upgrade Paths
Cisco ASR 1000 Series Routers are included in the standard Cisco Technology Migration Program (TMP). Refer to http://www.cisco.com/go/TMP and contact your local Cisco account representative for program details.
Cisco Services for the Enterprise WAN Edge
Cisco and our certified partners can help make your enterprise WAN edge deployment a success with a broad portfolio of services based on proven methodologies. We can help you establish a secure, resilient WAN architecture and successfully integrate security and Cisco Unified Communications technologies with bandwidth to support video, collaboration, branch-office solutions, and growth in alignment with your business goals.
The Cisco Lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. Planning and design services expedite solution adoption. Award-winning technical support increases operational efficiency. Optimization services improve performance, resiliency, stability, and predictability and prepare your network and teams for change. For more information, please visit http://www.cisco.com/go/services.
For More Information
For more information about the Cisco ASR 1000 Series, visit http://www.cisco.com/go/asr1000 or contact your local Cisco account representative. For information about the Cisco ASR 1000 Series bundles, please refer to the Cisco ASR 1000 Ordering Guide.
