The Cisco ASR 1000 Series Fixed Ethernet Line Card (ASR1000-2T+20X1GE) is a fixed-port Ethernet line card for the Cisco ASR 1000 Series Aggregation Services Routers. The line card is capable of 40-Gbps full-duplex traffic forwarding using a fixed-port interface design. This line card has twenty 1 Gigabit Ethernet ports and two 10 Gigabit Ethernet ports (Figure 1).
The Small Form-Factor Pluggable (SFP) and 10-Gbps SFP (XFP) modules allow you to configure the line card for different media types (copper or fiber) and different optical requirements (single- or multimode fiber), as available. The line cards have one power LED, one line-card status LED, and 22 port or link-status LEDs.

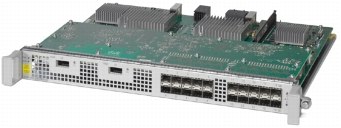

Figure 1. Cisco ASR 1000 Series Fixed Ethernet Line Card (ASR1000-2T+20X1GE)
Other aspects of the Cisco ASR 1000 Series Fixed Ethernet Line Card (ASR1000-2T+20X1GE) include:
• SyncE
• Low price per port
• Rich Ethernet Layer 2, Layer 3, IP, IPv6, and Multiprotocol Label Switching (MPLS) packet-processing capabilities as previously provided on Cisco ASR 1000 platforms
• Rich quality-of-service (QoS) functions:
– Ingress and egress QoS as previously provided on Cisco ASR 1000 platforms
– Egress queuing capability as previously provided on Cisco ASR 1000 platforms
– High- and low-priority lanes to Cisco ASR 1000 Series Embedded Services Processor (ESP) for high-priority, low-latency forwarding
The Cisco ASR 1000 Series Fixed Ethernet Line Cards have the twenty 1 Gigabit Ethernet and two 10 Gigabit Ethernet ports built in, allowing the Cisco ASR 1000 Series Routers to achieve greater Ethernet density and a lower price per port. However, this fixed configuration means that the Ethernet line card is not compatible with the Shared Port Adapters (SPAs) that are currently used with the SPA Interface Processor (SIP). Instead, the Ethernet line card takes the slot of the SIP with the twenty 1 Gigabit Ethernet and two 10 Gigabit Ethernet ports built in. Table 1 lists the differences between the Cisco ASR 1000 Fixed Ethernet Line Card and the Cisco ASR 1000 SPA Interface Processor.
Table 1. Differences Between Cisco ASR 1000 Fixed Ethernet Line Card and Cisco ASR 1000 SPA Interface Processor
Feature Support
Cisco ASR 1000 Fixed Ethernet Line Card
Cisco ASR 1000 SPA Interface Processor
SPA support
No
Yes
SyncE
Yes
Yes; with SPA-2X1GE-SYNCE
Ordering Information
Tables 2 and 3 give ordering information for the line cards and hardware, respectively, and Table 4 gives the minimum Cisco IOS® XE Software version required.
Table 2. Ordering Information
Product Name
Part Number
Cisco ASR 1000 Fixed Ethernet Line Card, 2x10GE + 20x1GE
ASR1000-2T+20X1GE
Table 3. Cisco ASR 1000 Fixed Ethernet Line Card (ASR1000-2T+20X1GE) Compatible Hardware
Product Name
Part Number
Cisco ASR 1004 Router Chassis
ASR1004
Cisco ASR 1006 Router Chassis
ASR1006
Cisco ASR 1013 Router Chassis
ASR1013
Cisco ASR 1000 Route Processor 2
ASR1000-RP2
Cisco ASR 1000 Embedded Services Processor, 40G
ASR1000-ESP40 (Up to 4 ASR1000-2T+20X1GE on ASR1013 with ESP40)
Cisco ASR 1000 Embedded Services Processor, 100G
ASR1000-ESP100
Cisco ASR 1000 Embedded Services Processor, 200G
ASR1000-ESP200
Cisco ASR 1004 Power supply
ASR1004-PWR-AC
ASR1004-PWR-DC
Cisco ASR 1000 1600W Power Supply (for Cisco ASR 1006 and ASR 1013 chassis)
Table 4. Minimum Cisco IOS XE Software for Fixed Ethernet Line Card
Product Name
Product Number
Minimum Cisco IOS XE Software Release
Cisco ASR 1000 Fixed Ethernet Line Card (20x1GE + 2x10GE)
ASR1000-2T+20X1GE
Cisco IOS XE 3.10
Cisco Services for the Enterprise WAN Edge
