Cisco SR 500 Series Secure Routers

A Flexible, Easy-to-Manage Router to Secure Your Small Business

Product Overview

• High performance broadband access for small offices and teleworkers

• Highly secure remote access and site-to-site connectivity with IP Security (IPsec) VPN, Secure Sockets Layer (SSL) VPN, and dynamic multipoint VPN (DMVPN)

• Built-in threat defense, including:

– Stateful packet inspection (SPI) firewall to help minimize web and email threats

– Intrusion prevention system (IPS), providing protection from attacks, worms, and viruses by detecting and stopping these threats before they can affect the network

– Cisco IOS^® Content Filtering to restrict access to undesirable websites and help guard against malware and phishing attacks

• Highly secure 802.11b/g wireless networking option to connect mobile employees in the workplace

• Support for static routing and dynamic routing protocols to easily adapt to diverse network environments

• Quality of service (QoS) for crisp voice and video communications

• 4-port 10/100 managed switch with VLAN support to interconnect workplace devices such as computers, servers, and printers

• Simple deployment, management, and troubleshooting with Cisco Configuration Assistant

Table 1. Cisco 500 Series Secure Router Models

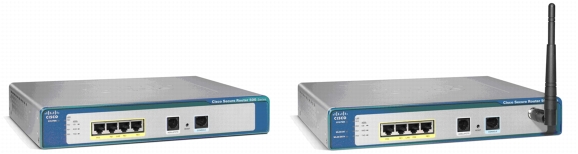

Figure 1. Cisco 520 Secure Routers

Applications

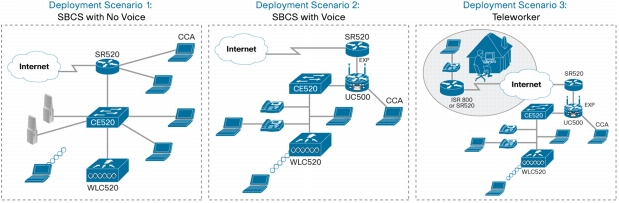

Figure 2. Deployment Scenarios for the Cisco 520 Secure Router

• Securely connect your small office: The Cisco 520 Secure Router is ideal for securely connecting your employees with customers, business partners, and suppliers. Built-in advanced security and encryption lets you do business over the Internet with confidence and peace of mind. For example, online stores can safely perform transactions with credit cards and debit cards.

• Move beyond your traditional phone system: The Cisco 520 Secure Router works hand in hand with other Cisco Smart Business Communications System products, such as the Cisco Unified Communications 500 Series, to transform your business by securely bringing together all of your communications - phone calls, messaging, data, and wireless networking - onto a single network. Your employees can be more productive, and you can save money by managing and paying for just one network.

• Upgrade your business communications: If your business is already using the Cisco Smart Business Communications System, you can strengthen security by adding the Cisco 520 Secure Router. Intrusion prevention and Cisco IOS Content Filtering can add to your peace of mind, and intelligent network QoS lets you prioritize voice and data network traffic to improve network performance.

• Safely connect traveling employees or teleworkers: The Cisco 520 Secure Router is perfect for travelers or teleworkers who need secure VPN access to office applications and files. QoS features in the Cisco 520 Secure Router help maintain the integrity of voice communications from home offices.

Features and Benefits

• Built-in advanced security: The Cisco 520 Secure Router includes advanced security features to help protect your business, including a firewall that inspects traffic at the application layer to help protect the network from unauthorized users, an inline intrusion prevention system that provides deep-packet inspection to effectively prevent a wide range of network attacks; built-in encryption using Triple Data Encryption Standard (3DES) and Advanced Encryption Standard (AES) that lets remote employees connect to the network securely using IPsec VPN, SSL VPN, or DMVPN; and Cisco IOS Content Filtering to add another layer of defense against malware and phishing attacks.

• Increased performance to run concurrent services: The Cisco 520 Secure Router delivers broadband performance while simultaneously running services such as firewall, intrusion prevention, VPN encryption, and wireless networking. Managing a single, all-in-one router is easier and less expensive than managing multiple network devices.

• Optional secure wireless networking: All Cisco 500 Series Secure Router models are available with built-in 802.11b/g wireless access points to enable your employees to access the network when away from their desks. Encryption and compliance with wireless network security standards protect your network traffic every step of the way.

• Built-in managed switch: An integrated 4-port 10/100 managed switch can connect computers, printers, and servers in your office. One port on the switch can serve as a network edge (DMZ) to add an additional layer of security to your network. The switch also supports VLANs to let you securely separate traffic on your office network.

• Simplified deployment and management: Cisco Configuration Assistant makes it easy to configure, install, and manage the Cisco 520 Secure Router. It can also generate status reports, synchronize passwords, and upgrade software across all of your Cisco network devices, reducing the time your staff devotes to network maintenance. Cisco Configuration Assistant is available for download free of charge at http://www.cisco.com/go/configassist.

• Quality of service: The Cisco 520 Secure Router features the QoS intelligence you need to prioritize networking traffic and support crisp delivery of rich voice and video applications.

• Multiple connectivity options: The Cisco 520 Secure Router offers a number of options for WAN connectivity, including Fast Ethernet, ADSL over basic telephone service, and ADSL over ISDN, enabling you to connect your offices with the technology that best meets your needs.

• Seamleass integration with the Cisco Smart Business Communications System: The Cisco 520 Secure Router was designed as an integral part of this complete system of advanced voice, data, security, and wireless networking for small business.

Product Specifications

Table 2. Cisco 520 Secure Router Specifications

Table 3. Cisco IOS Software Features on Cisco 520 Secure Router: WLAN Features (Available with Wireless Option)

Table 4. Cisco 520 Secure Router Hardware

Feature	Description
Default DRAM	128 MB
Maximum DRAM	128 MB
Default flash memory	36 MB
Maximum flash memory	36 MB
LAN switch	Managed 4-port 10/100BASE-T with autosensing medium dependent interface (MDI)/MDI crossover (MDI-X) for auto-crossover
Console port	RJ-45
LEDs	PPP, VPN, ADSL, WLAN, LAN
External power supply	Universal 100 to 240V AC
DSL specifications	• ST-Microelectronics 20190 chipset • Supports ADSL over basic telephone service with Annex A and Annex B ITU G.992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+) • G.994.1 ITU G.hs • Complies with T1.413 ANSI ADSL DMT issue 2 • DSL Forum TR-067 • The chipset does not provide interoperability with carrierless amplitude modulation/phase modulation (CAP)-based ADSL lines • Annex A and Annex B are supported starting with Cisco IOS Software Release 12.4(4)T • The ADSL2 standard (ITU G.992.3) adds new features and functions targeted at improving ADSL performance and interoperability. In addition, the standard adds support for new applications, services, and deployment scenarios. Among the changes are improvements in data rate and reach performance, rate adaptation, improved diagnostics, and power enhancements. The conventional ADSL standard (ITU G.992.1) provides downstream data rates of up to 8 Mbps and upstream data rates of up to 0.8 Mbps, and ADSL2 provides higher downstream rates of up to 12 Mbps and upstream data rates of up to 1 Mbps. • The ADSL2+ standard (ITU G.992.5) doubles the bandwidth used for downstream data transmission, effectively doubling the maximum downstream data rates and achieving downstream data rates of up to 24 Mbps and upstream data rates of up to 1.5 Mbps.
Wireless Specifications
Data rates supported	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Receive sensitivity	• 802.11b • -94 dBm @ 1 Mbps • -93 dBm @ 2 Mbps • -92 dBm @ 5.5 Mbps • -90 dBm @ 11 Mbps • 802.11g • -92 dBm @ 6 Mbps • -90 dBm @ 9 Mbps • -89 dBm @ 12 Mbps • -87 dBm @ 18 Mbps • -85 dBm @ 24 Mbps • -81 dBm @ 36 Mbps • -76 dBm @ 48 Mbps • -73 dBm @ 54 Mbps
Maximum transmit power	Note: Maximum power setting is subject to change by channel and by region, depending on regulations. • 802.11b: average 80 mW (19 dBm), peak (FCC) 245 mW (23.9 dBm) • 802.11g: average 50 mW (17 dBm)
Immunity	• IEC 61000-4-2:1995 Immunity to Electrostatic Discharges • IEC 61000-4-3:1995 Immunity to Radio Frequency Electromagnetic Fields • IEC 61000-4-4:1995 Immunity to Electrical Fast Transients • IEC 61000-4-5:1995 Immunity to Power Line Transients (Surges) • IEC 61000-4-6:1996 Immunity to Radio Frequency Induced Conducted Disturbances • IEC 6100-4-8: 1003 Immunity to Power-Frequency Magnetic Fields (N/A for most Cisco equipment) • IEC 61000-4-11:1995 Immunity to Voltage Dips, Voltage Variations, and Short Voltage Interruptions
Physical dimensions and weight	Product dimensions: • W x D x H = 10.578 x 8.289 x 1.719 in. (268.68 x 210.54 x 43.66 mm) (nonwireless models) • W x D x H = 10.578 x 8.65 x 1.719 in. (268.68 x 219.72 x 43.66 mm) (wireless models with antenna connectors, excludes antennae) • Weight: 3.0 lb (1.36 kg) maximum
Power	Product power specifications: • AC input voltage: 100 to 240 VAC • Frequency: 50 to 60 Hz • Maximum output power: 26W • Output voltages: 5 and 12V
Approvals and compliance	• UL 1950/ CSA 950-95, third edition • IEC 950, second edition with amendments 1, 2, 3, and 4 • IEC/EN 60950-1, first edition • CS-03, Canadian Telecom Requirements • FCC Part 68 U.S. Telecom Requirements • AS/NZS 3260: 1996 with amendments 1, 2, 3, and 4 • ETSI 300-047 • TS 001 with amendment 1 • EMI • AS/NRZ 3548:1992 Class B • CFR 47 Part 15 Class B • EN60555-2 Class B • EN55022 Class B • VCCI Class II • ICES-003, Issue 2, Class B, April 1997S • IEC 1000-3-2 • UNI 3.1/4.0 PVC
Certifications
Environmental operating range	• Nonoperating temperature: -4° to 149°F (-20° to 65°C) • Nonoperating humidity: 5% to 95% relative humidity (noncondensing) • Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m) • Operating temperature: 32° to 104°F (0° to 40°C) • Operating humidity: 10% to 85%, relative humidity (noncondensing) • Operating altitude: 0 to 10,000 ft (0 to 3000 m)

DSLAM Interoperability

Table 5. Cisco 520 Secure Router DSLAM Interoperability

ADSL2+ Support

Table 6. ADSL2+ Support

Ordering

Table 7. Product Part Numbers

Secure Connectivity for Your Business

Service and Support

For More Information
