These flexible interface cards support multiple integrated data, voice and video applications, facilitating the migration from data only as well as circuit-switched voice/video services to a packet voice/video solution
Introduction
The Cisco® Third-generation 1-, 2-port and 4-port T1/E1 Multiflex Trunk Voice/WAN Interface (MFT VWIC3s) support data and voice applications on the Cisco 1921, 1941 and 1941W (data only), and the Cisco 2901, 2911, 2921, 2951, 3925, 3945, 3925E and 3945E Integrated Services Routers. The Cisco MFT VWIC3 combines WAN-interface-card (WIC) and voice-interface-card (VIC) functions to provide unparalleled flexibility, versatility, and investment protection through its many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface because the Cisco MFT VWIC3 cards can be reused in packet voice applications. The 2 port T1/E1 MFT VWIC3 is shown below.

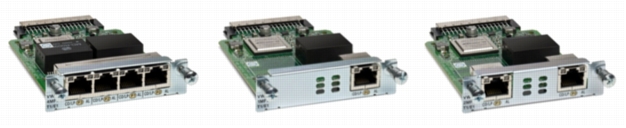

Figure 1. Cisco 1-,2- and 4-Port T1/E1 MFT VWIC3
The Cisco MFT VWIC3 interface cards add improvements over the Cisco Second-generation 1- and 2-port T1/E1 Multiflex Voice/WAN Interface Cards (MFT VWIC2s). The Cisco 2- and 4-port MFT VWIC3s enable each port to be clocked from an independent clock source for data applications. Voice applications can now be clocked independently from data applications, with all ports for voice applications clocked from a single source. The Cisco MFT VWIC3s use the ECAN on the motherboard PVDM cards with up to 128ms echo-tail length for demanding network conditions. MFT VWIC3 cards support up to 2 channel groups per T1/E1 port for serial data applications. Refer to Table 3 for all configuration options offered with the MFT VWIC3 cards.
The Cisco MFT VWIC3 cards can be inserted into the EHWIC slot on the supported Cisco 1921, 1941, 1941W, 2901, 2911, 2921, 2951, 3925, 3945, 3925E and 3945E integrated services routers. The T1/E1 MFT VWIC3 cards support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC3s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications. All MFT VWIC3 modules include the drop-and-insert multiplexing capability, which eliminates costly external third-party channel service units/data service units (CSUs/DSUs) and drop-and-insert multiplexers.
The Cisco MFT VWIC3 cards are offered in single-, dual- and quadruple-port versions, which can be used and then redeployed as network requirements change, thereby addressing several applications:
• T1/E1 data: The Cisco 1-, 2- and 4-port T1/E1 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1, (including structured G.703 with G.704 framing), fractional E1, and E1structured G.703 applications. To simplify remote management, these MFT VWIC3 cards integrate a fully managed DSU/CSU for T1 deployments and a fully managed DSU for E1 deployments.
• E1/G.703 data: The Cisco 1- and 2- port G.703 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1 (including structured G.703 with G.704 framing), fractional E1, and unstructured E1 (G.703) applications. To simplify remote management, the G.703 version includes a fully managed DSU. The G.703 versions also support all the capabilities on the T1/E1 versions.
• T1/E1 packet voice: The Cisco 1-, 2- and 4-port T1/E1 MFT VWIC3 (voice and WAN) versions act as a VIC, supporting packet voice applications by providing T1, fractional T1, E1, and fractional E1 connections to private branch exchanges (PBXs) and central offices, thereby enabling new services and reducing voice and fax toll charges.
• Mixed data and packet voice: The Cisco MFT VWIC3 interface cards can simultaneously support both data and voice, reducing the complexity and number of network components and facilitating a graceful migration to bandwidth-efficient packet voice.
• Mixed data and packet voice with drop and insert: The Cisco MFT VWIC3 cards can be deployed as a T1/E1 drop-and-insert multiplexer with integrated DSUs/CSUs, reducing the complexity of the network and the cost of the central-office ports by efficiently combining time-division multiplexing (TDM) voice (PBX), IP voice, and data on the same trunks. Cisco 1900, 2900 and 3900 ISR routers support drop and insert between ports over a single MFT VWIC3 card and two ports over two different MFT VWIC3s
Key Benefits
Reduces Networking Lifecycle Costs
• Enables graceful migration from data-only to multiplexed data and voice to packetized voice applications
• Reduces training, deployment, management, and sparing inventory over single-purpose interfaces
• Maximizes investment protection
• Simplifies network configuration and sparing through the support of both T1 and E1 on the same card
• Offers multifunction support for LAN-to-LAN routing, multiplexed data and voice, and packetized voice
• Offers ability to share modules among Cisco 1900, 2900 and 3900 Series routers
• Increases configuration flexibility and reduces cost for data applications by allowing individual ports to be clocked from independent clock sources (not supported for voice applications, since all voice enabled ports must be clocked from a single clock source)
• Supports E1 configurations for both balanced and unbalanced modes
• Supports (G.703 models) unstructured E1 (G.703) for using the full 2.048 Mbps
• Eliminates costly external third-party CSUs/DSUs and drop-and-insert multiplexers
• Simplifies remote network management by allowing a single management tool such as CiscoView or CiscoWorks to support router, CSU/DSU, or drop-and-insert multiplexer
Maximizes System Resources
• Increases T1/E1 port density on the supported Cisco 2911, 2921, 2951, 3925, 3945, 3925E and 3945E integrated services routers-up to four T1/E1 connections with an integrated CSU/DSU in a single EHWIC slot
• Offers easy migration to bandwidth-efficient packet voice, enabling new services
Customers can choose to integrate data and voice in stages to preserve their investment in WAN interfaces. For example, the Cisco MFT VWIC3 can support data-only applications as a WAN interface, and then be reused to integrate data and voice with the drop-and-insert multiplexer function or configured to support packetized voice (voice over IP [VoIP] or voice over Frame Relay [VoFR]).
Applications
Packet Voice Solutions: PBX and Central-Office Connectivity
The Cisco MFT VWIC3 interface cards, through its digital T1/E1 ports, supply PBX and public-switched-telephone-network (PSTN) connectivity for integrated services routers with the on-board EHWIC slots. The integrated services routers support H.323-, Session Initiation Protocol (SIP)-, Media Gateway Control Protocol (MGCP)-, and Skinny Client Control Protocol (SCCP)-based VoIP.
Data Solutions: 1- , 2- and 4-Port T1/E1 WIC with Integrated DSU/CSU
The Cisco MFT VWIC3 interface cards simplify branch-office connectivity by integrating the functions of a router, T1/E1, and fractional T1/E1 serial interface with a fully managed DSU/CSU.
When used for "data-only" WAN connectivity, the Cisco MFT VWIC3 cards support numerous functions, including Cisco IOS® Software Command-Line Interface (CLI)-initiated loopback control, similar to the popular 1 Port T1/Fractional T1 DSU/CSU WAN Interface Card (part number HWIC-1DSU-T1. Additionally, the MFT VWIC3 is also offered in quadruple-port versions, enabling increased WAN port density in Cisco 2911, 2921, 2951 and Cisco 3900 Series routers. The T1/E1 MFT VWIC3 versions include integrated DSU functions for E1 deployments and integrated CSU and DSU functions for T1 deployments, simplifying remote network management.
The Cisco 4-port MFT VWIC3 interface cards increase configuration flexibility on Cisco Systems® integrated services routers, eliminating the need for two dual-port T1/E1 HWICs. Increasing the T1/E1 port density in a single EHWIC slot helps enable applications such as local serial aggregation with the 2-port high-speed serial WAN Interface Card (part number HWIC-2T ), or ISDN backup with the 4 Port ISDN BRI S/T WAN Interface Card (part number HWIC-4B-S/T) or the 1 port ISDN with NT-1 WAN Interface Card (part number HWIC-1B-U).
The Cisco MFT VWIC3 cards also support a channelized capability where the T1 or E1 service can be flexibly split into one or two fractional channel groups. Thus a single physical port can provide connection to multiple sites.
The Third-generation 1- and 2-port G.703 Multiflex Trunk voice/WAN Interface Cards (product numbers VWIC3-1MFT-G703 and VWIC3-2MFT-G703) support not only unstructured E1 (G.703) but also all the features of the other Cisco MFT VWIC3 cards, including drop and insert. Additional flexibility is provided on the 2 port G.703 Multiflex Trunk voice/WAN Interface Cards with the capability to configure one port for unstructured E1 (G.703) while configuring the other for standard framed E1.
Multiplexed Data and Voice Solutions: 2- and 4-Port T1/E1 Drop-and-Insert Multiplexer with Integrated DSU/CSU
The Cisco 1-, 2- and 4-port MFT VWIC3 interface cards simplify branch-office connectivity by helping enable Cisco 2900 and 3900 routers to consolidate the functions of a router, a fully managed drop-and-insert multiplexer, and a fully managed DSU/CSU into a single box. (It is possible to use two Cisco 1-port MFT VWIC3 interface cards for supporting the drop-and-insert feature. Generally, a Cisco 2- or 4-port MFT VWIC3 is more appropriate because at least 2 ports are required.) Typically a drop-and-insert multiplexer is used for channelized (that is, TDM) integration of data and voice onto a single T1, fractional T1, E1, or fractional E1 connection to the central office. Sharing a line can significantly reduce costs over those of two separate physical lines to the central office. Although the normal use is for data and voice sharing of a T1 or E1 service, the drop-and-insert capability also can be used for video and data, or data and data sharing of the service.
Moreover, the integrated drop-and-insert capability enhances system availability by allowing the Cisco IOS Software to be reloaded while maintaining TDM switching.

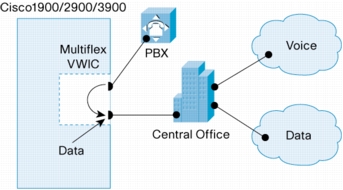

Figure 2. Drop and Insert to Share a T1/FT1 or E1/FE1 Service between Data and TDM
To illustrate, consider the example of a PBX with a T1 interface that needs to support a maximum of 10 simultaneous calls. With 24 DS-0 channels in a T1 service (1.544 Mbps), this leaves 14 DS-0 channels or 896 kbps of bandwidth for data from the router (14 x 64 kbps). The number of DS-0 channels assigned for PBX calls and the remainder that are available for use with router data are fully configurable (statically, not dynamically). In the case of an E1 service, 30 DS-0 channels are available for division between voice and router data.
In this example one port of the Cisco 2-port T1/E1 MFT VWIC3 is connected to the PBX and the other port is connected to the central office. The 10 DS-0 channels from the PBX are TDM switched to the "central-office port," and this switching is done on the MFT VWIC3 itself. The configuration of this TDM switching is flexible so that DS-0 channels on the "PBX port" do not have to be mapped to DS-0 channels with the same time slots on the central-office port. The remaining 14 DS-0 channels on the MFT VWIC3 central-office port terminate through the backplane connector of the VWIC3 on the router as a single aggregate channel group. The 14 DS-0 channels are not individually addressable by the router as a channelized service, but can be split into one or two channel groups.
The drop-and-insert function is included in all the Cisco MFT VWIC3 interface cards. The term "drop and insert" is normally used when router data (or data from another data device) is multiplexed with voice calls. A more generic term for "drop and insert" is "digital cross-connect." For example, a single T1 connection from a PBX to the PBX port on the MFT VWIC3 can be divided between DS-0 channels that are packetized (for example, VoIP) and DS-0 channels that are TDM switched to the central-office port of the MFT VWIC3 for standard circuit-switched voice connectivity.
Analog Cross Connect Solution
The time-division multiplexing (TDM) DS0 channels can be cross-connected with analog voice ports to create an analog cross connect solution. This capability is supported on the 2900 and 3900 series routers.
Support on Network-Module
MFT VWIC3 interface cards are supported on EHWIC slots only. MFT VWIC2 interface cards are supported on Voice-capable network modules: 2 slot IP Communications Enhanced Voice/Fax Network Modules (NM-HD-2VE), and IP Communications High-Density Digital Voice/Fax Network Modules (NM-HDV2), IP Communications High-Density Digital Voice NM with 1 T1/E1 (part number NM-HDV2-1T1/E1), and IP Communications High-Density Digital Voice NM with 2 T1/E1 (part number NM-HDV2-2T1/E1),
Table 1. Cisco MFT VWIC3 Platform Support and Minimum Cisco IOS Software Release Requirements
VWIC3-1MFT-T1/E1
VWIC3-2MFT-T1/E1
VWIC3-1MFT-G703
VWIC3-2MFT-G703
VWIC3-4MFT-T1/E1
Cisco 1900 Chassis EHWIC Slots
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
N/A*
Cisco 2900 Chassis EHWIC Slots
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.1(3)T*
Cisco 3900 Chassis EHWIC Slots
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.0(1)M3, 15.1(1)T1, 15.1(2)T
15.1(3)T
* VWIC3-4MFT-T1/E1is supported on Cisco 2911, 2921, 2951 and Cisco 3900 Series routers
* Channel Group refers to bonding of one or more timeslots into a single HDLC-framed serial connection for IP data traffic connectivity. This is used for HDLC, Frame Relay and MLPPP serial WAN connections.
** Ds0 Group refers to Bonding of one or more timeslots into a single TDM voice connection using Channel Associated Signaling (CAS) such as E&M, FXS or FXO. This is used for TDM PBX or PSTN connections and typically deployed only on T1.
*** PRI Group refers to bonding of two or more timeslots into a single TDM connection using ISDN signaling. This is typically used for TDM PBX or PSTN voice and video connections on T1 and E1, and also for data WAN connections on E1. Each call on the PRI is individually indicated as being a voice, video or data call with the ISDN bearer capability delivered with the call. Signaling is done on the D-channel, which is always channel 24 on a T1, and channel 31 on an E1.
**** TDM Group refers to cross-connecting one or more timeslots from one TDM interface to another. This is used to groom channels from different access points onto a combined T1 or E1 uplink. Since the router merely cross-connects and does not interpret or route the traffic from the ingress interface to the egress interface, the traffic type (voice, video and data) is transparent to the router.
Specifications
Table 4. Part Number and Descriptions of Cisco MFT VWIC3 Cards
Cisco IOS Software Release and Cisco IOS Software Feature Set License Requirements
Refer to Table 1 for platform support. The Cisco 1- and 2-port MFT VWIC3 cards are first supported in Cisco IOS Software Release 15.0(1)M3 and will be first available in the 15.0(1)M extended maintenance release. The Cisco 4-port MFT VWIC3 card are first supported in Cisco IOS Softwae Release 15.1(3)T. Data applications require the IP Base technology package, which is included by default. Voice applications require a minimum of the UC technology package, which is optional.
Data Features
• T1/E1 or fractional T1/E1 network interface
• n x 64 kbps or n x 56 kbps, non-channelized data rates (T1: n = 1 to 24, E1: n = 1 to 31)
• Standards based, including ANSI T1.403 and AT&T Publication 62411
MFT VWIC3: 0.75 x 3.08 x 4.74 in. (1.91 x 7.82 x 12.04 cm)
Weight
• 1 port VWIC3-1MFT-T1/E1 : 0.18 lb (82 g)
• 1 port VWIC3-1MFT-G703 : 0.18 lb (82 g)
• 2 port VWIC3-2MFT-T1/E1 : 0.19 lb (86 g)
• 2 port VWIC3-2MFT-T1/E1 : 0.19 lb (86 g)
• 4 port VWIC3-4MFT-T1/E1: 0.21 lb (95 g)
Diagnostics
• ANSI T1.403 Annex B/V.54 loopup/down code recognition, network loopback, and user-initiated loopbacks, network payload loopback, local DTE loopback, and remote line (codes: V.54, loop up, and loop down)
• Bit-error-rate-testing (BERT) patterns: All 0's, all 1's, 1:2, 1:8, 3:24, QRW, QRSS, 63, 511, 2047, and V.54/T1.403 annex B bit patterns, and two user-programmable 24-bit patterns
• Alarm detection: Alarm indication signal (AIS), time-slot 16 AIS, remote alarm, far-end block error (FEBE), out of frame (OOF), cyclic-redundancy-check (CRC) multiframe OOF, signaling multiframe OOF, frame errors, CRC errors, loss of network signal (red alarm), loss of network frame, receive (blue alarm) (AIS) from network, receive (yellow) from network performance reports or error-counters CRC, errored seconds, burst errored seconds, severely errored seconds, Ft and Fs framing errors for SF framing, (FPS) framing errors for ESF framing, and 24-hour history stored in 15-minute increments
• Onboard processor for real-time facility-data-link (FDL) messaging, in-band code detection and insertion, alarm integration, and performance monitoring
• Full FDL support and FDL performance monitoring, according to configurable standard: ANSI T1.403 or AT&T TR 54016
DSU/CSU
• Selectable DSX-1 cable length in increments from 0 to 655 feet in DSU mode
• Selectable DS-1 CSU line build-out: 0, -7.5, and -15 dB
LEDs
• CD (data carrier detect): Indicates a received error on the telco link
• LP (loopback): Indicates that the interface is in loopback mode
• AL (alarm): Indicates an alarm condition
Table 7. Network Management Features
Management Feature
Telnet or Console
Remote and local configuration, monitoring, and troubleshooting from Cisco IOS Software CLI
Simple Network Management Protocol (SNMP)
• Router and DSU/CSU managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user
• Standard MIB (MIB II)
• Cisco Integrated DSU/CSU MIB
• RFC 1406 T1 MIB, Including Alarm Detection and Reporting
SNMP Traps
Generated in response to alarms
Environmental
• Operating temperature: 0 to 40ºC (32 to 104°F)
• Storage temperature: -25 to +70ºC (-13 to 158°F)
• Relative humidity: 5 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
Regulatory Compliance
Table 7 gives regulatory compliance information for the Cisco MFT VWIC3 cards.
Table 8. Regulatory Compliance for Cisco MFT VWIC3 Cards
