The Cisco® Carrier Routing System (CRS) provides outstanding economical scale, IP and optical network convergence, and a proven architecture. Cisco CRS modular service cards (MSCs) are powered by advanced application-specific integrated circuits (ASICs), a chipset architecture based on multidimensional engineering, and Cisco IOS® XR Software, a unique distributed operating system.
Networks are facing new challenges with the Internet of Everything. Trillions of things have become Internet ready and can start talking to each other, as well as to applications and people. The effects of machine-driven events change network dynamics and impose entirely new service requirements. Managing bandwidth is no longer enough. Networks must become more elastic and programmable, capable of adapting and evolving. As part of an evolving and programmable network, the Cisco CRS delivers highly reliable operations and scales easily from single-chassis form factors to a massive multichassis system. Its design offers industry-leading efficiency in power consumption, cooling, and rack-space resources, while providing intelligent service-rich bandwidth capacity. The Cisco CRS supports up to 400-Gbps line rates, and its hardware is backward and forward compatible, helping to protect existing and future investments.

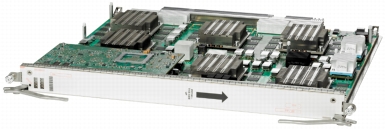

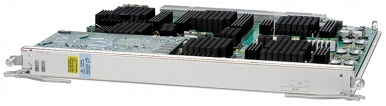

Cisco CRS modular service cards include the latest revision, the Cisco CRS-X Modular Services Card (Figure 1), the Cisco CRS-3 140-Gbps Modular Services Card (Figure 2), the CRS-1 Modular Services Card Revision B (Not pictured) and the CRS-1 Modular Services Line Card (not pictured). The Cisco CRS-X card offers the following advanced features and benefits:
• 400-Gbps line-rate throughput per slot, increasing the Cisco CRS capacity to 12.8 Tbps in a single chassis
• Advanced forwarding ASICs capable of supporting 100-Gbps single-flow traffic processing with optimized power consumption
• Superior investment protection that maintains the existing Cisco CRS architecture, making them compatible with existing Cisco CRS-1 and Cisco CRS-3 line cards and physical layer interface modules (PLIMs)
• Transparent and In-service migration from an existing Cisco CRS-1 or Cisco CRS-3 platform
• Space, cost, and power savings with 100-Gbps Cisco CPAK™ optics
• Flexibility through Cisco AnyPort Technology, which introduces 100-Gbps to 40-Gbps and 40-Gbps to 10-Gbps breakout options
* Energy monitor functionality allows real-time power monitoring of each individual component, PLIMs and line cards, fabric, PRP through CLI, with IOS XR Release 5.1.1
446W
375W
350W
Physical dimensions
Occupies one-half slot on a Cisco CRS chassis
• Weight: 16.0 lb (7.26 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 18.62 in. (47.25 cm)
• Width: 1.8 in. (4.49 cm)
Occupies one-half slot on a Cisco CRS-3 chassis
• Weight: 14.75 lb (6.68 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 18.62 in. (47.25 cm)
• Width: 1.8 in. (4.49 cm)
Occupies one slot
• Weight: 12 lb (5.44 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 18.62 in. (47.25 cm)
• Width: 1.8 in. (4.49 cm)
Occupies one slot
• Weight: 18.7 lb (8.38 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 18.62 in. (47.25 cm)
• Width: 1.8 in. (4.49 cm)
Environmental conditions
Storage temperature: -40 to 158°F (-40 to 70°C)
Operating temperature:
• Normal: 41 to 104°F (5 to 40°C)
• Short-term: 23 to 122°F (-5 to 50°C)
Relative humidity:
• Normal: 5 to 85%
• Short-term: 5 to 90% but not to exceed 0.024 kg water per kg of dry air
Short-term refers to a period of not more than 96 consecutive hours or a total of 360 hours but not more than 15 instances in 1 year.
Approvals and compliance
Safety standards:
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950.1
• IEC/EN 60825 Laser Safety
• FDA Code of Federal Regulations Laser Safety
EMI:
• FCC Class A
• ICES 003 Class A
• AS/NZS CISPR 22 Class A
• ISPR 22 (EN55022) Class A
• VCCI Class A
• IEC/EN 61000-3-2: Power Line Harmonics
• IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Services from Cisco and our partners help you get the most value from your investments in Cisco's converged IP and optical solutions, quickly and cost effectively. We can help you:
• Design, implement, and validate your solution to speed migration and cutover
• Coordinate every step through to interworking, and deploy your solution in a predictable, efficient, and accurate way
• Strengthen your team by sharing what we know
We develop award-winning services that incorporate our history of market-changing innovation, which are delivered by deeply experienced engineers using proven methods and automated tools built through more than 28 years of industry leadership.
For More Information
For more information about the Cisco CRS visit http://www.cisco.com/go/crs or contact your local account representative.
