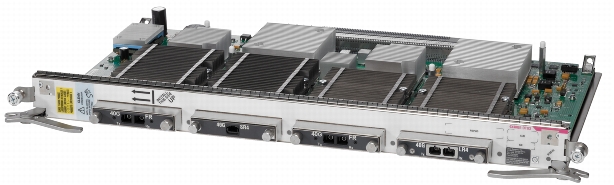

This data sheet provides detailed product specifications for an important element of the Cisco® Ethernet Optimized solutions: the Cisco CRS 4-Port 40GE LAN/OTN Interface Module (Figure 1). The module connects directly into any 40 Gigabit Ethernet transport network, including traditional OC-768 transport networks, and provides four ports at 40 Gbps of data per port for 40 Gigabit Ethernet LAN physical layer (LAN-PHY) or Optical Transport Network (OTN) Transport Unit Level 3 (OTU-3) transport.
Significant dense Packet over SONET (POS) deployments exist despite the overwhelming industry trend toward Ethernet. Operators are looking for POS-like operations, administration, and maintenance (OAM) functions at Ethernet price points with technologies such as OTN G.709 encapsulation. Some operators have traditional transponder systems that can operate only in OC-768 and OTU-3 modes.
In addition, bandwidth growth is leading all markets, including data center operators, to move to 40 Gigabit Ethernet in the aggregation layer to handle growth in the data center.
The Cisco CRS 4-Port 40GE LAN/OTN Interface Module addresses both these needs.
The 4-port 40GE module in OTN mode with multirate serial C Form-Factor Pluggable (CFP) Fiber with Scrambled Encoding (FR) optics addresses the requirements for POS such as OAM functions at Ethernet prices, and the 4-port 40GE module in LAN mode with CFP Long-Reach (LR) or CFP Short-Reach (SR) optics provides a dense 40 Gigabit Ethernet solution for data centers and 10 Gigabit Ethernet aggregation.
Product Specifications
Table 1 lists specifications for the Cisco CRS 4-Port 40GE LAN/OTN Interface Module.
Table 1. Product Specifications
Feature
Description
Chassis compatibility
Compatible with all current Cisco CRS-1 and CRS-3 line-card chassis
Software compatibility
Cisco IOS® XR Software Release 4.2.3 or later for Cisco CRS-3 platform
Protocols
• 40 Gigabit Ethernet
• OTU-3
• Encapsulations: ARPA, IEEE 802.2/SAP, and IEEE 802.3/SNAP
• IEEE 802.x flow control
• IEEE 802.1q VLAN support and jumbo frames
• IEEE 802.1p tagging
• Source and destination MAC address accounting and VLAN accounting
Port density
Four ports of 40 Gigabit Ethernet per physical-layer interface module (PLIM) slot
POS feature summary
Not applicable
OTN (G.709) feature summary
• ITU G.709
• Alarm reporting: Loss of signal (LOF), loss of OTN frame (LOF), and loss of OTN multiframe (LOM)
• OTU alarm indication signal (OTU-AIS), OTU backward defect indication (OTU-BDI), ODU alarm indication signal (ODU-AIS), ODU open connection indication (ODU-OCI), ODU locked (ODU-LCK), ODU backwards defect indication (ODU-BDI), ODU payload type identifier mismatch (ODU-PTIM), OTU signal fail (OTU_SF_BER), and OTU signal degrade (OTU_SD_BER)
• OTU_SF_BER and OTU_SD_BER alarms are based on monitoring of OTU BIP errors with a user-configurable threshold crossing
• Error counts: OTU BIP, OTU BEI, ODU BIP, and ODU BEI
• Threshold crossing alerts (TCAs) for OTU BIP errors (SM-TCA) and ODU BIP errors (PM-TCA) with user-configurable threshold
• Local (internal) and line (network) loopback
Reliability and availability
• Online insertion and removal (OIR) without affecting system traffic
• EN55022: Information Technology Equipment (Emissions)
• EN55024: Information Technology Equipment (Immunity)
• EN50082-1/EN-61000-6-1: Generic Immunity Standard
Network Equipment Building Standards (NEBS)
This product is designed to meet the following requirements (qualification in progress):
• SR-3580: NEBS Criteria Levels (Level 3)
• GR-1089-CORE: NEBS EMC and Safety
• GR-63-CORE: NEBS Physical Protection
All specifications in Table 3 are worst-case values for the operational life of the product.
Table 3. Additional Specifications:
40 Gigabit Ethernet CFP Optics
Specifications
CFP-40G-SR4
Supports link lengths of up to 100m and 150m over laser-optimized OM3 and OM4 multimode fiber cables, respectively
CFP-40G-LR4
Supports link lengths of up to 10 km over a standard pair of G.652 single-mode fiber with duplex SC connectors
CFP-40G-FR
Supports link lengths of up to 2 km over a standard pair of single-mode fiber with duplex SC connectors
Performance Monitoring Parameters
Area
Parameter Name
Description
OTN
OTUk SM
ODUk PM
Frame structures
BBE-SM
BBE-PM
Number of background block errors
BBER-SM
BBER-PM
Background block error ratio
ES-SM
ES-PM
Number of errored seconds
ESR-SM
ESR-PM
Errored seconds ratio
SES-SM
SES-PM
Number of severely errored seconds
SESR-SM
SESR-PM
Severely errored seconds ratio
UAS-SM
UAS-PM
Number of unavailable seconds
FC-SM
FC-PM
Number of failure counts
FEC
Bit errors
Number of corrected bit errors
Uncorrectable words
Number of uncorrectable words
Ordering Information
To place an order, contact your local Cisco representative or visit the Cisco Ordering homepage at www.cisco.com. Use the ordering information in Table 5.
Cisco 40GBASE-FR transceiver module in a CFP form factor that supports 2km reach on a single mode fiber
