The Cisco® CRS-3 Carrier Routing System offers industry-leading performance, advanced services intelligence, environmentally conscious design, and system longevity. The Cisco CRS-3 is powered by the Cisco QuantumFlow Array - a chipset architecture based on multidimensional engineering and Cisco IOS® XR Software, a unique self-healing, distributed operating system.
Packet-based data communications are being replaced by video and rich media traversing the IP Next-Generation Network (NGN) in multiple directions, straining the architectural foundations of both public and private networks serving businesses and consumers. As part of the medianet, a media-aware Cisco IP NGN, the Cisco CRS-3 delivers continuous, always-on operations and scales easily from numerous single-chassis form factors to a massive multi-chassis system. Its design provides an industry-leading efficiency consuming lowest power, cooling and rack-space resources for an intelligent service-rich bandwidth capacity. The CRS-3 builds on the CRS-1 being backward and forward compatible, protecting existing and future investments for decades to come.

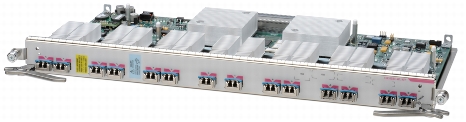

This data sheet provides detailed product specifications for the Cisco CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module (product number 14X10GBE-WL-XFP). For more information about the Cisco CRS Family or about other available interfaces, visit: http://www.cisco.com/go/crs.
• Occupies one-half slot on a Cisco CRS-3 and CRS-1 chassis
• Weight: 7.85 lbs (3.55 kg)
• Height: 20.6 in. (52.2 cm)
• Depth: 11.2 in. (28.4 cm)
• Width: 1.8 in. (4.49 cm)
Power
150 Watts
Environmental conditions
• Storage temperature: -40 to 70°C (-40 to 158°F)
• Operating temperature:
• Normal: 5 to 40°C (41 to 104°F)
• Short-term: -5 to 50°C (23 to 122°F)
• Relative humidity:
• Normal: 5 to 85%
• Short-term: 5 to 90% but not to exceed 0.024 kg water/kg of dry air
Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year. (This refers to a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period.)
Approvals and Compliance
Table 2 gives standards compliance information for the Cisco CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module.
Table 2. Compliance and Agency Approvals
Feature
Description
Safety Standards
• UL/CSA/IEC/EN 60950-1
• AS/NZS 60950.1
• IEC/EN 60825 Laser Safety
• FDA - Code of Federal Regulations Laser Safety
EMI
• FCC Class A
• ICES 003 Class A
• AS/NZS CISPR 22 Class A
• CISPR 22 (EN55022) Class A
• VCCI Class A
• IEC/EN 61000-3-2: Power Line Harmonics
• IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Low Power multirate XFP supporting 10GBASE-LR and OC-192 SR
XFP10GER-192IR-L(=)
Low Power multirate XFP supporting 10GBASE-ER and OC-192 IR
XFP-10GZR-OC192LR(=)
Cisco 10 Gigabit Ethernet ZR (80 km) Optics
DWDM-XFP-xx.xx(=)
Cisco 10 Gigabit DWDM (80 km) Optics
Cisco Services
Cisco Services make networks, applications, and the people who use them work better together.
Today, the network is a strategic platform in a world that demands better integration between people, information, and ideas. The network works better when services, together with products, create solutions aligned with business needs and opportunities.
The unique Cisco Lifecycle approach to services defines the requisite activities at each phase of the network lifecycle to help ensure service excellence. With a collaborative delivery methodology that joins the forces of Cisco, our skilled network of partners, and our customers, we achieve the best results.
For More Information
For more information about the Cisco CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module, contact your local Cisco representative or visit: http://www.cisco.com/go/crs.
