Cisco CRS 8-Slot Single-Shelf System Data Sheet [Cisco Carrier Routing System]

The Cisco^® Carrier Routing System (CRS) offers industry-leading performance, advanced services intelligence, environmentally conscious design, and system longevity. The Cisco CRS is powered by a chipset architecture based on multidimensional engineering and Cisco IOS^® XR Software, a unique self-healing, distributed operating system.

Packet-based data communications are being replaced by video and interactive multimedia transported on the Next-Generation Network (NGN) in multiple directions. This new traffic strains the architectural foundations of both public and private networks serving businesses and consumers. As part of a media-aware Cisco Next Generation Network, the Cisco CRS delivers highly reliable operations and scales easily from single-chassis form factors to a massive multi-chassis system. The Cisco CRS also referred to as the CRS-1, CRS-3, and CRS-X is a system that is both forward and backward compatible, built for investment protection and designed to provide industry-leading efficiencies in scaling, energy use, cooling, and rack-space resources.

The Cisco CRS 8-Slot Single-Shelf System (Figure 1) offers many advantages:

• The system is powered by a chipset architecture engineered for the Cisco CRS Router Family, which provides higher bandwidth than competing products, without compromising service performance. The Cisco CRS chipset is based on multidimensional engineering that includes several functional components working in tandem throughout the platform.

• The system uses Cisco IOS XR Software, the only fully modular, fully distributed internetwork operating system using a memory-protected, microkernel-based architecture and control-plane distribution that allows the system to scale and provide always-on operation.

• This single-shelf system is compatible with existing and future line cards of the Cisco CRS Family.

• The fully redundant carrier-class configuration supports in-service upgrades from 40 Gbps to 400 Gbps per slot.

• Integrated technology includes IP and Multiprotocol Label Switching (MPLS) routing, IP over dense wavelength-division multiplexing (IPoDWDM), network virtualization with secure domain routers (SDRs), fabric multicast replication, fabric quality of service (QoS), Cisco NetFlow accounting, and Carrier-Grade IPv6 (CGv6) to provide an outstanding quality of experience (QoE) at the lowest possible total cost of ownership (TCO).

• The system can also scale with back-to-back system capability, connecting two CRS 8-Slot Chassis directly, using switch fabric cards and optical cables to form a single logical system.

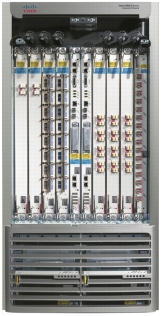

Figure 1. Cisco CRS 8-Slot Single Shelf System

Product Specifications

Table 1 provides detailed product specification for both the Cisco CRS-8/S and CRS-8/S-B chassis as well as specifications for the CRS 8-Slot Single-Shelf System back-to-back multichassis.

Table 1. Specifications of Cisco CRS 8-Slot Single Shelf System Chassis

Approvals and Compliance

Table 2 lists compliance and agency approvals for both models of the Cisco CRS 8-Slot Single-Shelf System.

Table 2. Approvals and Compliance for Cisco CRS-8/S and Cisco CRS-8/S-B

Feature	Description
Safety standards	• UL/CSA/IEC/EN 60950-1 • AS/NZS 60950.1 • IEC/EN 60825 Laser Safety • FDA - Code of Federal Regulations Laser Safety
Electromagnetic interference (EMI)	• FCC Class A • ICES 003 Class A • AS/NZS CISPR 22 Class A • CISPR 22 (EN55022) Class A • VCCI Class A • IEC/EN 61000-3-2: Power Line Harmonics • IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
Immunity (basic standards)	• IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8-kV contact, 15-kV air) • IEC/EN-61000-4-3: Radiated Immunity (10V/m) • IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2-kV power, 1-kV signal) • IEC/EN-61000-4-5: Surge AC Port (4-kV CM, 2-kV DM) • IEC/EN-61000-4-5: Signal Ports (1 kV) • IEC/EN-61000-4-5: Surge DC Port (1 kV) • IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10 Vrms) • IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) • IEC/EN-61000-4-11: Voltage Dips, Short Interruptions, and Voltage Variations
ETSI and EN	• EN300 386: Telecommunications Network Equipment (EMC) • EN55022: Information Technology Equipment (Emissions) • EN55024: Information Technology Equipment (Immunity) • EN50082-1/EN-61000-6-1: Generic Immunity Standard
Network Equipment Building Systems (NEBS)	This product is designed to meet the following requirements (qualification in progress): • SR-3580: NEBS Criteria Levels (Level 3) • GR-1089-CORE: NEBS EMC and SafetyGR-63-CORE: NEBS Physical Protection

System Capacity

Table 3 shows the system capacity of the Cisco CRS 8-Slot Single-Shelf System.

Table 3. System Capacity for Cisco CRS 8-Slot Single-Shelf System

Number of Interface Slots	Maximum Capacity per Slot	Total Capacity
8	400 Gbps per slot ingress and 400 Gbps per slot egress	6.4 Tbps per single-shelf system

Ordering Information

To place an order, visit the Cisco ordering homepage and refer to Table 4 for ordering information. To download Cisco IOS Software, visit the Cisco Software Center.

Table 4. Ordering Information for Cisco CRS 8-Slot Single-Shelf System

Product Name	Product Part Number
Cisco CRS 8-Slot Single-Shelf System	CRS-8/S
Cisco CRS 8-Slot Single-Shelf System Enhanced	CRS-8/S-B

Cisco Services

Cisco Services make networks, applications, and the people who use them work better together.

Today, the network is a strategic platform in a world that demands better integration between people, information, and ideas. The network works better when services, together with products, create solutions aligned with business needs and opportunities.

The unique Cisco Lifecycle approach to services defines the requisite activities at each phase of the network lifecycle to help ensure service excellence. With a collaborative delivery methodology that joins the forces of Cisco, our skilled network of partners, and our customers, we achieve the best results.

For More Information

For more information about the Cisco 8-Slot Single-Shelf System, the Cisco CRS, other available interfaces, and related products, visit Cisco at http://www.cisco.com/go/crs or contact your local Cisco account representative.

For more information about the Cisco CRS Multichassis System see the Cisco CRS Multichassis System data sheet.
