The Cisco® 860 Series Integrated Services Routers combine Internet access, security, and wireless services onto a single, secure device that is simple to use and manage for small businesses. Cisco 860 Series delivers features, including firewall, IPSec VPNs, and WLANs, at broadband speeds to small offices. Easy deployment and centralized management features enable the Cisco 860 Series to be deployed by service providers in small businesses.
Cisco 860 Series Integrated Services Routers are fixed-configuration routers that provide business solutions for secure voice and data communication to small businesses. The Cisco 860 Series offer secure broadband services over Fast Ethernet and ADSL2/2+ WAN links. 802.11n offers LAN mobility and increased productivity (Figures 1 and 2). Cisco 860 Series provide the performance required for concurrent services, including firewall, and encryption for VPNs; optional 802.11g/n for mobility; and quality of service (QoS) features for multiple applications. In addition, the Cisco Configuration Professional (CCP) is a Web-based configuration tool that simplifies setup and deployment (Figure 3). Centralized management capabilities give network managers visibility and control of the network configurations at the remote site.
Cisco 860 Series Integrated Services Routers offer:
• Concurrent broadband services for small offices, and remote sites
• Secure connectivity with Stateful Inspection Firewall and IP Security (IPSec) VPN support for small offices
• Security features including:
– Stateful Inspection Firewall
– IP Security (IPSec) VPNs (Triple Data Encryption Standard [3DES] or Advanced Encryption Standard [AES])
• 4-port 10/100 Fast Ethernet managed switch with VLAN support
• CON/AUX Port for console or external modem
• Secure 802.11g/n access point option based on IEEE802.11n draft 2.0 standard
• Easy setup, deployment, and remote management capabilities through Web-based tools and Cisco IOS® Software

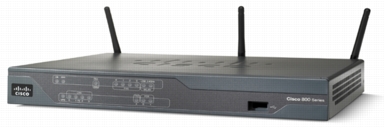

Figure 1. Cisco 861 Integrated Services Router with Integrated 802.11n Access Point
Table 1 lists the routers that currently make up the Cisco 860 Series.
Table 1. Cisco 860 Series Models
Models
WAN Interface
LAN Interfaces
802.11g/n Option
Cisco 861
10/100 Mbps Fast Ethernet
4-port 10/100 FE managed switch
No
Cisco 861W
10/100 Mbps Fast Ethernet
4-port 10/100 FE managed switch
Yes
Cisco 867
ADSL2/2+ over POTS (Annex A)
4-port 10/100 FE managed switch
No
Cisco 867W
ADSL2/2+ over POTS (Annex A)
4-port 10/100 FE managed switch
Yes

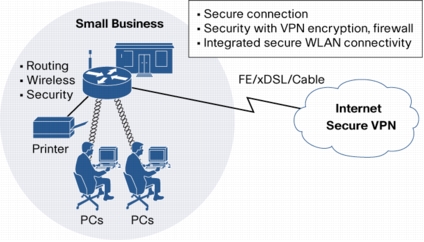

Figure 2. Deployment Scenarios
Applications
Cisco 860 Series routers are designed for small office and remote office deployments. IT managers can centrally manage the remote site to quickly troubleshoot any network issues. Optional integrated secure WLAN connectivity simplifies the number of devices that need to be managed at the remote site.
The Cisco 860 Series can be deployed in managed services. Service providers and value-added resellers can use the series as a platform to offer differentiated services and business-class WLANs for small business customers.
Features and Benefits
Table 2 lists the features and benefits of the Cisco 860 Series Integrated Services Routers.
Table 2. Features and Benefits
Feature
Benefit
Increased Performance to Run Concurrent Services
• The performance in a Cisco 860 Series router allows customers to take advantage of broadband network speeds while running secure, concurrent services
Stateful Inspection Firewall and IPSec VPN Support
• Provides secure access when connecting to the Internet or connecting small offices to a central site
4-Port 10/100 FE Managed Switch
• Allows multiple devices to be connected in a small office, with the ability to designate a port as network DMZ
• VLANs allow for secure segmentation of network resources
Optional 802.11g/n AP
• Broadband router with secure integrated access point in a single device.
• Integrated Wi-Fi Access Point with IEEE 802.11n draft 2.0 standard support for mobile access to high-bandwidth data, voice and video applications through the use of multiple-input multiple-output (MIMO) technology that provides increased throughput, reliability and predictability.
• Support for autonomous mode.
AUX/CONS Port
• Single dual-purpose port provides direct connection to a console or external modem for management or backup
Cisco Configuration Professional (CCP) and Cisco IOS Software for Remote Management
• Cisco Configuration Professional uses smart wizards and task-based tutorials which can be used by resellers and customers to quickly and easily deploy, configure, and monitor a Cisco access router without requiring knowledge of the Cisco IOS® Software command-line interface (CLI)
Summary
Cisco 860 Series Integrated Services Routers combine support for Fast Ethernet or ADSL connections, secure connectivity with Stateful Firewall and VPN, and optional 802.11g/n access point for secure WLANs. With easy setup for nontechnical users and central management capabilities, Cisco 860 Series routers are suitable for deployment in small businesses or remote offices by value-added resellers, IT managers, or service providers.
Product Specifications
Tables 3 and 4 list software and wireless features of Cisco 860 Series routers.
Table 3. Cisco IOS Software Features on Cisco 860 Series Routers-Advanced Security Feature Set (Default)
Feature
Description
IP and IP Services Features
• Routing Information Protocol (RIPv1 and RIPv2)
• Generic routing encapsulation (GRE)/MGRE
• Cisco Express Forwarding (CEF)
• 802.1d Spanning Tree Protocol (STP)
• Layer 2 Tunneling Protocol (L2TP)
• Network Address Translation (NAT)
• Dynamic Host Control Protocol (DHCP) server/relay/client
• Dynamic DNS
• DNS Proxy
• DNS Spoofing
• Access control lists (ACLs)
Switch Features
• Auto MDI-MDX
• 2 802.1Q VLANs
• Switch Port Analyzer (SPAN)
• Storm Control
• Smartports
DSL and ATM features (ADSL models only)
• ATM Variable Bit Rate real-time (VBR-rt)
• ATM Unspecified Bit Rate (UBR), Constant Bit Rate (CBR), and Variable Bit Rate non-realtime (VBR-nrt)
• ATM operations, administration, and maintenance (OA&M) support for F5 Continuity Check; segment and end-to-end loopback; and Integrated Local Management Interface (ILMI) support
Note: Maximum power setting subject to changes by channel and by region depending on regulations
• 802.11b 20 dBm
• 802.11g 17 dBm
• 802.11n 16 dBm
Physical Dimensions and Weight
Product dimensions:
Nonwireless models:
• W X D X H = 12.8" x 9.8" x 1.9" (325mm x 249mm x 48mm) (includes rubber feet)
• W X D X H = 12.8" x 9.8" x 1.75" (325mm x 249mm x 44mm) (without rubber feet)
Wireless models:
• W X D X H = 12.8" x 10.4" x 1.9" (325mm x 264mm x 48mm) (includes rubber feet)
• W X D X H = 12.8" x 10.4" x 1.75" [325mm x 264mm x 44mm) (without rubber feet; excludes antennas)
• Weight: 5.5 lb (2.5 kg) maximum
Power
Product power specifications:
AC input voltage: 100 to 240 VAC
• Frequency: 50 to 60 Hz
• Maximum output power: 60W
• Output voltages: 12V DC
Approvals and Compliance
• IEC 60950-1:2005, Second Edition, with all country deviations
• AS/NZS 60950-1:2003, First Edition
• CAN/CSA 22.2 No. 60950-1-05, Second Edition
• UL 60950-1, Second Edition, 2005
• EN55024
• Industry Canada CS-03'
• TIA-968-A, Addendum 1, 2, 3, 4, 5
• EMI
• VCCI Class II
• IEC 1000-3-2
• California Energy Commission (CEC) Compliant
Australia and New Zealand:
Australia AS/ACIF S031: 2001
Australia AS/ACIF S043.1: 2003
Australia AS/ACIF S043.2: 2006
New Zealand PTC220: 2003
Certifications
Environmental Operating Range
• Nonoperating temperature: -4 to 149°F (-20 to 65°C)
• Nonoperating humidity: 5 to 95 percent relative humidity (noncondensing)
• Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
• Operating temperature: 32 to 104°F (0 to 40°C)
• Operating humidity: 10 to 85%, relative humidity (noncondensing)
• Operating altitude: 0 to 10,000 ft (0 to 3000m)
DSL Specifications
Table 6 and 7 list the DSL features specifications and DSLAM interoperability support.
Table 6. DSL Features Specifications
DSL Specifications
ADSL Specifications
• ST-Microelectronics 20190 Chipset
• Supports ADSL over basic telephone service with Annex A ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)
• G.994.1 ITU G.hs
• Supports for Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000 feet from Central Office
• Complies with T1.413 ANSI ADSL DMT issue 2
• DSL Forum TR-067
• The chipset does not provide interoperability with carrierless amplitude modulation/phase modulation (CAP)-based ADSL lines.
• ADSL (G.992.1) provides downstream data rates of up to 8 Mbps and upstream data rates of up to 0.8 Mbps.
• ADSL2 provides higher downstream rates of up to 12 Mbps and upstream data rates of up to 1 Mbps.
• The ADSL2+ standard (G.992.5) increases the downstream data rates of up to 24 Mbps and upstream data rates of up to 1.5 Mbps.
Table 7. 867 DSLAM Support
DSLAM
ADSL2/2+ over POTS Line Card Chipset
Alcatel ASAM 7300
Broadcom
Lucent Stinger
Globespan
Ordering Information
Table 8 and 9 list the product and software ordering information for the Cisco 860 Series. To place an order, visit the Cisco Ordering Home Page.
Table 8. Ordering Information
Part Number
Product Name
Ethernet
CISCO861-K9
Cisco 861 Ethernet Security Router
CISCO861W-GN-A-K9
Cisco 861 Ethernet Security Router with 802.11n FCC Compliant
CISCO861W-GN-E-K9
Cisco 861 Ethernet Security Router with 802.11n ETSI Compliant
CISCO861W-GN-P-K9
Cisco 861 Ethernet Security Router with 802.11n Japan Compliant
ADSL2/2+
CISCO867-K9
Cisco 867 ADSL2/2+ Annex A Router
CISCO867W-GN-A-K9
Cisco 867 ADSL2/2+ Annex A Router with 802.11n FCC Compliant
CISCO867W-GN-E-K9
Cisco 867 ADSL2/2+ Annex A Router with 802.11n ETSI Compliant
Router Software
c860-universalk9-mz
Universal image for Cisco 860 ISR Data Router Series
Access Point Software
ap801-k9w7-tar
Autonomous software image for ap801
Software License for Cisco 860 Data
SL-860-ADSEC (default)
Cisco 860 Advanced Security Image Feature License
Table 9. Cisco IOS Software Images for the Cisco 860 Series Routers
Series
Models
Default Feature License
First IOS Software Release
Router Software
Cisco 860 Series
Cisco 861
c860-universalk9-mz
SL-860-ADSEC
12.4(15)XZ, 12.4(20)T
Cisco 867
c860-universalk9-mz
SL-860-ADSEC
12.4(22)YB3
Access Point Software
ap801
Cisco 861W, Cisco 867W
ap801-k9w7-tar
-
12.4(10b)JA2
Cisco Services
Leading-edge technology deserves leading-edge support. Cisco offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business.
Cisco SMARTnet® technical support for the Cisco 860 Series is available on a one-time or annual contract basis. Support options range from help-desk assistance to proactive, onsite consultation.
All support contracts include:
• Major Cisco IOS Software updates in protocol, security, bandwidth, and feature improvements
• Full access rights to Cisco.com technical libraries for technical assistance, electronic commerce, and product information
• 24-hour-a-day access to the industry's largest dedicated technical support staff
For more information regarding Cisco 860 Series Integrated Services Routers and options, contact your Cisco representative or go to http://www.cisco.com/go/800.
To upgrade the Cisco IOS Software for the Cisco 860 Series Integrated Services Routers, visit the Cisco Software Center.
