The Cisco® I-Flex design combines shared port adapters (SPA) and SPA interface processors (SIP), leveraging anextensible design that enables service prioritization for voice, video and data services. Enterprise and service provider customers cantake advantage of improved slot economics resulting from modular port adapters that are interchangeable across Ciscorouting platforms. The I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line-rate performance. I-Flex enhances speed-to-service revenue and provides a rich set of QoS features for premium service delivery while effectively reducing the overall cost of ownership. Thisdata sheet contains the specifications for the Cisco 7304 4-Port 10BASE-T/100BASE-TX Fast Ethernet Shared Port Adapter (Cisco 7304 10/100 Fast Ethernet SPA; refer to Figure 1).
PRODUCT OVERVIEW
The Cisco 7304 10/100 Fast Ethernet SPA is designed to meet the growing demand for customers who need cost-effective and simple connectivity for Internet gateway, peering, or Metro Ethernet access applications. This SPA is a single-width pluggable module capable of supporting four 10/100 Fast Ethernet copper (RJ-45) connections. Two SPAs fit into one carrier card in a single line-card slot of the Cisco 7304 Router, greatly extending port density and modularity.
Figure 1. Cisco 7304 10/100 Fast Ethernet SPA
Cisco 7304 SPA Modular Services Card
The Cisco 7304 SPA Modular Services Card (Cisco 7304 SPA MSC; refer to Figure 2) is designed to enable the use of SPAs in the Cisco 7304 Router. It allows the configuration of two single-height SPAs per Cisco 7304 line-card slot. Online insertion and removal (OIR) of a SPA and the MSC is supported.

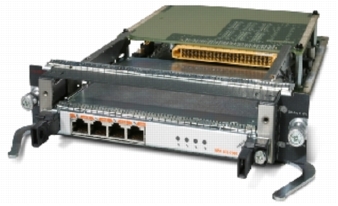

Figure 2. Cisco 7304 SPA MSC with One 10/100 Fast Ethernet SPA
FEATURES AND BENEFITS
Table 1 summarizes the features and benefits of the Cisco 7304 10/100 Fast Ethernet SPA.
Table 1. Features and Benefits of Cisco 7304 10/100 Fast Ethernet SPA
Feature
Benefits
Enables up to eight Fast Ethernet ports per slot for Ethernet aggregation
The four ports in a single-height form factor provide maximum flexibility for a variety of densities of Fast Ethernet aggregation topologies.
Provides maximum modularity for flexible deployment options
With the implementation of a single-height SPA, the Cisco 7304 10/100 Fast Ethernet SPA doubles its modularity as well as its density for 10/100 Ethernet interfaces.
Supports standards-based Fast Ethernet implementation for compatibility and interoperability
The Cisco 7304 10/100 Fast Ethernet SPA is based on industry standards---helping ensure interoperability and compatibility with other standards-based Fast Ethernet products in the customer's network.
PRODUCT SPECIFICATIONS
Table 2 gives specifications of the Cisco 7304 10/100 Fast Ethernet SPA.
Table 2. Specifications of Cisco 7304 10/100 Fast Ethernet SPA
Features
Descriptions
Hardware Requirements
The Cisco 7304 10/100 Fast Ethernet SPA is supported on the following:
• Line cards---SPAs, port adapters, and Cisco 7304 native line cards can coexist in the Cisco 7304 chassis
• Carrier---Requires a Cisco 7304 SPA MSC (part number 7304-MSC-100)
Software Requirements
Cisco IOS® Software Release 12.2(20)S2 and later
Features and Functions
• Four ports of 10/100 Fast Ethernet per SPA, and up to eight Fast Ethernet ports per line-card slot
• Jumbo frame support
• Each port configurable for either full- or half-duplex operation
• Autosensing of medium dependent interface-crossover (MDI-X) for crossover cables
• Support for command-line interface (CLI)-controlled OIR
• Parity and cyclic-redundancy-check (CRC) detection for application-specific integrated circuit (ASIC) and discrete memory errors
• 802.3x flow control
• Autonegotiation in duplex mode
• Autodetection of 10/100 link rates
• 4096 VLANs per SPA subject of IDB limits
• Division of the 4096 VLAN ternary-content-addressable-memory (TCAM) filtering entries into 1024 entries per port
• Division of the 2048 DA MAC address filtering entries into 512 entries per port
• Per-port counters for policy drops, oversubscription drops, CRC error drops, packet sizes, unicast, multicast, and broadcast packets
• Per-port byte counters for good bytes and dropped bytes
The following additional features are supported in the Cisco 7304 Router:
• Ethernet over Multiprotocol Label Switching (EoMPLS)
• QoS
• Hot Standby Router Protocol (HSRP)
• Virtual Router Redundancy Protocol (VRRP)
Environmental Conditions
• Storage temperature: -38 to 150°F (-40 to 70°C)
• Operating temperature, nominal: 32 to 104°F (0 to 40°C)
• Operating temperature, short term: 32 to 131°F (0 to 55°C)
• Storage relative humidity: 5 to 95% relative humidity
• Operating humidity, nominal: 5 to 85% relative humidity
• Operating humidity, short term: 5 to 90% relative humidity
• Operating altitude: -60 meters to 4000 meters
LEDs
The Cisco 7304 10/100 Fast Ethernet SPA has a series of front-panel LEDs that indicate power and operational status as well as Ethernet port status. The green and amber LEDs encode the SPA status as follows:
• LED off indicates that the SPA is powered off.
• LED amber indicates that the SPA is powered on and initializing.
• LED green indicates that the SPA is powered on and operational.
In addition to the status LED, the Cisco 7304 10/100 Fast Ethernet SPA also has a bicolor, surface-mount, right-angle LED dedicated to each Fast Ethernet port to indicate port status. The green and amber LEDs encode the port status as follows:
• LED off indicates that the port is not enabled by software.
• LED amber indicates that the port is enabled by software, but there is a problem with the Ethernet link.
• LED green indicates that the port is enabled by software, and there is a valid Ethernet link.
The Cisco 7304 SPA MSC supports LEDs indicating OIR status and operational status. The illumination of the LED for OIR status means the following:
• LED off indicates a default state.
• LED on (green light) indicates that the line card is ready to be removed.
The operational status LED is bicolor with an off state, a green state, or a yellow state as follows:
• LED off indicates that the card is offline.
• LED yellow indicates that Cisco SPA MSC is powering up.
• LED green indicates that the power is on and OK.
Physical Specifications
• Height: 0.80 inches (2.03 cm) (single height)
• Width: 6.75 inches (17.15 cm)
• Depth: 8.10 inches (20.57 cm)
• Weight: 0.80 lb (0.37 kg)
Network Management
• Network management using:
– Host system CLI
– Simple Network Management Protocol (SNMP)
• Inventory and asset management-related MIBs:
– Entity-MIB (RFC 2737)
– Cisco-entity-asset-MIB
• Fault management:
– Cisco-entity-field-replaceable unit (FRU)-control-MIB
– Cisco-entity-alarm-MIB
– Cisco-entity-sensor-MIB
• Physical interface management:
– IF-MIB
– Etherlike-MIB (RFC 2665)
• Other MIBs:
– Remote Monitoring (RMON)-MIB (RFC 1757)
– Cisco-class-based-QoS-MIB
– MPLS-related MIBs
• Ethernet MIB/RMON
Power
Unit power: 16.0W
Connector Specifications
RJ-45 connectors (two pair) for copper connectivity
Regulatory Approvals
• UL 60950
• CSA C22 No. 60950
• EN 60950
• 73/23/EEC
• AS/NZS 3260
• IEC 60950
Regulatory Compliance
CE Marking
Safety
• UL 60950
• CSA C22 No. 60950
• EN 60950
• IEC 60950
• AS/NZS 3260
EMC
• CFR 47, Part 15
• ICES 003
• CISPR 22
• EN 55022
• EN 300386
• AS/NZS 3548
• VCCI
• EN 50082-1
• EN 55024
• EN 61000-6-1
• EN 61000-4-2
• EN 61000-4-3
• EN 61000-4-4
• EN 61000-4-5
• EN 61000-4-6
• EN 61000-4-11
Industry Standards
The Cisco 7304 10/100 Fast Ethernet SPA is designed to meet the following requirements (some qualifications are currently in progress):
• SR-3580---Network Equipment Building System (NEBS): Criteria levels (Level 3 compliant)
Cisco 7304 4-Port 10BASE-T/100BASE-TX Fast Ethernet Shared Port Adapter
SPA-4FE-7304
Cisco 7304 4-Port 10BASE-T/100BASE-TX Fast Ethernet Shared Port Adapter, Spare
SPA-4FE-7304=
Cisco 7304 SPA Modular Services Card
7304-MSC-100
Cisco 7304 SPA Modular Services Card, Spare
7304-MSC-100=
Cisco SPA Blank Cover
SPA-BLANK
Cisco SPA Blank Cover, Spare
SPA-BLANK=
SERVICE AND SUPPORT
Cisco Systems offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the power of your business. For more information about Cisco services, refer to Cisco Technical Support Services or Cisco Advanced Services.
FOR MORE INFORMATION
For more information about the Cisco SPA/SIP portfolio, visit http://www.cisco.com/go/spa or contact your local Cisco account representative.
