The Cisco® 10000 Series Performance Routing Engine 3 (PRE-3) (Figure 1) increases the performance, feature set, and scalability of the Cisco 10000 Series Router.
Product Overview
The Cisco 10000 Series is a service provider edge aggregation router that offers a single solution for leased-line, ATM, Frame Relay, and broadband aggregation while providing customers with high-performance IP services, maximum platform scalability, and high availability.
Service providers require scalable networks to profitably meet their customers' requirements for better performance, more services, and higher reliability. Edge routers, such as the Cisco 10000 Series, will be needed to manage higher-bandwidth requirements, more subscribers, and multiple service levels ranging from best-effort consumer Internet data services to high-priority business applications, voice, and video.

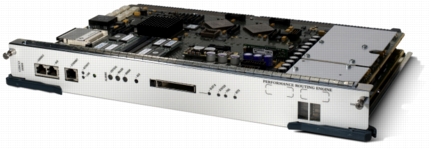

Figure 1. Cisco 10000 Series Performance Routing Engine 3
Designed to meet new requirements from service providers for high-capacity aggregation with sophisticated IP services, the Cisco 10000 Series PRE-3 uses the latest generation of the Cisco patented Parallel Express Forwarding (PXF) technology. PXF is a parallel multiprocessor architecture that helps enable deployment of multiple IP services while maintaining peak performance throughput. The PRE-3 also introduces the Hierarchal Queuing Framework (HQF) to the Cisco 10000 Series Routers. The HQF implementation on the PRE-3 allows three levels (class, logical, and physical) of scheduling to apply queuing and shaping (see Figure 2).
Applications
The Cisco 10000 Series PRE-3 can be used to deliver triple-play services for both ATM and Ethernet transport networks. A service provider can use the flexibility and performance of the PRE-3 to simultaneously deliver data, voice, and video to both residential and business customers.
Ethernet service examples include:
• Class - Multiple packet queues for data, voice, or video
• Logical - PPP sessions grouped by Gold, Bronze, or Silver packages for bandwidth and quality of service (QoS) levels
• Physical - VLANs to separate consumer, business, and wholesale customers
ATM service examples include:
• Class - Multiple packet queues for data, voice, or video
• Logical - ATM VCs (virtual circuits) grouped by Gold, Bronze, or Silver packages for bandwidth and QoS levels
• Physical - ATM Virtual Paths (VPs) to separate consumer, business, and wholesale customers

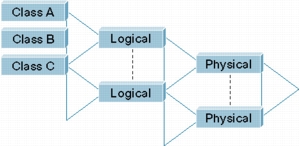

Figure 2. Examples of Three-Level Scheduling with HQF and the Cisco 10000 Series PRE-3
Key Features and Benefits
The Cisco 10000 Series PRE-3 delivers both scalability improvements and new features:
• Provides up to 9.7 million packets per second (mpps) of processing power for increased throughput
• Implements Hierarchal Queuing Framework (HQF) for up to three levels of service granularity
• Supports connection between the PRE-3 and the 51-Gbps chassis backplane
– 3.2 Gbps transmit and receive to each full-height line card
– 1.6 Gbps transmit and receive to each half-height line card
• Includes 800-MHz route processor with 2GB ECC protected DRAM for new features and scalability improvements
• Delivers enhanced storage options for larger and more complex configurations
– 14 MB nonvolatile RAM (NVRAM)
– 128 MB Compact Flash - fixed internal memory
– 512 MB or 1GB Compact Flash - front panel removable memory
• Uses Cisco patented PXF technology to provide maximum IP service flexibility without performance impact
The module meets the following Networking Equipment Building Standards (NEBS):
• GR-1089-CORE
• GR-63-CORE
European Telecommunication Standards Institute (ETSI)
• ETSI 300 386-1 - Levels for equipment with a "high priority of service" that is installed in "locations other than telecommunication centers"
• ETSI 300 386-2:1997 - Levels for equipment with a "high priority of service" that is installed in "locations other than telecommunication centers"
• ETSI 300 132-2: December 1994 - Power supply interfaces at the input to telecommunications equipment Sections 4.8 and 4.9
Environmental
Storage temperature: -38 to 150°F (-40 to 70°C)
Operating temperature, nominal: 41 to 104°F (5 to 40°C)
Operating temperature, short term: 23 to 131°F (-5 to 55°C)
Storage relative humidity: 5 to 95 percent relative humidity (RH)
Operating humidity, nominal: 5 to 85 percent RH
Operating humidity, short term: 5 to 90 percent RH
Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Ordering Information
To place an order, visit the Cisco Ordering Home Page. Table 2 lists the ordering information for the Cisco 10000 Series PRE-3.
Table 2. Ordering Information
Product Name
Part Number
Cisco 10000 Series Performance Routing Engine 3
ESR-PRE3
Cisco 10000 PRE 512 MB Compact Flash
MEM-10K-CPTFL512M
Cisco 10000 PRE 1GB Compact Flash
MEM-10K-CPTFL1G
Cisco 10000 Series eight-slot chassis, 1 PRE3, 1 AC PEM bundle
10000-1P3-1AC
Cisco 10000 Series eight-slot chassis, 2 PRE3, 2 AC PEM bundle
10000-2P3-2AC
Cisco 10000 Series eight-slot chassis, 1 PRE3, 1 DC PEM bundle
10000-1P3-1DC
Cisco 10000 Series eight-slot chassis, 2 PRE3, 2 DC PEM bundle
10000-2P3-2DC
