The Cisco®Connected Grid portfolio of solutions is designed specifically for the harsh, rugged environments often found in the energy and utility industries. These solutions include the Cisco 2010 Connected Grid Router (CGR 2010) and the Cisco 2520 Connected Grid Switch (CGS 2520), which have been designed to support the communications infrastructure needs of the energy delivery infrastructure across the generation, transmission, and distribution sectors. This infrastructure includes utility- and customer-owned energy infrastructure such as substation applicationssupporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, co-generation, and trackside operations. The infrastructure also includes communications infrastructure for delivery applicationssuch as transmission pipelines, distribution mains, and service lines for oil and gas and water. Designed for highly secure, reliable, and scalable infrastructure, the CGR 2010 and CGS 2520 are an ideal platform to support the Smart Grid and other energy delivery infrastructure needs of customers. These ruggedized products have been extensively tested and are KEMA certified to meet challenging substation compliance standards, including IEEE 1613 and IEC 61850-3.
The 8-port Asynchronous/Synchronous Grid Router WAN Interface Card (GRWIC) provides low-speed synchronous/asynchronous serial connections supporting EIA-RS232 for the Cisco CGR 2010. The 8-port serial RS-232 GRWIC helps customers to enable applications such as legacy protocol transport, console server, and dial access server. Combining a high-density serial GRWIC with the Cisco CGR 2010 enables energy networks to transport mission-critical communication such as Supervisory Control and Data Acquisition (SCADA) over an IP network.
Figure 1. 8-port Asynchronous/Synchronous GRWIC
Common Applications
These highly flexible interface cards enable several important applications.
Legacy Protocol Transport
For example, utility companies are migrating their substations from serial to ethernet communications. Given the amount of serial communications that exist in substations today, the migration will take place over a number of years. An 8-port Async/Sync serial module in the Cisco CGR 2010 helps utilities to transport legacy SCADA traffic across a TCP/IP network. The serial interfaces provide a converged communications solution while utilities migrate from serial-based Remote Terminal Units (RTUs) to ethernet-enabled RTUs and Intelligent Electronic Devices (IEDs). This capability enables network convergence, eliminating costly separate leased lines for this traffic. Legacy protocols supported by Cisco IOS® Software include:
• Bi-Synchronous Tunnel Protocol (BSTUN)
• Systems Network Architecture (SNA) and Synchronous Data Link Control (SDLC) Protocol
Asynchronous ports provide highly flexible connections that allow access to EIA-232 devices across a TCP/IP network. This access allows out-of-band management to console or craft ports, enabling the network operator to manage a network of remote devices from a central location (Figure 3).

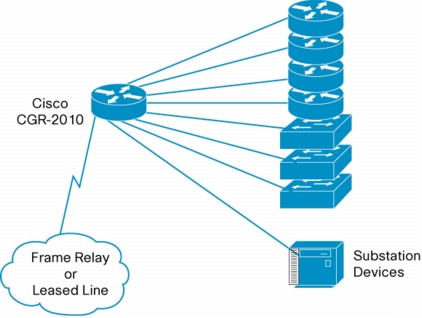

Figure 2. Managing Multiple Remote Devices from a Single Location
Connectors and Cabling
The 8-port serial GRWIC has connectors and cabling that allow high port densities in the compact GRWIC form factor. Table 1 show connector and cabling specifications.
High-Density Synchronous/Asynchronous Cabling
The 8-Port Asynchronous/Synchronous GRWIC uses two high-density 4-port connectors. Each connector supports four ports of EIA-232 with data communications equipment (DCE) or data terminal equipment (DTE) interfaces. All four ports on one cable use the same DTE/DCE mode. Table 1 outlines the cable specifications for the 8-Port Async/Sync RS-232 GRWIC.
Table 1. High-Density Synchronous/Asynchronous Cabling for the 8-port Async/Sync RS-232 GRWIC
Product Number
Cable Type
Length
Connector Type
CAB-HD4-232FC
4-port EIA-232 DCE
10 ft (3 m)
Female DB-25
CAB-HD4-232MT
4-port EIA-232 DTE
10 ft (3 m)
Male DB-25
CAB-QUAD-ASYNC-F
4-port EIA-232 DTE
18 in (0.46 m)
Female RJ-45
CAB-QUAD-ASYNC-M
4-port EIA-232 DTE
10 ft (3 m)
Male RJ-45
CAB-9AS-M
4-port EIA-232 DTE
10 ft (3 m)
Male DB-9
Platform Support
The 8-port Asynchronous/Synchronous RS-232 GRWIC is a ruggedized module supported on the Cisco Connected Grid Router 2000 Series. It is not supported on the ISR-G2 family of routers. Table 2 outlines the minimum Cisco IOS Software release support for this GRWIC module.
The specifications of the 8-port Async/Sync RS-232 GRWIC are listed in Table 3.
Table 3. GRWIC Specifications
Specification
HWIC-8A/S-232
Synchronous Support
Yes
Synchronous Maximum Speed (per port)
256 kbps
Asynchronous Support
Yes
Asynchronous Maximum Speed (per port)
230.4 kbps
Bisync Support
Yes
Serial Protocols
EIA-232
Lead Manipulation
Yes
Network Clock Synchronization
Yes
Common Specifications
The specifications listed below apply to the 8-port Async/Sync RS-232 GRWIC.
Feature
Specification
Environmental Specifications
Operating Conditions
Environmental Substation Compliance
IEC-61850-3
IEEE1613
Operating Temperature
-40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range
-40 ºF to 185ºF (-40 to +85ºC) type test for 100 hours at 85ºC
Shock/Vib
30G @11 ms
Altitude
10,000 ft (3,048 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008
Relative Humidity
5 to 95% non-condensing
Non-operating Conditions
Temperature
-40ºF to 185ºF (-40ºC to 85ºC)
Relative Humidity
5 to 95% non-condensing
Altitude
16,000 ft (4,876 m) Max operating temp is de-rated with increasing altitude per IEEE1613a-2008
Non-Op Free Fall Drop
4in. (100 mm) per ENG-339611
Operating Seismic/Earthquake
NEBS GR-63 (5.4.1)
Non-Op Shock/Vib
40-50G (3.26 m/s minimum)
Regulatory Compliance and Safety*
Immunity
EN61000-6-2
EN61000-4-2 (ESD)
EN61000-4-3 (RF)
EN61000-4-4 (EFT)
EN61000-4-5 (SURGE)
EN61000-4-6 (CRF)
EN61000-4-11 (VDI)
EN 55024, CISPR 24
EN50082-1
EMC
47 CFR, Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI V-3
CNS 13438
EN 300-386
Safety
USA: UL 60950-1
Canada: CAN/CSA C22.2 No. 60950-1
Europe: EN 60950-1
China: GB 60950-1
Australia/New Zealand: AS/NZS 60950-1
Rest of World: IEC 60950-1
CSA certified to UL/CSA 60950-1, 2nd Ed.
CB report to IEC60950-1, 2nd Ed., covering all group differences and national deviations
Telecom
US: TIA-968-A
CA: CS-03
EU: TBR1, 2, 4, 12, 13
RTTE Directive
Australia: AS/ASIF S016, S038
Japan: JATE
Telecom Interface Standards
RS-232 GRWIC: RS232, ITU-T V.11
Physical Specifications
Form Factor
Single-wide GRWIC, no slot restrictions
Dimensions
2.52 x 3.0 x 7.81 in. (6.4 x 7.6 x 19.8 cm)
Weight
0.84 lb (0.38 kg)
* For more information, consult the Product Approval Database http://www.ciscofax.com or consult your local Cisco representative (Cisco.com login required).
Product Part Numbers
Connected Grid Router WIC
GRWIC-8A/S-232
8-Port Async/Sync Serial GRWIC, EIA-232
GRWIC-8A/S-232=
8-Port Async/Sync Serial GRWIC, EIA-232, spare
