The Cisco® ASR 900 Series is a series of full-featured aggregation platforms that run Cisco IOS® XE Software. Cisco IOS XE Software is a result of the continuing evolution of Cisco IOS Software, and provides a modular structure that delivers full Cisco IOS feature functionality. Cisco IOS XE Software helps to prepare your network for future developments and changes. The software's modular structure significantly enhances quality and performance by separating the data plane and control plane. Cisco IOS XE Software on the Cisco ASR 903 (Figure 1) Router continues to evolve and to offer new benefits to help customers manage their networks.

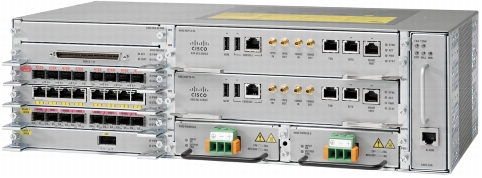

Figure 1. Cisco ASR 903 Router
Software Releases and Options
The Cisco ASR 900 Series is supported in Cisco IOS XE S Software, which is designed to provide modular packaging, feature velocity, and powerful resiliency. The Cisco ASR 903 Router is supported as of Cisco IOS XE Software Release 3.5.0S.
Consolidated Software Packages
Two consolidated software packages contain a superset of all features. The individual feature sets can be enabled once the correct feature licenses are applied to the router. Table 1 describes the two Cisco IOS XE universal consolidated packages supported on the Cisco ASR 903 Router, and the functionality supported in each of these universal images. The functionality is enforced through the appropriate technology package licenses.
Table 1. Universal Cisco IOS XE Software Consolidated Packages for Cisco ASR 903 Router
Cisco IOS XE Consolidated Package
Part Number
Description
Cisco ASR 903 Series RSP1 IOS XE Universal
SASR903R1U
• Provides a consolidated package
• Offers only basic feature support without a license
• Satisfies export requirements for non-cryptographic software
Cisco ASR 903 Series RSP1 IOS XE - No Payload Encryption
SASR903R1NPEK9
• Provides a consolidated package
• Offers only basic feature support without a license, including SSH and SNMPv3 support
Flexible Software Activation
The Cisco ASR 900 Series support the Cisco IOS software activation feature. With this capability, Cisco IOS Software feature sets can be activated with software licenses, supporting a "pay as services grow" model. This model allows service providers to invest in software resources only when their businesses need it. All Cisco ASR 900 Series software licenses are on a per-chassis basis. The Cisco ASR 903 Router offers three Cisco IOS Software licenses:
• Metro Services license: Offers advanced quality of service (QoS), Carrier Ethernet Layer 2 features, Synchronous Ethernet (SyncE) and Ethernet operations, administration, and maintenance (OAM) capabilities.
• Metro IP Services license: Offers all capabilities of the Metro Services license with the addition of IEEE 1588-2008 Ordinary Clock and Transparent Clock, Bidirectional Forwarding Detection (BFD), Layer 3 features for advanced IP routing protocols, multi-VPN routing, and Layer 3 Multicast and Forwarding Customer Edge (multi-VRF CE) capabilities.
• Metro Aggregation Services license: Adds the following capabilities to the Metro IP Services license: Muliprotocol Label Switching Transport Profile (MPLS-TP); MPLS, Ethernet over MPLS (EoMPLS), Circuit Emulation Service over Packet Switched Network (CESoPSN), and Structure Agnostic TDM over Packet (SAToP) pseudowires; Multi-Router Automatic Protection Switching (MR-APS); Multi-chassis Link Aggregation and Control Protocol (mLACP); MPLS traffic engineering (TE); MPLS Fast Reroute (FRR); and MPLS VPN support.
Table 2 lists the main features in the Cisco IOS licenses for the Cisco ASR 903 Router. Availability of features is dependent on software release and implementation schedule.
Table 2. Feature Sets in Cisco ASR 903 Router Licenses
Metro Services
Metro IP Services
Metro Aggregation Services
All features in Metro Services plus
All features in Metro IP Services Plus
QoS, with deep buffers and hierarchical QoS (HQOS)
IP routing (RIP, OSPF, EIGRP, BGP, IS-IS)
MPLS (LDP and VPN)
Layer 2: 802.1d, 802.1q
PIM (SM, DM, SSM), SSM mapping
MPLS TE and FRR
Ethernet Virtual Circuit (EVC)
BFD
MPLS OAM
Ethernet OAM (802.1ag, 802.3ah)
Multi-VRF CE (VRF lite) with service awareness (ARP, ping, SNMP, syslog, trace-route, FTP, TFTP)
MPLS-TP
Multiple Spanning Tree (MST) and Resilient Ethernet Protocol (REP)
IEEE 1588-2008 Ordinary Clock and Transparent Clock
Pseudowire emulation (EoMPLS, CESoPSN, and SAToP)
Synchronous Ethernet
VPLS and HVPLS
IPv4 and IPv6 host connectivity
Pseudowire redundancy
MR-APS and mLACP
Additional Feature Licenses
In addition to the preceding Cisco IOS feature-set licenses, two additional licenses are used to enable new software functionality for the Cisco ASR 903 Router in addition to the feature-set capabilities.
• ATM license: Allows service providers to enable ATM functionality on TDM interfaces when required. One license is required for each Cisco ASR 903 Router that needs ATM functionality to be enabled in the system. This includes support for ATM pseudowires over MPLS (ATMoMPLS), ATM local switching, ATM interworking, and local ATM termination. This license requires the system to have at least one T1/E1, OC-3/STM-1, or OC-12/STM-4 card installed.
• IEEE 1588-2008 BC/MC license: Allows service providers to enable IEEE 1588-2008 Boundary Clock (BC) or Master Clock (MC), or both, when required. One license is required for each chassis that needs IEEE 1588-2008 BC or MC functionality to be enabled in the system.
Cisco IOS XE Software Release Schedule
The Cisco IOS XE software delivery schedule allows customers to qualify releases more quickly and have a definitive release schedule for new software images. This schedule is summarized in the following highlights.
• Time-based releases: Releases are planned for delivery three times a year (every four months). New software features and hardware are introduced in each release. Releases have fewer incremental features included when compared with traditional Cisco IOS Software releases, reducing customer qualification time.
• Two release support durations: Each Cisco IOS XE Software release is classified as either a Standard Support or Extended Support release. A Standard Support release has a total engineering support lifetime of one year, with two scheduled rebuilds. The Extended Support release provides a total engineering support lifetime of two years, with four scheduled rebuilds. For more information about the Cisco IOS XE Software end-of-life policy and associated support milestones for specific Cisco IOS XE Software releases, visit http://www.cisco.com.
• Rebuilds scheduled at regular intervals: Rebuilds are created only for bug fixes, and no new features are included in a rebuild image. For Standard Support releases, the first rebuild image is released two months after the parent image's first customer shipment (FCS). The second rebuild image is released four months after the parent image's FCS. The Extended Support release provides four scheduled rebuilds. The first two of these rebuilds are released at two-month intervals after FCS of the affected Cisco IOS XE Software release, and the second two rebuilds are released at four-month intervals thereafter. Releases to correct critical problems (such as those identified by the Cisco Product Security Incident Response Team) are introduced as needed.
Part Numbers for License Options and Activation Keys
Table 3 lists part numbers for the Cisco ASR 903 Router software feature options.
Table 3. Cisco ASR 903 Router Software Options
Part Number
Product Name
Feature Set License Options
SLASR903-M
ASR 903 Metro Services
SLASR903-I
ASR 903 Metro IP Services
SLASR903-A
ASR 903 Metro Aggregation Services
Feature Set Product Activation Keys
SLASR903-M=
ASR 903 Metro Services Paper PAK
L-SLASR903-M=
ASR 903 Metro Services E-Delivery PAK
SLASR903-I=
ASR 903 Metro IP Services Paper PAK
L-SLASR903-I=
ASR 903 Metro IP Services E-Delivery PAK
SLASR903-A=
ASR 903 Metro Aggregation Services Paper PAK
L-SLASR903-A=
ASR 903 Metro Aggregation Services E-Delivery PAK
Feature Set Upgrade Product Activation Keys
SLASR903-M-I=
ASR 903 Metro to Metro IP Paper PAK
SLASR903-M-A=
ASR 903 Metro to Metro Aggregation Paper PAK
SLASR903-I-A=
ASR 903 Metro IP to Metro Aggregation Paper PAK
L-SLASR903-M-I=
ASR 903 Metro to Metro IP E-Delivery PAK
L-SLASR903-M-A=
ASR 903 Metro to Metro Aggregation E-Delivery PAK
L-SLASR903-I-A=
ASR 903 Metro IP to Metro Aggregation E-Delivery PAK
Feature Licenses
FLSASR903-ATM
ASR 903 ATM License
FLSASR903-1588
ASR 903 IEEE 1588-2008 BC/MC License
Feature Licenses Product Activation Keys
FLSASR903-ATM=
ASR 903 ATM License Paper PAK
L-FLSASR903-ATM=
ASR 903 ATM License E-Delivery PAK
FLSASR903-1588=
ASR 903 IEEE 1588-2008 BC/MC License Paper PAK
L-FLSASR903-1588=
ASR 903 IEEE 1588-2008 BC/MC License E-Delivery PAK
Major Features
Table 4 lists the features supported by Cisco IOS XE in the Cisco ASR 903 Router. Availability of features is dependent on software release and implementation schedule.
Table 4. Cisco ASR 903 Router Software Features
Features
Ethernet Services
• Ethernet Flow Point (EFP) with support for:
• 802.1q
• Selective QinQ
• Inner and Outer VLAN classification
• VLAN local significance
• One VLAN tag ingress push
• Pop one VLAN tag
• Pop two VLAN tags
• Trunk-EFP construct for configuration simplification
• IEEE 802.1s Multiple Spanning Tree (MST)
• Resilient Ethernet Protocol (REP)
• ITU G.8032
• 802.3ad/802.1ax Link Aggregation Control Protocol (LACP)
• Multi-chassis Link Aggregation Control Protocol (mLACP)
• Layer 2 Protocol Tunneling (L2PT)
• Virtual Private LAN Service (VPLS), Hierarchical VPLS (HVPLS), Virtual Private Wire Service (VPWS), Ethernet over MPLS (EoMPLS)
• Static Multicast MAC addresses
• IGMP snooping on Ethernet Flow Point
• Link Pass Through
• Pseudowire redundancy
• Hot Standby Pseudowire
• Multi-segment Pseudowire
TDM and ATM services
• Clear Channel and Channelized T1 and E1 ports on the 16 port T1/E1 interface module
• RAW socket transport on the 14-port Serial Interface Module
• Channelized OC-3/STM-1 mode on the 4 port OC-3/STM-1 Interface Module
• Packet over SONET (PoS) mode using PPP over SONET/SDH on the 4 port OC-3/STM-1 Interface Module - RFC 2615
• HDLC
• Point to Point Protocol (PPP) - RFC 1661
• Multilink PPP (ML-PPP), with maximum 16 T1 or E1 links per ML-PPP bundle - RFC 1990
