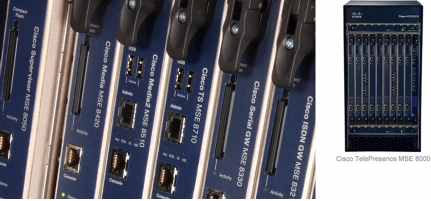

The Cisco TelePresence® MSE 8000 (MSE 8000) is a high-capacity voice and video conferencing media services engine. This powerful, fault-tolerant solution is ideal for the large-scale communication needs of large enterprises and service providers requiring a high-availability, high-performance, scalable solution.
Features and Benefits
The super robust Cisco TelePresence MSE 8000 is a high-capacity, carrier-class, voice and video conferencing chassis and has a system supervisor; hot-swap feature blades; and redundant, monitored power supplies and cooling system with the features listed in Table 1. Table 2 lists the components of the Cisco TelePresence MSE 8000.
• High-definition (HD) conferencing and gateway capabilities
• Redundant and hot-swappable fan trays and power supplies
• Dual 48-volt power option
• Active environmental monitoring
• High-speed backplane to create multiple multiblade multipoint control units (MCUs) and telepresence servers
• Supervisor blade for system management and configuration
• Extensive approvals and compliance
Application features
• Offers multiple and interchangeable functions, including media and gateway blades
• Extends the capabilities of large service providers by providing feature-rich conferencing, Serial and ISDN gateway, as well as system management and configuration in an all-in-one device
• Integrated with Cisco TelePresence Management Suite
Support capabilities*
• Up to 180 ports of HD 1080p multipoint
• Up to 720 ports of standard-definition (SD) multipoint
• Up to 72 ISDN Primary Rate Interface (PRI) instances
• Up to 144 serial ports in a single chassis
• Up to 216 HD 720p30 ports of TelePresence
• More than 1 Gbps of conferencing bandwidth
• Wide range of protocols supported, including H.323, Session Initiation Protocol (SIP), and H.320
• Advanced Encryption Standard (AES) encryption
• Standards-based and compatible with all major vendors' endpoints
• Support for Cisco TelePresence Multiway technology
* Optional feature blades required
Table 2. Cisco TelePresence MSE 8000 Components
System Components
Description
Cisco TelePresence MSE 8000
• 10-slot media services engine chassis with high-speed backplane
Cisco TelePresence MSE 8010 fan tray
• Hot-swap fan tray (for use in both top and bottom slots) with environmental monitoring
Cisco TelePresence AC Power Option
• Dual redundant 100-240 VAC power supply shelves
• NIC power shelf management module units
• 1-kW AC/DC rectifier modules
Cisco TelePresence Supervisor MSE 8050
• Supervisor blade, required for system management and configuration
Licensing
Software licenses are required in the Cisco TelePresence MSE 8000 chassis to enable the functions of individual blades. Refer to Table 3 for details.
• Required in Cisco TelePresence MSE 8000 chassis to enable one 1080p30 TelePresence screen or 2 x 720p30 TelePresence screen when allocated to the Cisco TelePresence Server MSE 8710
MCU (Media) port license
• Four required in Cisco TelePresence MSE 8000 chassis to enable one Full HD 1080p30 video port and one additional audio port when allocated to the Cisco TelePresence MCU MSE 8510
• Two required in Cisco TelePresence MSE 8000 chassis to enable one HD 720p30 video port and one additional audio port when allocated to the Cisco TelePresence MCU MSE 8510
• Required in Cisco TelePresence MSE 8000 chassis to enable one SD w448p30 video port and no additional audio ports when allocated to the Cisco TelePresence MCU MSE 8510
• Required in Cisco TelePresence MSE 8000 chassis to enable two nHD w360p30 video ports and no additional audio ports when allocated to the Cisco TelePresence MCU MSE 8510
• Required in Cisco TelePresence MSE 8000 chassis to enable one SD video port and one additional audio port when allocated to the Cisco TelePresence MCU MSE 8420
PRI port license
• Required in Cisco TelePresence MSE 8000 chassis to enable one ISDN PRI port when allocated to the Cisco TelePresence ISDN GW MSE 8321
Serial port license
• Required in Cisco TelePresence MSE 8000 chassis to enable one Serial GW port when allocated to the Cisco TelePresence Serial GW MSE 8330
TelePresence Screen Migration Option
• Required in Cisco TelePresence MSE 8000 chassis to enable the conversion of MCU (Media) port licences to TelePresence Server (TS) screen licences
Product Specifications
Table 4 lists the product specifications for the Cisco TelePresence MSE 8000.
Table 4. Product Specifications
Feature
Specification
Product compatibility
• Standards-based and compatible with all major vendors' endpoints
Software licenses
• The port licensing model offers added flexibility.
• Port licenses are purchased for the Cisco TelePresence MSE 8000 to enable screen and port functions.
• Port licenses are stored in the chassis, and the Cisco TelePresence Supervisor MSE 8050 can allocate licenses to slots.
• Optional feature blades must be inserted into slots to use software licenses.
Chassis
• Fault-tolerant, high-availability chassis
• Ten hot-swappable option slots
• Redundant power inputs and hot-swappable fan trays
• Dual independent 48-volt DC power inputs
• Active environmental monitoring
• High-speed backplane and management bus
AC power supply
• Two independent AC power shelves convert power for the two DC power inputs of the chassis
• Each shelf has multiple redundant hot-swap rectifier modules
• Each rectifier has its own independent AC inlet
Cisco TelePresence Supervisor MSE 8050
• Actively monitors and manages the chassis and blades
• Hot-swappable without affecting feature blade operation
• Configures blades and monitors the status of blades, fans, air filters, power feeds, and AC power supply shelves
• Alert generation
• Standard telco alarm connector
• Management through built-in web server
• RS-232 for local control and diagnostics
• Strong password policy
• Syslog for diagnostics
• Configuration backup over network
• Secure upgrades through Ethernet or CompactFlash
• Certificate-based login with OCSP certificate checking
• Audit log
Optional feature blades
• The following feature blades can be slotted into a powered Cisco TelePresence MSE 8000 chassis:
• Cisco TelePresence Server MSE 8710: Up to 24 screens of HD telepresence conferencing
• Cisco TelePresence MCU MSE 8510: Up to 20 ports of HD video plus 20 ports of voice multipoint conferencing, or up to 80 ports of SD video multipoint conferencing
• Cisco TelePresence MCU MSE 8420: Up to 40 ports of SD video plus 40 ports of voice multipoint conferencing
• Cisco TelePresence ISDN GW MSE 8321: Up to 8 E1 or T1 ISDN primary rate interfaces
• Cisco TelePresence Serial GW MSE 8330: Up to 16 serial ports
Note: Refer to individual data sheets for detailed description of blades.
Language
• English as standard; alternative language packs can be loaded onto the system
Physical dimensions (H x W x D)
• Physical dimensions: 33.25 x 17.2 x 20.5 in. (842 x 437 x 520 mm) (19 rack units [19RU])
• 19-in. rack-mountable (kit supplied)
Weight
• 110 lbs (50 kg)
Power
• -48 VDC, 100-240 VAC 50/60 Hz
Environmental data
• Operating temperature: (0 to 35°C) ambient
• Relative humidity below 95% (noncondensing)
Approvals and compliance
• European safety: EN 60950-1
• USA/Canada safety: UL 60950-1
• CB, CE
• EMC: EN55022 class A, ETS EN300 386, EN61000-3-2
Comes with: Cisco TelePresence MSE 8000 Chassis, Cisco TelePresence Supervisor MSE 8050 and dual redundant AC/DC power shelves for AC powered option.
Need to order at least one Cisco TelePresence MSE 8000 blade option and screen or port license options to make a functional system.
Cisco TelePresence MSE 8000 blade options - order at least one blade for a functional system:
Cisco TelePresence Server MSE 8710 blade
Multi-screen Interoperability Option for MSE 8710 blade
AES and HTTPS Encryption Option for MSE 8710 blade
CTI-8710-TS-K9
LIC-8710-TPI
LIC-AESCDN7-K9
Cisco TelePresence MCU MSE 8510 blade
Conference Director Option for MSE 8510 blade
AES and HTTPS Encryption Option for MSE 8510 blade
CTI-8510-MED2-K9
LIC-8510-CCD
LIC-AESCDN7-K9
Cisco TelePresence MCU MSE 8420 blade
Conference Director Option for MSE 8420 blade
AES and HTTPS Encryption Option for MSE 8420 blade
CTI-8420-MED-K9
LIC-8420-CCD
LIC-AESCDN7-K9
Cisco TelePresence ISDN GW MSE 8321 blade
AES and HTTPS Encryption Option for MSE 8321 blade
CTI-8321-GWISDNK9
LIC-AESCDN7-K9
Cisco TelePresence Serial GW MSE 8330 blade - up to 16 ports
Cisco TelePresence Serial GW 16 DB26 Rack Mount Bracket Kit
Cisco TelePresence Serial GW Y Cable to 2 DB26 connectors
AES and HTTPS Encryption Option for MSE 8330 blade
CTI-8330-GWS-K9
CTI-GWS-16DB-BRK
CTI-GWS-CAB-2DB26
LIC-AESCDN7-K9
Port license options for Cisco TelePresence MSE 8000 chassis - Use these part numbers when placing an initial order: must order at least one port (screen) license for each blade that you order:
1 TS screen license for use with Cisco TS MSE 8710
LIC-8710-1SL
1 HD 720p or 2 SD MCU (media) port licenses for use with MCU MSE 8510
LIC-8420-2PL
2 SD MCU (media) port licenses for use with MCU MSE 8420
LIC-8420-2PL
4 Serial Port Licenses for use with MSE 8330
LIC-8330-4PL
1 PRI port license for use with ISDN GW MSE 8321
LIC-8310-1PL
Cisco TelePresence MSE 8000 chassis port license PAK (Product Authorization Key) for post sale upgrades
L-8000-CHLIC-PAK
Start with L-8000-CHLIC-PAK in order to view the options listed below:
1 TS screen license for use with Cisco TS MSE 8710
L-8710-1SL
1 HD 720p or 2 SD MCU (media) port licenses for use with MCU MSE 8510
L-8420-2PL
2 SD MCU (media) port licenses for use with MCU MSE 8420
L-8420-2PL
4 Serial Port Licenses for use with MSE 8330
L-8330-4PL
1 PRI ISDN port license for use with ISDN GW MSE 8321
L-8310-1PL
TelePresence Screen Migration Option
L-8000-TSMO
AES and HTTPS Encryption Option for MSE 8050 blade for post sales upgrade
L-AESCDN7-K9=
Air filter consumables kit for MSE 8000 chassis, 4 air filters
CTI-8000-4AIRF=
1kW AC/DC power shelf rectifier module
CTI-8000-VALRCTF=
